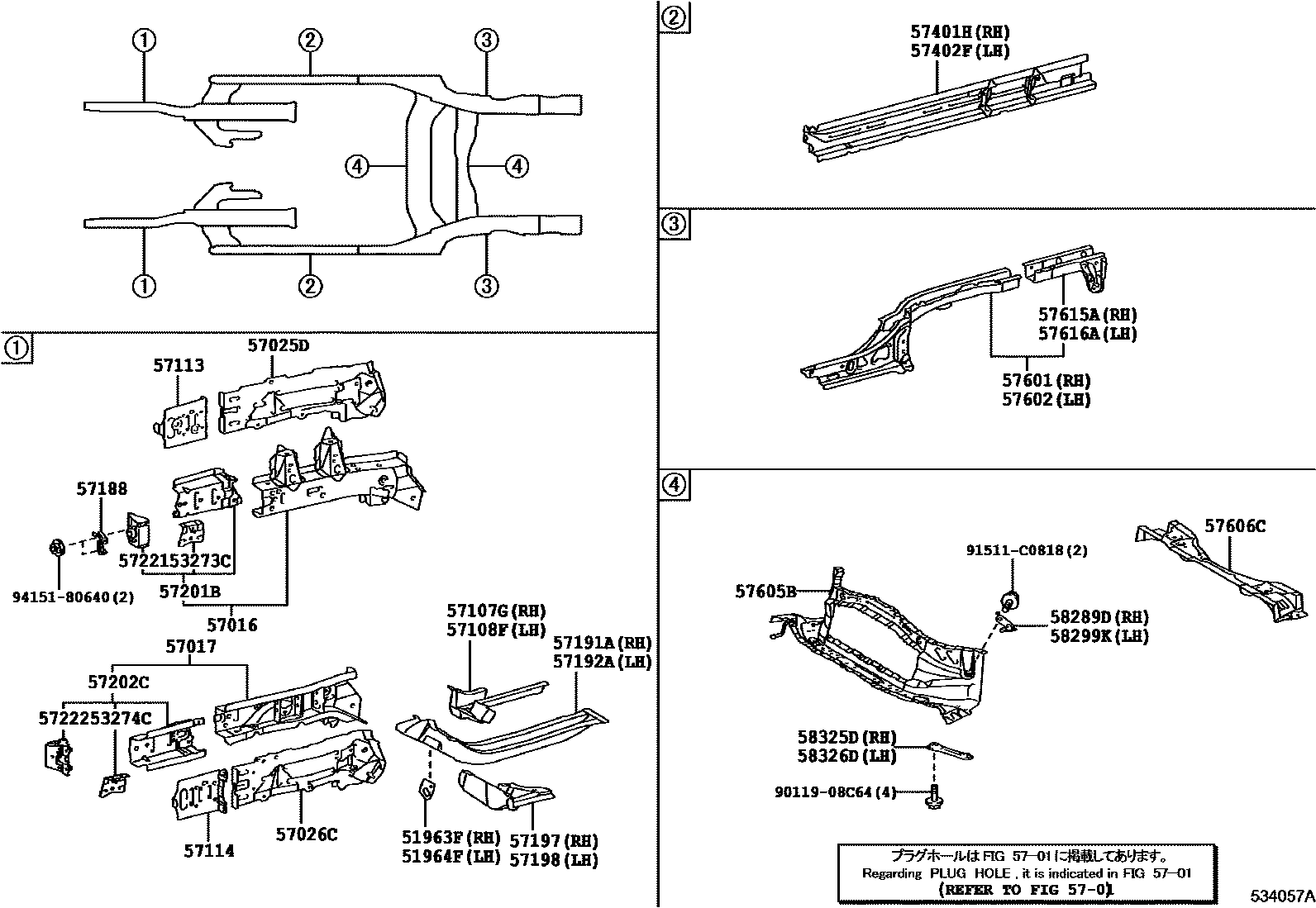

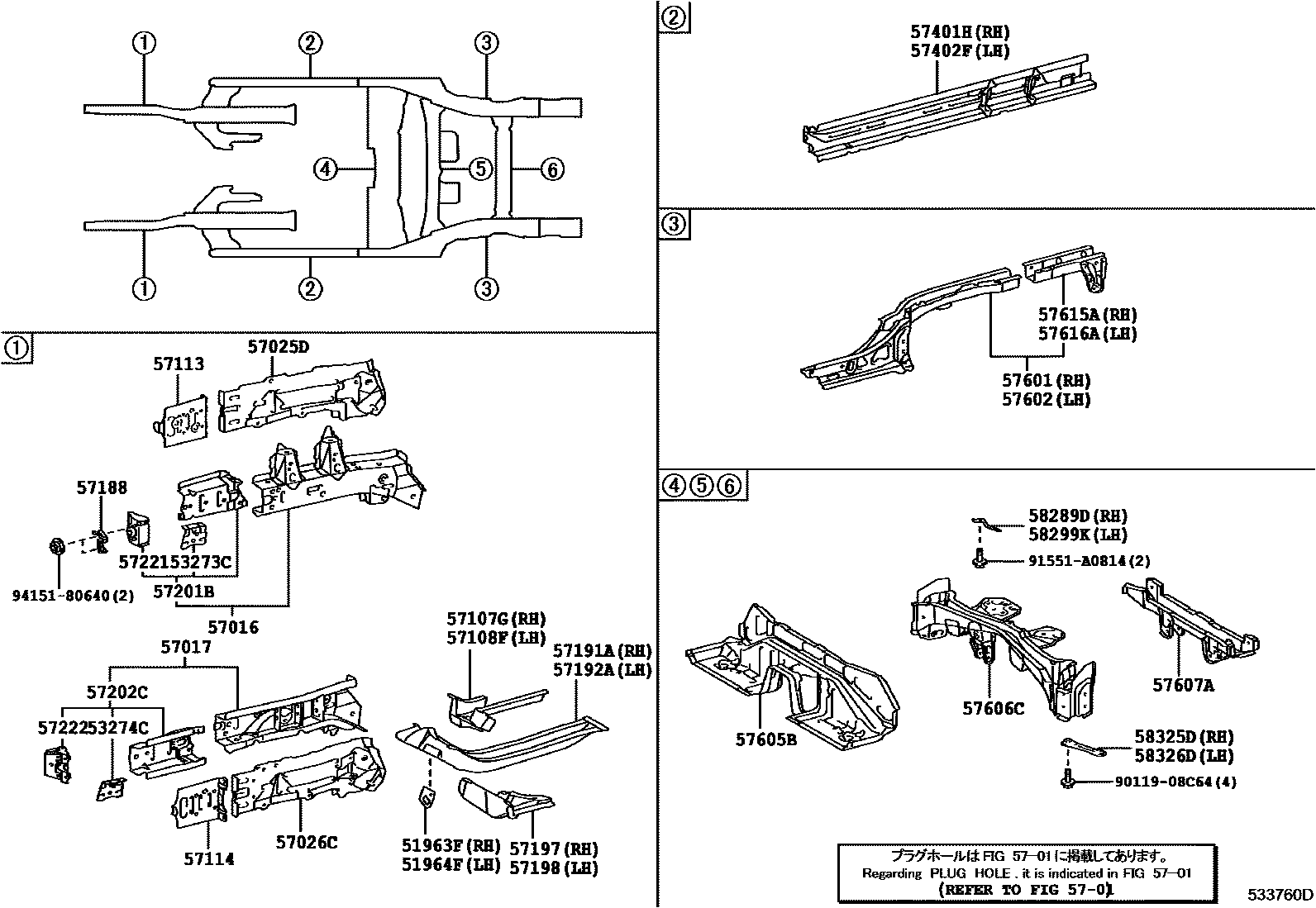

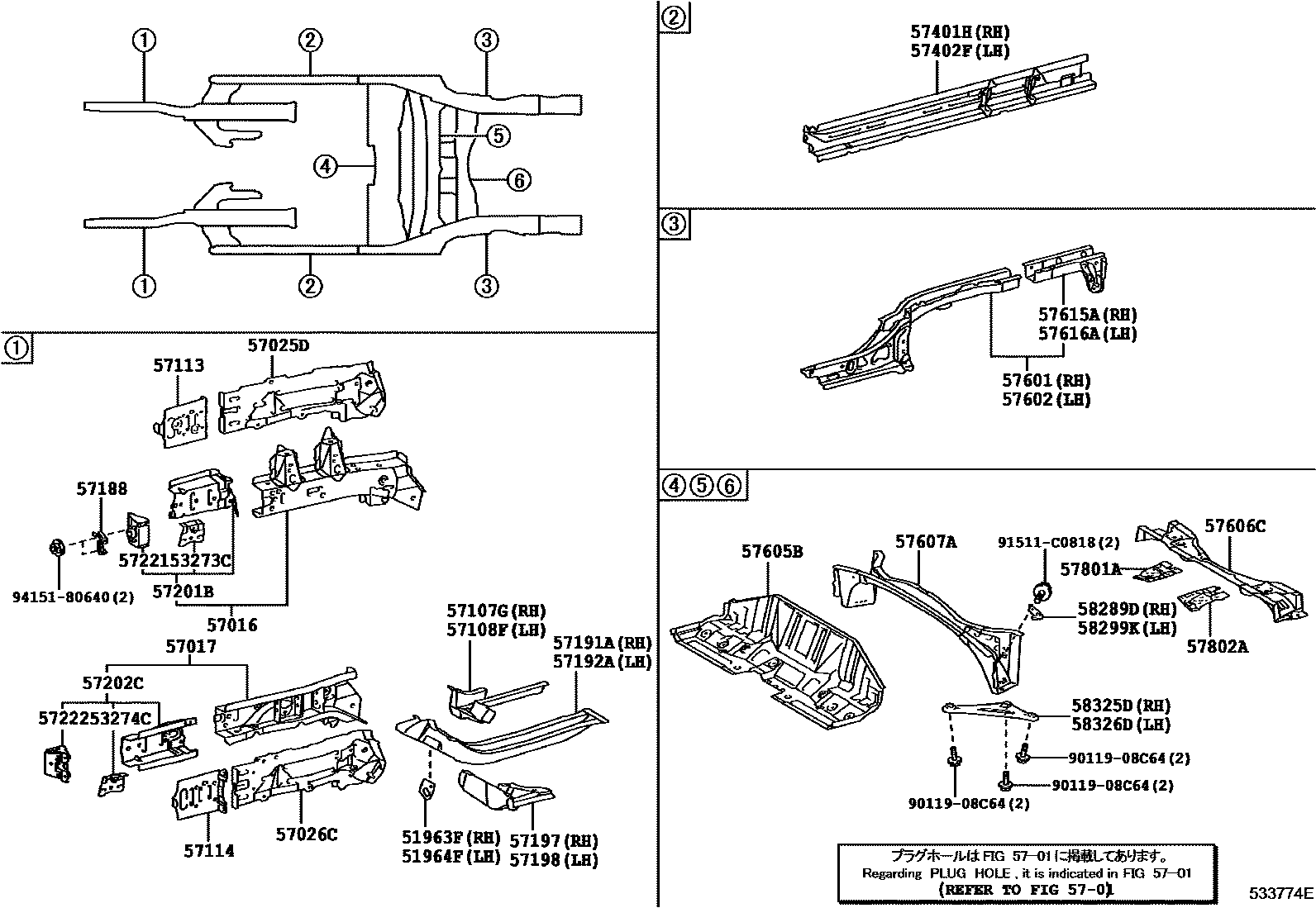

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 3 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51963F | transport hook | 51963-52050 |
| 51964F | left transport hook | 51963-52050 |
| 53273C | Radiator right side bracket reinforcement | 53273-52030 |
| 53274C | Radiator left bracket reinforcement | 53274-52020 |
| 57016 | Right front longitudinal beam reinforcement sub-assembly | 57016-52090 |
| 57017 | Left front longitudinal beam reinforcement sub-assembly | 57017-52100 |
| 57025D | Right front outer longitudinal beam sub-assembly | 57025-52010 |
| 57026C | Left front outer longitudinal beam sub-assembly | 57026-52010 |
| 57107G | Right front suspension cross member rear mounting bracket sub-assembly | 57107-52030 |
| 57108F | Left front suspension cross member rear mounting bracket sub-assembly | 57108-52030 |
| 57113 | Right front longitudinal beam extension | 57113-52010 |
| 57114 | Left front longitudinal beam extension | 57114-52010 |
| 57188 | Right front longitudinal beam extension reinforcement | 57188-52020 |
| 57191A | Right rear longitudinal member inside front floor | 57191-52020 |
| 57192A | Left rear longitudinal member inside front floor | 57192-52020 |
| 57197 | Right front torsion box section piece | 57197-52030 |
| 57198 | Left front anti-torsion box section piece | 57198-52030 |
| 57201B | Right front longitudinal beam extension sub-assembly | 57201-52020 |
| 57202C | Left front longitudinal beam extension sub-assembly | 57202-52020 |
| 57221 | Right front longitudinal beam bracket | 57013-52040 |
| 57222 | Left front longitudinal beam bracket | 57014-52030 |
| 57401H | Floor right inner longitudinal beam sub-assembly | 57401-52190 |
| 57402F | Floor left inner longitudinal beam sub-assembly | 57402-52210 · 57402-52280 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-12B20 · 57601-12B23 · 57601-12B60 · 57601-12B63 · 57601-12B80 · 57601-12B90 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-12C30 · 57602-12C33 · 57602-12C40 · 57602-12C43 · 57602-12C60 · 57602-12C70 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-52160 · 57605-52170 · 57605-52180 · 57605-52181 · 57605-52182 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-52170 · 57606-52171 · 57606-52180 · 57606-52181 · 57606-52182 · 57606-52183 |
| 57607A | Rear floor No. 3 cross member sub-assembly | 57607-52071 · 57607-52121 · 57607-52122 · 57607-52123 |
| 57615A | Rear floor right rear longitudinal member | 57615-52907 |
| 57616A | Rear floor left rear longitudinal member | 57616-52908 |
| 57801A | Rear floor right longitudinal beam reinforcement sub-assembly | 57801-52130 |
| 57802A | Rear floor left longitudinal beam reinforcement sub-assembly | 57802-52130 |
| 58289D | Rear floor brake hose bracket | 58289-52040 · 58289-52100 |
| 58299K | Rear floor brake hose left bracket | 58299-52070 · 58299-52110 |
| 58325D | Rear floor right bracket | 58251-52020 · 58251-52040 |
| 58326D | Rear floor left bracket | 58251-52020 · 58252-52070 |
