Toyota COROLLA 发动机盖和前翼子板 — Figure 5302

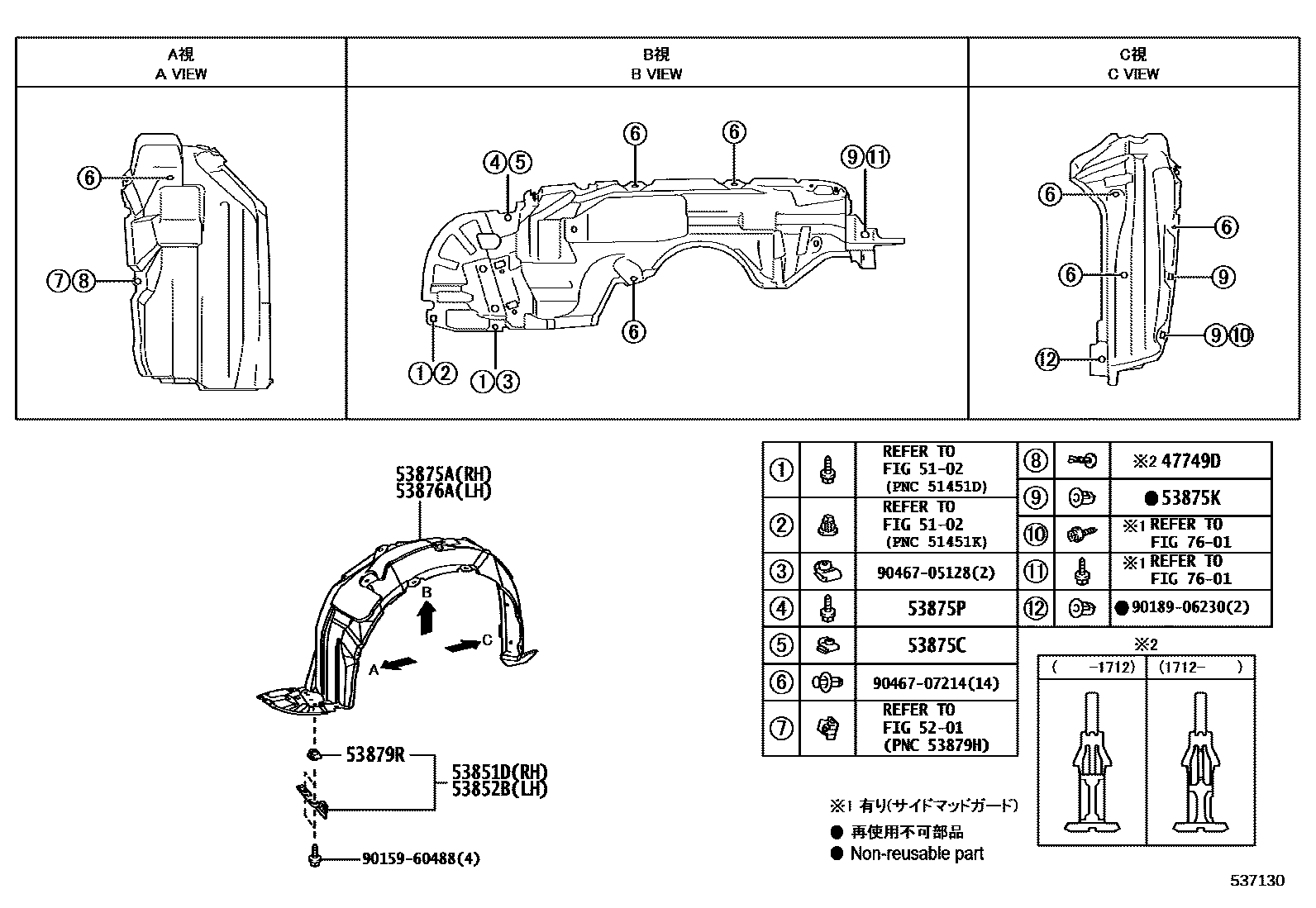

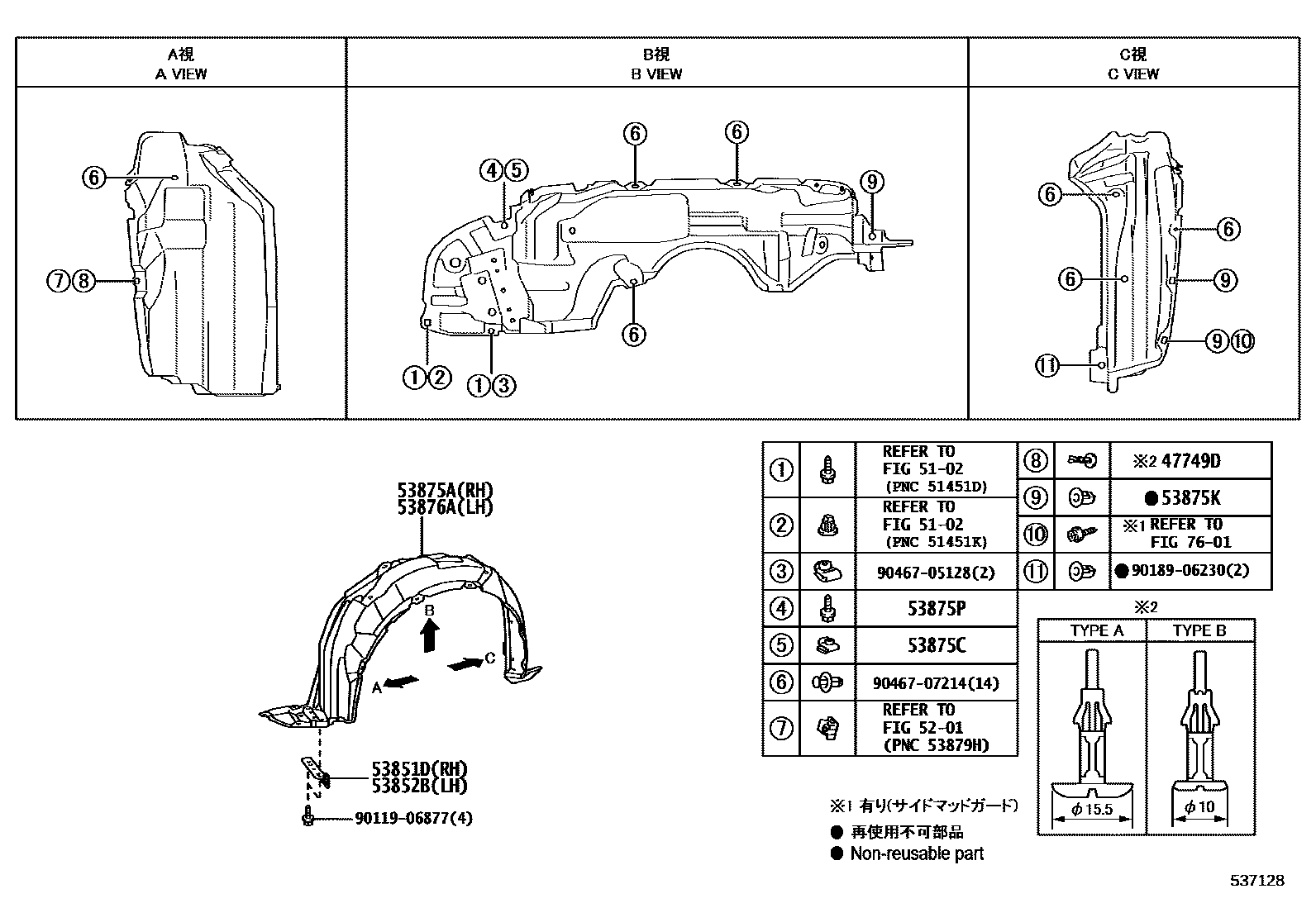

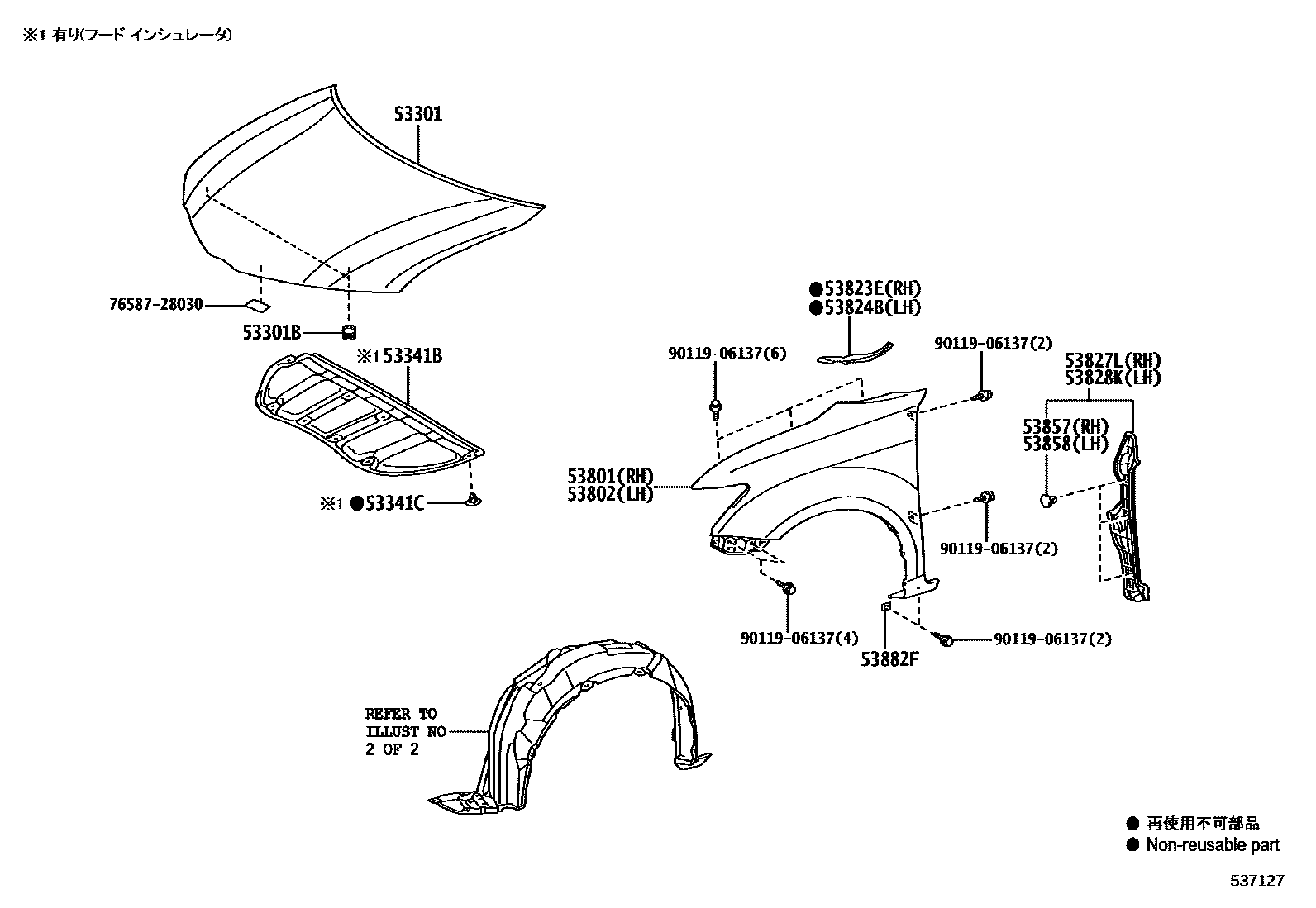

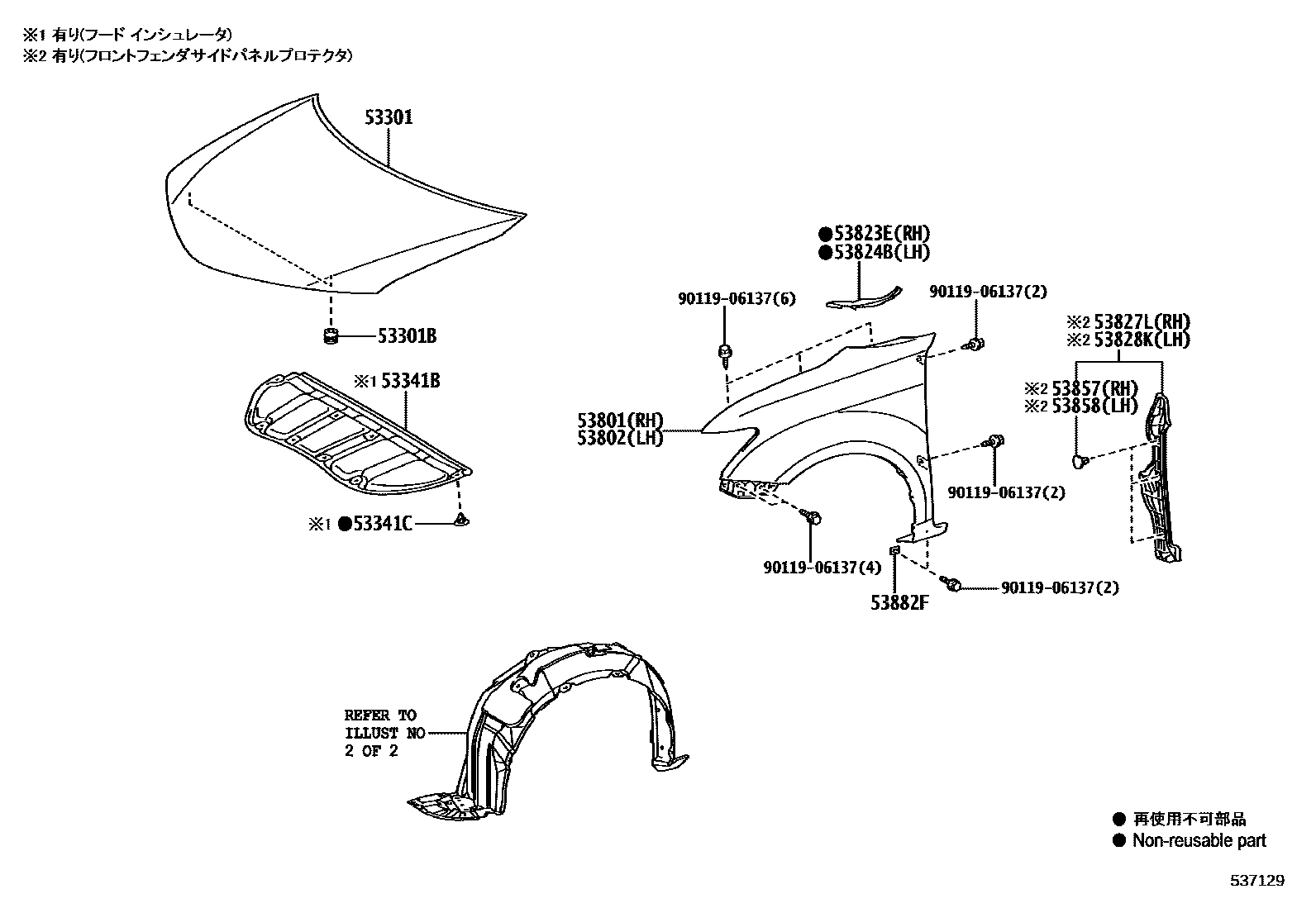

Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 4 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749D | pin fixing clip | 47749-30030 · 47749-50090 · 47749-58010 |
| 53301 | Engine cover sub-assembly | 53301-12B20 · 53301-12B30 |
| 53301B | engine cover cushion | 90541-15037 · 90541-15111 |
| 53341B | engine cover gasket | 53341-12320 · 53341-12321 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 |
| 53801 | Right front fender sub-assembly | 53811-12B80 · 53811-12B90 · 53811-13160 · 53811-13170 |
| 53802 | Left front fender sub-assembly | 53812-12B80 · 53812-12B90 · 53812-13150 · 53812-13160 |
| 53823E | No. 2 right front side panel protector | 53823-12020 · 53823-12021 |
| 53824B | No. 2 left front side panel protector | 53824-12010 · 53824-12011 |
| 53827L | Right front fender side panel protector | 53827-12140 |
| 53828K | Left front fender side panel protector | 53828-12140 |
| 53851D | Right front fender outer panel pad | 53851-12090 · 53851-12100 |
| 53852B | Left front fender exterior panel pad | 53852-12090 · 53852-12140 |
| 53857 | Right front fender external panel fixing piece | 53857-47011 |
| 53858 | Left front fender external panel fixing piece | 53857-47011 |
| 53875A | Right front fender lining | 53805-12070 · 53805-12080 · 53805-12081 · 53875-12570 · 53875-12580 · 53875-12581 |
| 53875C | Front fender lining clip | 90467-05114 |
| 53875K | Toyota part | 90189-06013 |
| 53875P | Toyota part | 90159-60590 |
| 53876A | Left front fender lining | 53806-12070 · 53806-12080 · 53806-12081 · 53876-12550 · 53876-12560 · 53876-12561 |
| 53879R | Front fender lining fixing parts | 53879-17020 |
| 53882F | front fender seal | 53882-16030 |
