Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 4 images and 7 PNC and OE references.

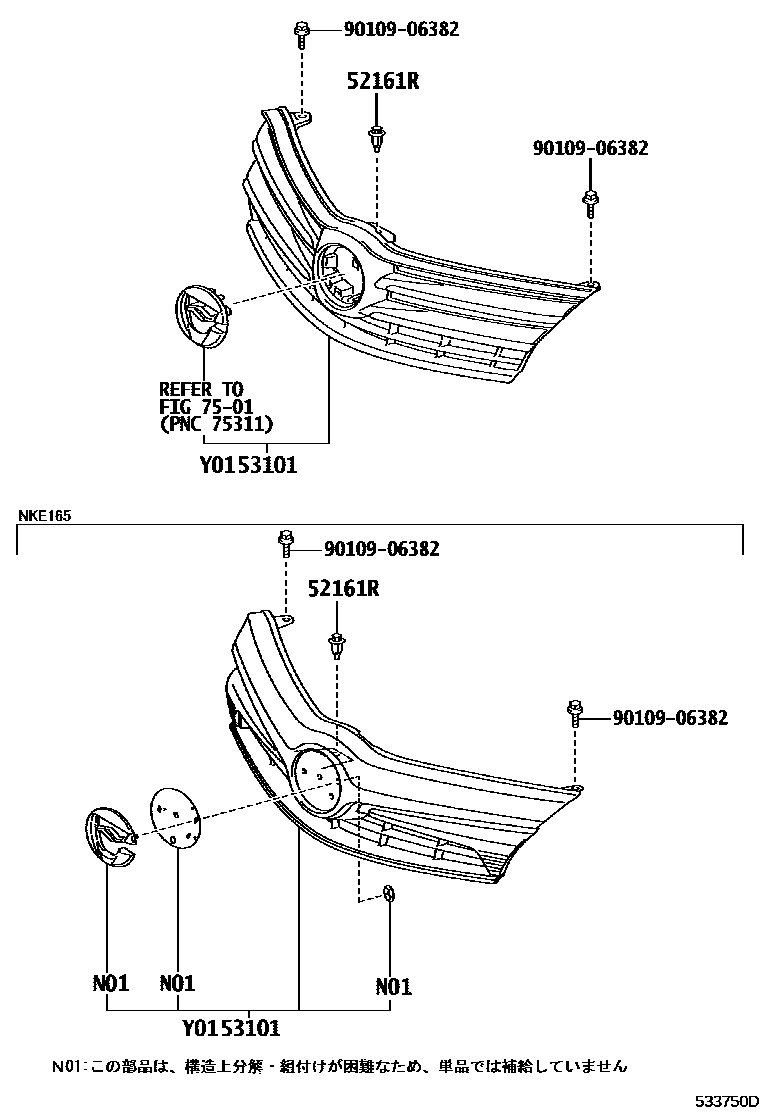

Toyota COROLLA radiator grille EPC diagram — 533750D
radiator grille — 533750D (201204 – 201503)

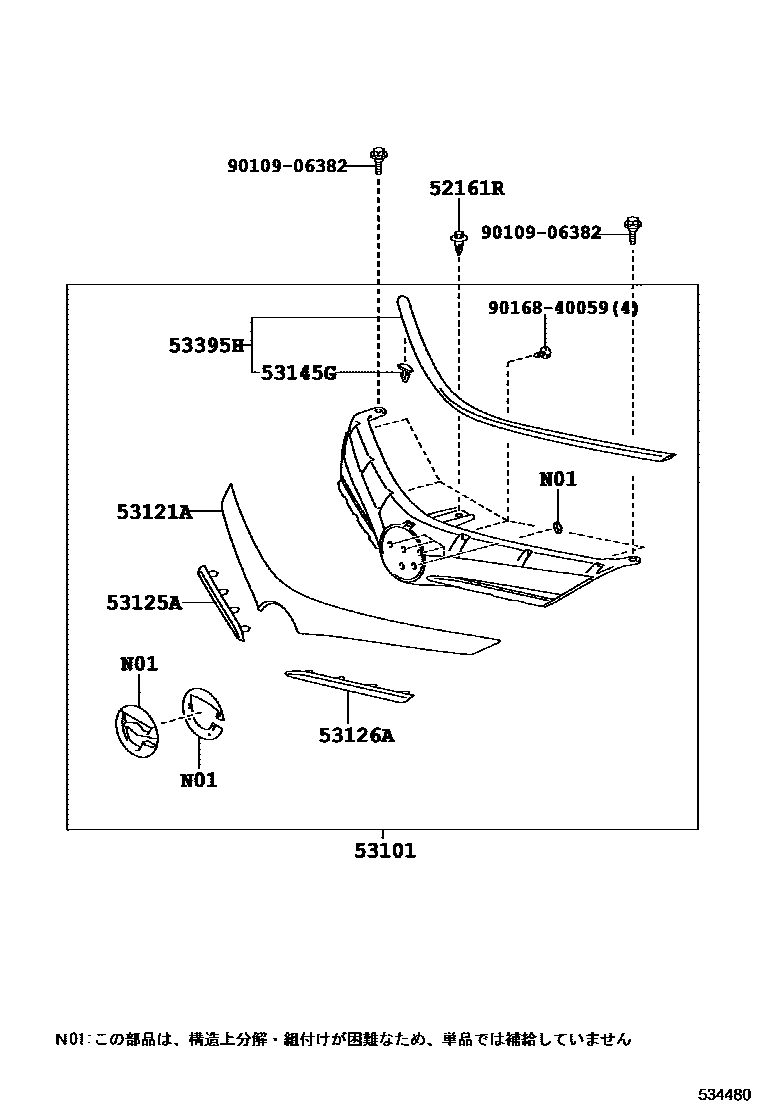

Toyota COROLLA radiator grille EPC diagram — 534480
radiator grille — 534480 (201503 – 201710)

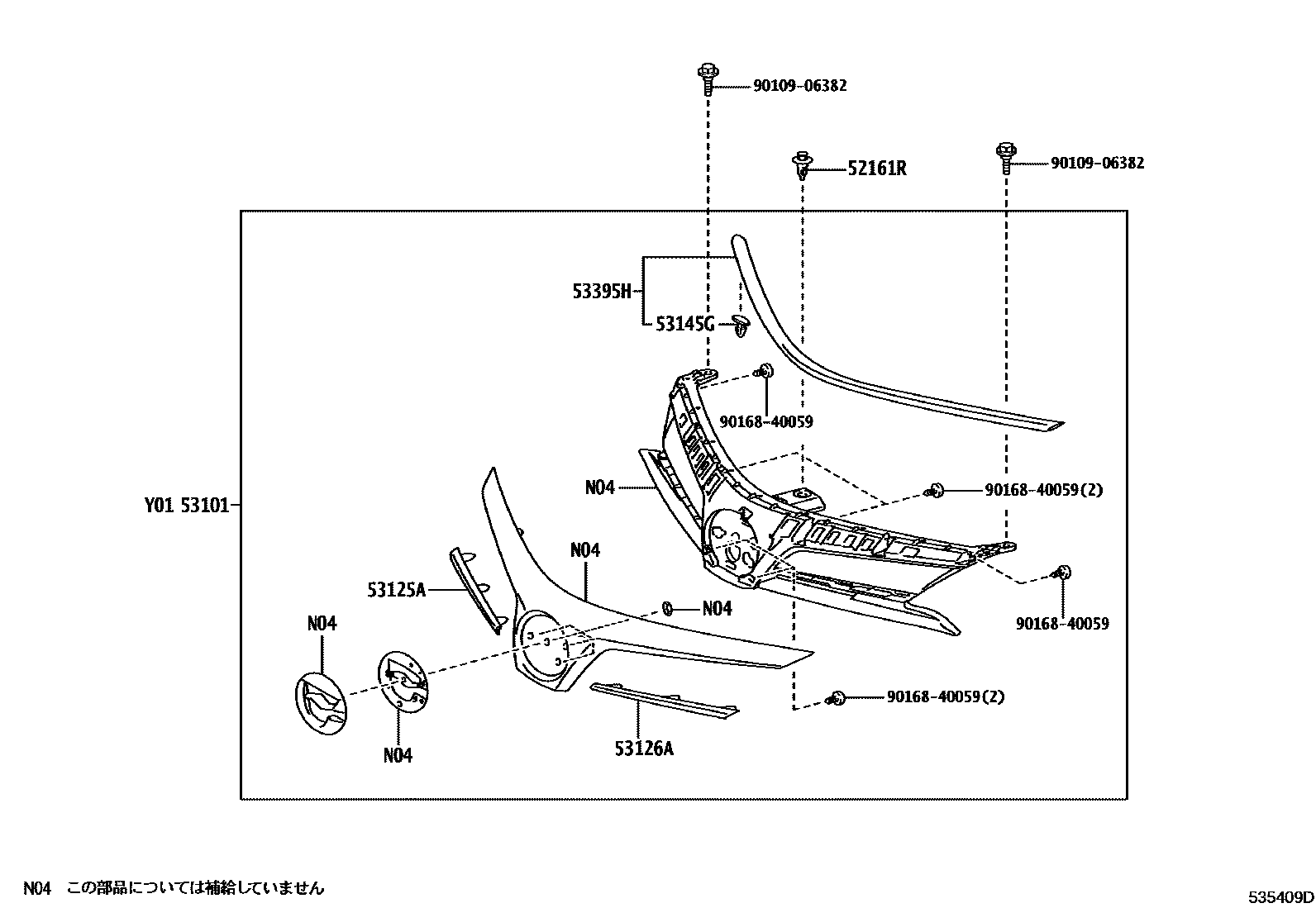

Toyota COROLLA radiator grille EPC diagram — 535409D
radiator grille — 535409D (201710 – 999999)

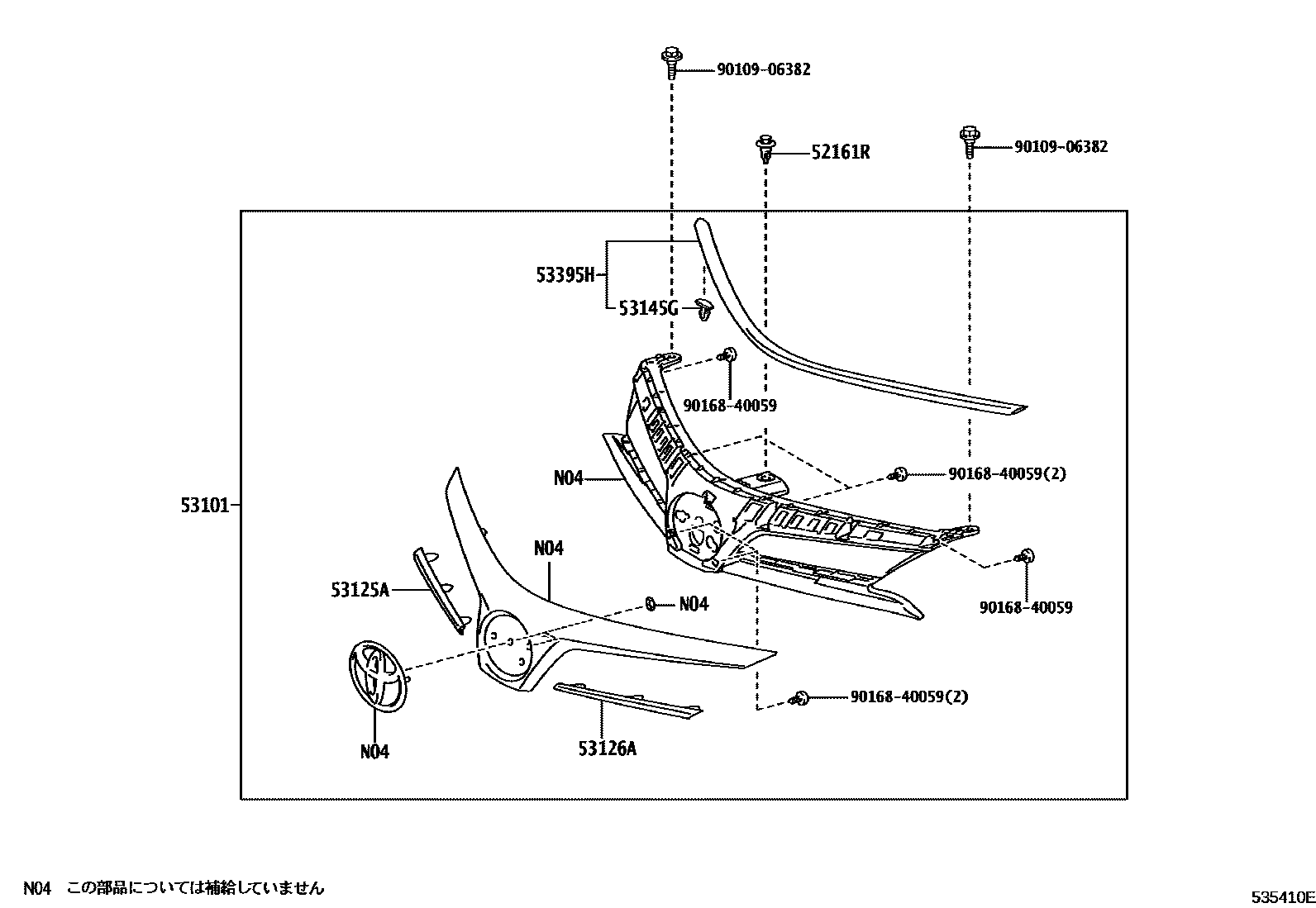

Toyota COROLLA radiator grille EPC diagram — 535410E
radiator grille — 535410E (201802 – 999999)

PNC and OE references

PNCPart nameOE numbers
52161Rfront bumper insert52161-16010
53101Radiator grille sub-assembly53101-12B30 · 53101-12C30 · 53101-12C40 · 53101-12C60 · 53101-12D00 · 53101-12D20 · 53101-12D40 · 53101-12D50 · 53101-12D60 · 53101-12D70 · 53101-12D80 · 53101-13280 · 53101-13300 · 53101-13310 · 53101-13390 · 53101-13410
53121ARadiator grille protection strip53121-12300 · 53121-13050
53125ARadiator grille right center protective strip53125-12020 · 53125-12030
53126ARadiator grille left middle protective strip53126-12020 · 53126-12050
53145GRadiator grille clip53145-60030
53395HEngine cover to radiator grille seal53395-12130
