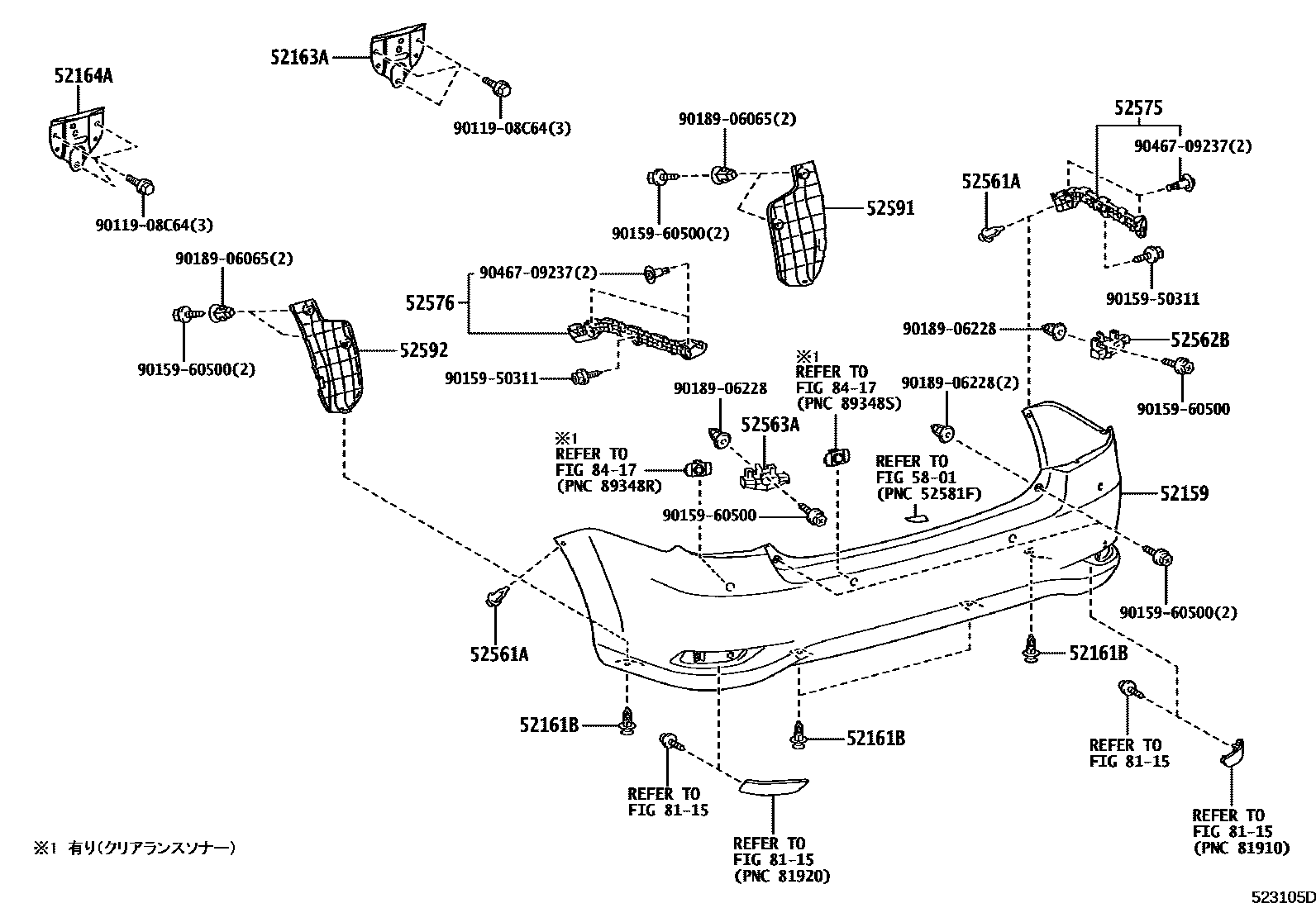

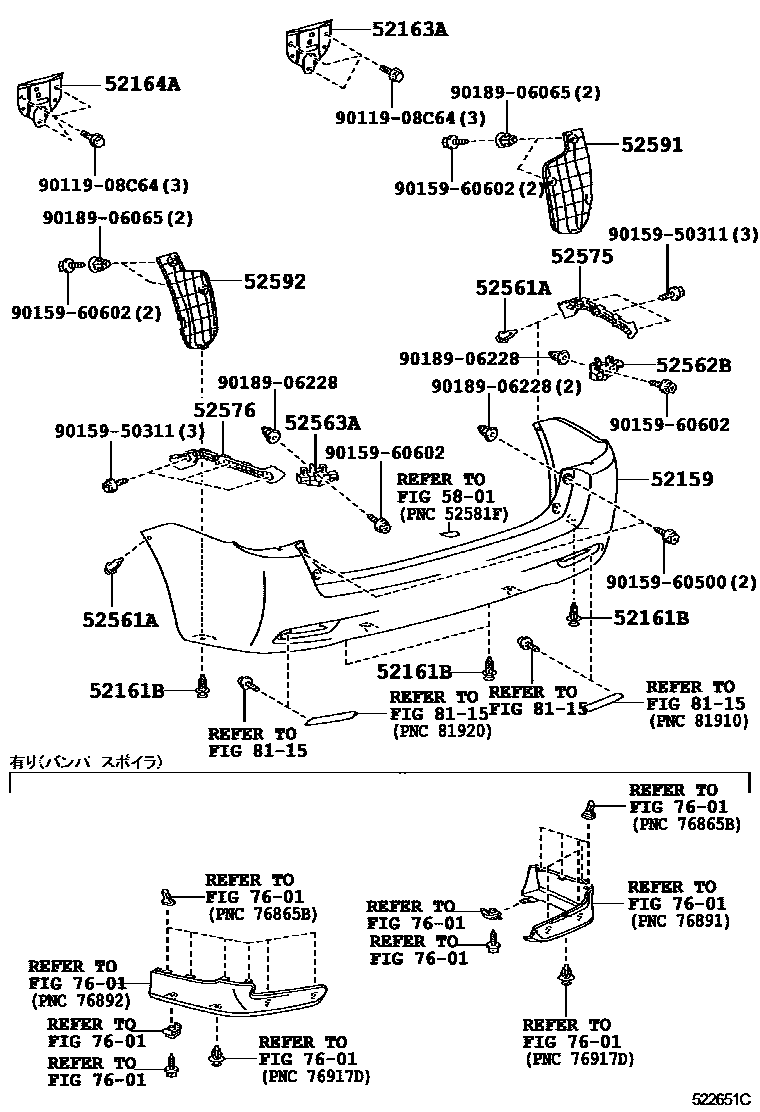

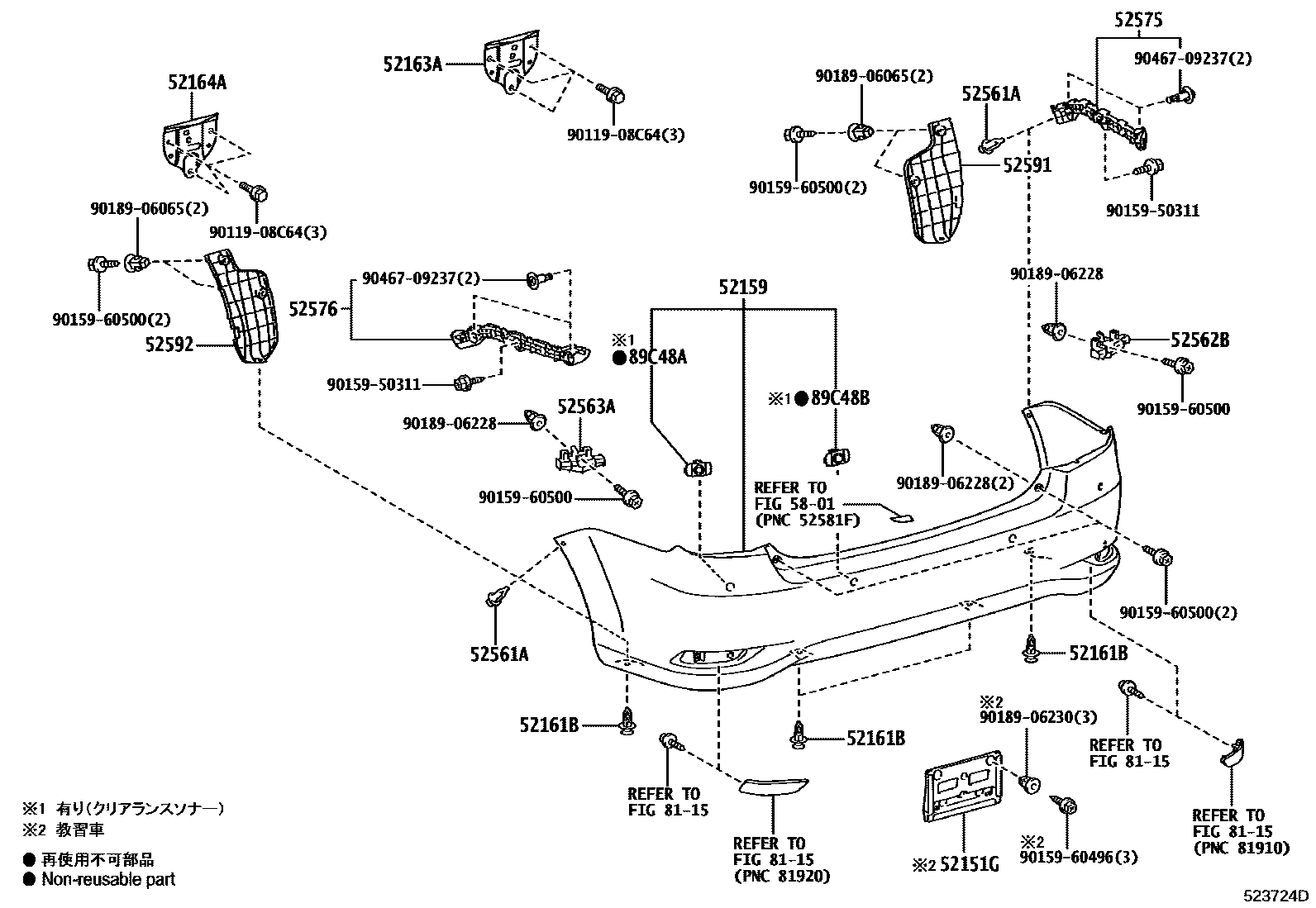

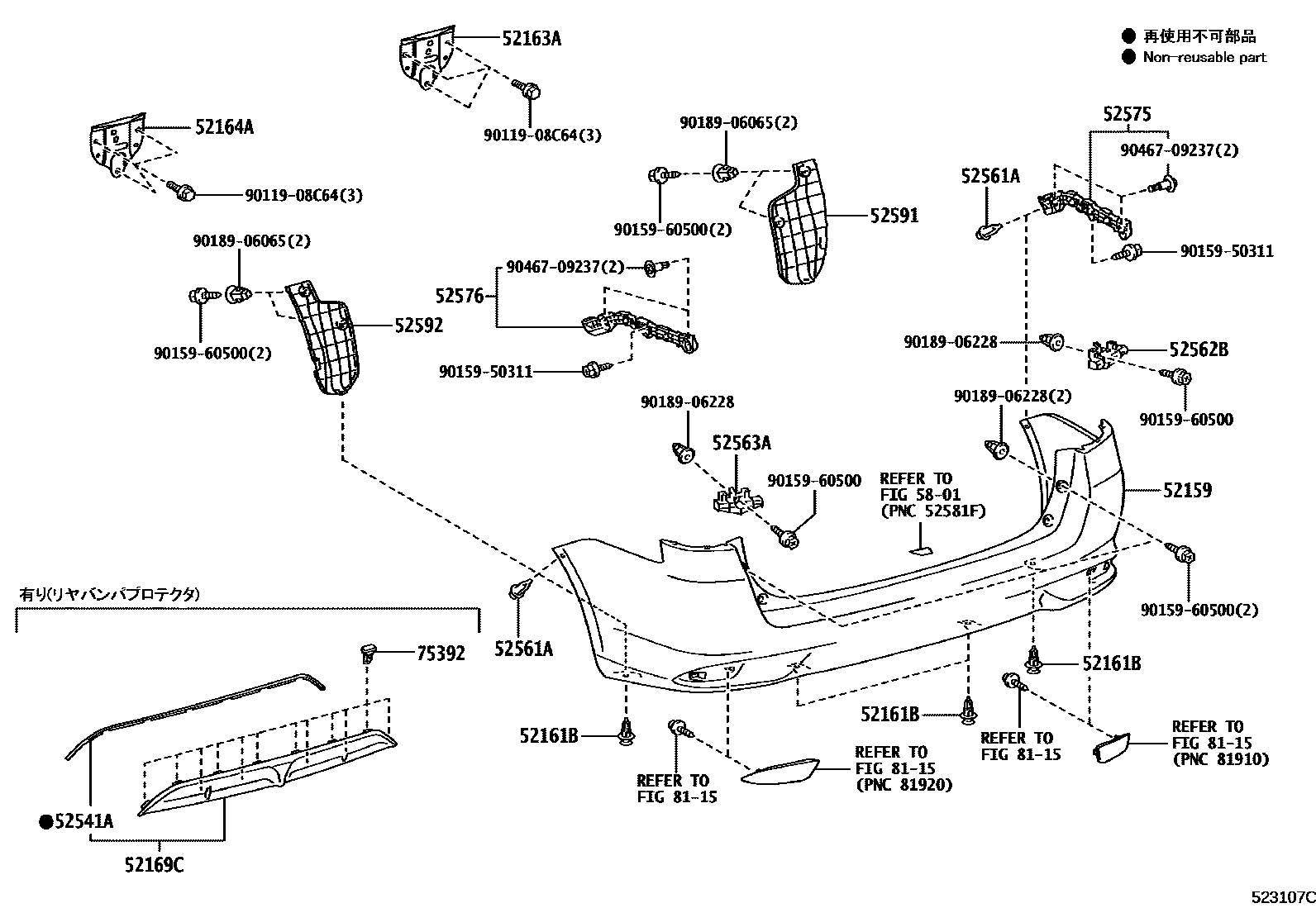

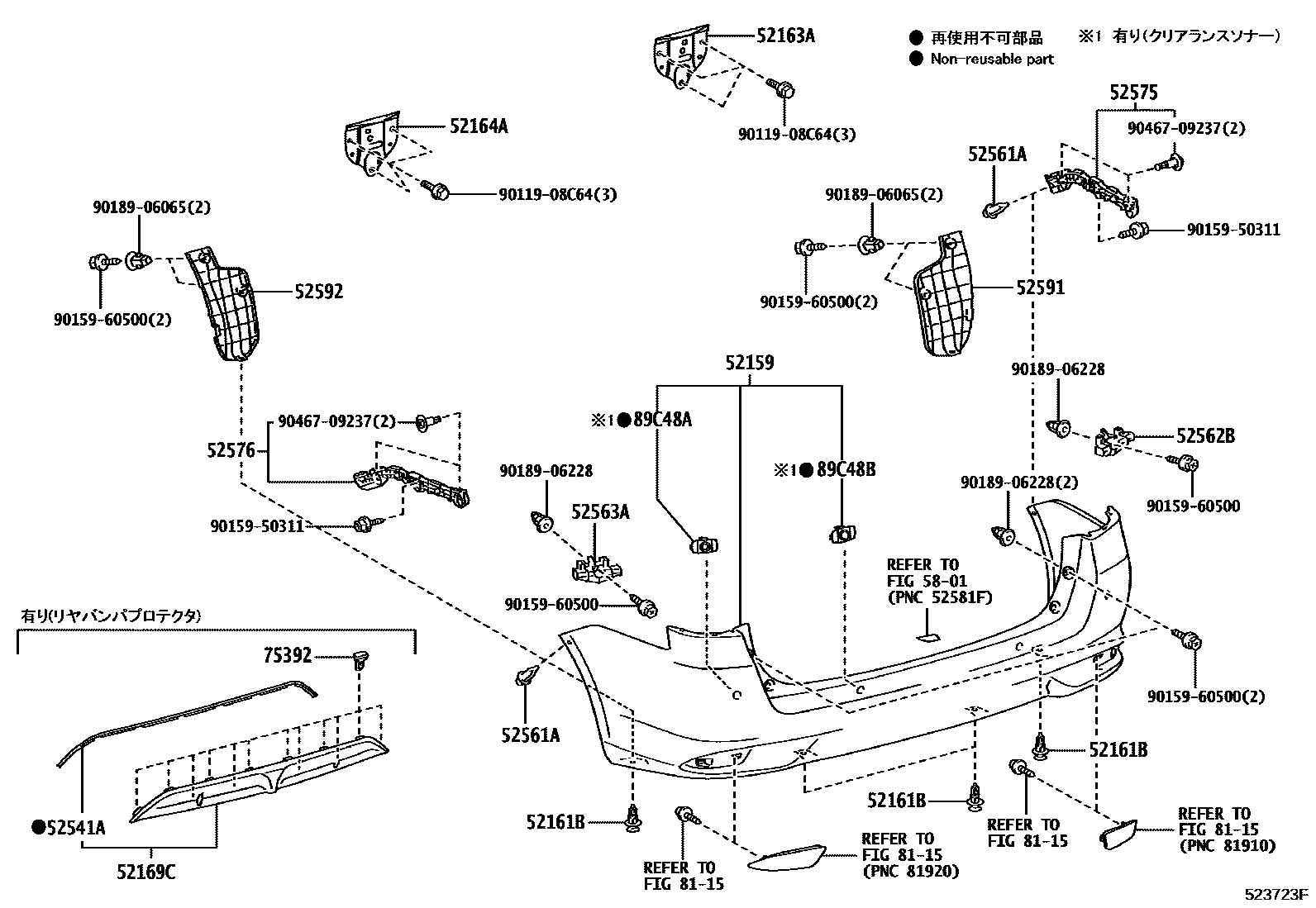

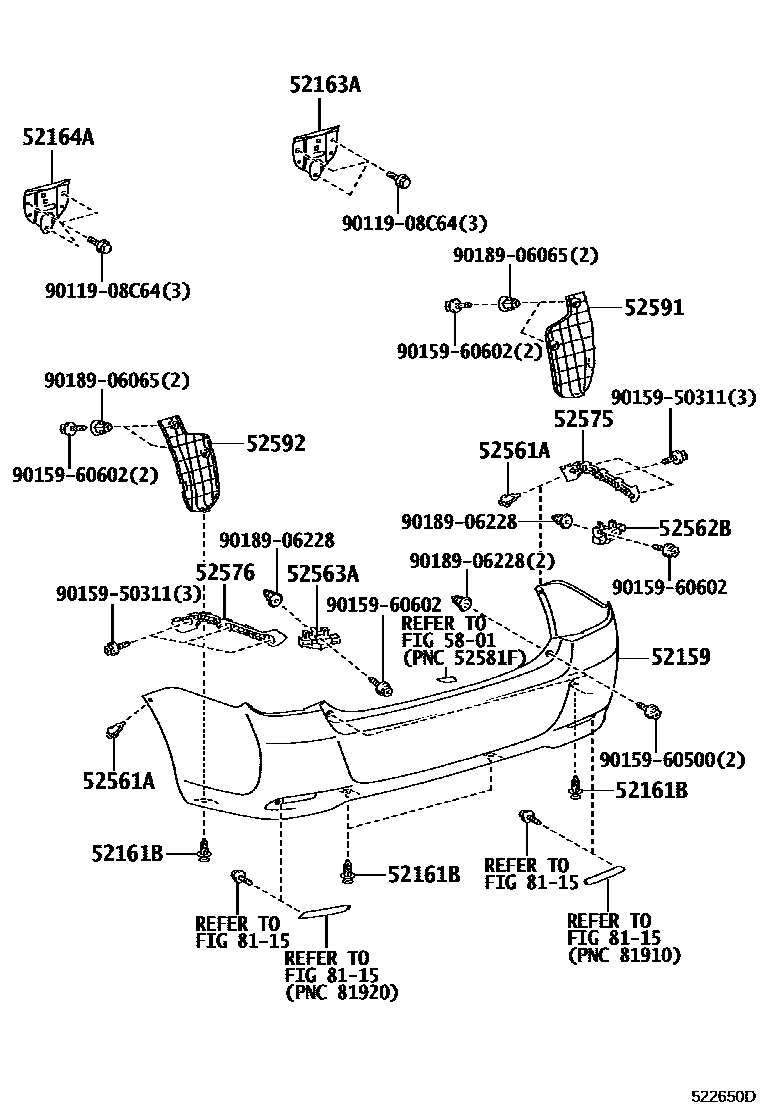

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 6 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52151G | Rear bumper extension | 52151-12390 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52163A | Rear bumper right side fender | 52163-52080 |
| 52164A | Rear bumper left fender | 52164-52080 |
| 52169C | Rear bumper lower cover | 52169-13060 |
| 52541A | rear bumper protector | 76876-13020 |
| 52561A | Clip (for rear bumper mount) | 90467-05170 |
| 52562B | Rear bumper upper right fixing bracket | 52562-12190 · 52562-12210 · 52562-13070 · 52562-13090 |
| 52563A | Rear bumper upper left fixing bracket | 52563-12110 · 52563-12130 · 52563-13040 · 52563-13070 |
| 52575 | Rear bumper right side fixing bracket | 52575-12200 · 52575-12220 · 52575-13070 · 52575-13090 |
| 52576 | Rear bumper left side fixing bracket | 52576-12200 · 52576-12220 · 52576-13070 · 52576-13090 |
| 52591 | Rear bumper right seal | 52591-12310 · 52591-12320 |
| 52592 | Rear bumper left seal | 52592-12230 · 52592-12240 |
| 75392 | External protective strip fixings | 75392-35200 |
