Toyota COROLLA 前保险杠及附件 — Figure 5201

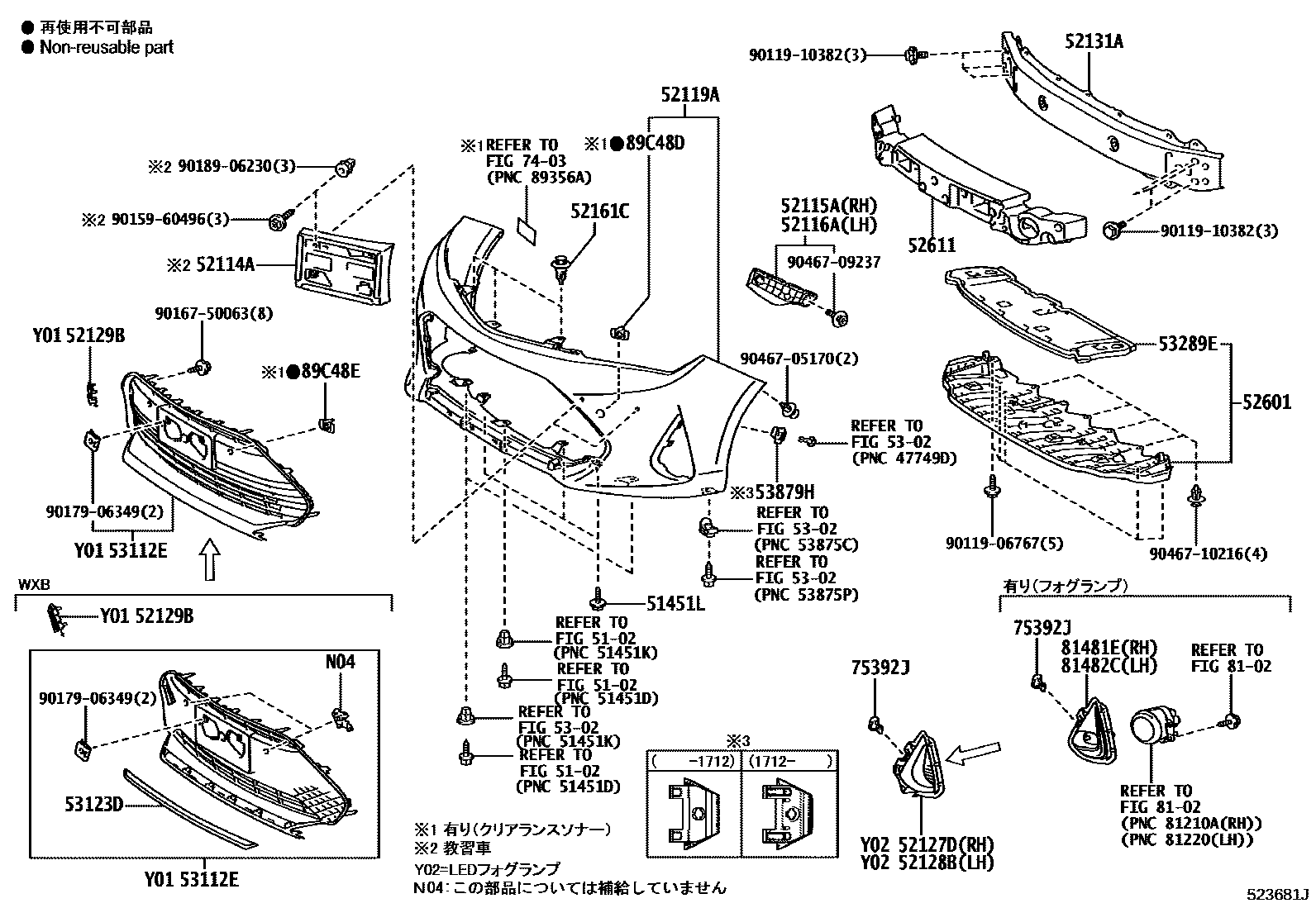

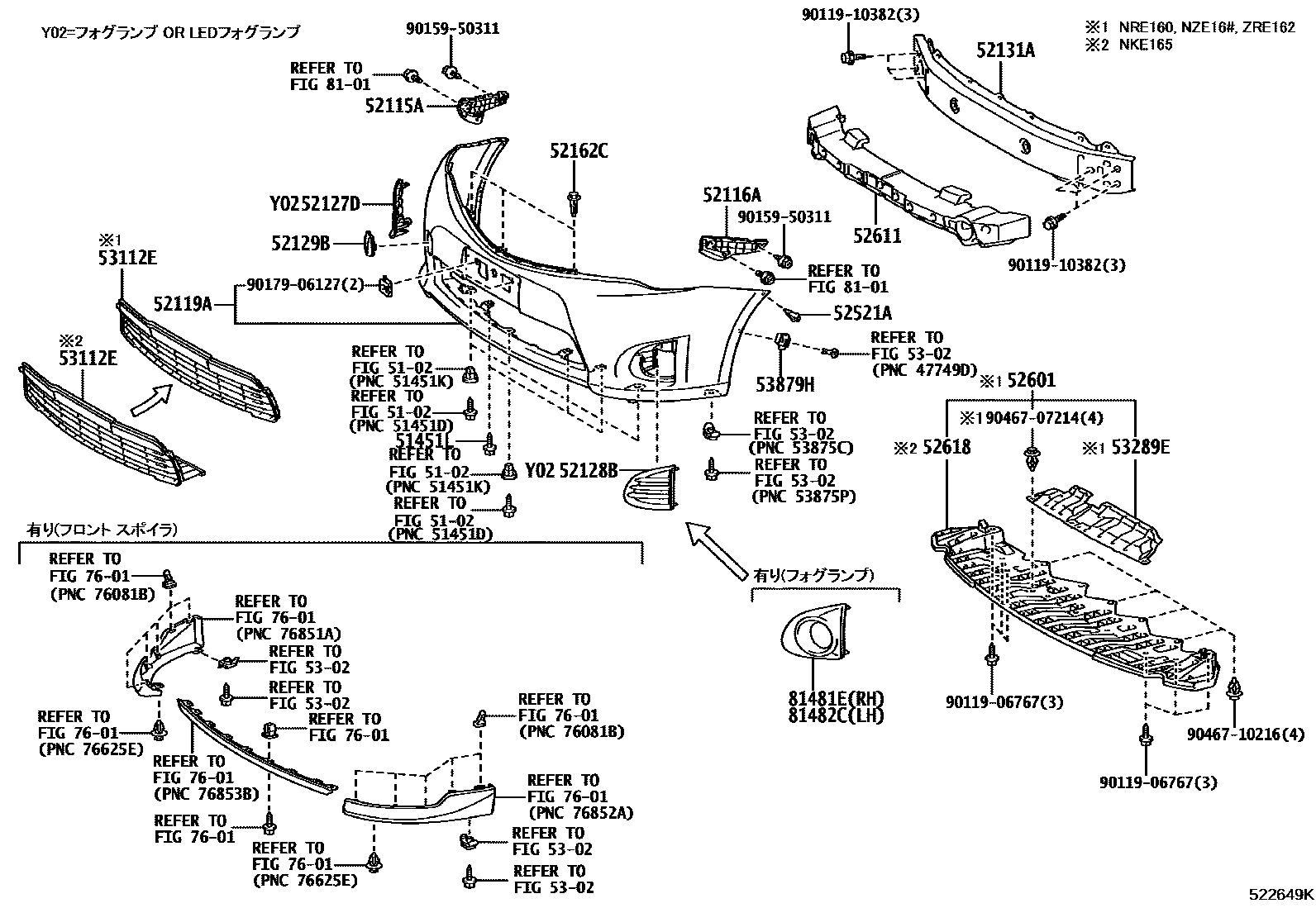

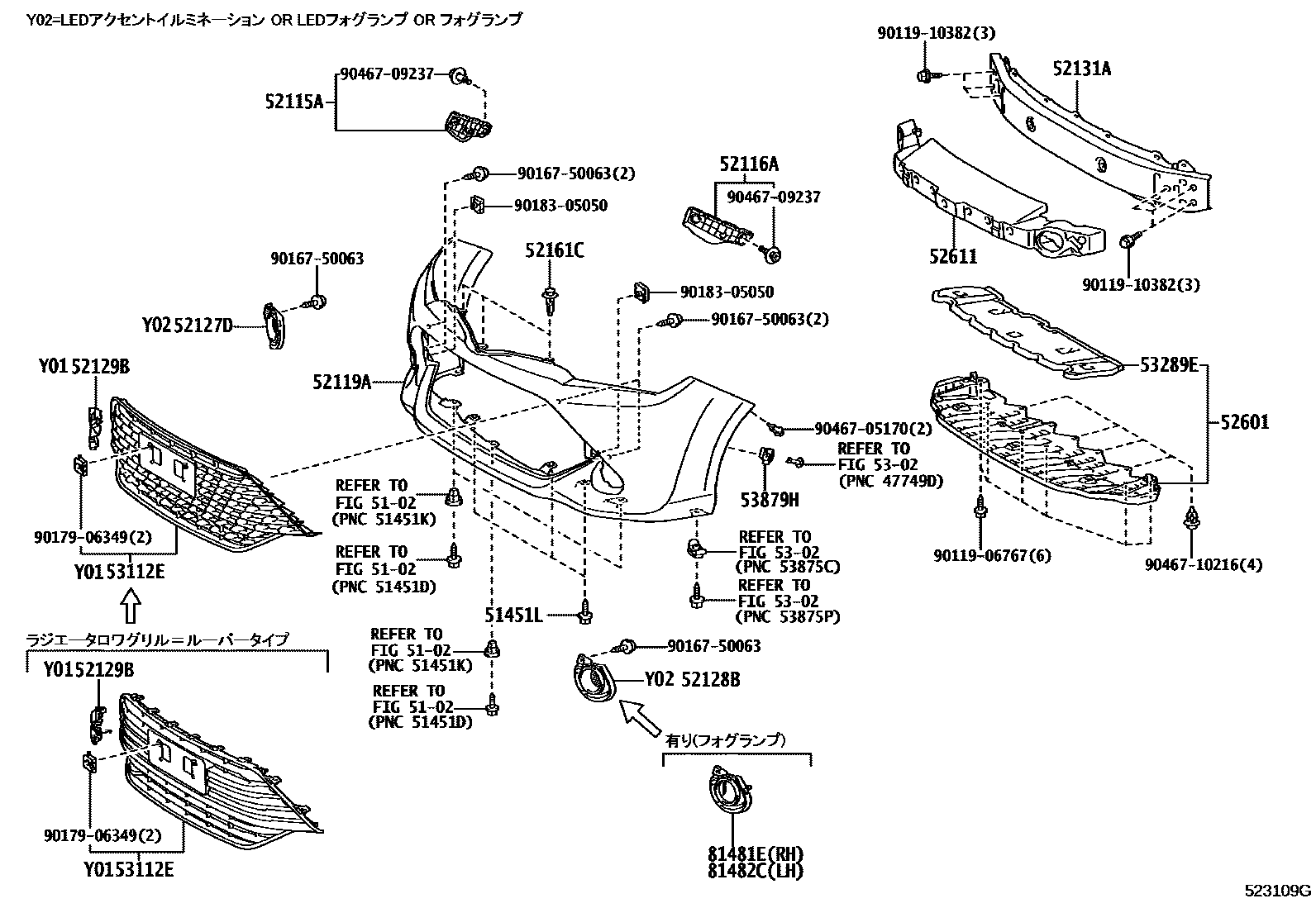

Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 3 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51451L | Toyota part | 90119-06767 |
| 52114A | Front bumper extension mounting bracket | 52114-12270 |
| 52115A | Front bumper right side bracket | 52115-12470 · 52115-12510 |
| 52116A | Front bumper left bracket | 52116-12430 · 52116-12460 |
| 52127D | Front bumper right hole cover | 52127-12340 · 52127-12360 · 52127-12380 · 52127-12400 · 52127-12410 · 52127-13170 |
| 52128B | Front bumper left hole cover | 52128-12270 · 52128-12280 · 52128-12310 · 52128-12400 · 52128-12410 · 52128-13190 |
| 52129B | Front bumper lower cover | 52129-12120 · 52129-12140 · 52129-12150 · 52129-12160 · 52129-12170 · 52129-13010 |
| 52131A | Front bumper reinforcement | 52131-52250 |
| 52161C | front bumper insert | 52161-16010 |
| 52162C | front bumper insert | 52161-16010 |
| 52521A | Clip (for front bumper mount) | 90467-05170 |
| 52601 | Front bumper energy absorber sub-assembly | 52601-12310 · 52601-12320 |
| 52611 | front bumper energy absorber | 52611-12340 · 52611-12350 · 52611-12430 |
| 52618 | Front bumper lower shock absorber | 52618-12050 |
| 53112E | No. 1 radiator lower grille | 53112-12200 · 53112-12300 · 53112-12320 · 53112-12400 · 53112-12480 · 53112-12490 · 53112-12500 · 53112-12510 · 53112-12520 · 53112-12530 · 53112-12600 · 53112-13050 · 53112-13070 |
| 53123D | Radiator grille lower protective strip | 53122-12220 |
| 53289E | Radiator bracket opening cover | 53289-12050 · 53289-12070 |
| 53879H | Front fender lining fixing parts | 53879-30050 · 53879-30060 · 53879-50020 · 53879-58010 |
| 75392J | External protective strip fixings | 75392-35200 |
| 81481E | Right fog light cover | 52030-12130 · 52127-12330 · 52127-12430 · 52127-12440 · 52127-13130 · 52127-13140 |
| 81482C | Left fog light cover | 52040-12130 · 52128-12260 · 52128-12430 · 52128-12440 · 52128-13150 · 52128-13160 |
| 89C48D | Toyota part | 89348-50130 |
| 89C48E | Toyota part | 89348-50130 |
