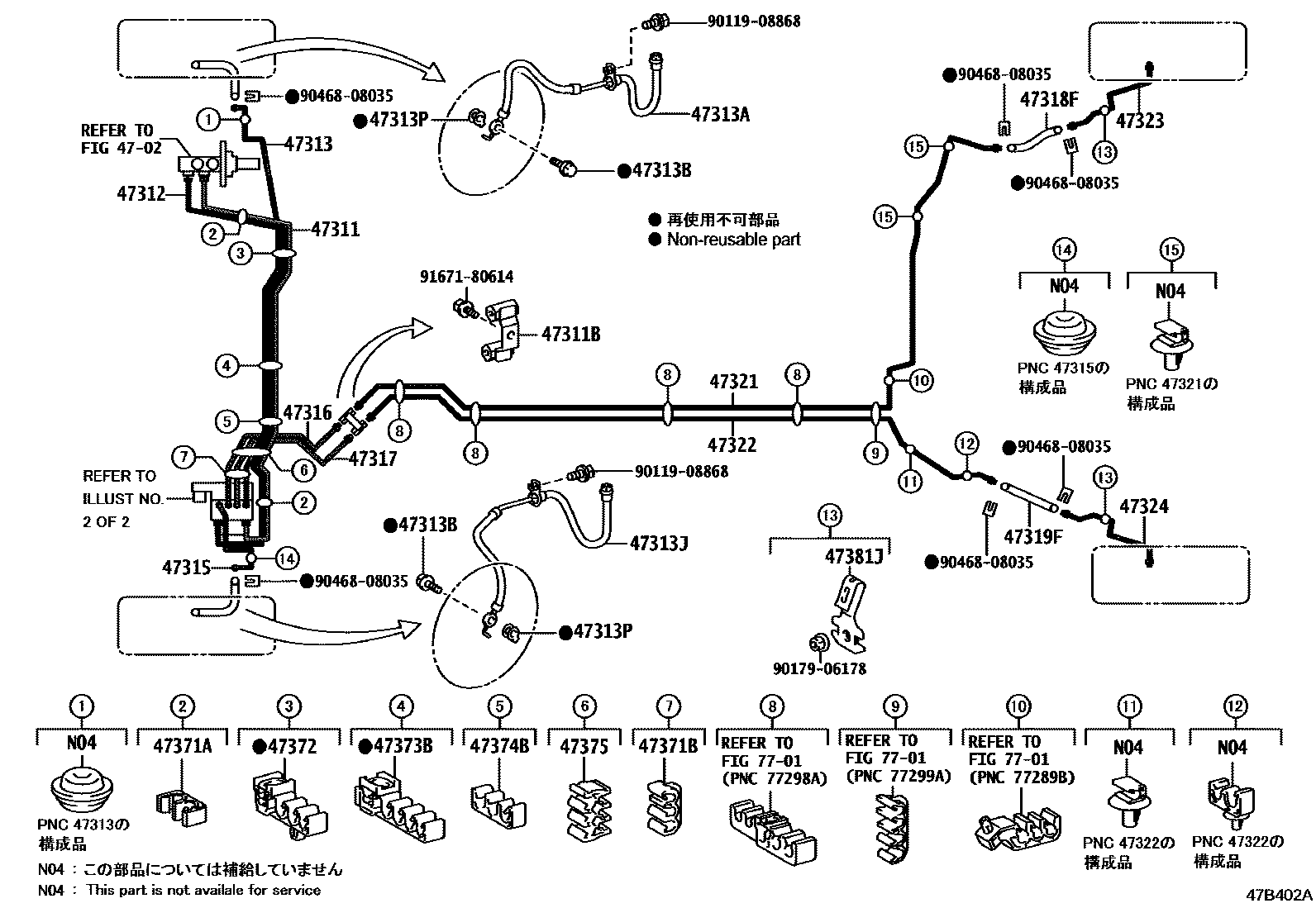

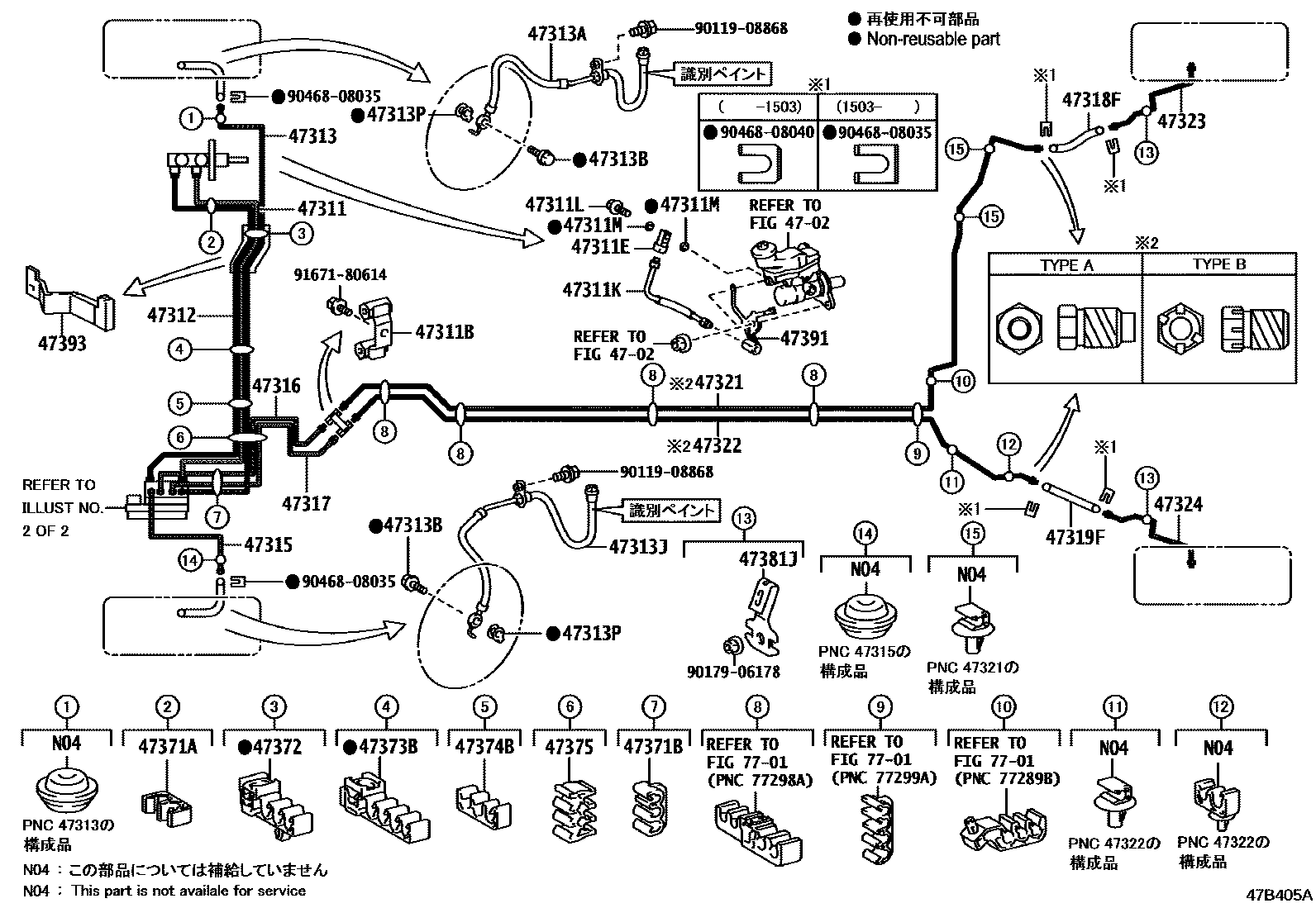

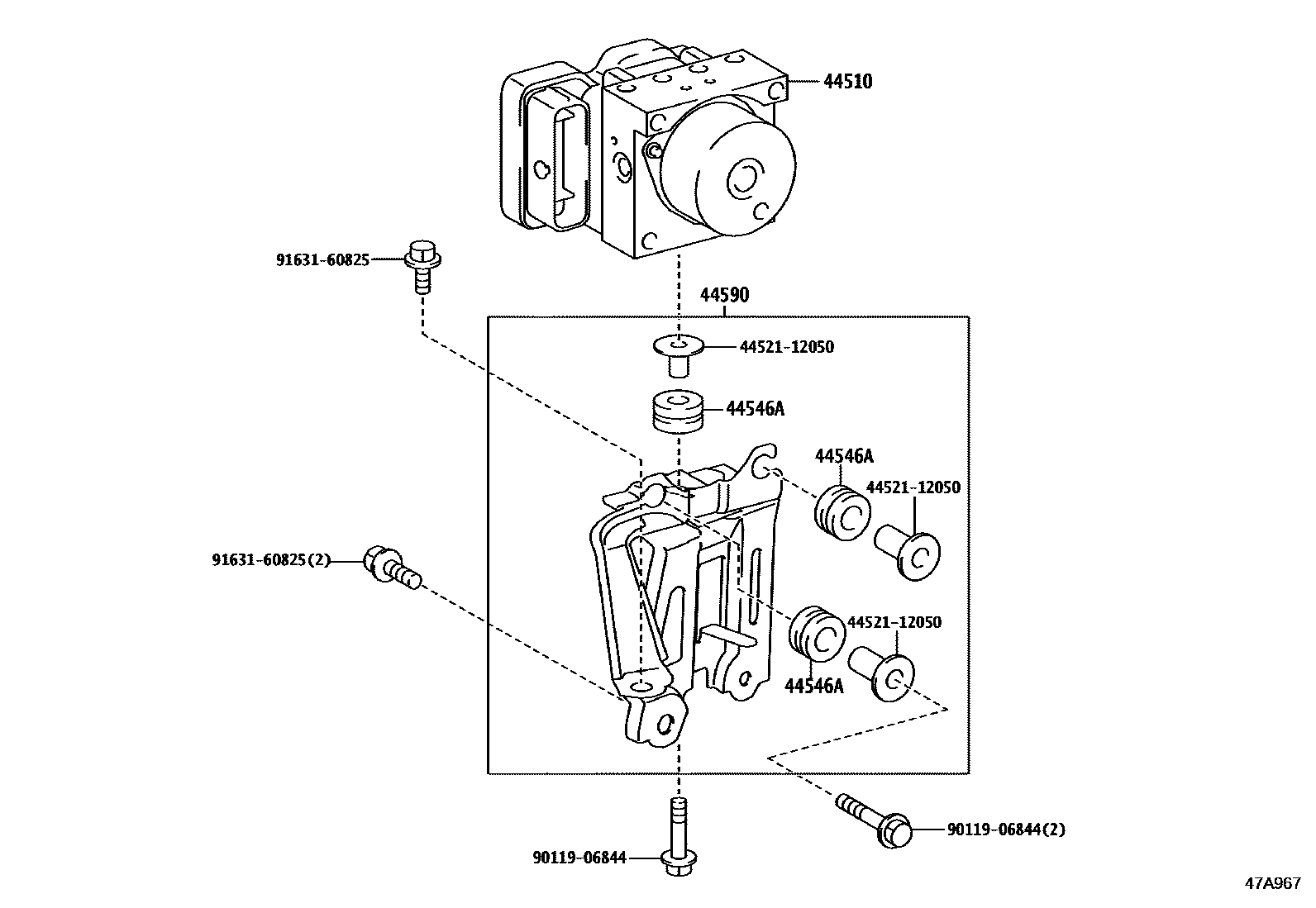

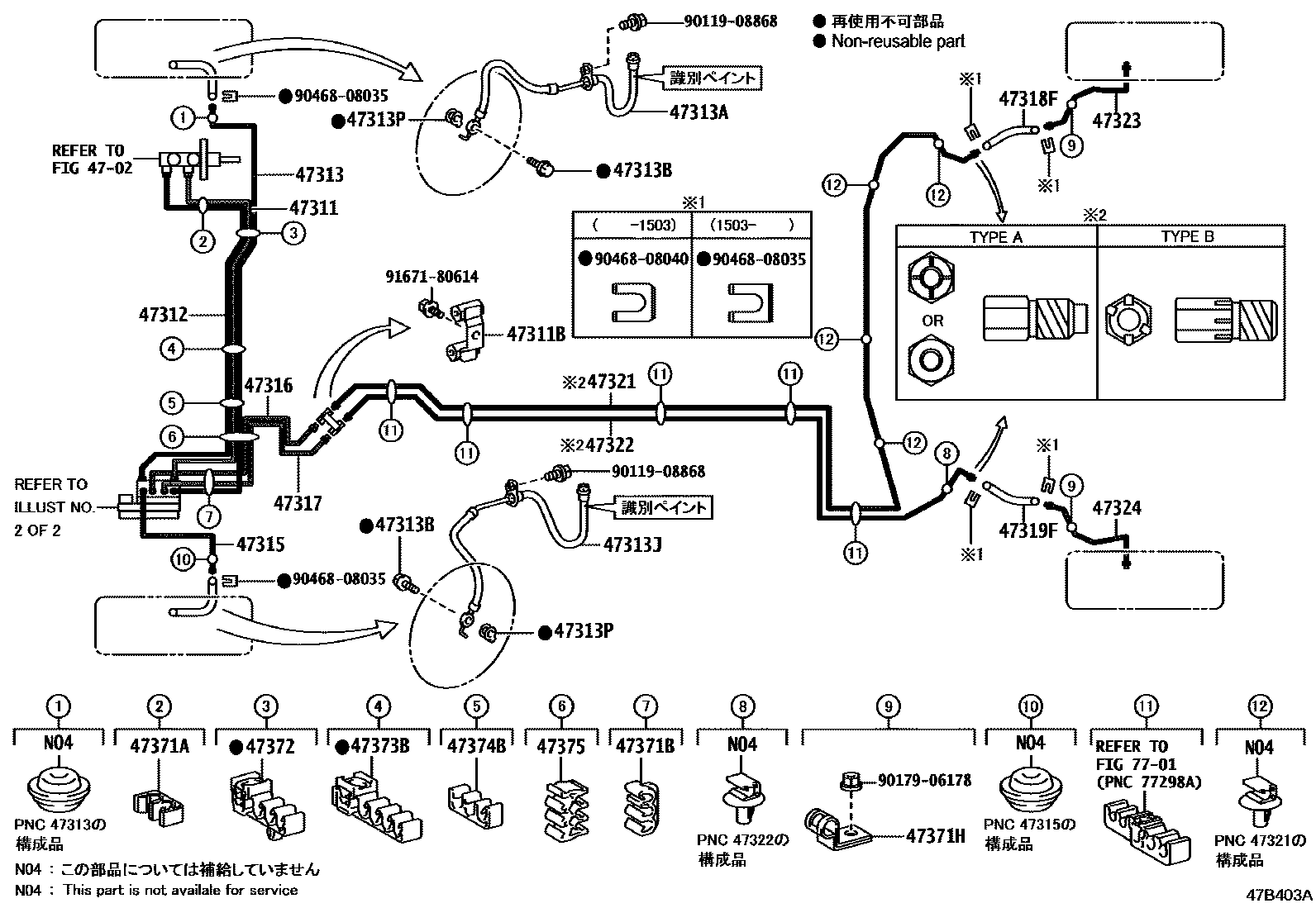

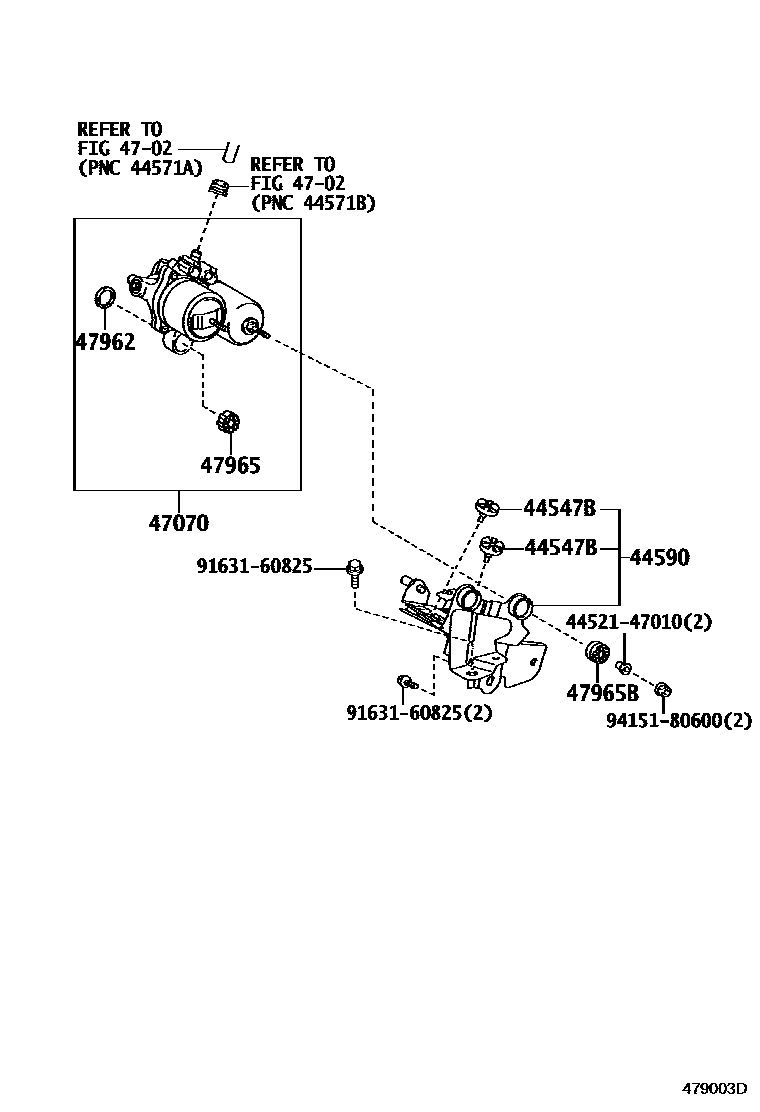

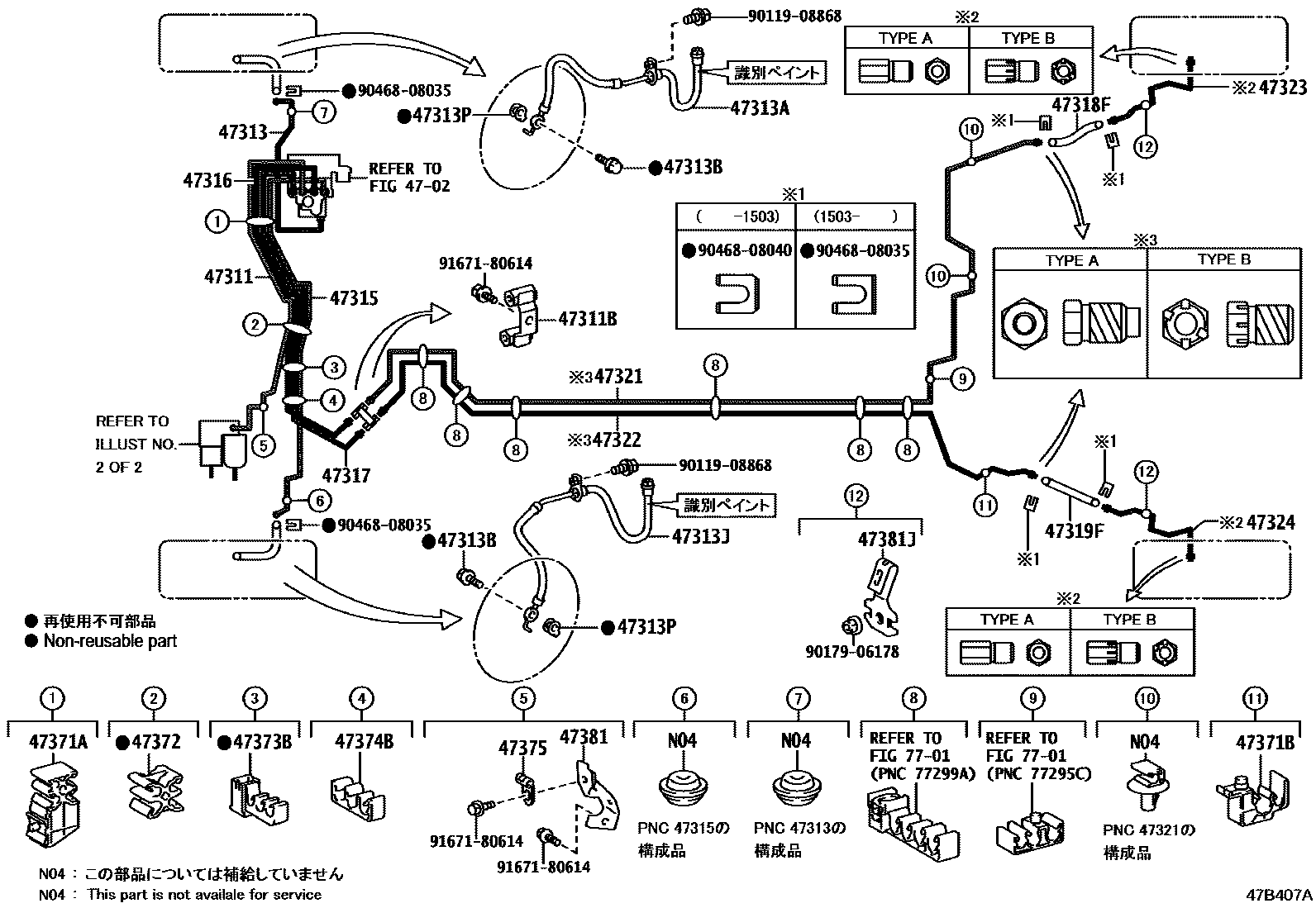

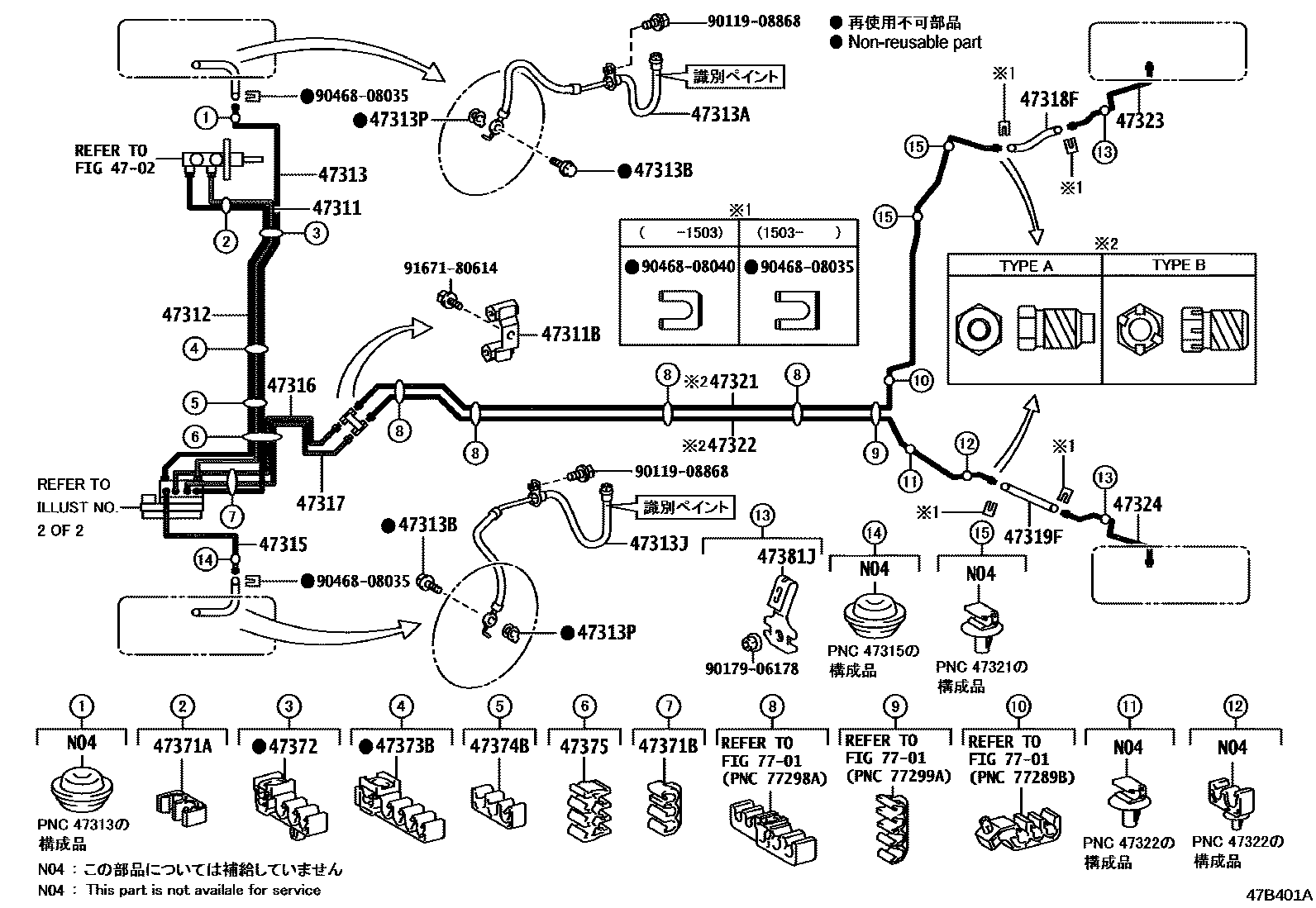

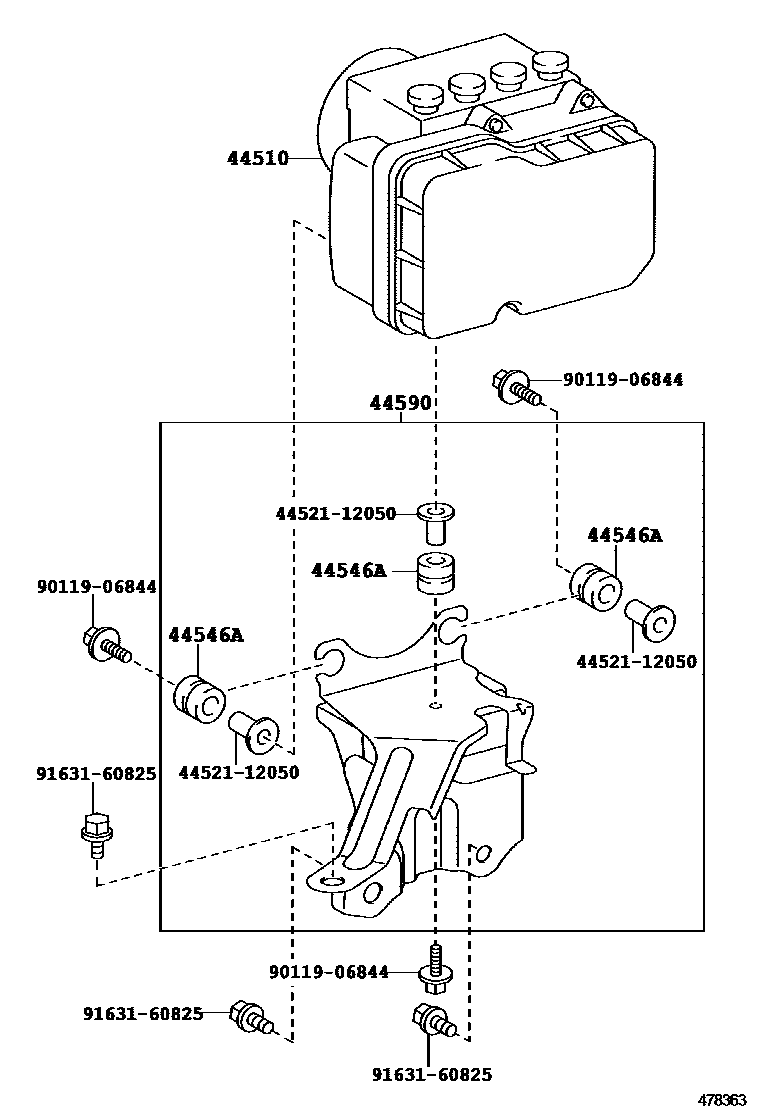

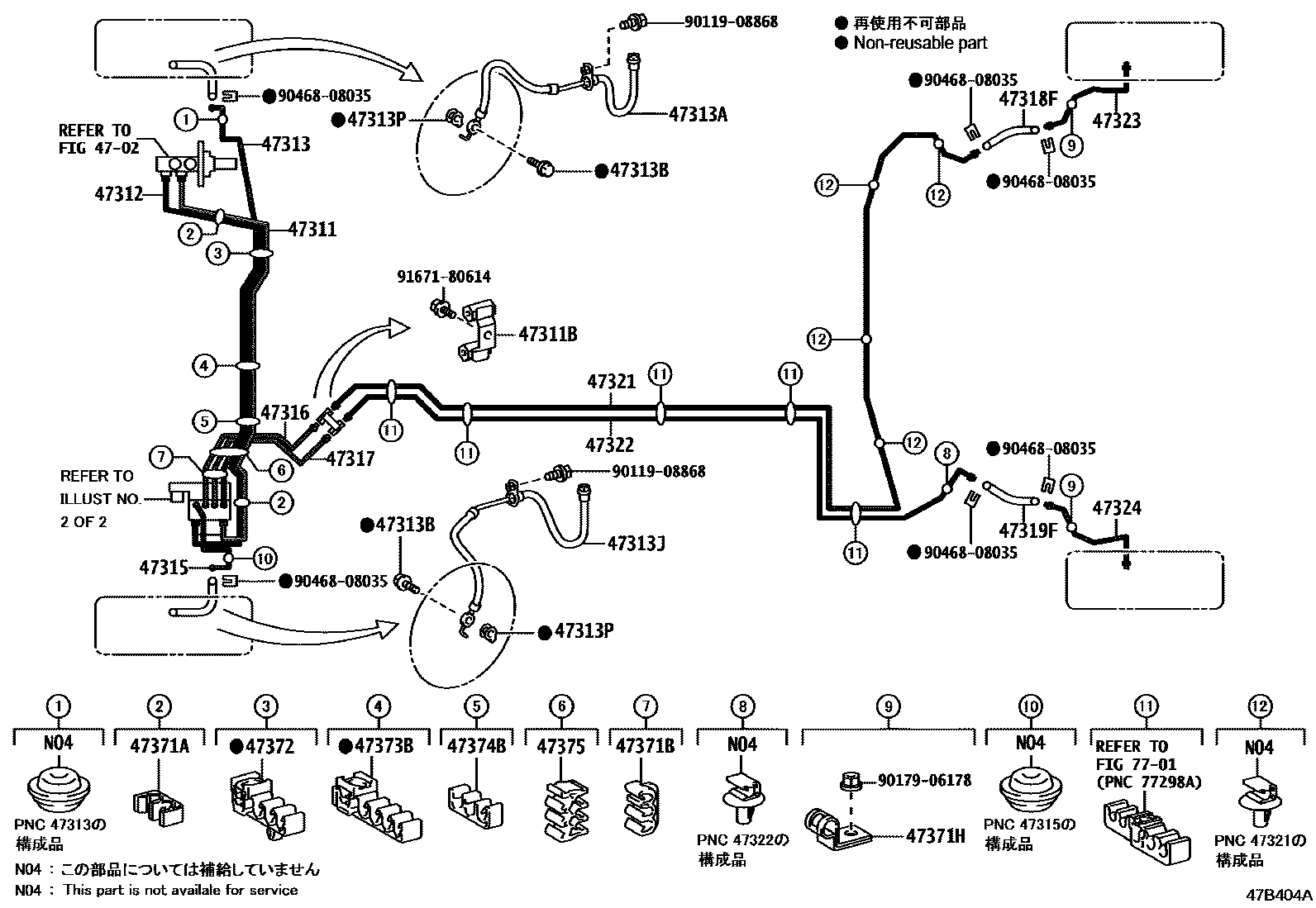

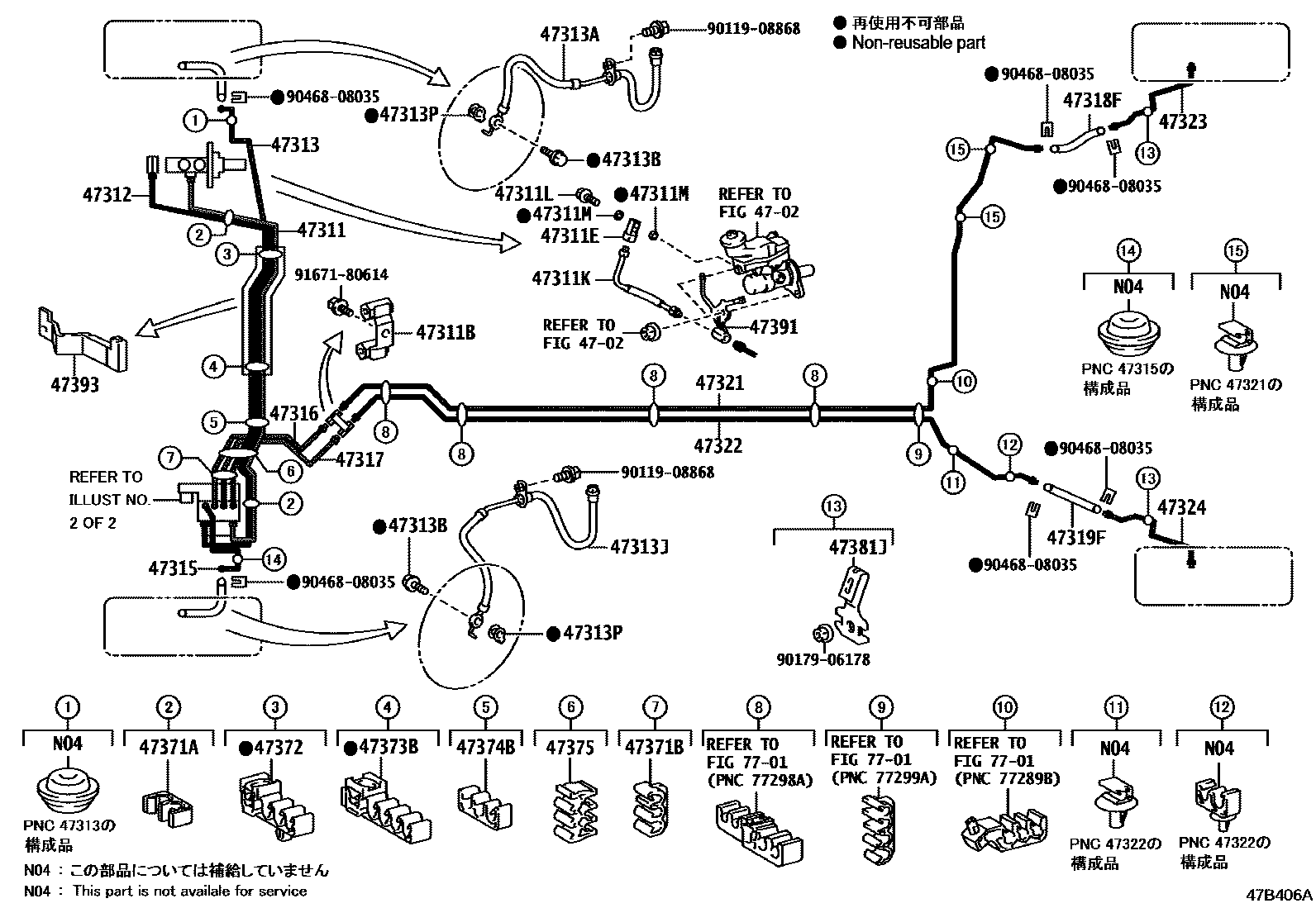

Toyota COROLLA 制动配管和卡箍 — Figure 4708
Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 10 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-12A40 · 44050-12A41 · 44050-12A50 · 44050-12A51 · 44050-12A60 · 44050-12A61 · 44050-12A70 · 44050-12A71 · 44050-12B20 · 44050-12B21 · 44050-12B30 · 44050-12B31 · 44050-12B40 · 44050-12B41 · 44050-12B50 · 44050-12B51 · 44050-12B60 · 44050-12B61 · 44050-12C10 · 44050-12C30 · 44050-12C40 · 44050-12C50 · 44050-12C60 · 44050-12C70 · 44050-12C80 · 44050-12C90 · 44050-12D00 · 44050-12D10 · 44050-12D20 · 44050-12F00 · 44050-12F10 · 44050-12F20 |
| 44546A | Brake actuator bolt cushion | 44546-12110 |
| 44547B | brake actuator bracket cushion | 47131-47070 |
| 44590 | Brake actuator bracket assembly | 44590-52230 · 44590-52251 · 44590-52271 |
| 47070 | Brake booster pump assembly | 47070-52020 |
| 47311 | No. 1 front brake pipe | 47311-12C80 · 47311-13100 · 47311-13120 · 47311-52610 · 47311-52750 · 47311-52751 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10285 |
| 47311E | Connector No. 1 (for front brake pipe) | 90015-AM008 |
| 47311K | Pipe (brake master cylinder to pipe joint) | 47311-12C40 |
| 47311L | Joint bolts | 90015-AA104 |
| 47311M | padding | 90015-AP002 |
| 47312 | No. 2 front brake pipe | 47312-12650 · 47312-12810 · 47312-13090 · 47312-13120 · 47312-52420 |
| 47313 | No. 3 front brake pipe | 47313-12A50 · 47313-13070 · 47313-52230 · 47313-52231 · 47313-52300 · 47313-52301 · 47313-52330 · 47313-52331 |
| 47313A | No. 1 front flexible hose | 90947-02G34 · 90947-02H35 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-02G35 · 90947-02H36 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47315 | No. 5 front brake pipe | 47315-12640 · 47315-52230 · 47315-52231 · 47315-52270 · 47315-52271 |
| 47316 | No. 6 front brake pipe | 47316-12380 · 47316-52190 · 47316-52191 · 47316-52260 · 47316-52261 |
| 47317 | No. 7 front brake pipe | 47317-12620 · 47317-52190 · 47317-52191 · 47317-52270 · 47317-52271 |
| 47318F | Right rear flexible hose | 90947-02G36 · 90947-02G71 · 90947-02H29 · 90947-02H31 |
| 47319F | Left rear flexible hose | 90947-02G38 · 90947-02G72 · 90947-02H30 · 90947-02H32 |
| 47321 | No. 1 rear brake pipe | 47321-12380 · 47321-12381 · 47321-12390 · 47321-12391 · 47321-12400 · 47321-12401 |
| 47322 | No. 2 rear brake pipe | 47322-12540 · 47322-12541 · 47322-12550 · 47322-12551 · 47322-12560 · 47322-12561 |
| 47323 | No. 3 rear brake pipe | 47323-52100 · 47323-52101 · 47323-52130 · 47323-52131 · 47323-52140 · 47323-52141 |
| 47324 | No. 4 rear brake pipe | 47324-52090 · 47324-52091 · 47324-52120 · 47324-52121 · 47324-52130 · 47324-52131 |
| 47371A | No. 1 brake pipe clamp | 90464-00899 · 90949-01D64 |
| 47371B | No. 6 brake pipe clamp | 77286-52180 · 90464-00868 · 90949-01D92 |
| 47371H | No. 12 brake pipe clamp | 90461-10837 |
| 47372 | No. 2 brake pipe clamp | 90464-00876 · 90949-01D84 · 90949-01D94 |
| 47373B | No. 3 brake pipe clamp | 90949-01D08 · 90949-01D85 · 90949-01D97 |
| 47374B | No. 4 brake pipe clamp | 90464-00857 · 90464-00929 · 90949-01D93 |
| 47375 | No. 5 brake pipe clamp | 90461-10854 · 90464-00925 · 90949-01D98 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-52050 |
| 47381J | No. 2 brake pipe clamp bracket | 47381-52020 |
| 47391 | Brake pipe joint | 47391-12070 |
| 47393 | brake pipe heat shield | 47393-52020 |
| 47962 | brake booster pump collar | 47962-60090 |
| 47965 | brake booster pump bushing | 47965-30010 |
| 47965B | Toyota part | 47965-24010 |
