Toyota COROLLA 前盘式制动器卡钳和防尘罩 — Figure 4705

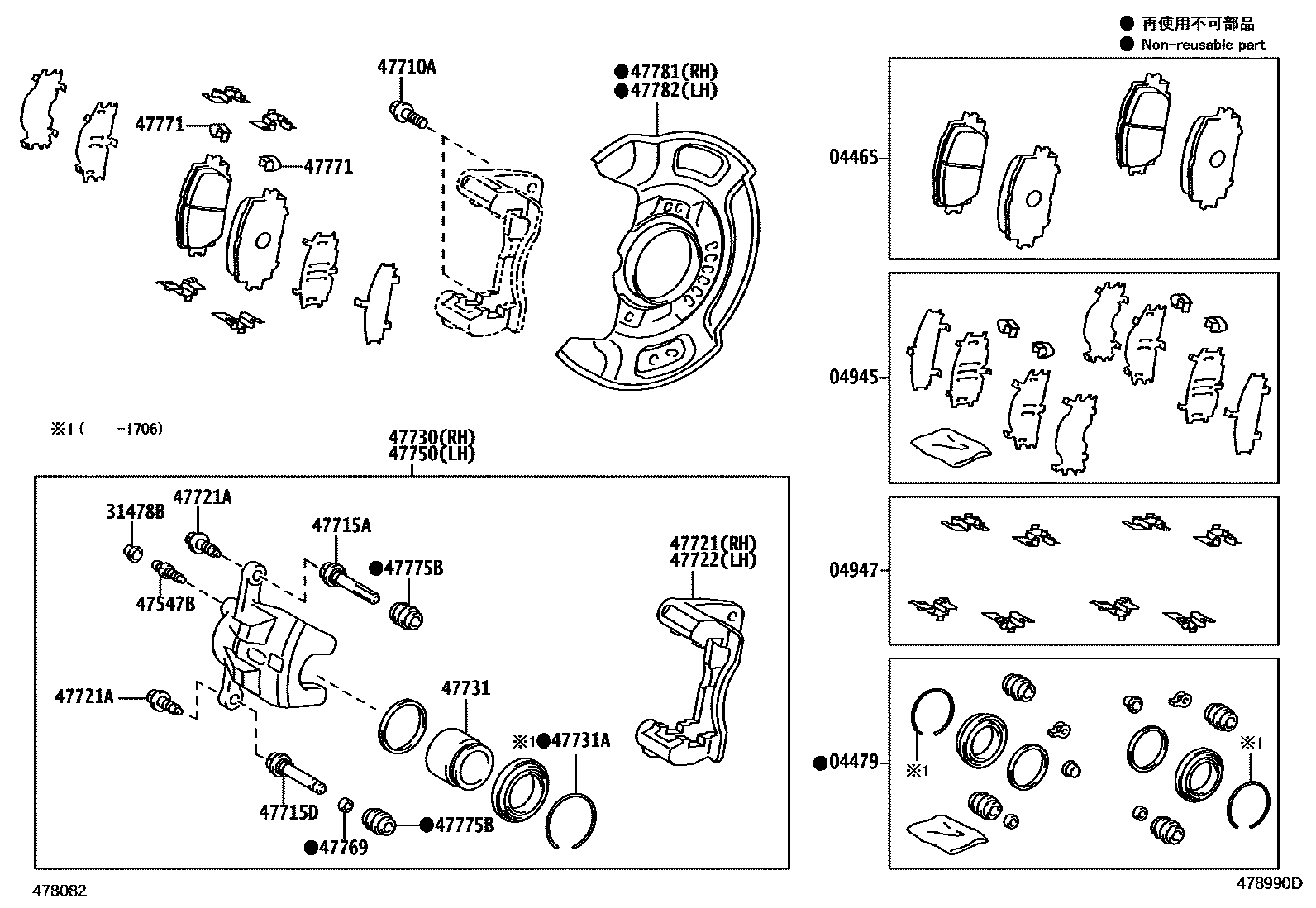

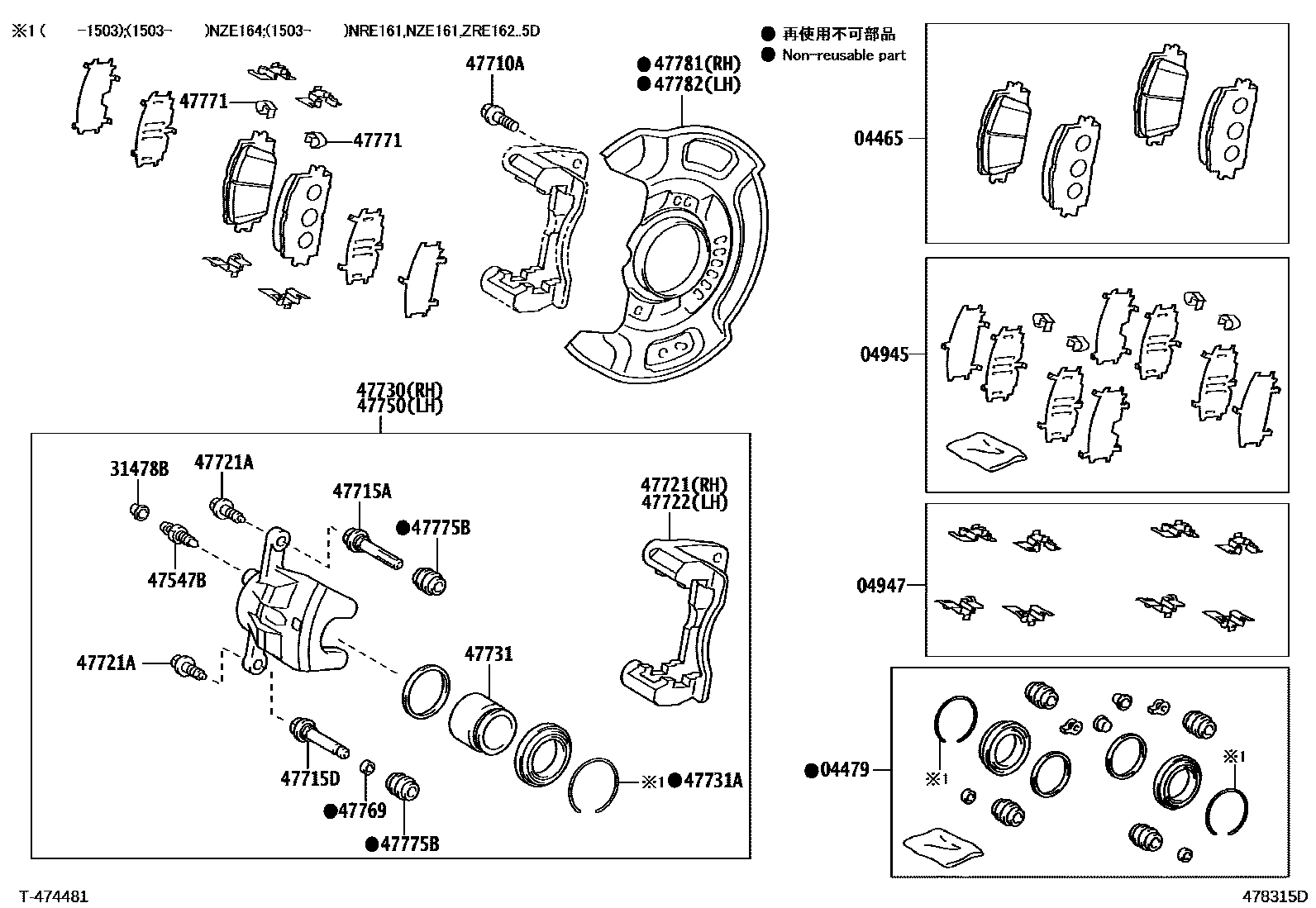

Toyota COROLLA EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-12640 · 04465-12650 · 04465-12660 · 04465-52310 · 04465-52320 |
| 04479 | Front disc brake cylinder assembly | 04478-12120 · 04478-52070 · 04478-52100 |
| 04945 | Front silencer gasket assembly | 04945-47020 · 04945-52120 · 04945-52130 |
| 04947 | Front disc brake mounting kit | 04947-42050 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-30010 |
| 47547B | Bleed plug (for front disc brake) | 47547-20010 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-12208 |
| 47715A | Front disc brake cylinder sliding pin | 47715-52190 |
| 47715D | No. 2 front disc brake cylinder sliding pin | 47715-12A10 |
| 47721 | Right front disc brake cylinder retainer | 47721-52191 · 47721-52211 |
| 47721A | Bolt (for front disc brake cylinder retainer) | 90105-08164 |
| 47722 | Left front disc brake cylinder retainer | 47722-52191 · 47722-52211 |
| 47730 | Right front disc brake cylinder assembly | 47730-12B00 · 47730-52191 · 47730-52211 · 47730-52280 · 47730-52281 |
| 47731 | Front disc brake piston | 47731-52190 · 47731-52210 · 47731-52280 · 47731-52281 |
| 47731A | retaining ring (for front disc brake piston) | 90520-86005 · 90522-66001 |
| 47750 | Left disc brake cylinder assembly | 47750-12B00 · 47750-52191 · 47750-52211 · 47750-52280 · 47750-52281 |
| 47769 | No. 1 brake cylinder sliding sleeve (for front disc brake) | 47769-50010 |
| 47771 | No. 1 pad wear indicator plate | 47771-52191 |
| 47775B | No. 1 Bushing Dust Boot | 47775-52190 |
| 47781 | Right front disc brake dust cover | 47781-52030 |
| 47782 | Left front disc brake dust cover | 47782-52030 |
