Toyota COROLLA 制动总泵 — Figure 4702

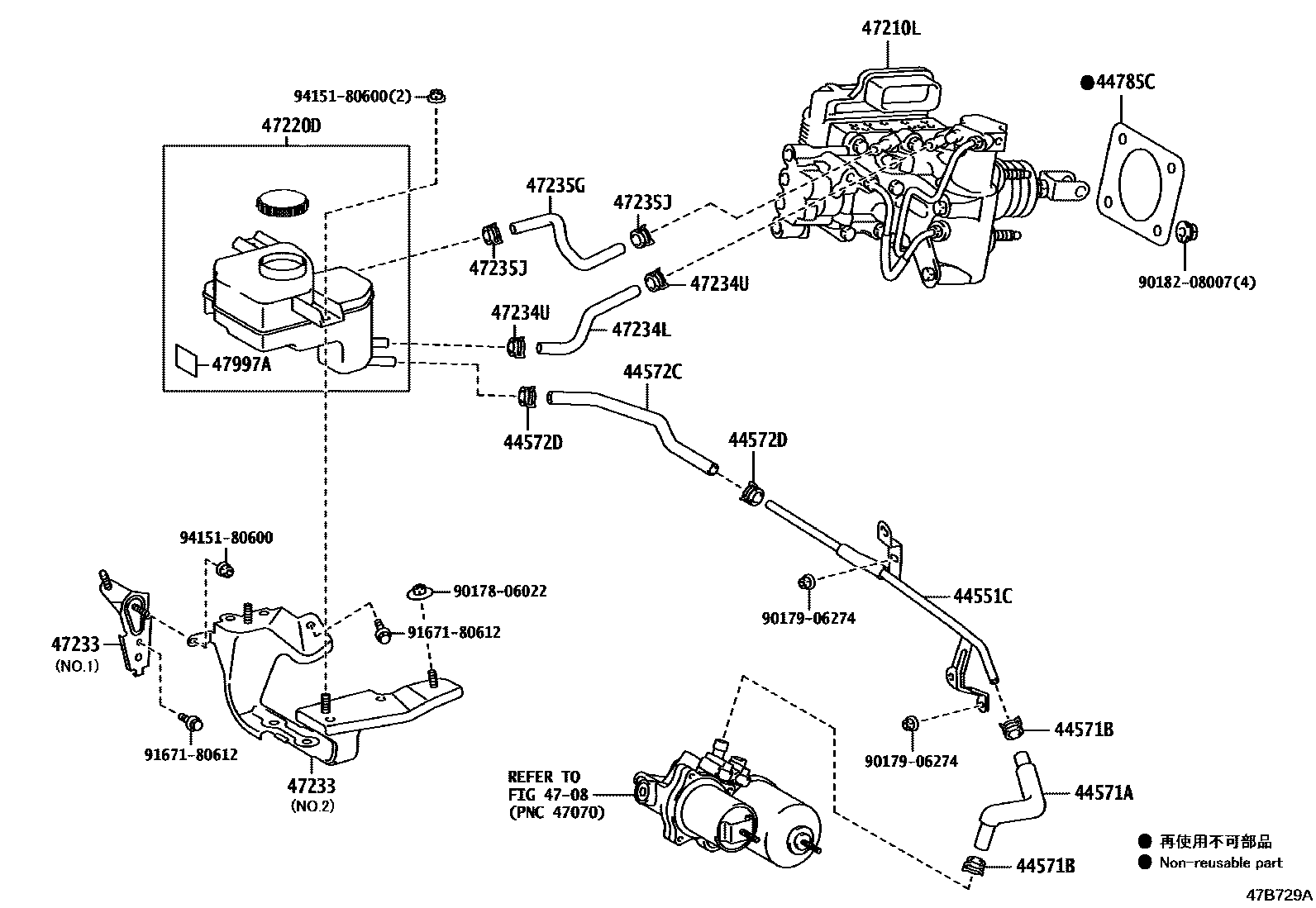

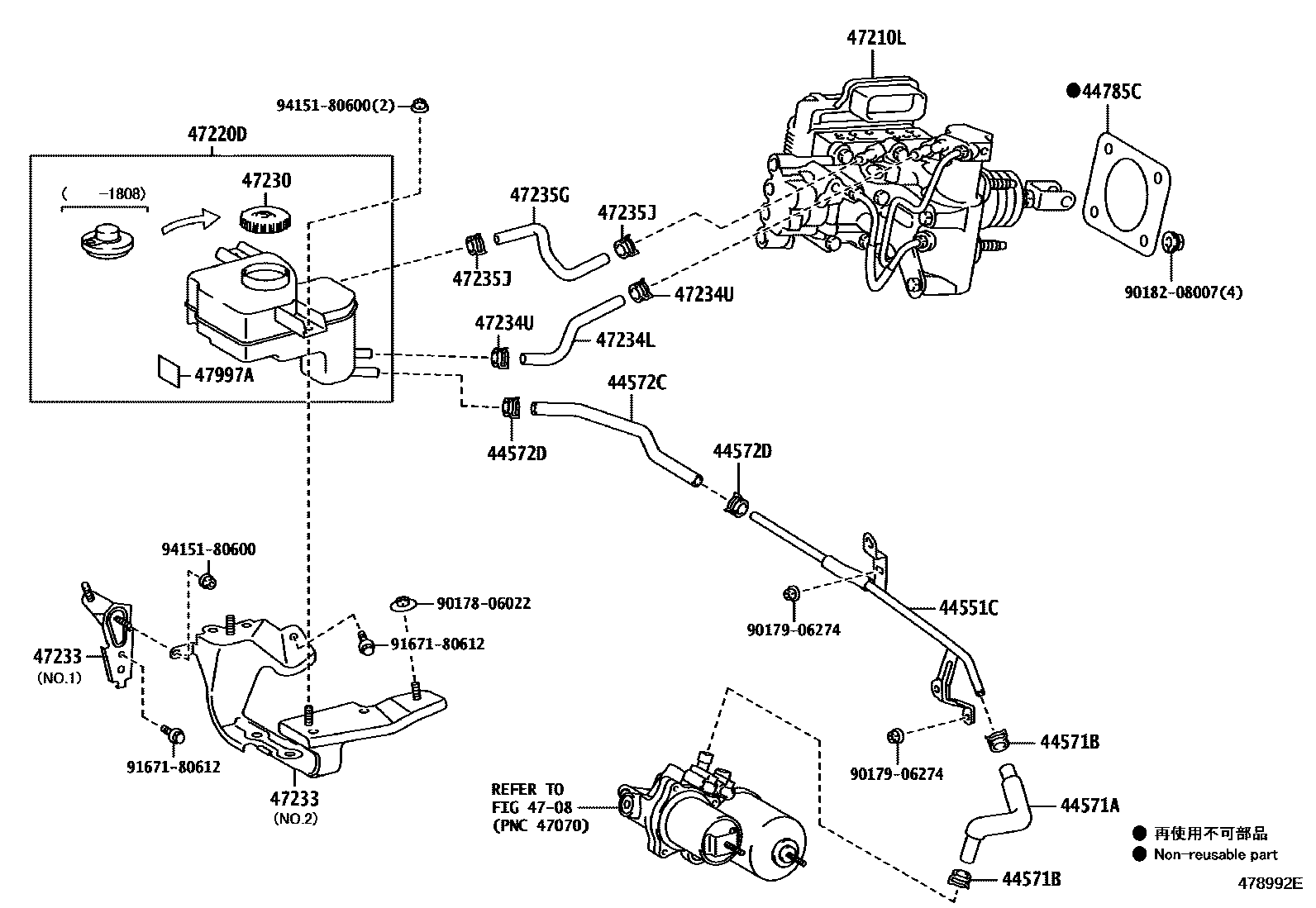

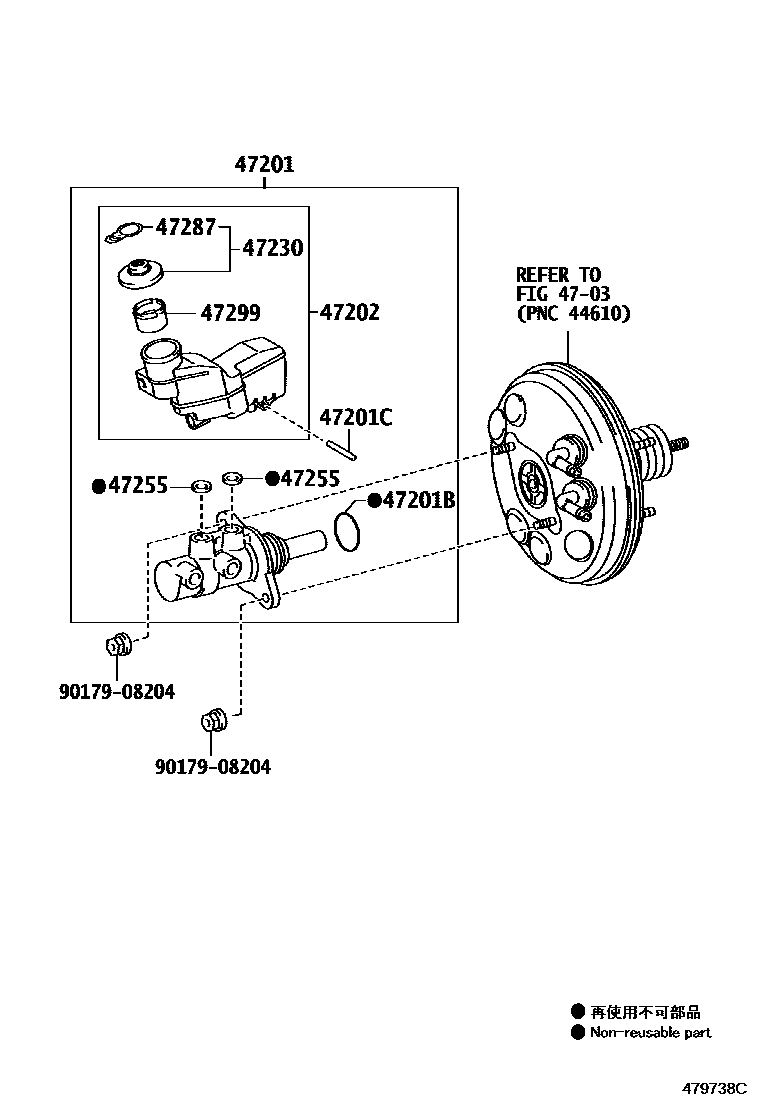

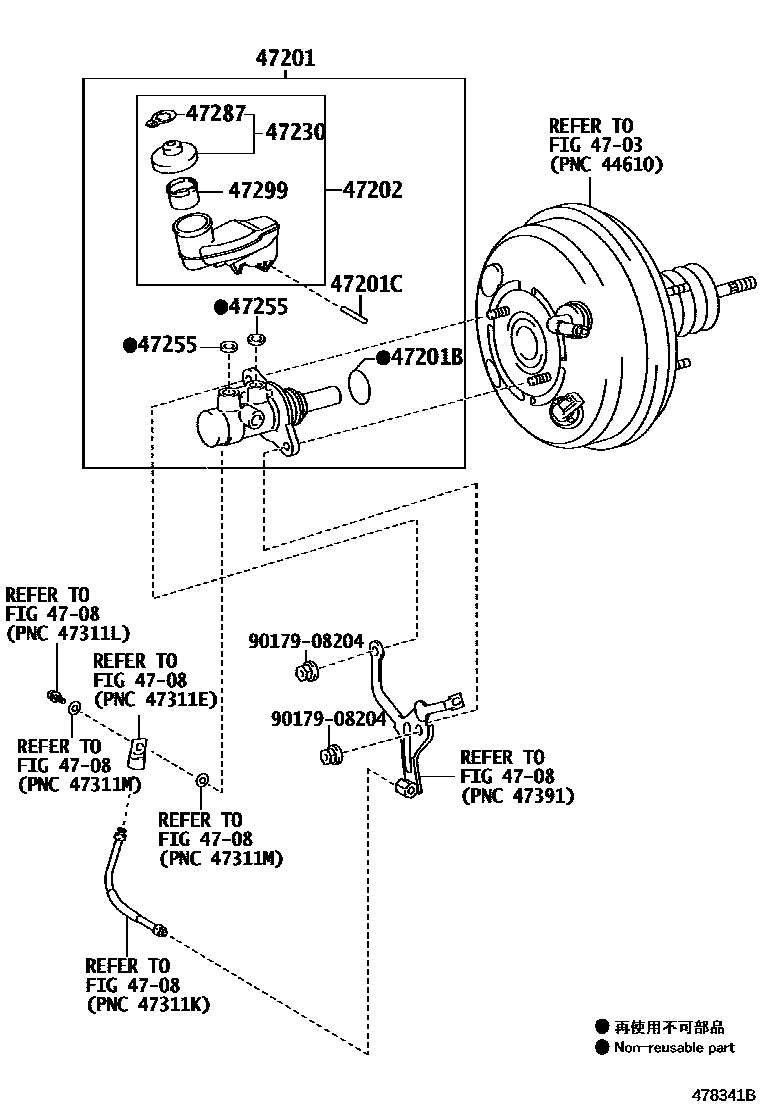

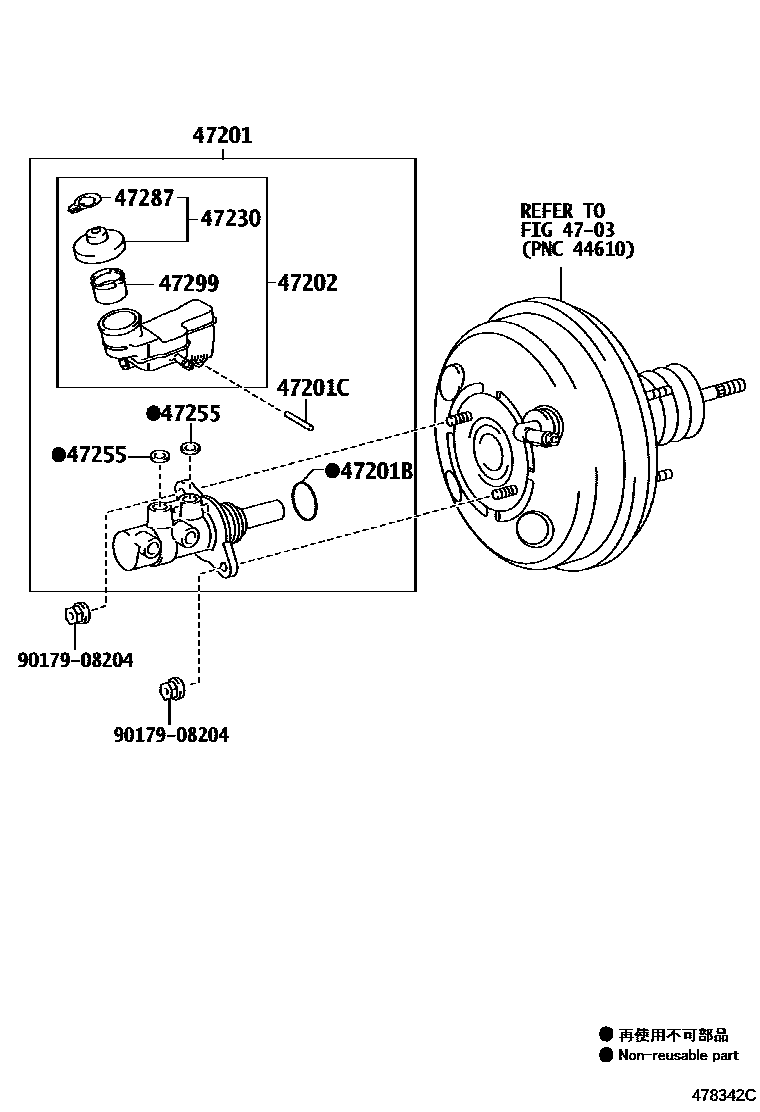

Toyota COROLLA EPC diagram 4702, 制动总泵, with 5 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44551C | No. 1 brake actuator pipe | 44551-52010 |
| 44571A | No. 1 brake actuator hose | 44571-52011 |
| 44571B | Toyota part | 96136-41801 |
| 44572C | No. 2 brake actuator hose | 44572-52010 |
| 44572D | Toyota part | 96137-41501 |
| 44785C | brake booster pad | 44785-16020 |
| 47201 | Brake master cylinder sub-assembly | 47201-12B91 · 47201-12B92 · 47201-52491 · 47201-52492 · 47201-52590 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH002 |
| 47201C | Brake master cylinder ring pin | 90029-15803 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-12290 · 47220-52260 |
| 47210L | Brake booster assembly with master cylinder | 47050-12190 · 47050-12200 · 47050-12210 · 47050-12220 · 47050-12620 · 47050-12621 · 47050-12630 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-12310 · 47220-12390 · 47220-52290 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-20140 · 47230-47110 |
| 47233 | Reservoir tank bracket | 47233-12090 · 47233-52040 |
| 47234L | Reservoir Tank No. 1 Hose | 47234-52050 |
| 47234U | Clamp (for reservoir tank No. 1 hose) | 96137-41501 |
| 47235G | Reservoir tank No. 2 hose | 47235-52050 |
| 47235J | Clamp (for reservoir tank No. 2 hose) | 96137-41501 |
| 47255 | Master pump reservoir seal | 90029-48001 |
| 47287 | brake fluid information label | 47287-02360 · 47287-20010 |
| 47299 | Brake master cylinder reservoir filter | 47299-25010 |
| 47997A | Accumulator No. 1 Warning Label | 47997-76010 |
