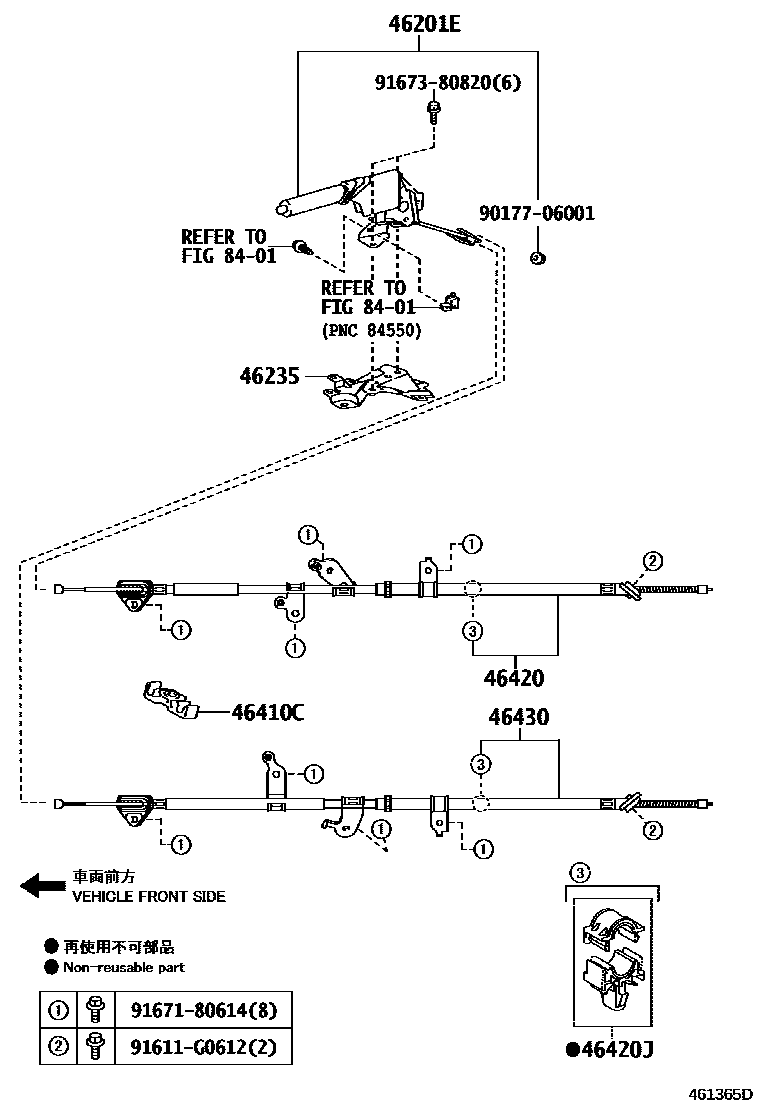

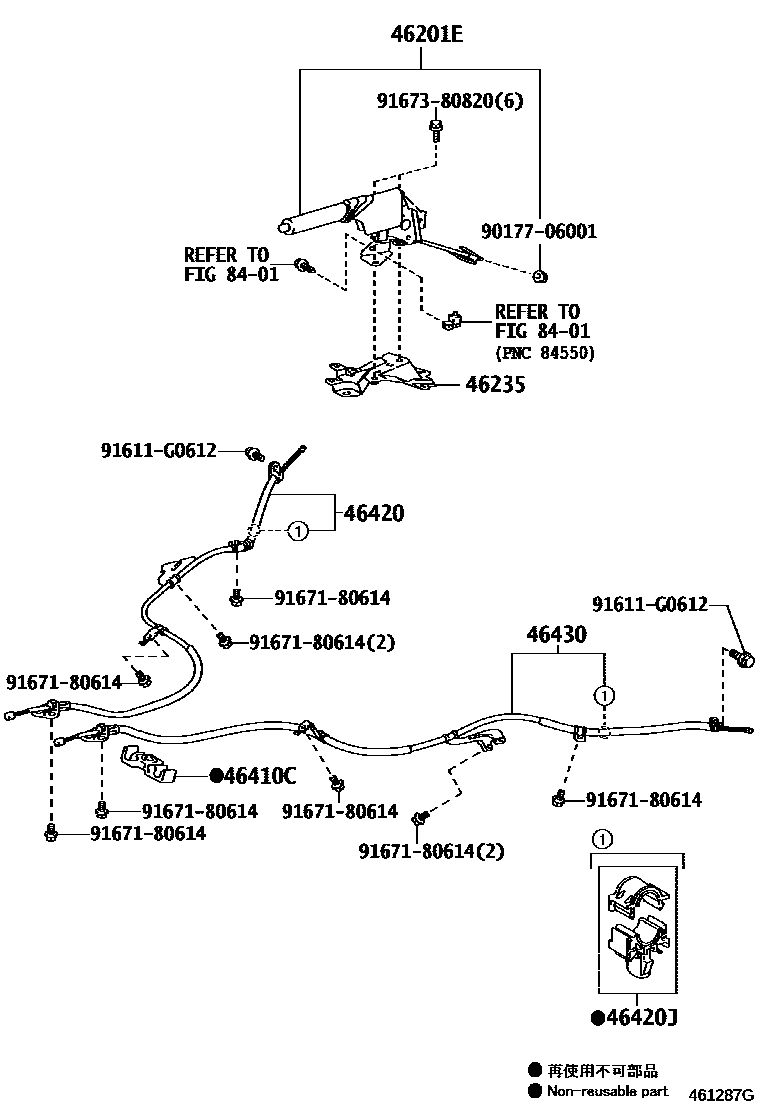

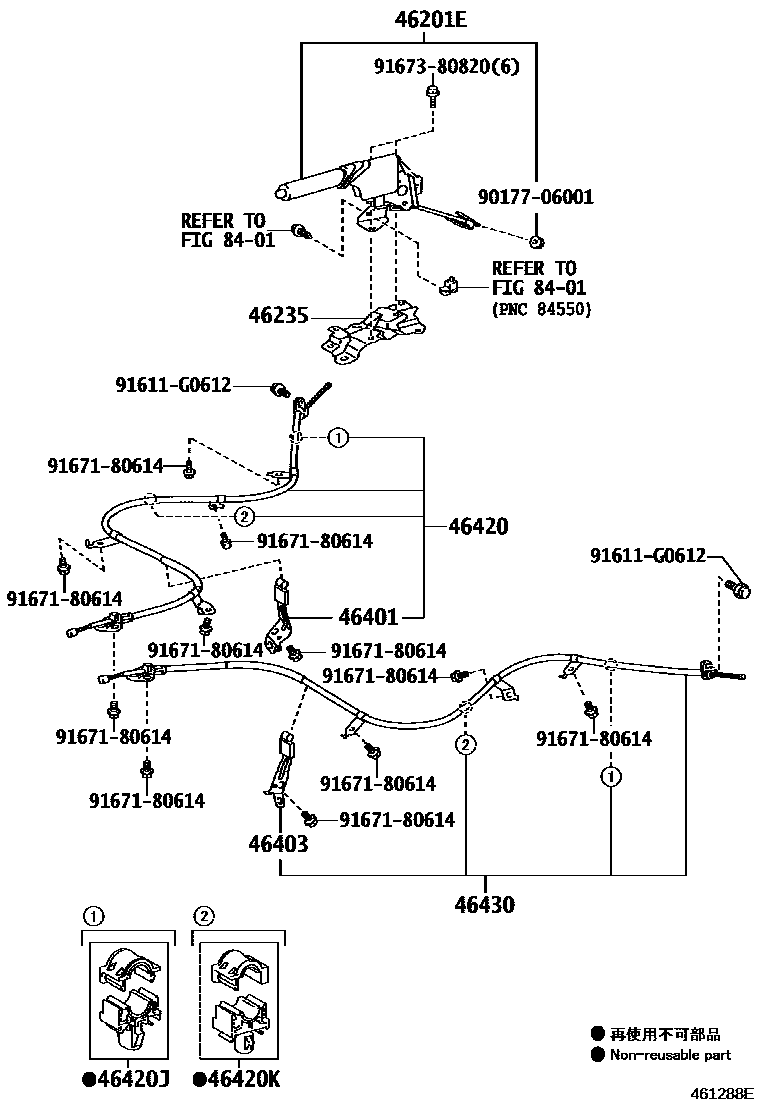

Toyota COROLLA Parking Brake & Cable — Figure 4601
Toyota COROLLA EPC diagram 4601, Parking Brake & Cable, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46235 | Parking brake lever bracket | 46235-52040 · 46235-52050 |
| 46401 | Cable bracket sub-assembly | 46401-52020 |
| 46403 | Left cable bracket sub-assembly | 46403-52020 |
| 46410C | Clip (for front parking brake cable) | 46411-52030 |
| 46420 | Parking brake No. 2 cable assembly | 46420-12780 · 46420-12790 · 46420-12800 · 46420-12850 |
| 46420J | Clamp No. 3 (for parking brake cable) | 46402-52030 |
| 46420K | Clamp No. 4 (for parking brake cable) | 46402-52020 |
| 46430 | Parking brake No. 3 cable assembly | 46430-12670 · 46430-12680 · 46430-12690 · 46430-12750 |
