Toyota COROLLA Steering Column & Shaft — Figure 4501

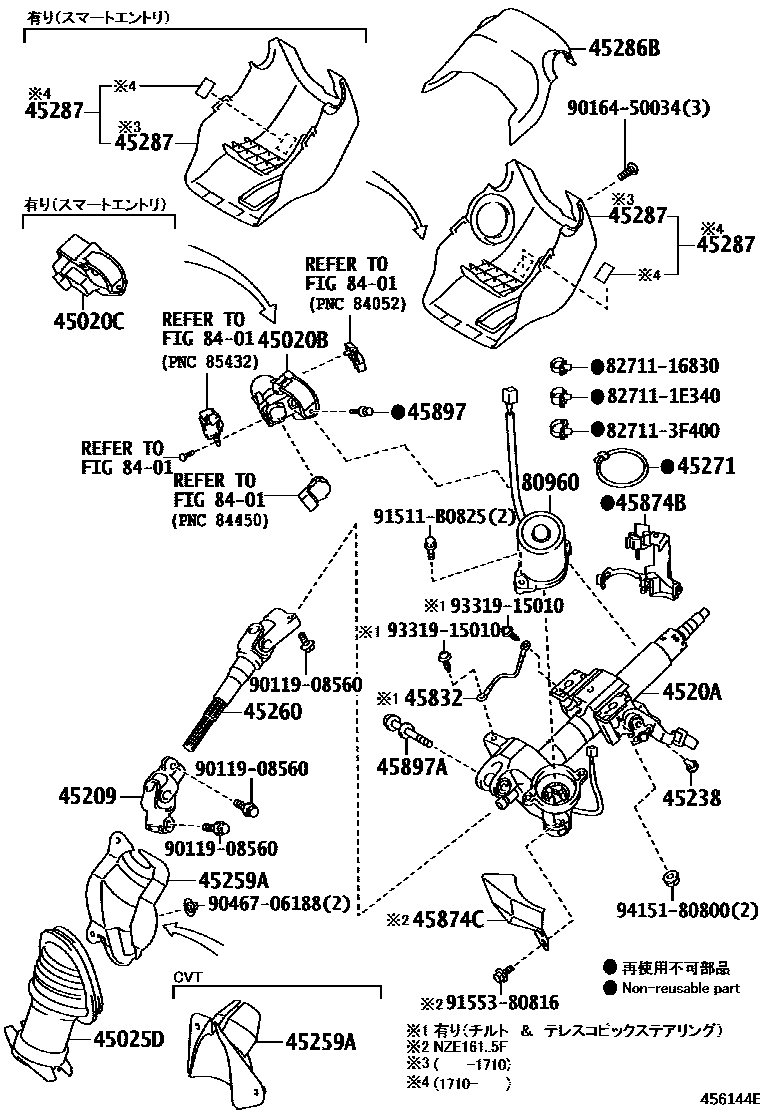

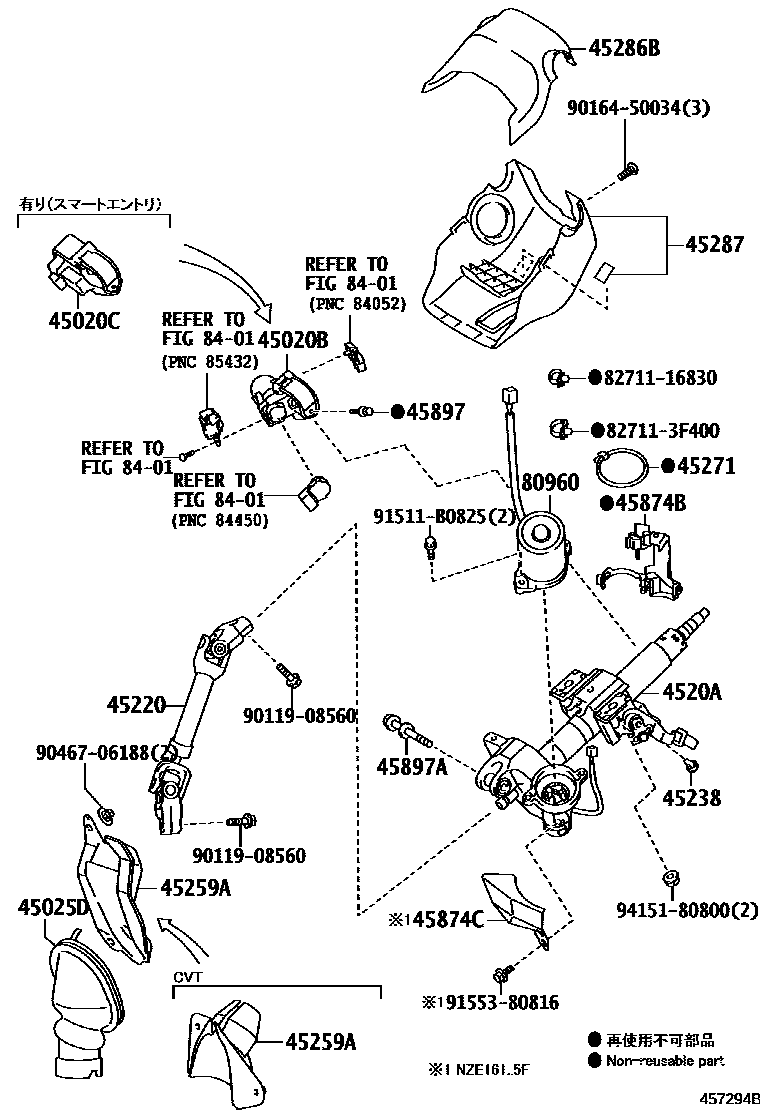

Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020B | Toyota part | 45280-52100 · 45280-52110 |
| 45020C | Toyota part | 45020-52170 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-52160 · 45025-52170 |
| 45209 | Steering slip fork sub-assembly | 45209-52050 |
| 4520A | Electric steering column sub-assembly | 4520A-52131 · 4520A-52132 · 4520A-52151 · 4520A-52152 · 4520A-52161 · 4520A-52162 · 4520A-52241 · 4520A-52242 · 4520A-52290 · 4520A-52300 |
| 45220 | Steering intermediate shaft assembly | 45220-52050 |
| 45238 | Bolt clamp (for steering flex coupling) | 45238-52010 |
| 45259A | Steering column hole cover silencer plate | 45255-12130 · 45255-52130 · 45259-52010 · 45259-52070 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-52290 |
| 45271 | Clamp on steering column | 45271-52040 |
| 45832 | Tilt-adjustable steering bracket connection cable | 45832-52010 |
| 45874B | No. 1 steering column guard | 45874-52040 |
| 45874C | No. 1 steering column guard | 45874-52030 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 45897-42010 · 90119-10980 |
| 80960 | Power steering motor assembly | 80960-52070 · 80960-52100 · 80960-52110 · 80960-52150 |
