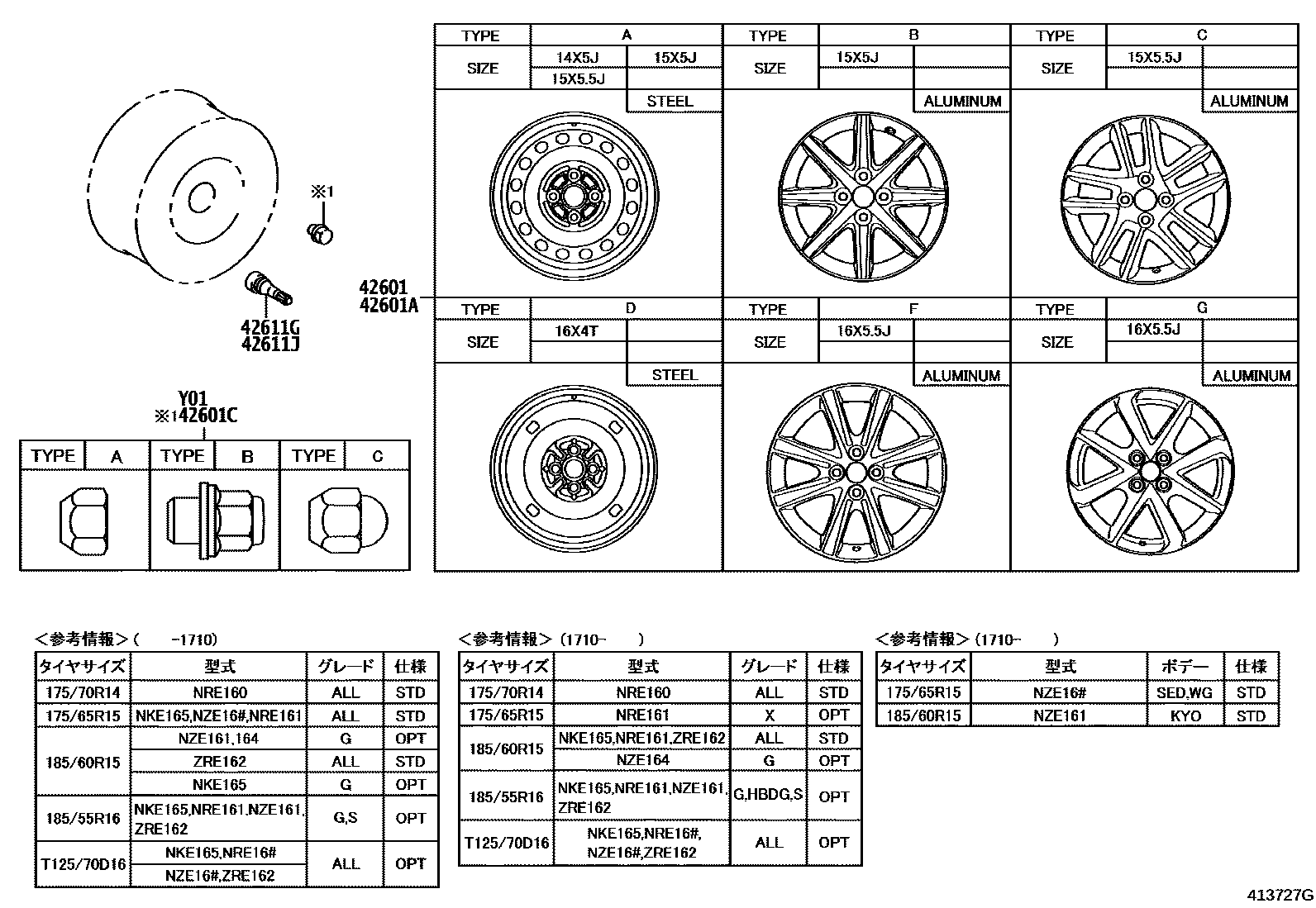

Toyota COROLLA 车轮和车轮盖 — Figure 4103
Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-12E20 · 42611-12E30 · 42611-13140 · 42611-13150 · 42611-13170 · 42611-13180 · 42611-52493 · 42611-52770 · 42611-52780 · 42611-52A00 · 42611-52C30 |
| 42601A | Spoke wheel (for spare tire) | 42611-1A240 · 42611-52400 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01021 · 90942-01033 |

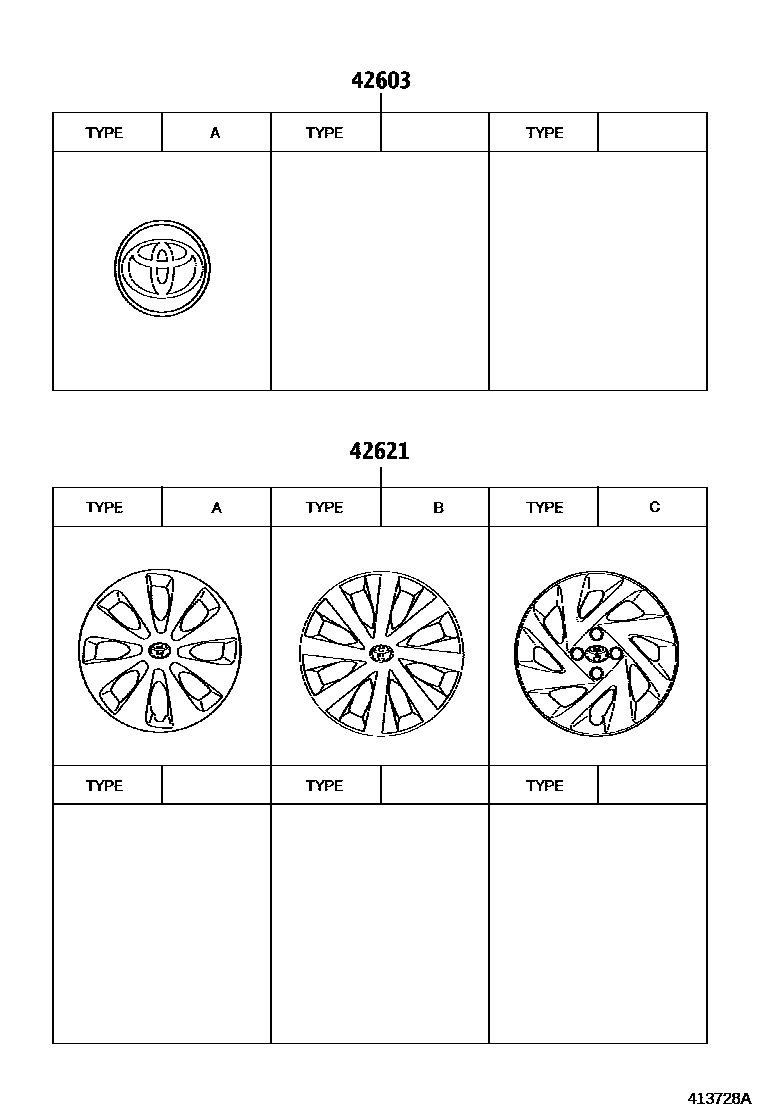

| 42603 | Wheel hub decorative parts sub-assembly | 42603-52110 · 42603-52170 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42621 | wheel cover | 42602-12890 · 42602-52500 · 42602-52620 |
