Toyota COROLLA 后桥半轴和后桥轮毂 — Figure 4102

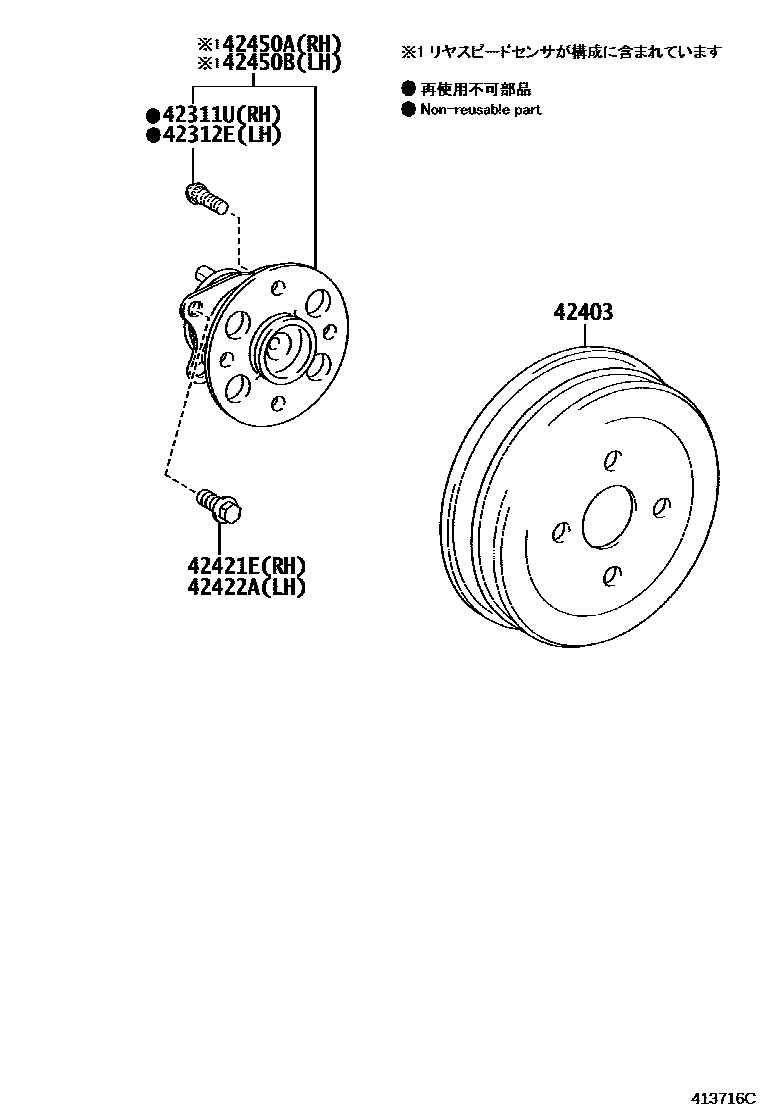

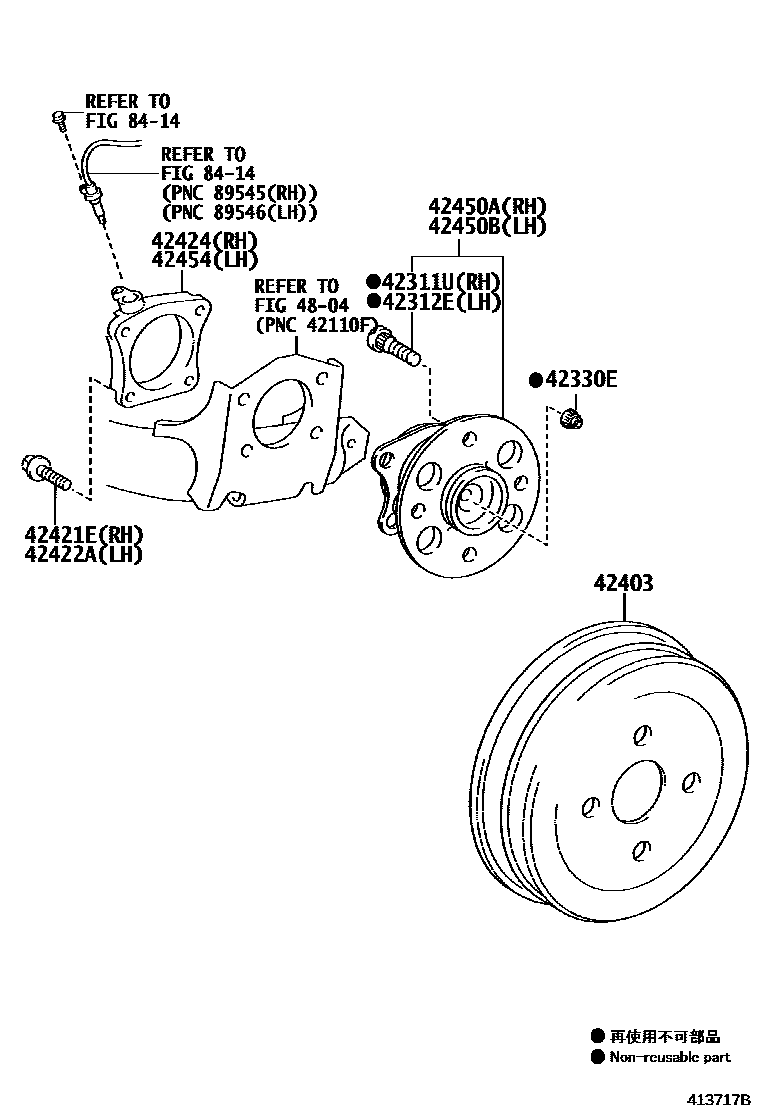

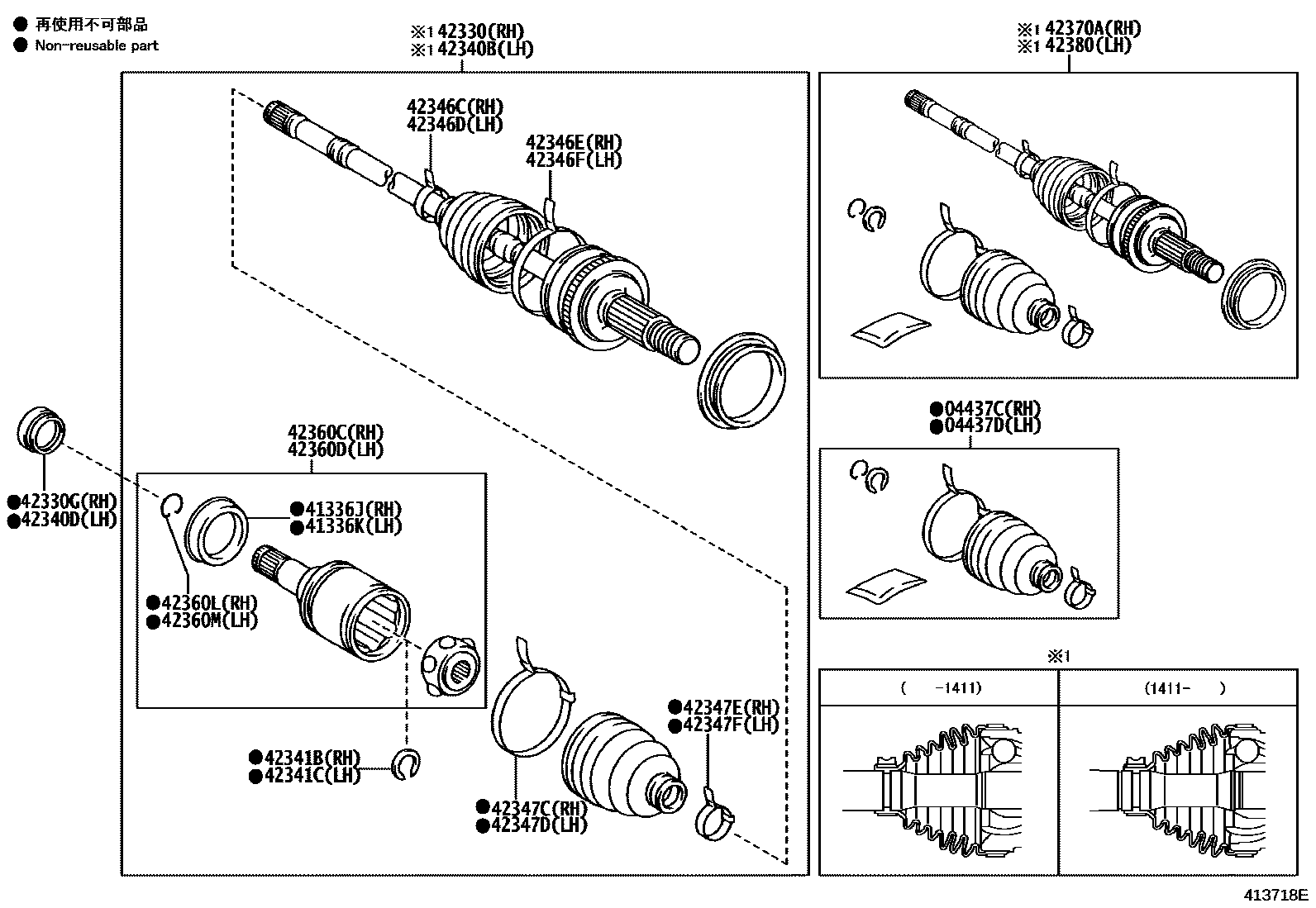

Toyota COROLLA EPC diagram 4102, 后桥半轴和后桥轮毂, with 3 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04437C | Right rear drive shaft inner universal joint dust boot assembly | 04439-52050 · 04439-52051 · 04439-52052 · 04439-52053 |
| 04437D | Left rear drive shaft inner universal joint dust boot assembly | 04439-52050 · 04439-52051 · 04439-52052 · 04439-52053 |
| 41336J | Rear axle right drive shaft dust cover | 41336-28050 |
| 41336K | Rear axle left drive shaft dust cover | 41336-28050 |
| 42311U | Hub bolt (for rear axle right) | 90942-02049 |
| 42312E | Hub bolt (for left rear axle) | 90942-02049 |
| 42330 | Rear axle right drive shaft assembly | 42340-52010 · 42340-52011 · 42340-52012 |
| 42330E | Nut (for rear driveshaft) | 90177-22001 |
| 42330G | Toyota part | 90311-37004 · 90311-37007 |
| 42340B | Rear axle left drive shaft assembly | 42340-52010 · 42340-52011 · 42340-52012 |
| 42340D | Toyota part | 90311-37004 · 90311-37007 |
| 42341B | Snap ring (for rear axle right drive shaft) | 43425-48040 · 90520-21020 |
| 42341C | Snap ring (for rear axle left drive shaft) | 43425-48040 · 90520-21020 |
| 42346C | Clamp (for the universal joint dust cover on the outside of the right drive shaft of the rear axle) | 42345-52200 · 42345-52270 |
| 42346D | Clamp (for universal joint dust cover outside left drive shaft of rear axle) | 42345-52200 · 42345-52270 |
| 42346E | Clamp No. 2 (for the universal joint dust cover on the outside of the right drive shaft of the rear axle) | 42345-12280 · 42345-52190 |
| 42346F | Clamp No. 2 (for the universal joint dust cover on the outside of the rear left drive shaft of the rear axle) | 42345-12280 · 42345-52190 |
| 42347C | Clamp (for the universal joint dust cover inside the right drive shaft of the rear axle) | 42345-12120 |
| 42347D | Clamp (for the universal joint dust cover inside the left drive shaft of the rear axle) | 42345-12120 |
| 42347E | Clamp No. 2 (for the dust cover of the universal joint inside the right drive shaft of the rear axle) | 42345-12130 |
| 42347F | Clamp No. 2 (for the dust cover of the universal joint inside the left drive shaft of the rear axle) | 42345-12130 |
| 42360C | Rear axle right drive shaft inner universal joint assembly | 42360-52010 |
| 42360D | Rear axle left drive shaft inner universal joint assembly | 42360-52010 |
| 42360L | Shaft snap ring (for rear axle right drive shaft inner universal joint) | 90520-19018 |
| 42360M | Shaft snap ring (for rear axle left drive shaft inner universal joint) | 90520-19018 |
| 42370A | Rear axle right drive shaft outer universal joint assembly | 42370-59125 · 42370-59126 · 42370-59127 · 42370-59128 · 42370-59205 |
| 42380 | Rear axle left drive shaft outer universal joint assembly | 42370-59125 · 42370-59126 · 42370-59127 · 42370-59128 · 42370-59205 |
| 42403 | Rear brake drum sub-assembly | 42431-52070 · 42431-52090 |
| 42421E | Bolt (for rear axle right bearing housing) | 90105-12350 · 90105-12351 |
| 42422A | Bolt (for rear axle left bearing housing) | 90105-12350 · 90105-12351 |
| 42424 | Rear axle right bearing outer retainer | 42424-52020 |
| 42450A | Rear axle right hub and bearing assembly | 42410-52060 · 42450-52060 · 42450-52061 |
| 42450B | Rear axle left wheel hub and bearing assembly | 42410-52060 · 42450-52060 · 42450-52061 |
| 42454 | Rear axle left bearing outer retainer | 42454-52020 |
