Toyota COROLLA 后桥壳和差速器 — Figure 4101

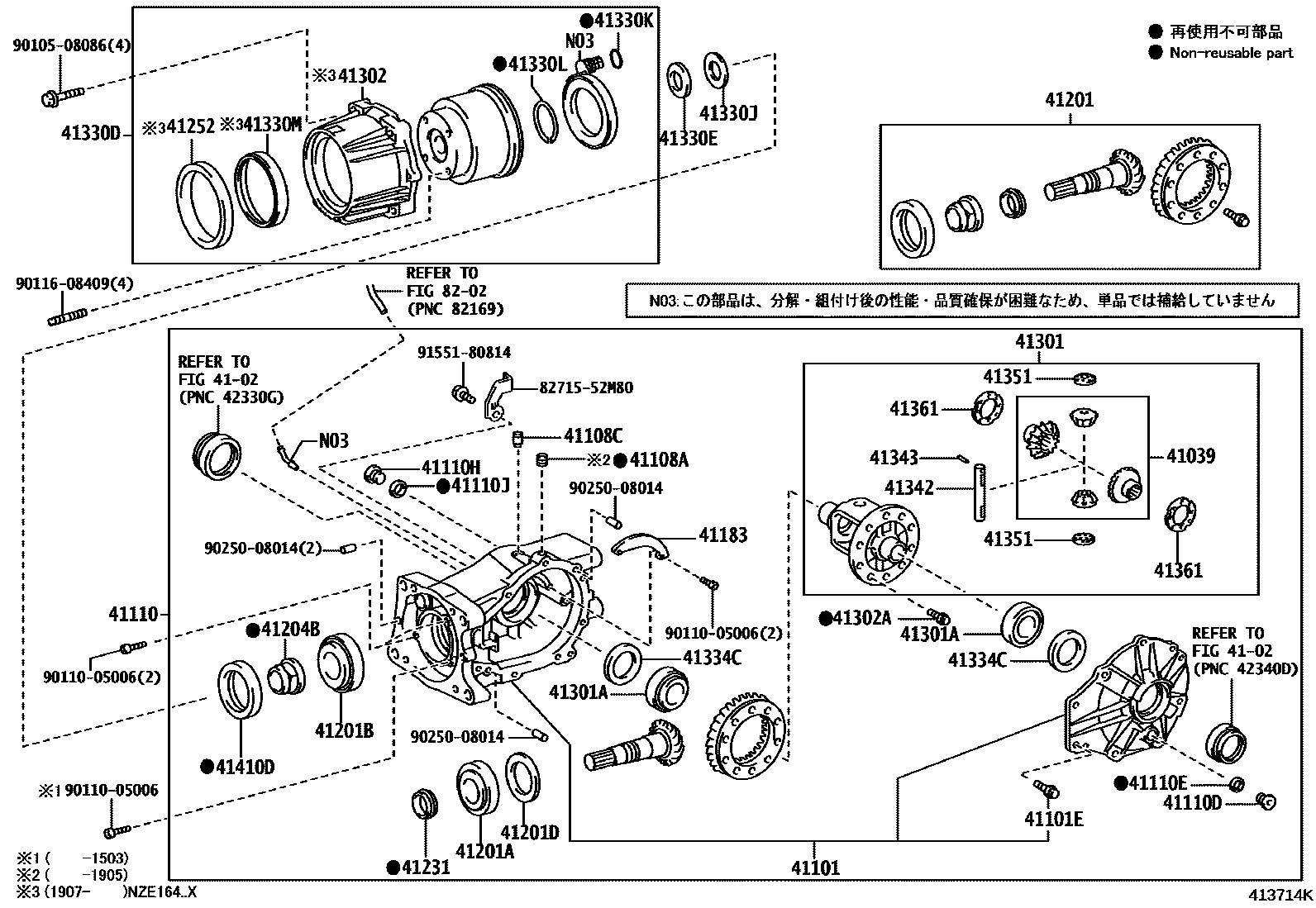

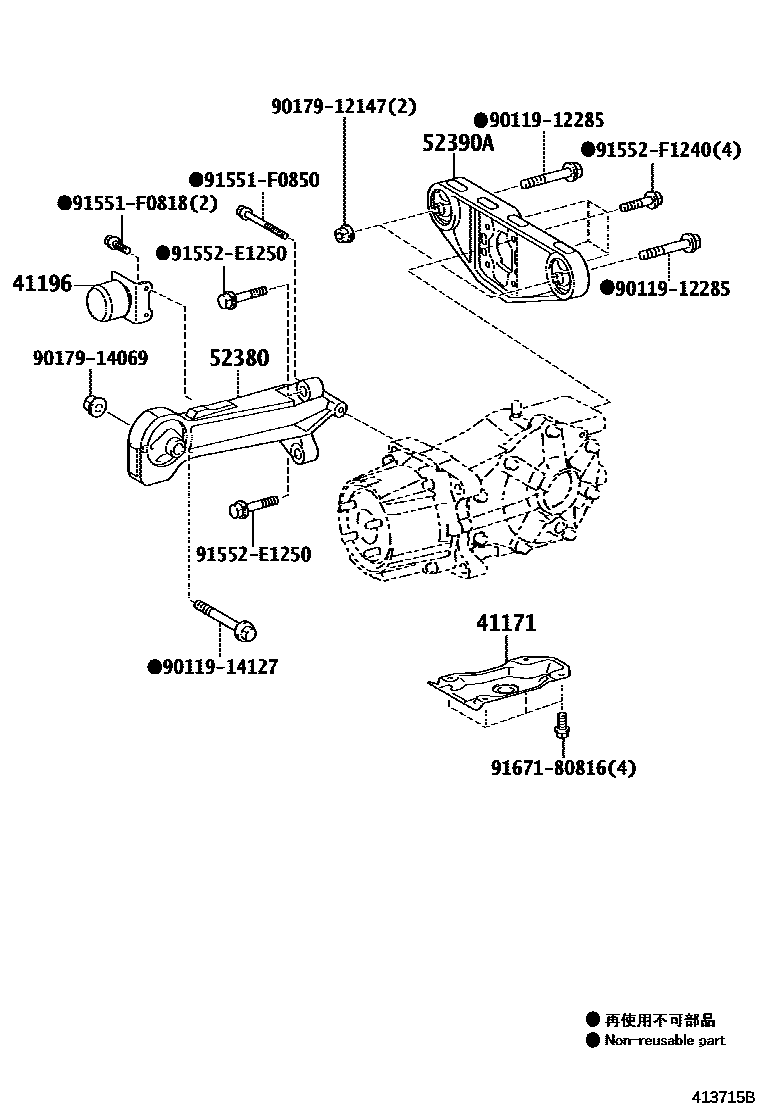

Toyota COROLLA EPC diagram 4101, 后桥壳和差速器, with 2 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 41039 | rear differential gear assembly | 41039-52010 |
| 41101 | Rear differential bracket sub-assembly | 41101-42021 · 41101-42022 |
| 41101E | Bolt (for rear differential case) | 91551-C0835 |
| 41108A | Screw plug (for rear differential case cover) | 90344-53006 |
| 41108C | Breather plug (for rear differential case cover) | 90930-03170 · 90930-03235 |
| 41110 | Rear differential bracket assembly | 41110-42041 · 41110-42070 |
| 41110D | Screw plug (for rear differential drain port) | 90341-18051 |
| 41110E | Gasket (for rear differential drain plug) | 12157-10010 |
| 41110H | Plug (for rear differential oil filling port) | 90341-18023 |
| 41110J | Gasket (for rear differential oil plug) | 12157-10010 |
| 41171 | Rear differential protector | 41171-52010 |
| 41183 | Rear differential breather plug oil baffle | 41183-52010 |
| 41196 | Rear differential power damper | 41196-52010 |
| 41201 | Rear differential final drive gear assembly | 41201-59115 · 41201-59425 |
| 41201A | Rear tapered bearing (for rear driving pinion) | 90366-35130 |
| 41201B | Front roller tapered bearing (for rear drive pinion) | 90366-30090 |
| 41201D | Flat washer (for rear differential drive pinion) | 90564-35041 · 90564-35042 · 90564-35043 · 90564-35044 · 90564-35045 · 90564-35046 · 90564-35047 · 90564-35048 · 90564-35049 · 90564-35050 · 90564-35051 · 90564-35052 · 90564-35053 · 90564-35054 · 90564-35055 · 90564-35056 · 90564-35057 · 90564-35058 · 90564-35059 · 90564-35060 · 90564-35061 · 90564-35062 · 90564-35063 · 90564-35064 · 90564-35065 · 90564-35070 · 90564-35071 · 90564-35072 · 90564-35073 · 90564-35074 · 90564-35075 · 90564-35076 · 90564-35077 · 90564-35078 · 90564-35079 · 90564-35080 · 90564-35081 · 90564-35082 · 90564-35083 · 90564-35084 · 90564-35085 · 90564-35086 · 90564-35087 · 90564-35088 · 90564-35089 · 90564-35090 · 90564-35091 · 90564-35092 · 90564-35093 · 90564-35094 · 90564-35095 |
| 41204B | Nut (for rear driving pinion) | 90178-30001 |
| 41231 | Rear differential drive pinion bearing spacer | 41231-52010 |
| 41252 | Dust cover (for rear differential) | 41252-42013 |
| 41301 | Rear differential housing sub-assembly | 41301-52100 |
| 41301A | Bearings (for rear differential housing) | 90366-33003 |
| 41302 | Rear differential housing sub-assembly | 41302-42050 |
| 41302A | Bolt (for rear differential case) | 90105-11034 |
| 41330D | Transmission coupling assembly | 41303-42022 · 41303-42023 |
| 41330E | Tapered spring washer (for transmission coupling) | 90208-25001 |
| 41330J | Gasket (for transmission coupling) | 90564-25024 · 90564-25025 · 90564-25026 · 90564-25027 · 90564-25028 · 90564-25029 · 90564-25031 · 90564-25032 · 90564-25033 · 90564-25034 · 90564-25035 · 90564-25036 · 90564-25037 · 90564-25038 · 90564-25039 · 90564-25040 · 90564-25041 · 90564-25042 · 90564-25043 · 90564-25044 |
| 41330K | O-ring (for transmission coupling) | 90301-16015 |
| 41330L | Snap ring (for transmission coupling) | 90520-59004 |
| 41330M | Toyota part | 90304-94005 |
| 41334C | Flat washer (for rear differential side gear shaft) | 90564-37022 · 90564-37023 · 90564-37024 · 90564-37025 · 90564-37026 · 90564-37027 · 90564-37028 · 90564-37029 · 90564-37030 · 90564-37031 · 90564-37032 · 90564-37033 · 90564-37034 · 90564-37035 · 90564-37036 · 90564-37037 · 90564-37038 · 90564-37039 · 90564-37040 · 90564-37041 · 90564-37042 · 90564-37043 · 90564-37044 · 90564-37045 · 90564-37046 · 90564-37047 · 90564-37048 · 90564-37049 · 90564-37050 · 90564-37051 · 90564-37052 · 90564-37053 · 90564-37054 · 90564-37055 · 90564-37056 · 90564-37057 |
| 41342 | Rear differential planetary gear shaft | 41342-52040 |
| 41343 | Rear differential planetary gear pin | 90250-03110 |
| 41351 | Rear differential planetary gear thrust washer | 41351-52050 |
| 41361 | No. 1 rear differential half gear thrust washer | 41361-52180 · 41361-52190 · 41361-52200 · 41361-52210 · 41361-52220 · 41361-52230 · 41361-52240 · 41361-52250 |
| 41410D | Diaphragm oil seal | 90311-54006 |
| 52380 | Rear differential No. 1 bracket | 52380-52010 |
| 52390A | Rear differential bracket assembly | 52390-52010 |
