Toyota COROLLA HV或FCV传动桥总成 — Figure 3901

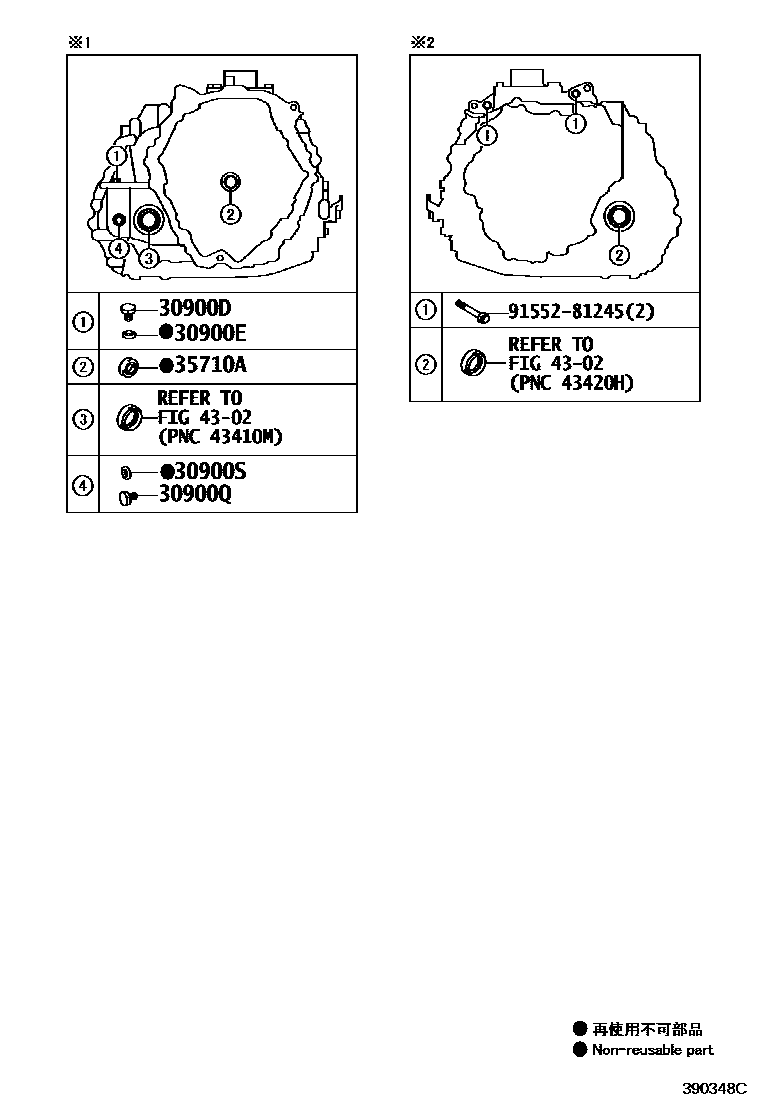

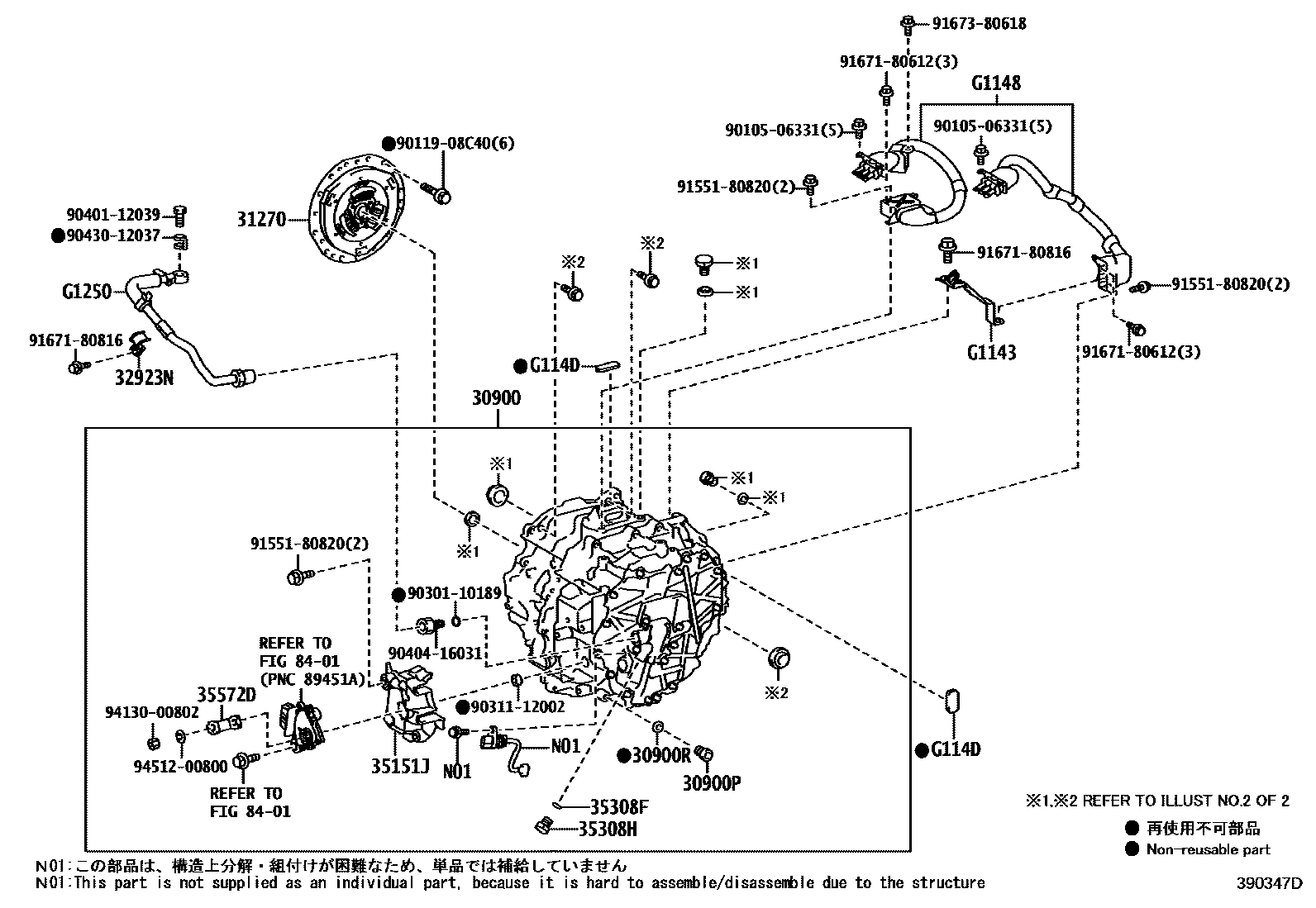

Toyota COROLLA EPC diagram 3901, HV或FCV传动桥总成, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30900 | Hybrid vehicle transmission axle assembly | 30900-52010 |
| 30900D | Headed straight thread plug (for transaxle housing and transaxle housing) | 90341-18060 |
| 30900E | Gasket (for transaxle housing and transaxle housing) | 90430-18008 |
| 30900P | Toyota part | 90341-18016 |
| 30900Q | Toyota part | 90341-18016 |
| 30900R | Toyota part | 90430-18008 |
| 30900S | Toyota part | 90430-18008 |
| 31270 | Transmission input damper assembly | 31270-52010 |
| 32923N | Transmission oil cooler pipe clamp | 32923-52040 |
| 35151J | automatic transmission cover | 35151-52010 |
| 35308F | No. 1 O-ring (for transmission oil pump cover) | 90301-06196 |
| 35308H | Screw plug (for transmission oil pump cover) | 90341-08001 |
| 35572D | transmission control lever | 35572-52090 |
| 35710A | T-type oil seal (for input shaft) | 90311-21003 |
| G1143 | Motor cable bracket | G1143-52030 |
| G1148 | Motor cable | G1148-52010 |
| G114D | Motor cable terminal cover | G114D-47021 |
| G1250 | Motor cooling pipe assembly | G1250-52010 |
