Toyota COROLLA Propeller Shaft & Universal Joint — Figure 3701

Toyota COROLLA EPC diagram 3701, Propeller Shaft & Universal Joint, with 1 images and 7 PNC and OE references.

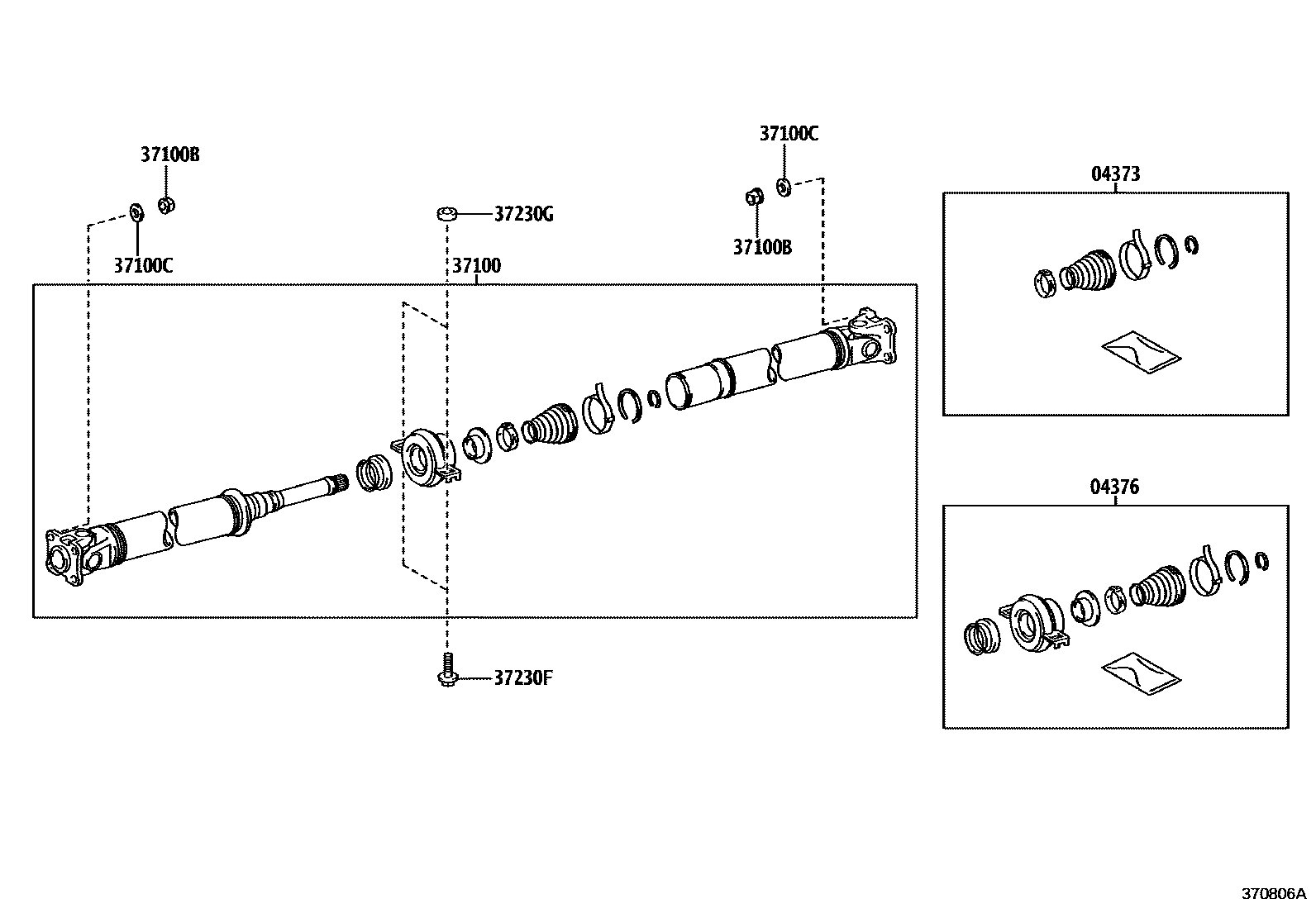

Toyota COROLLA Propeller Shaft & Universal Joint EPC diagram — 370806A
Propeller Shaft & Universal Joint — 370806A (201204 – 999999)

PNC and OE references

PNCPart nameOE numbers
04373Universal joint dust boot assembly04373-52010
04376Toyota part04376-52010
37100Drive shaft assembly with central bearing37100-12660
37100BNo. 1 nut (used to secure the drive shaft and differential)90179-08197
37100CNo. 1 washer (used to secure drive shaft and differential)90201-08097
37230FNo. 1 bolt (for intermediate support bearing)90119-10444
37230GNo. 2 washer (for intermediate support bearing)90201-10081 · 90201-10083 · 90201-10084 · 90201-10085 · 90201-10123
