Toyota COROLLA Shift Lever & Retainer — Figure 3312

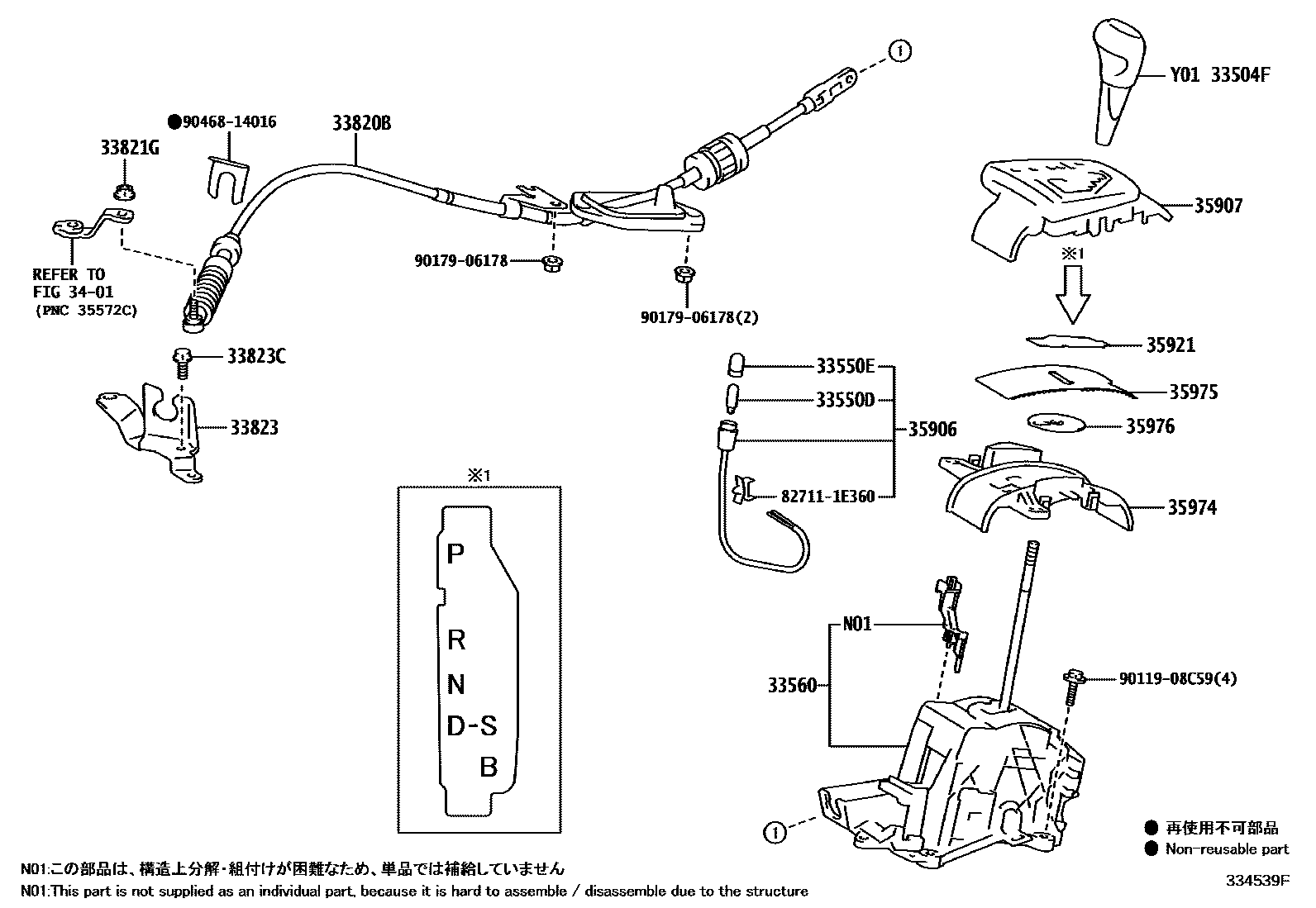

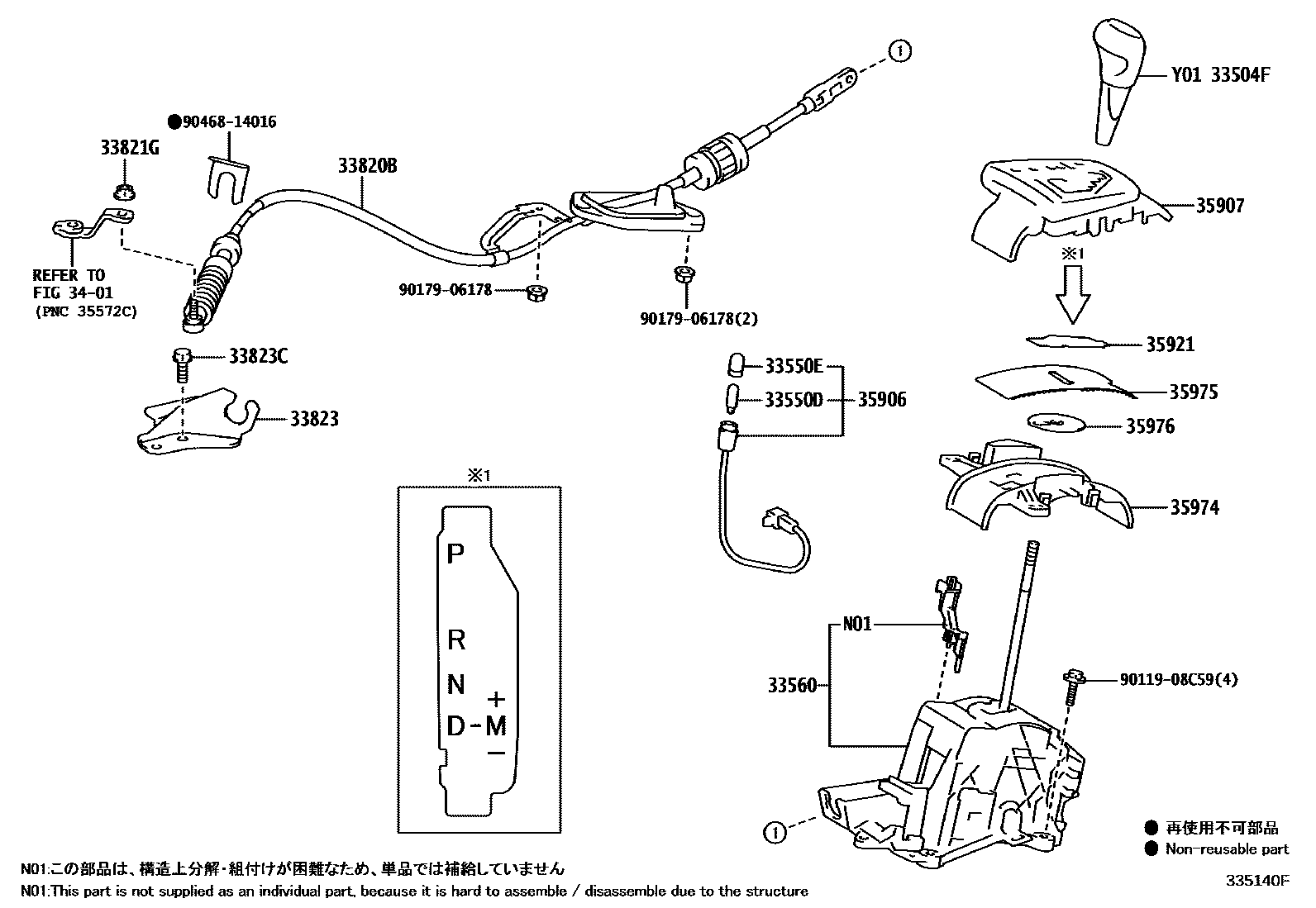

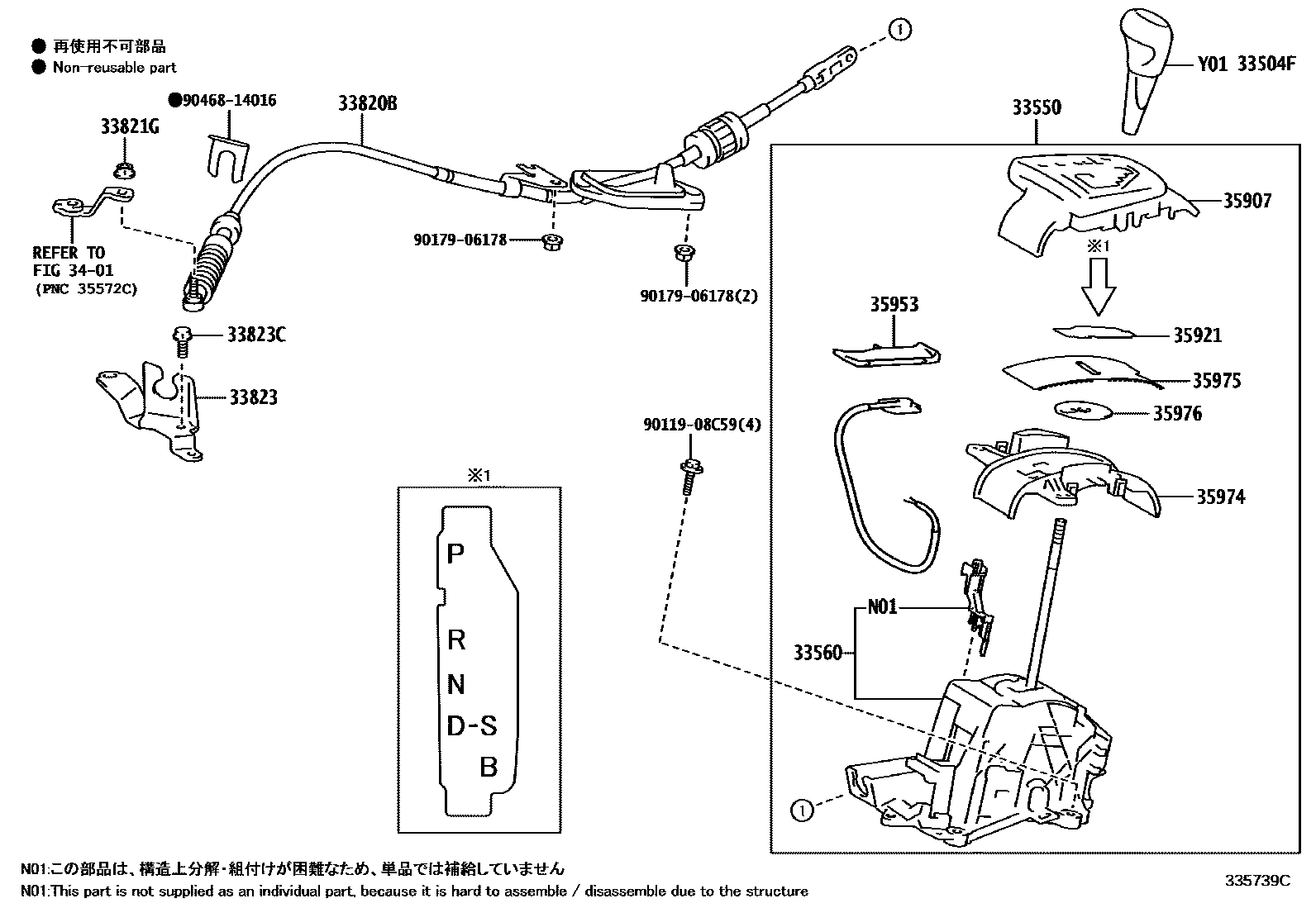

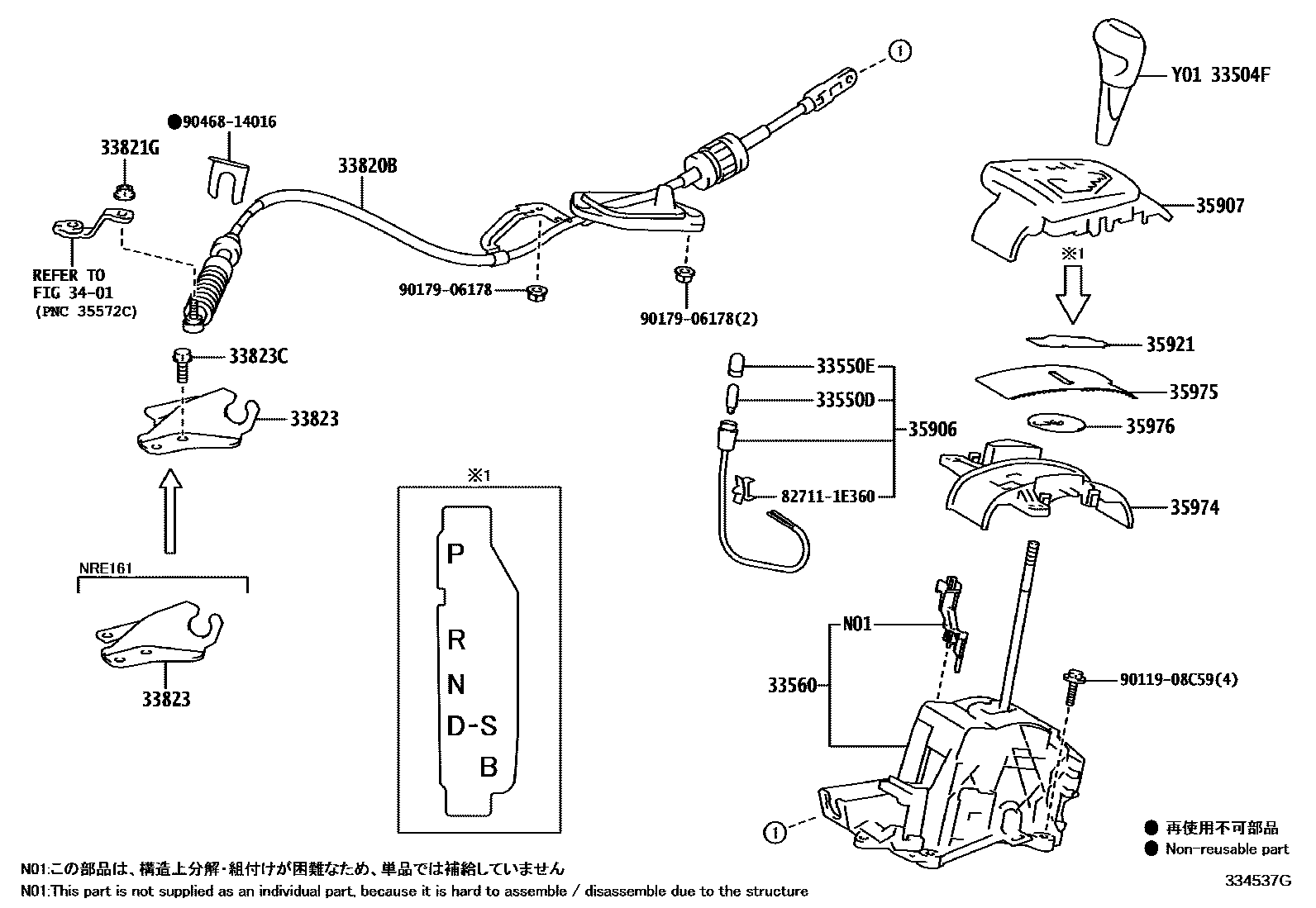

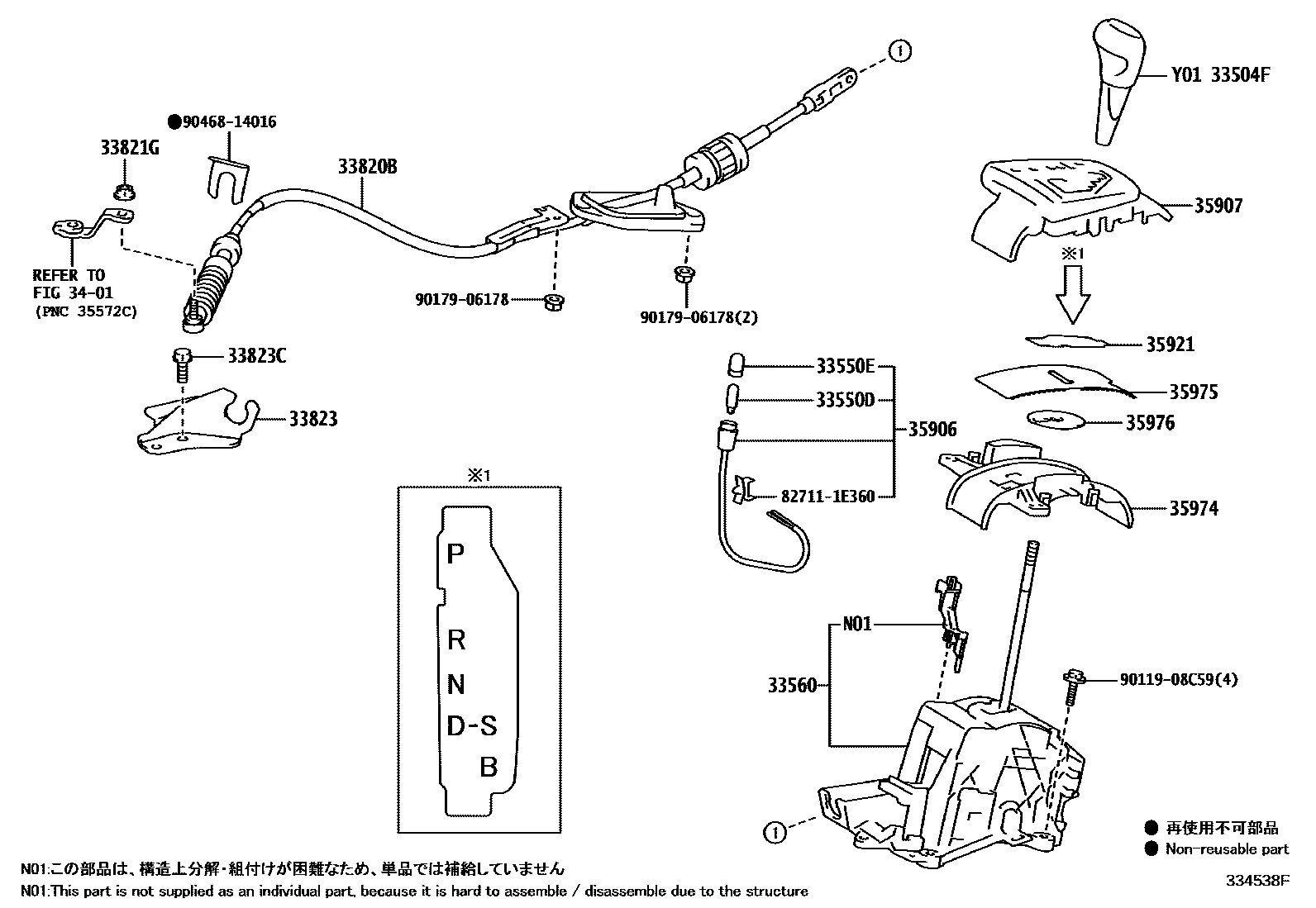

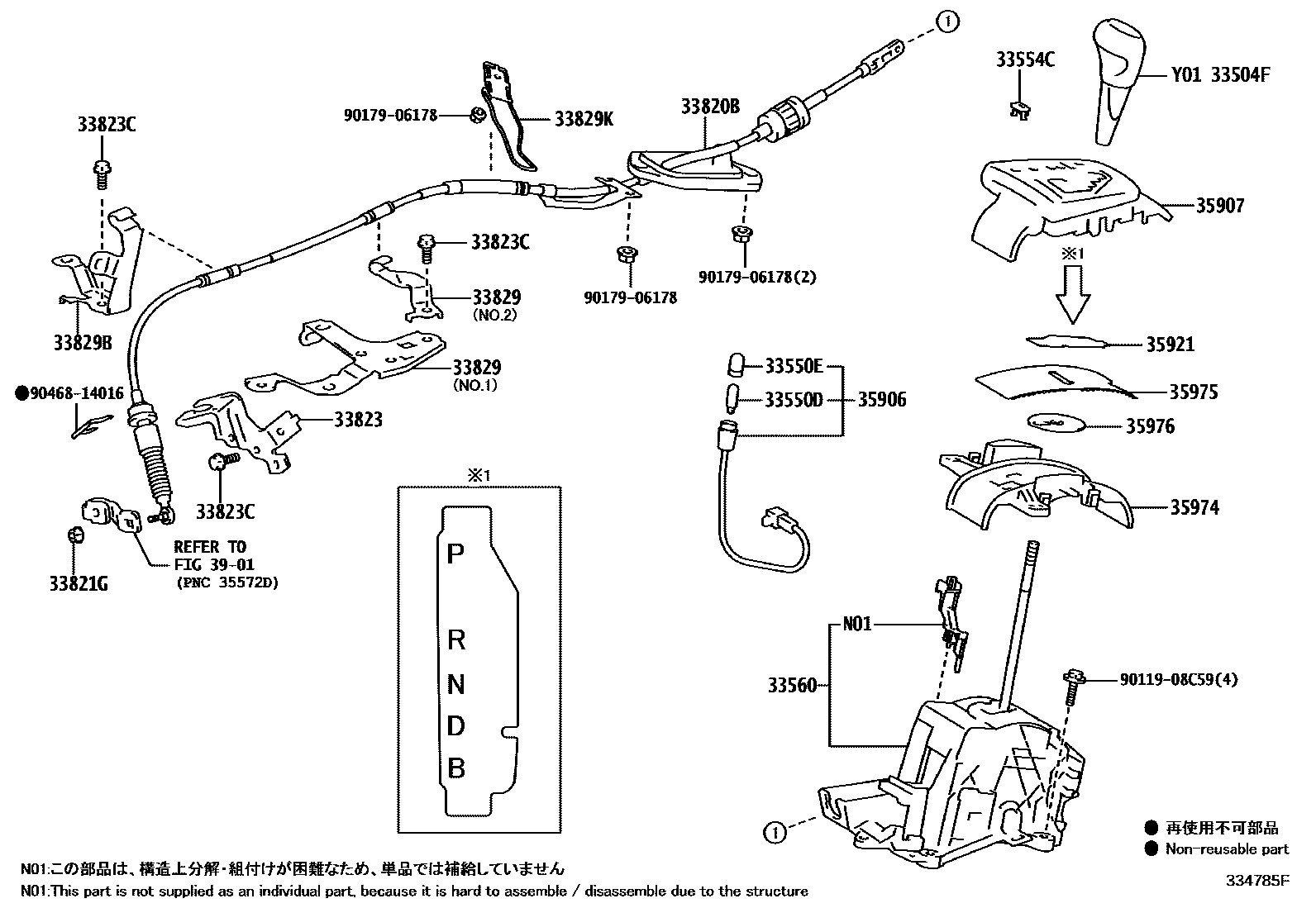

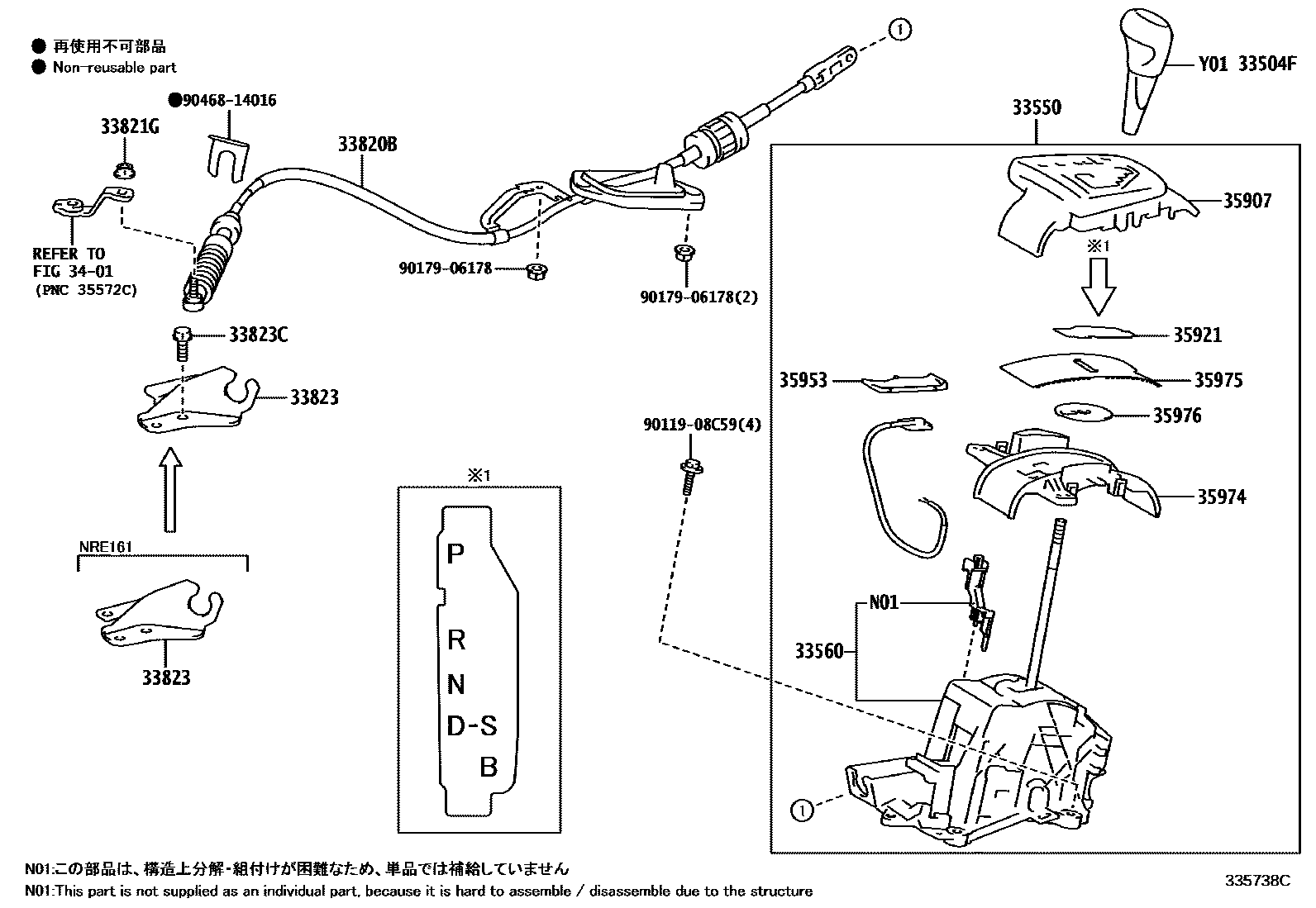

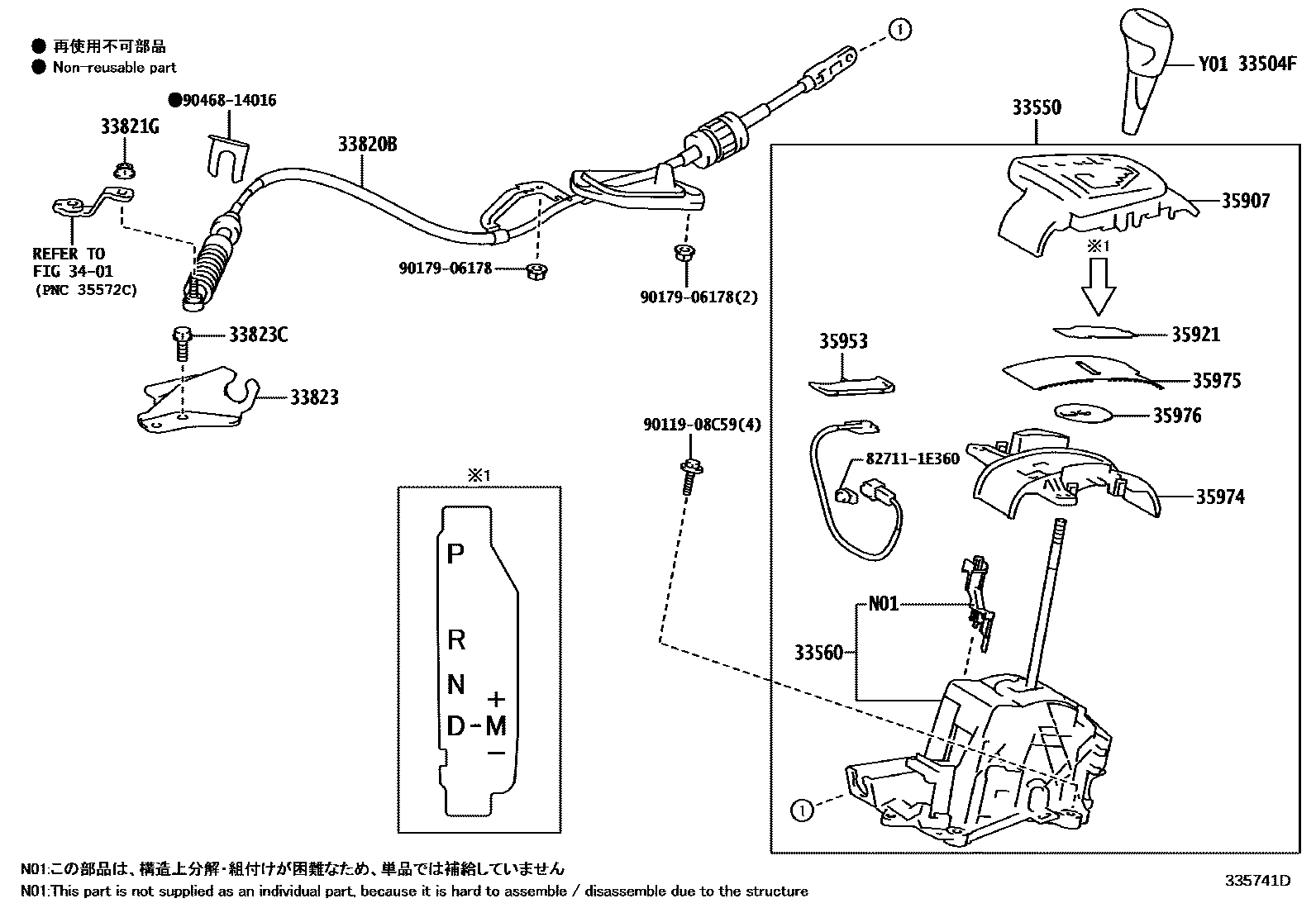

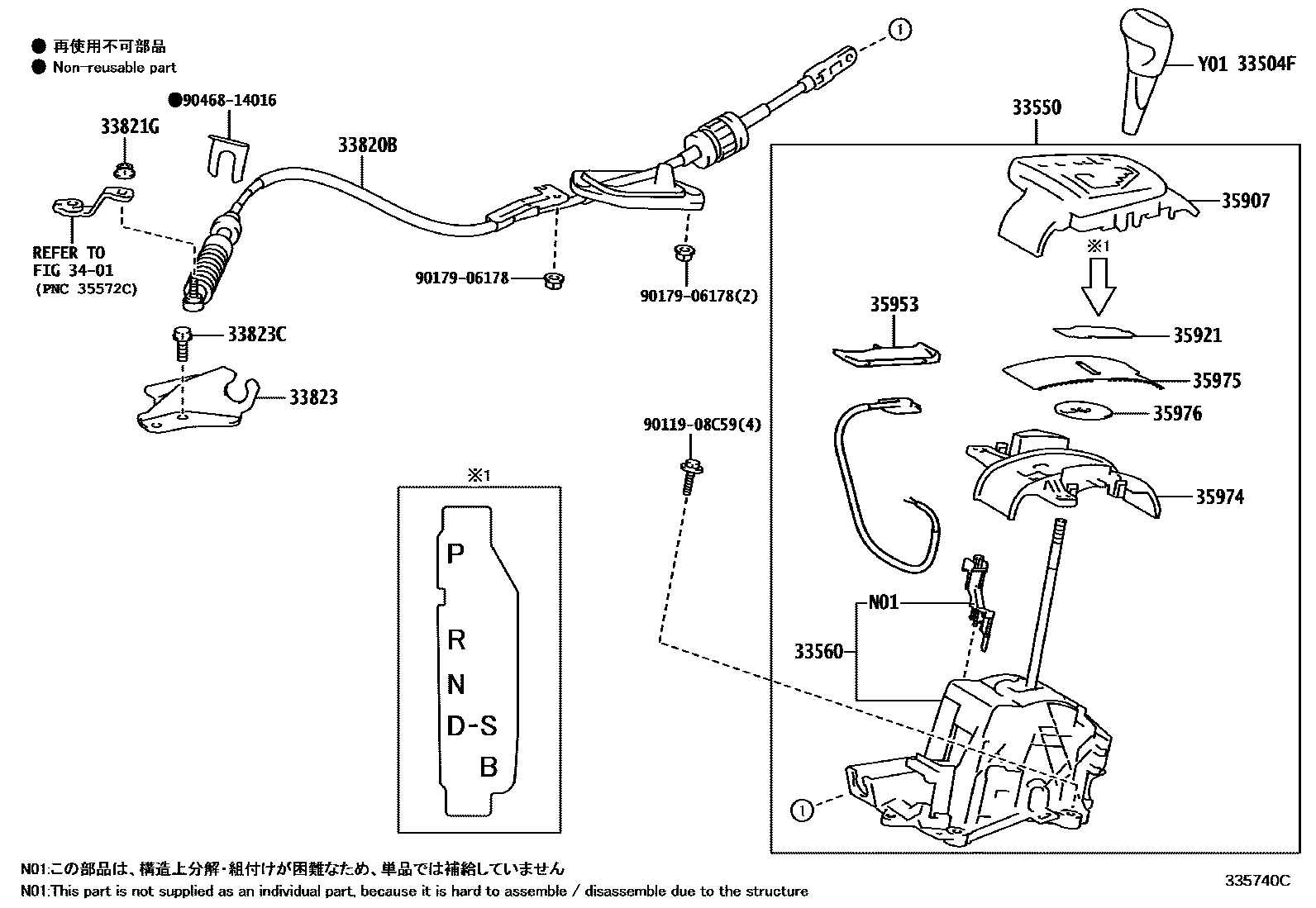

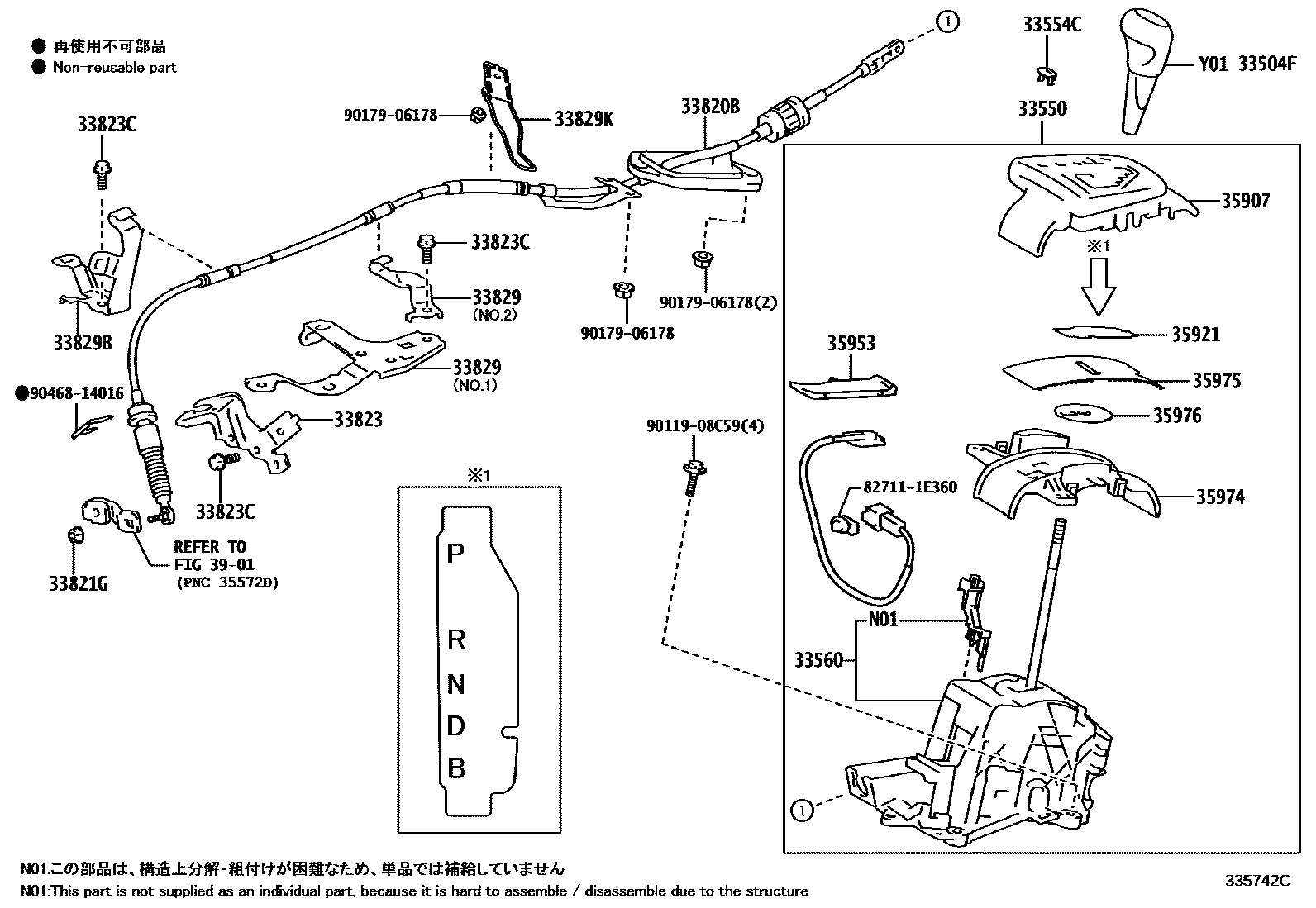

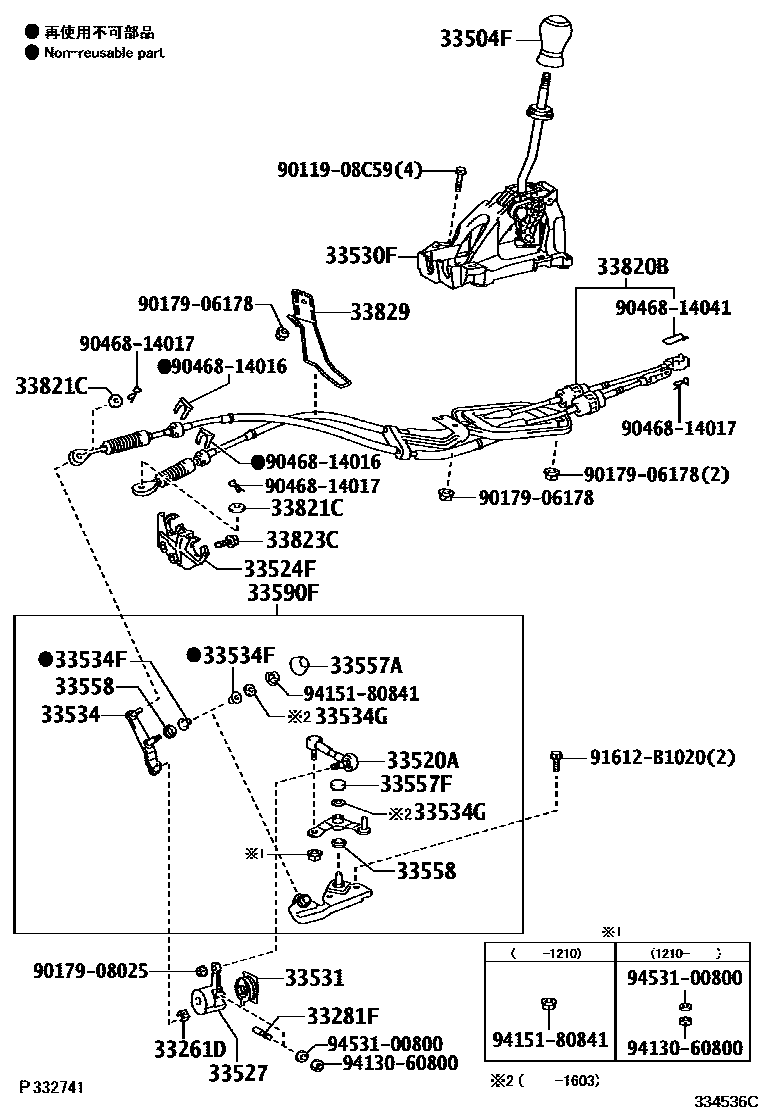

Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 11 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33261D | Bushing (for shift lever) | 33557-33010 |
| 33281F | Shift lever locking pin (for floor shift) | 33281-16020 |
| 33504F | Shift lever handle sub-assembly | 33504-12690 · 33504-12700 · 33504-13080 |
| 33520A | Floor type shift control shaft assembly | 33520-52050 |
| 33524F | Lever housing bracket (for floor shift) | 33524-52050 |
| 33527 | Gear shift lever (for floor shift) | 33527-52011 |
| 33530F | Shift lever assembly (for floor shift) | 33530-52210 |
| 33531 | Dust boot (for shift lever) | 33531-17010 |
| 33534 | Gear selection right angle lever | 33534-52020 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33550 | Transmission floor shift assembly | 33550-12K50 · 33550-12K70 · 33550-13290 · 33550-13300 · 33550-13310 |
| 33550D | position indicator light bulb | 35955-74010 |
| 33550E | position indicator cover | 35956-52020 |
| 33554C | Shift lock release button cover | 33554-12150 · 33554-12160 · 33554-12170 · 33554-12180 · 33554-13010 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33557F | Control right-angle lever dust cover (for floor-mounted shifting) | 33557-20010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 |
| 33560 | Shift lock control unit assembly | 33560-12290 · 33560-12530 · 33560-12560 · 33560-13030 · 33560-13040 |
| 33590F | Gear selection right-angle lever assembly (for floor shift) | 33590-52030 |
| 33820B | Transmission control cable assembly | 33820-12F80 · 33820-12F90 · 33820-12G00 · 33820-12G20 · 33820-12G40 · 33820-52750 · 33820-52A30 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08267 |
| 33821G | Nut (for transmission control cable) | 94151-80800 |
| 33823 | No. 1 transmission control cable bracket | 33823-52100 · 33823-52120 · 33823-52140 · 33823-52150 |
| 33823C | Bolt (for transmission control cable bracket) | 91611-B0816 · 91612-61030 |
| 33829 | Transmission control cable bracket | 33829-52092 · 33829-52190 · 33829-52200 |
| 33829B | Transmission control cable clip | 33829-52180 |
| 33829K | No. 2 transmission control cable clip | 33829-52170 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-12310 · 35906-12320 |
| 35907 | Position indicator light housing sub-assembly (for floor shift) | 35907-12640 · 35907-12650 · 35907-12660 · 35907-12690 · 35907-12760 · 35907-12770 · 35907-12780 · 35907-12790 · 35907-13010 · 35907-13020 · 35907-13030 · 35907-13040 · 35907-13070 · 35907-13090 · 35907-13100 |
| 35921 | control position indicator board | 35921-12660 · 35921-12670 · 35921-12680 · 35921-12690 · 35921-13040 · 35921-13050 |
| 35953 | Position indicator light guide | 35953-12250 |
| 35974 | Position indicator light lower shell | 35974-12350 · 35974-12440 |
| 35975 | Slide cover (for position indicator light) | 35975-12470 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-52140 |
