Toyota COROLLA 真空泵 — Figure 1905

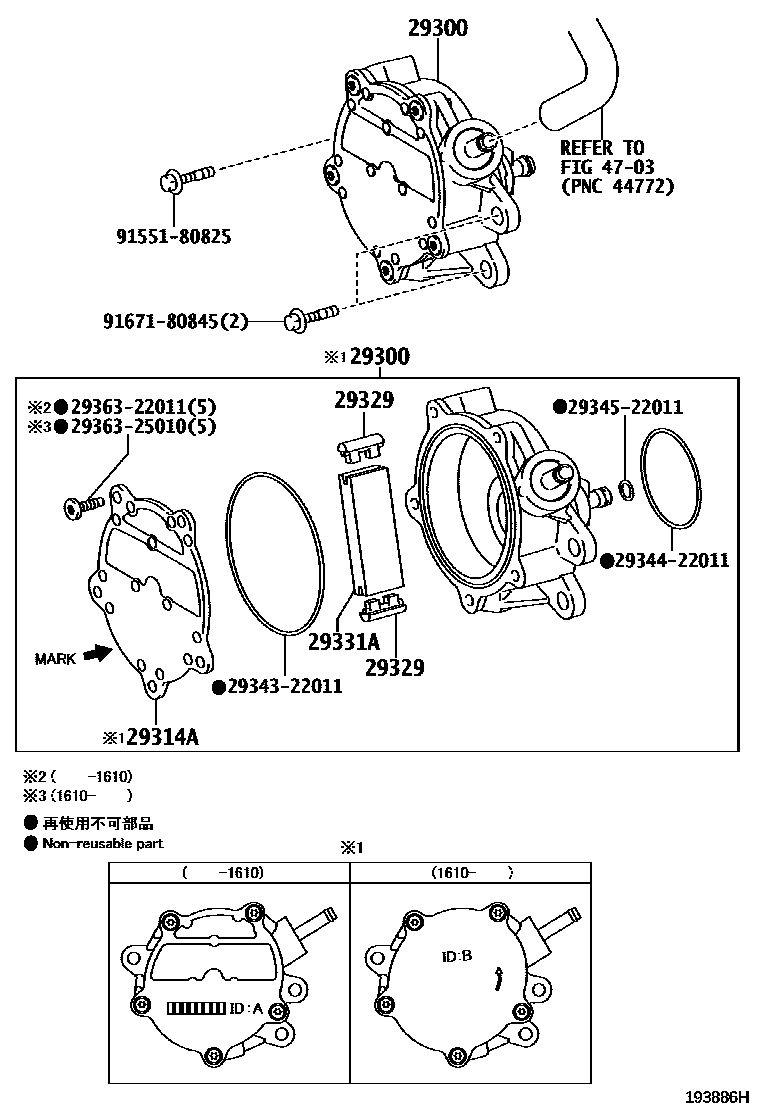

Toyota COROLLA EPC diagram 1905, 真空泵, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 29300 | Vacuum pump assembly | 29300-37010 · 29300-37011 |
| 29314A | end cap | 29314-37010 · 29314-37011 |
| 29329 | Vane vacuum pump cover | 29329-37010 |
| 29331A | vacuum pump blades | 29331-37010 |
