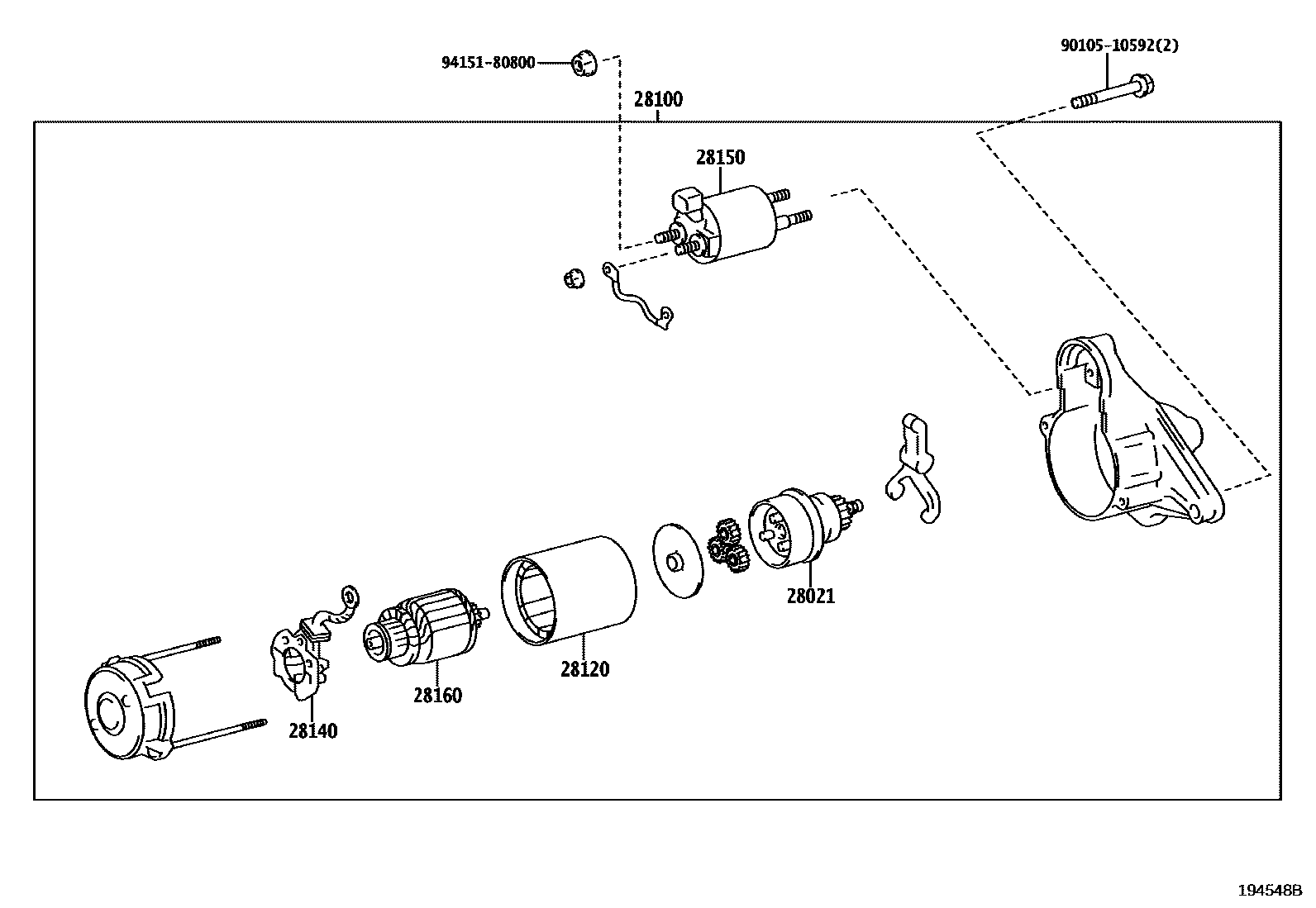

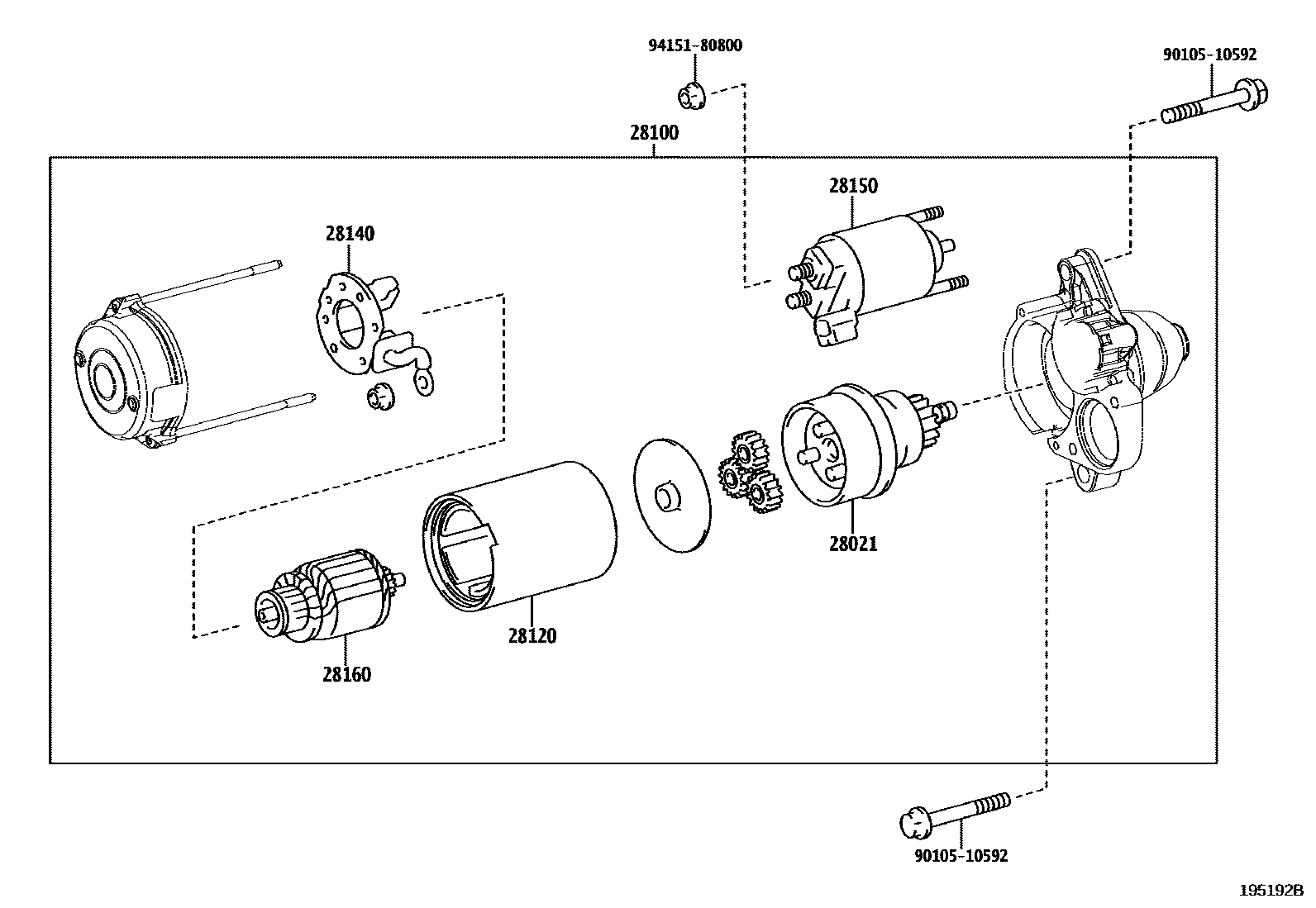

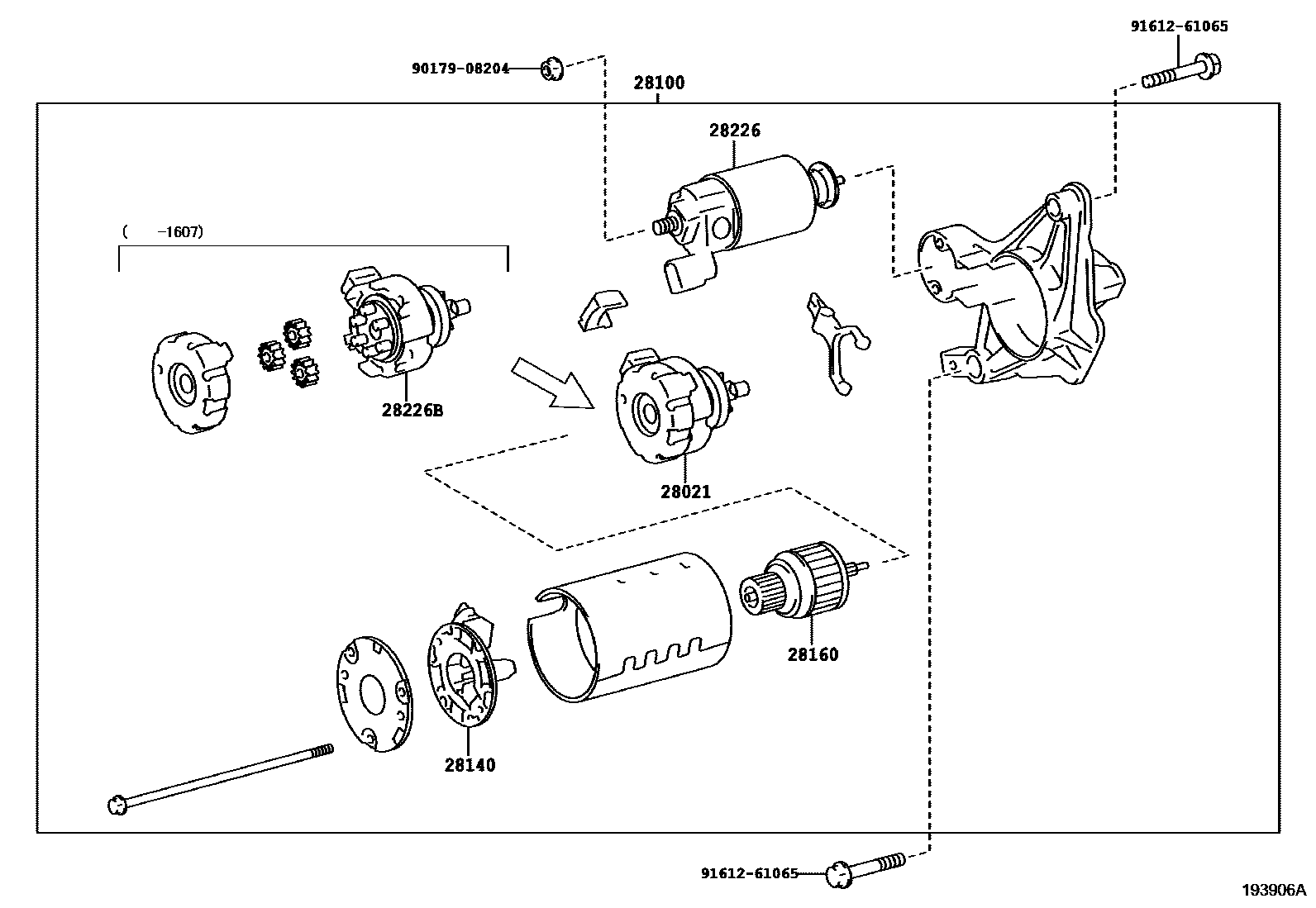

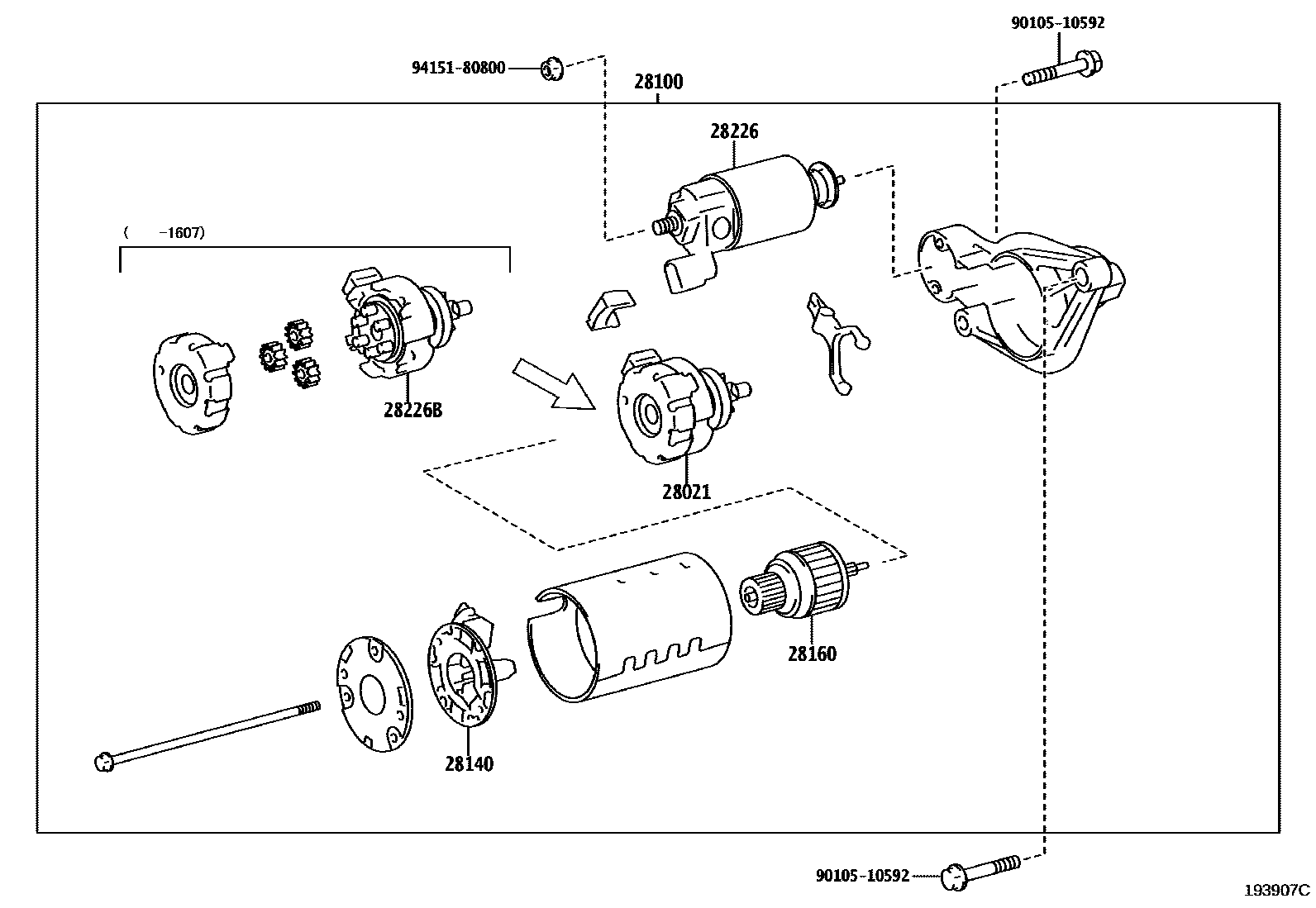

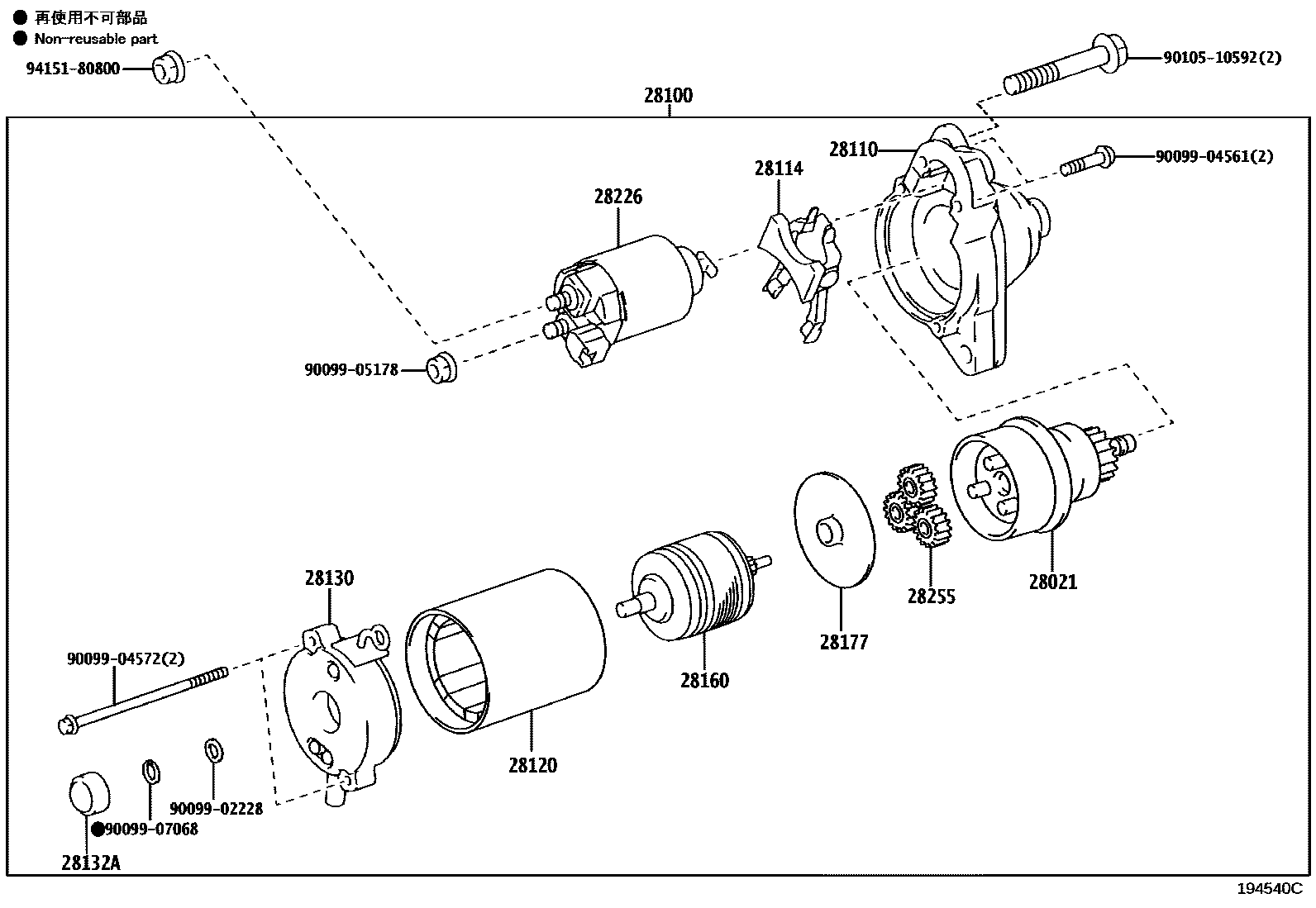

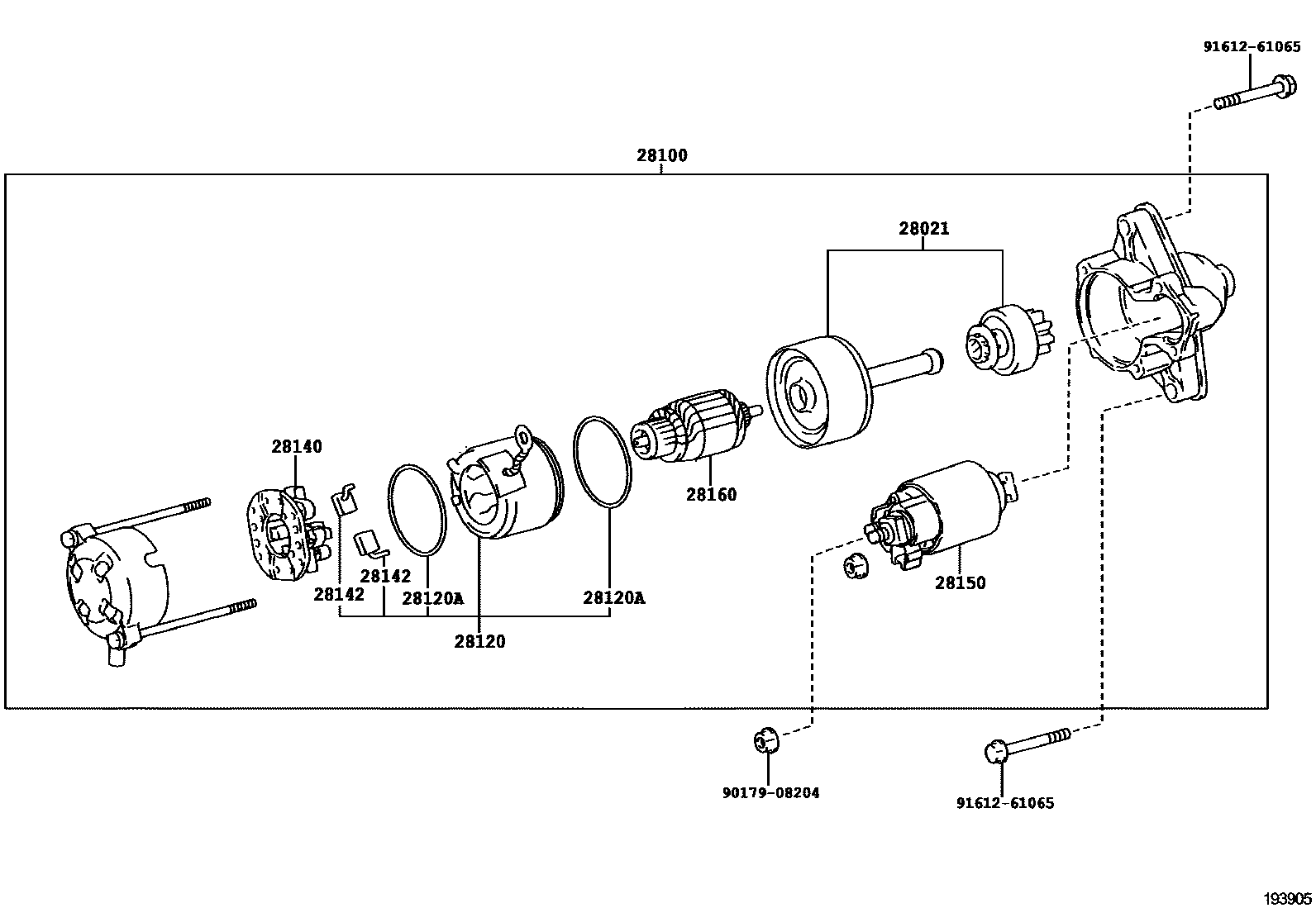

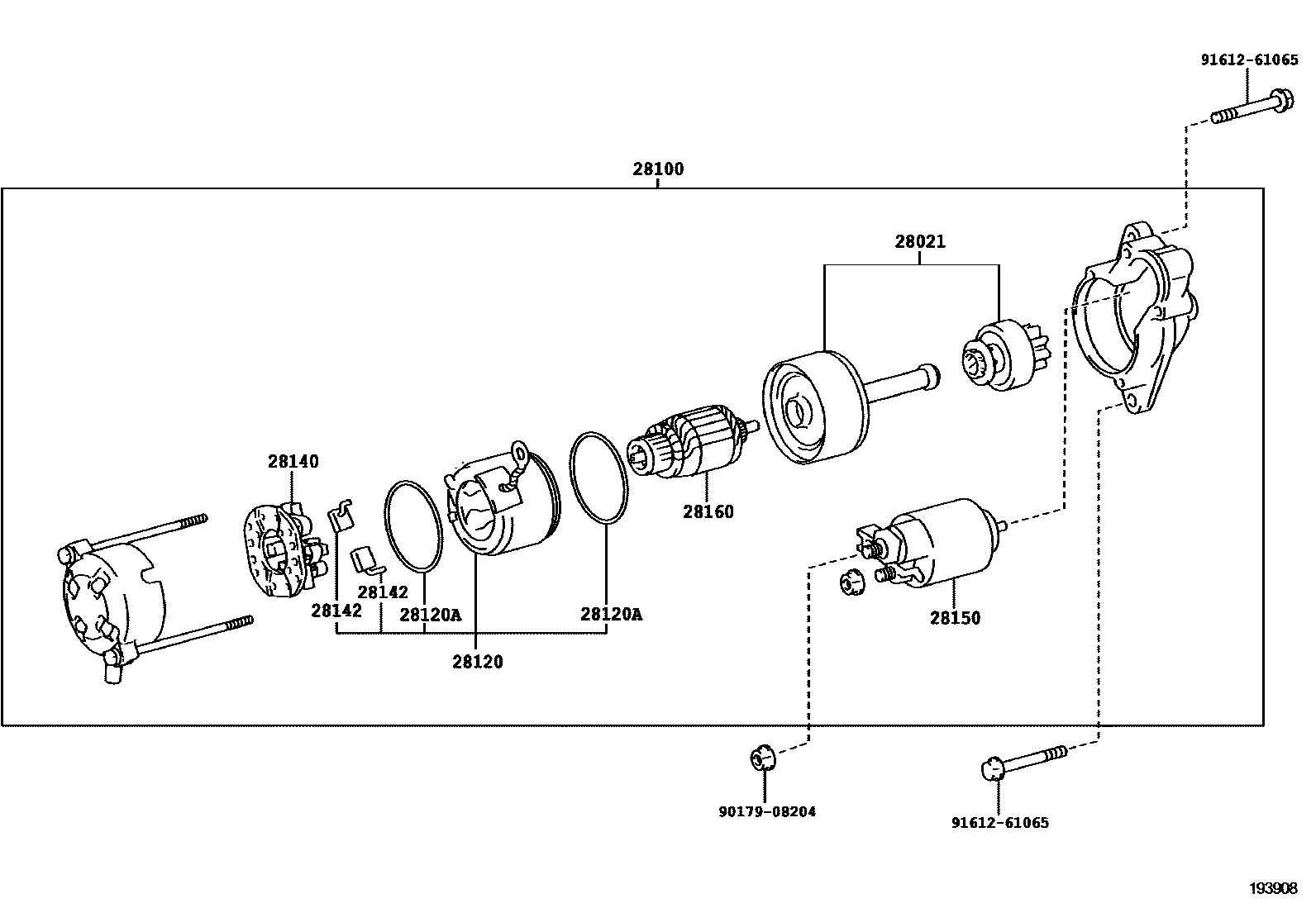

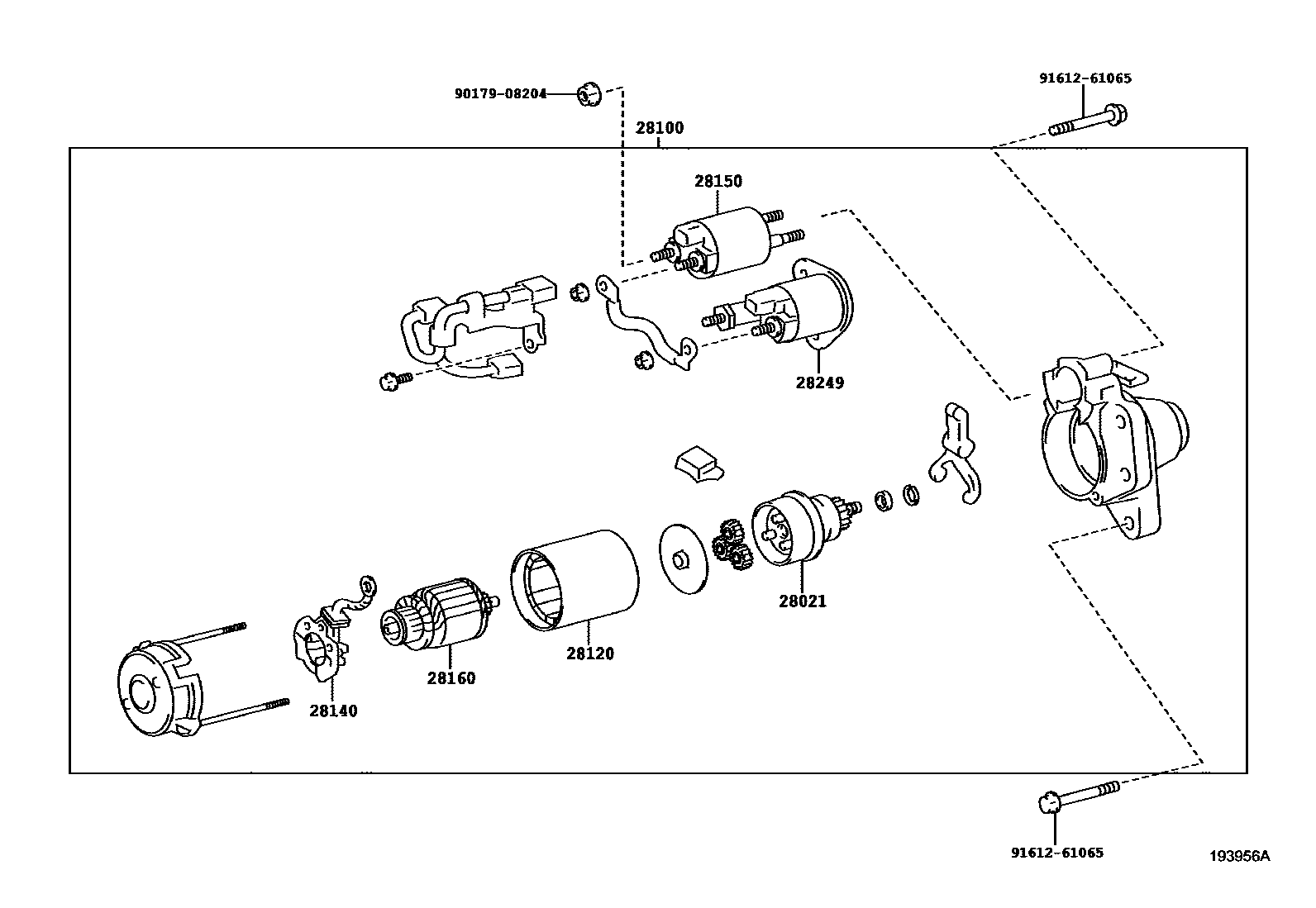

Toyota COROLLA 起动机 — Figure 1904
Toyota COROLLA EPC diagram 1904, 起动机, with 8 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-21060 · 28021-21070 · 28021-21100 · 28021-21140 · 28021-47170 · 28021-47300 · 28021-70020 |
| 28100 | Starter assembly | 28100-21021 · 28100-21022 · 28100-21031 · 28100-21032 · 28100-21070 · 28100-21080 · 28100-21081 · 28100-21100 · 28100-21110 · 28100-21130 · 28100-21140 · 28100-37021 · 28100-37031 · 28100-37032 · 28100-47170 · 28100-47171 · 28100-47180 · 28100-47181 · 28100-47250 · 28100-47300 · 28100-47310 |
| 28110 | Starter drive end housing assembly | 28110-21061 |
| 28114 | starter drive lever | 28114-21060 |
| 28120 | Starter yoke assembly | 28120-21100 · 28120-21130 · 28120-28080 · 28120-40130 · 28120-47120 · 28120-47210 |
| 28120A | O-ring (for starter yoke) | 90099-14092 |
| 28130 | Starter commutator end frame assembly | 28130-21061 |
| 28132A | Starter commutator end frame cover | 28132-28040 |
| 28140 | Starter brush holder assembly | 28140-21070 · 28140-21100 · 28140-70020 |
| 28142 | starter brush | 28142-70020 |
| 28150 | Starter electromagnetic switch assembly | 28150-21020 · 28150-21100 · 28150-22100 · 28150-26190 · 28150-47250 |
| 28160 | Starter armature assembly | 28160-21060 · 28160-21070 · 28160-21080 · 28160-36110 · 28160-38070 · 28160-38080 · 28160-47180 · 28160-47310 · 28160-70021 · 28160-70050 |
| 28177 | Plate (for starter armature) | 28177-28040 |
| 28226 | battery terminal starter assembly | 28226-21080 · 28226-21081 · 28226-22061 · 28226-47180 |
| 28226B | starter magnetic switch | 28226-21070 · 28226-47170 |
| 28249 | Toyota part | 28249-21100 |
| 28255 | Planetary gear | 28255-28040 |
