Toyota COROLLA 点火线圈和火花塞 — Figure 1901

Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞, with 2 images and 4 PNC and OE references.

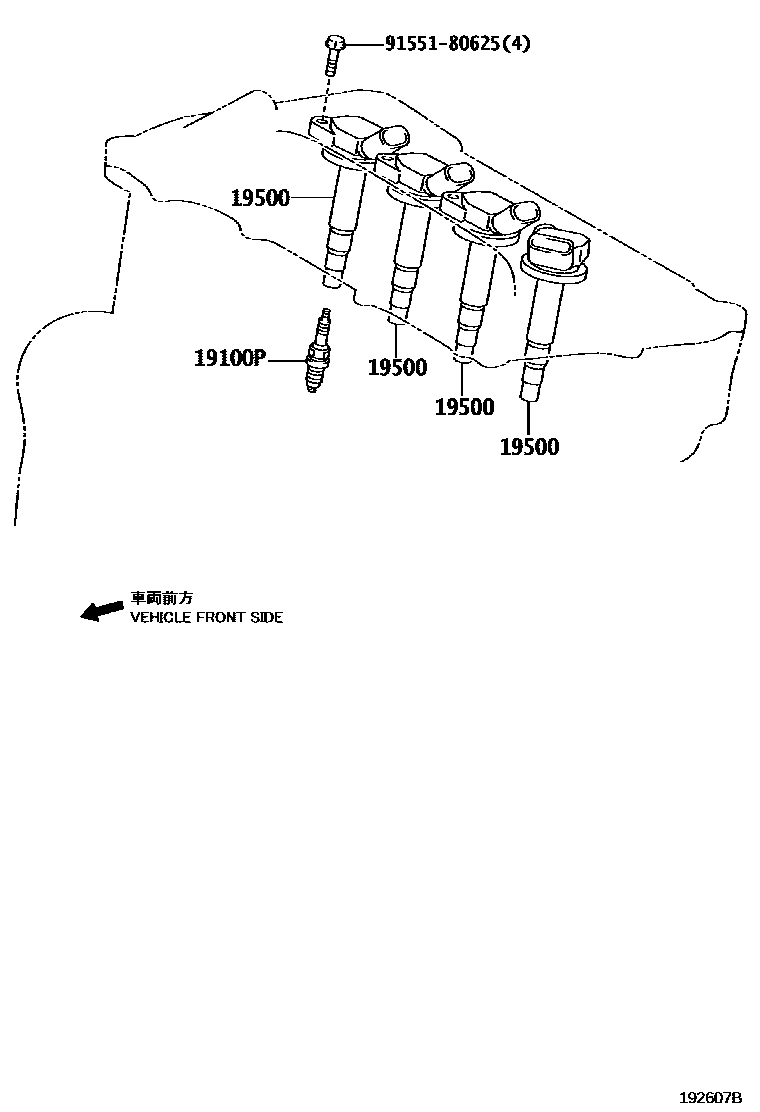

Toyota COROLLA 点火线圈和火花塞 EPC diagram — 192607B
点火线圈和火花塞 — 192607B (201204 – 999999)

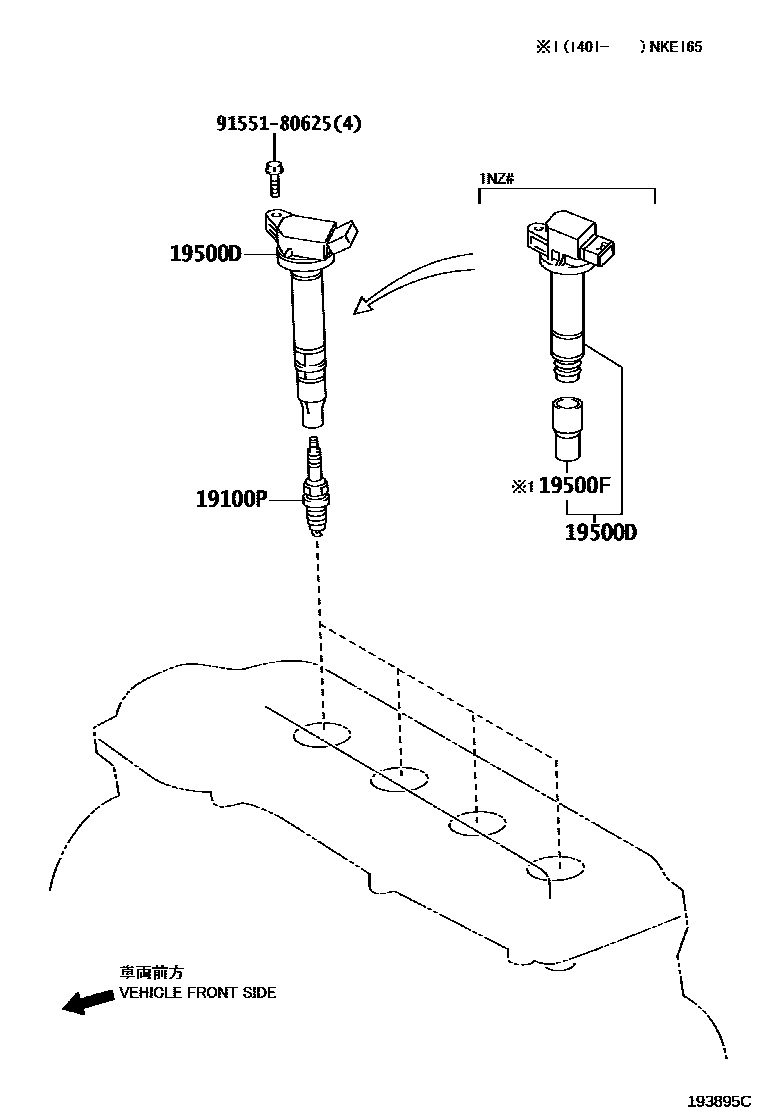

Toyota COROLLA 点火线圈和火花塞 EPC diagram — 193895C
点火线圈和火花塞 — 193895C (201204 – 999999)

PNC and OE references

PNCPart nameOE numbers
19100Pspark plug90919-01243 · 90919-01253 · 90919-01272 · 90919-01275 · 90919-01280 · 90919-01284 · 90919-01289
19500Ignition coil assembly90919-02258
19500DNo. 1 ignition coil90919-02257 · 90919-02260 · 90919-02265
19500FToyota part90919-11009
