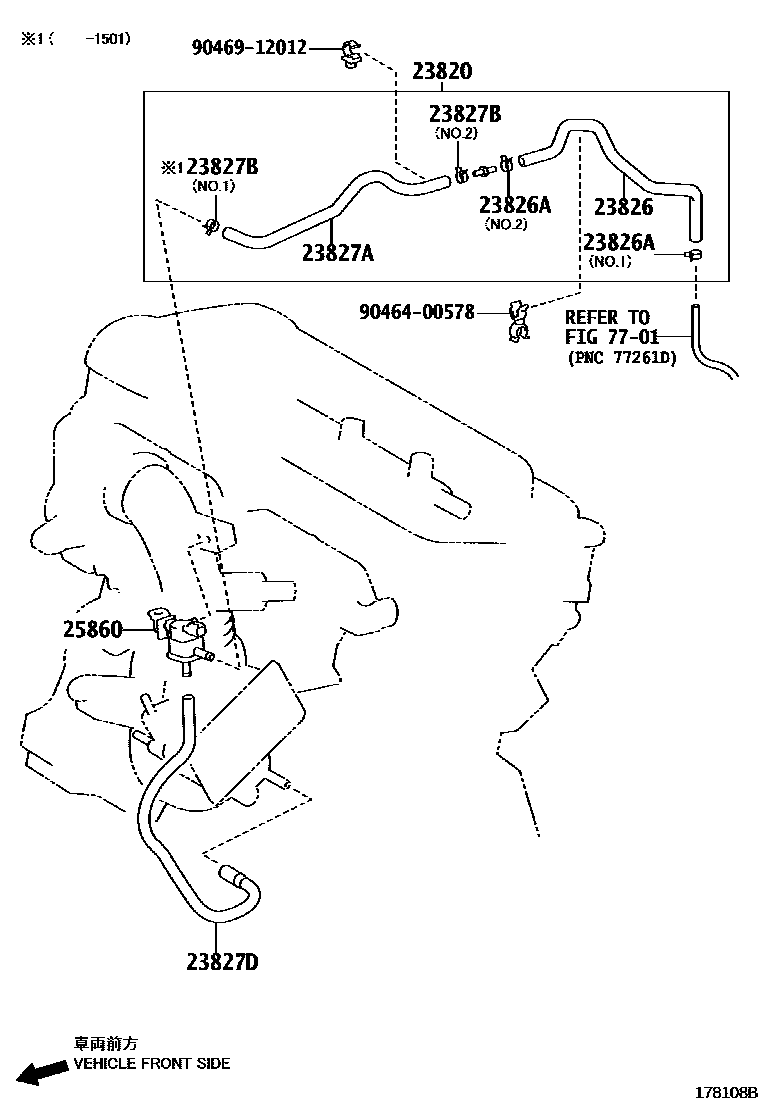

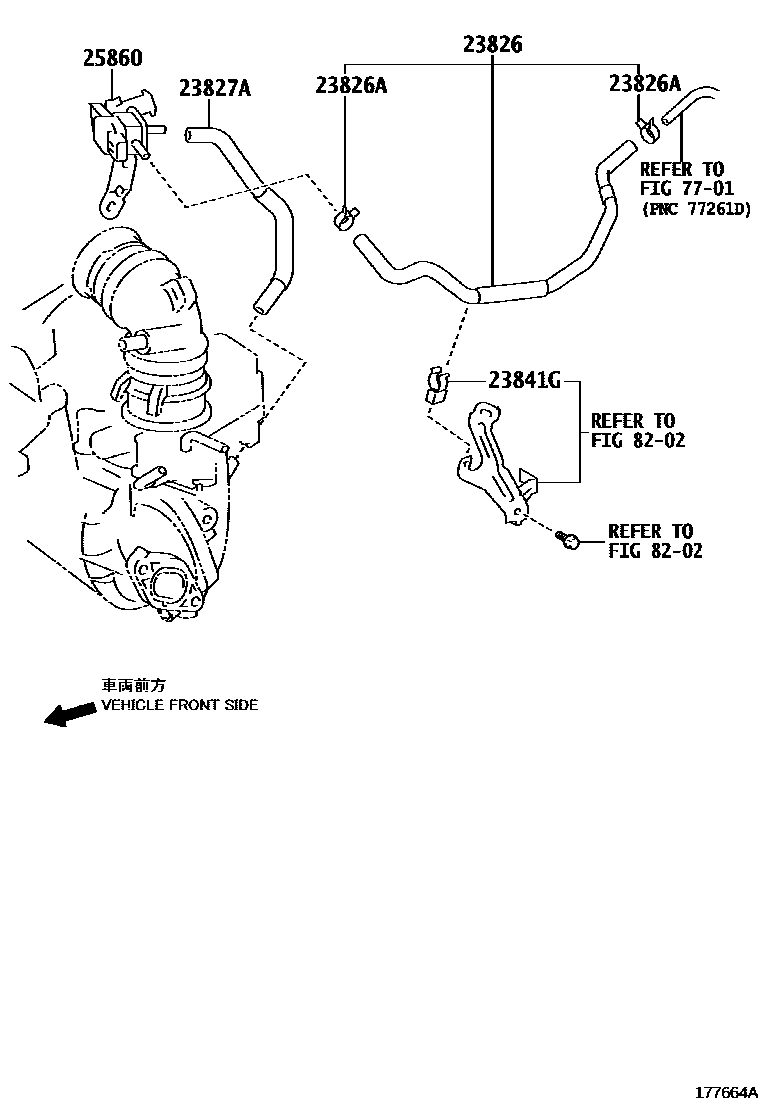

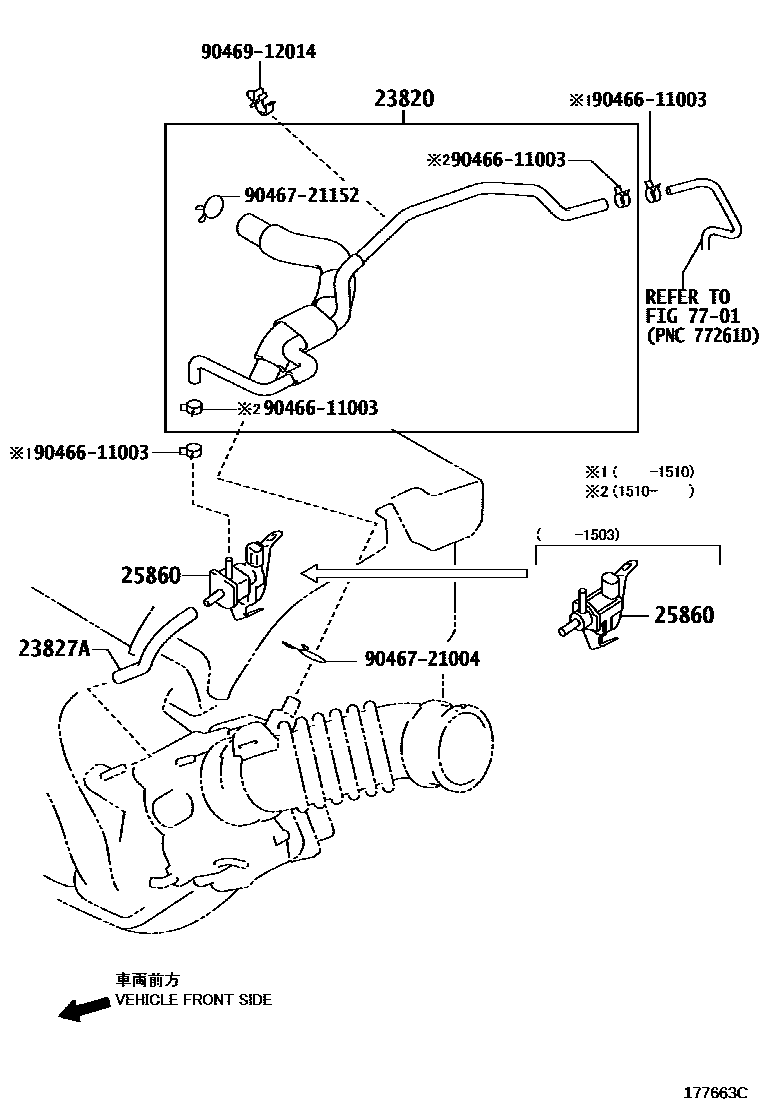

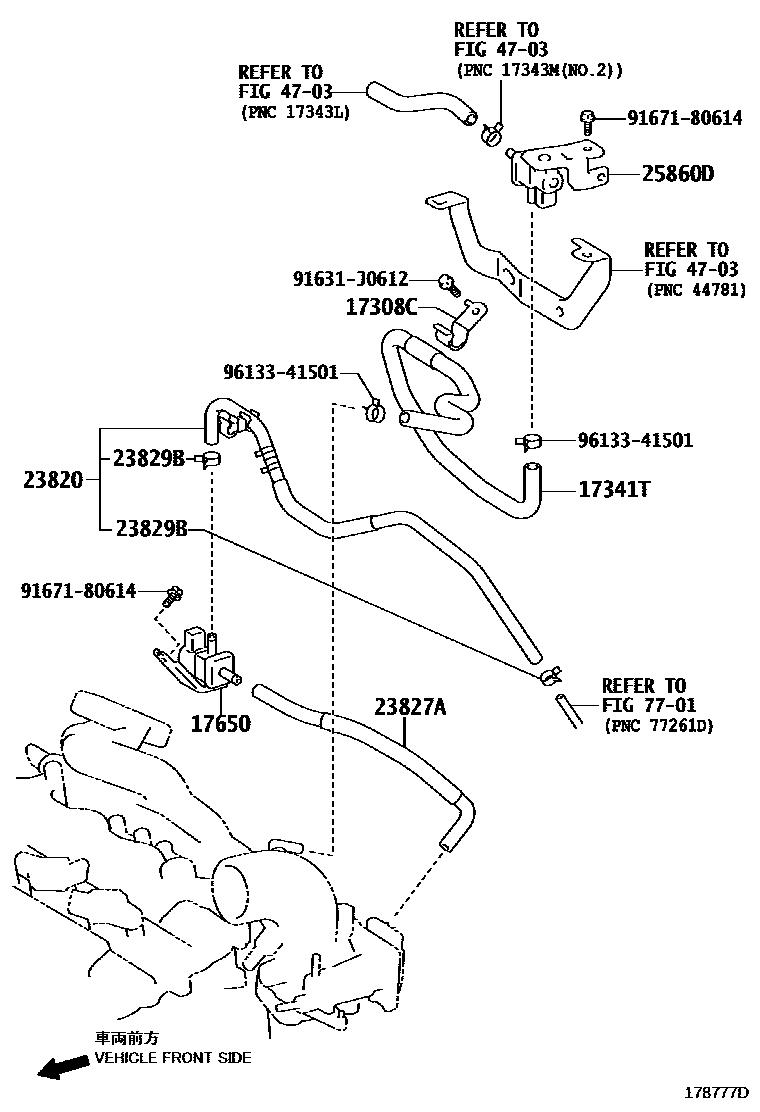

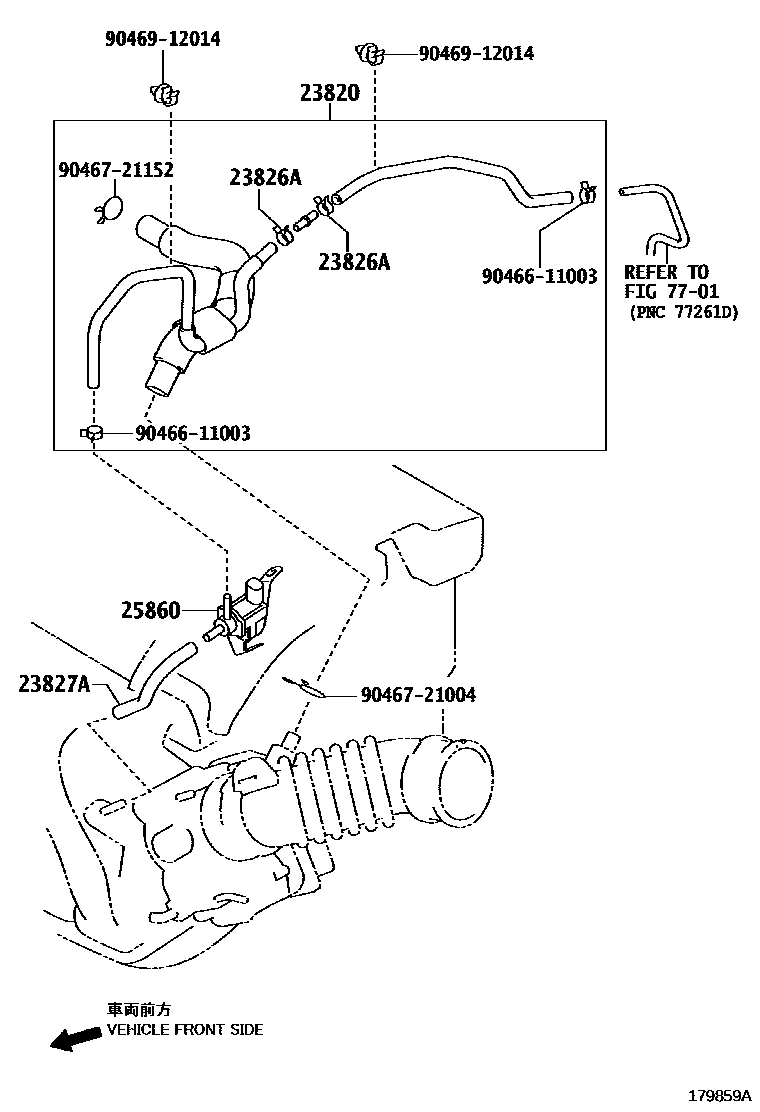

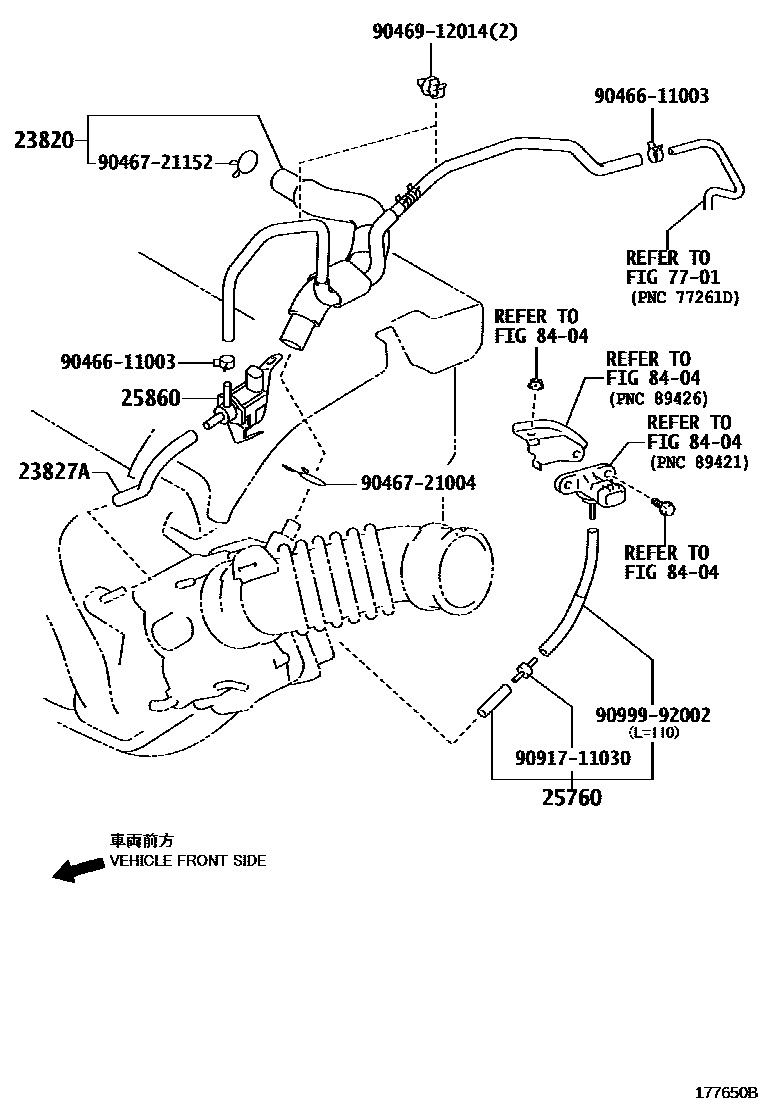

Toyota COROLLA vacuum tube — Figure 1708
Toyota COROLLA EPC diagram 1708, vacuum tube, with 7 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17302 | Air hose sub-assembly | 17302-37010 |
| 17308C | Clamp (for vacuum hose) | 44783-52070 |
| 17341T | Air hose No. 1 | 17341-37070 · 44726-12030 |
| 17343F | No. 3 air hose | 17343-37050 |
| 17650 | Vacuum switch valve assembly | 25860-47030 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12276 |
| 23265 | No. 1 gas filter | 90917-11038 |
| 23820 | Fuel vapor supply hose assembly | 23820-21090 · 23820-21091 · 23820-21160 · 23820-21190 · 23820-21191 · 23820-47040 |
| 23826 | No. 1 fuel vapor supply hose | 23826-21200 · 23826-37220 · 23826-47030 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-11003 · 96132-51100 · 96132-51300 · 96133-41101 · 96133-41301 · 96133-51101 · 96133-51301 |
| 23827A | No. 2 fuel vapor supply hose | 23827-21150 · 23827-21170 · 23827-47030 · 23827-47090 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 90466-11003 · 96132-51100 · 96133-41101 · 96133-51101 |
| 23827D | No. 2 fuel vapor supply hose | 23827-21180 |
| 23829A | Fuel vapor supply hose | 23826-37210 |
| 23829B | Clamp (for fuel vapor supply hose) | 90466-11003 |
| 23841G | fuel hose clamp | 23841-37060 · 23847-47010 |
| 25760 | Vacuum transfer hose assembly | 25760-21030 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-21070 · 25860-21130 · 25860-21150 · 25860-47020 |
| 25860D | No. 2 vacuum switch valve assembly | 25860-47040 |
| 25861 | Vacuum switch valve bracket | 25861-37030 |
