Toyota COROLLA Manifold — Figure 1701

Toyota COROLLA EPC diagram 1701, Manifold, with 8 images and 19 PNC and OE references.

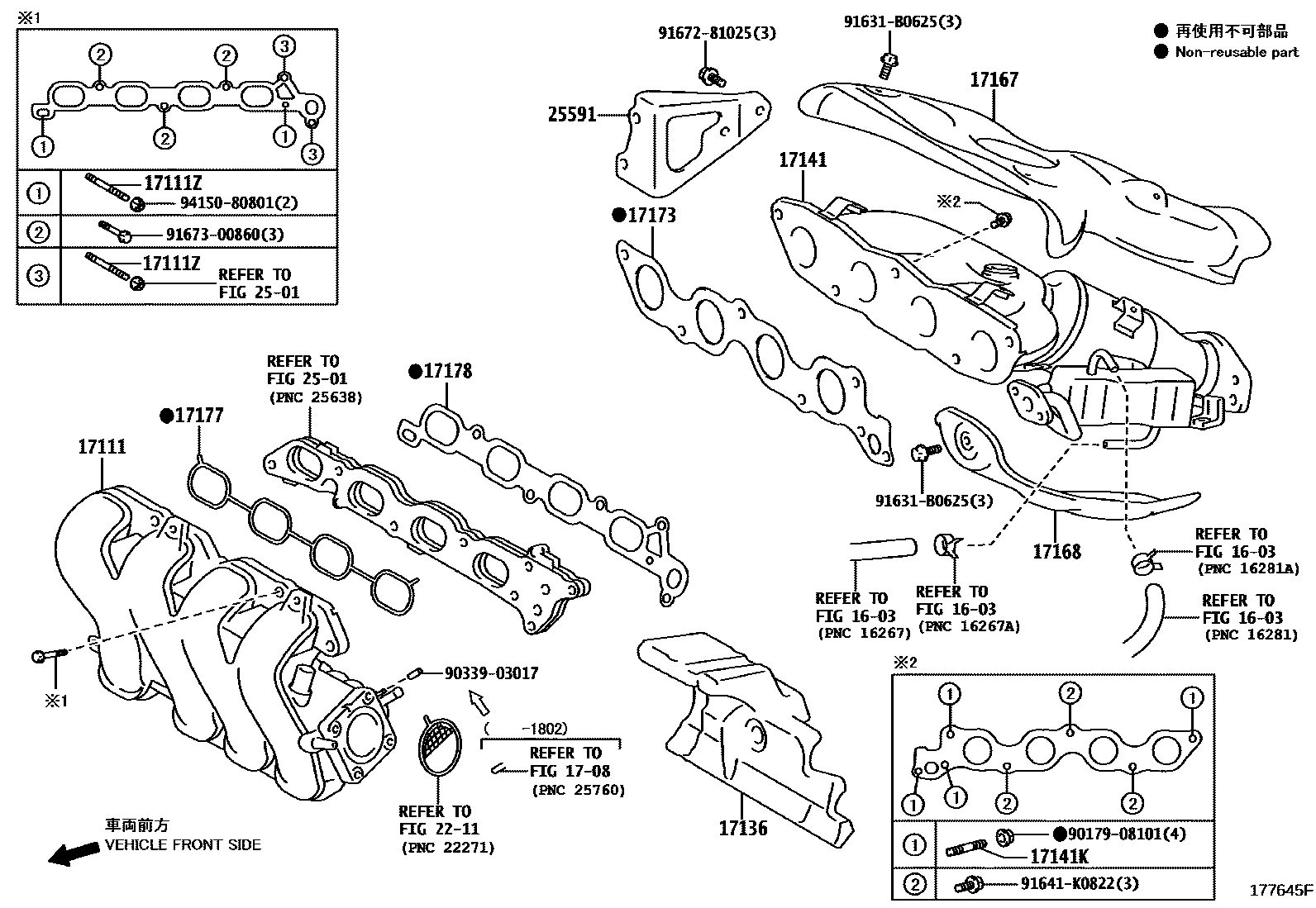

Toyota COROLLA Manifold EPC diagram — 177645F — Manifold — 177645F (201206 – 999999)

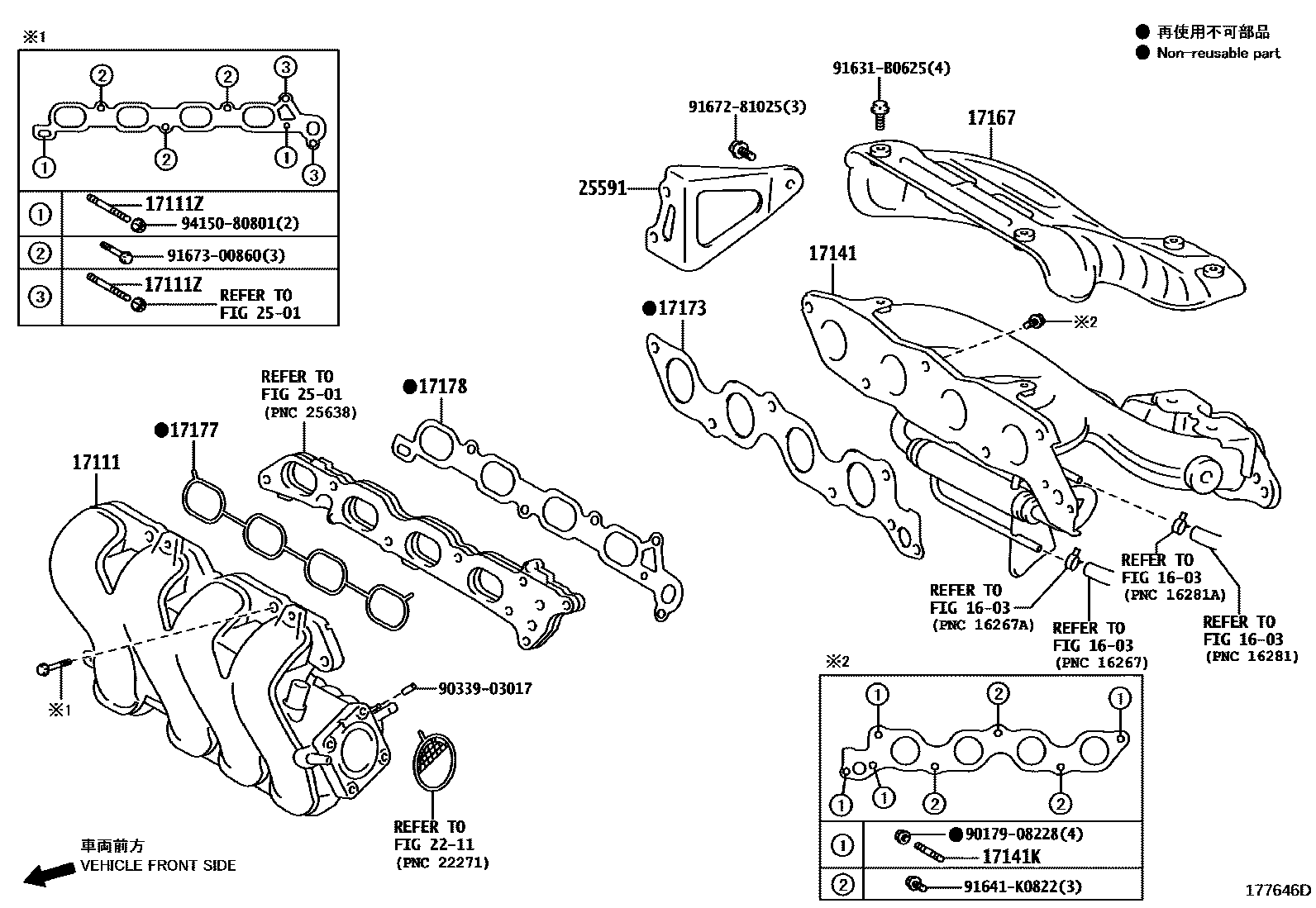

Toyota COROLLA Manifold EPC diagram — 177646D — Manifold — 177646D (201204 – 999999)

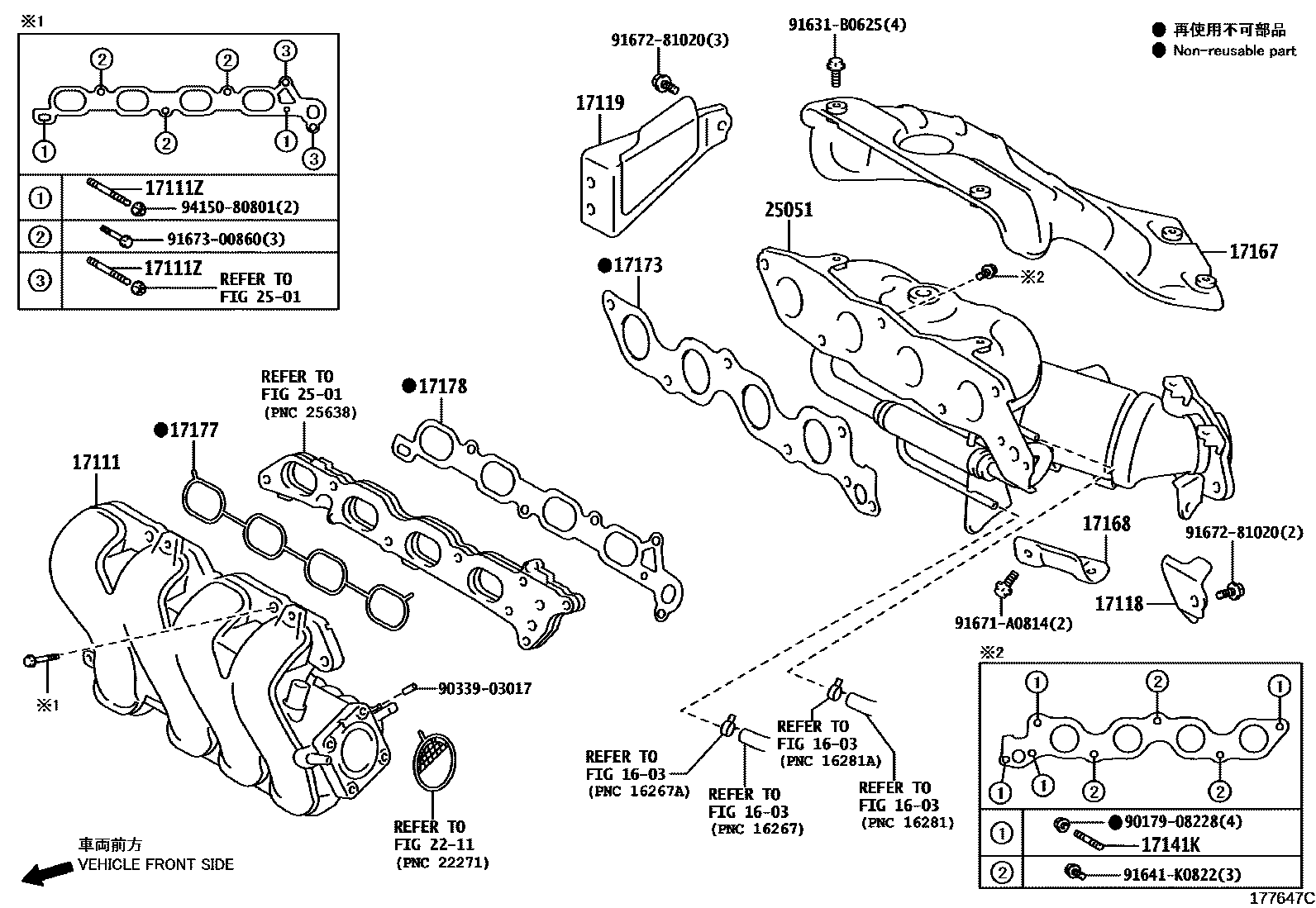

Toyota COROLLA Manifold EPC diagram — 177647C — Manifold — 177647C (201204 – 999999)

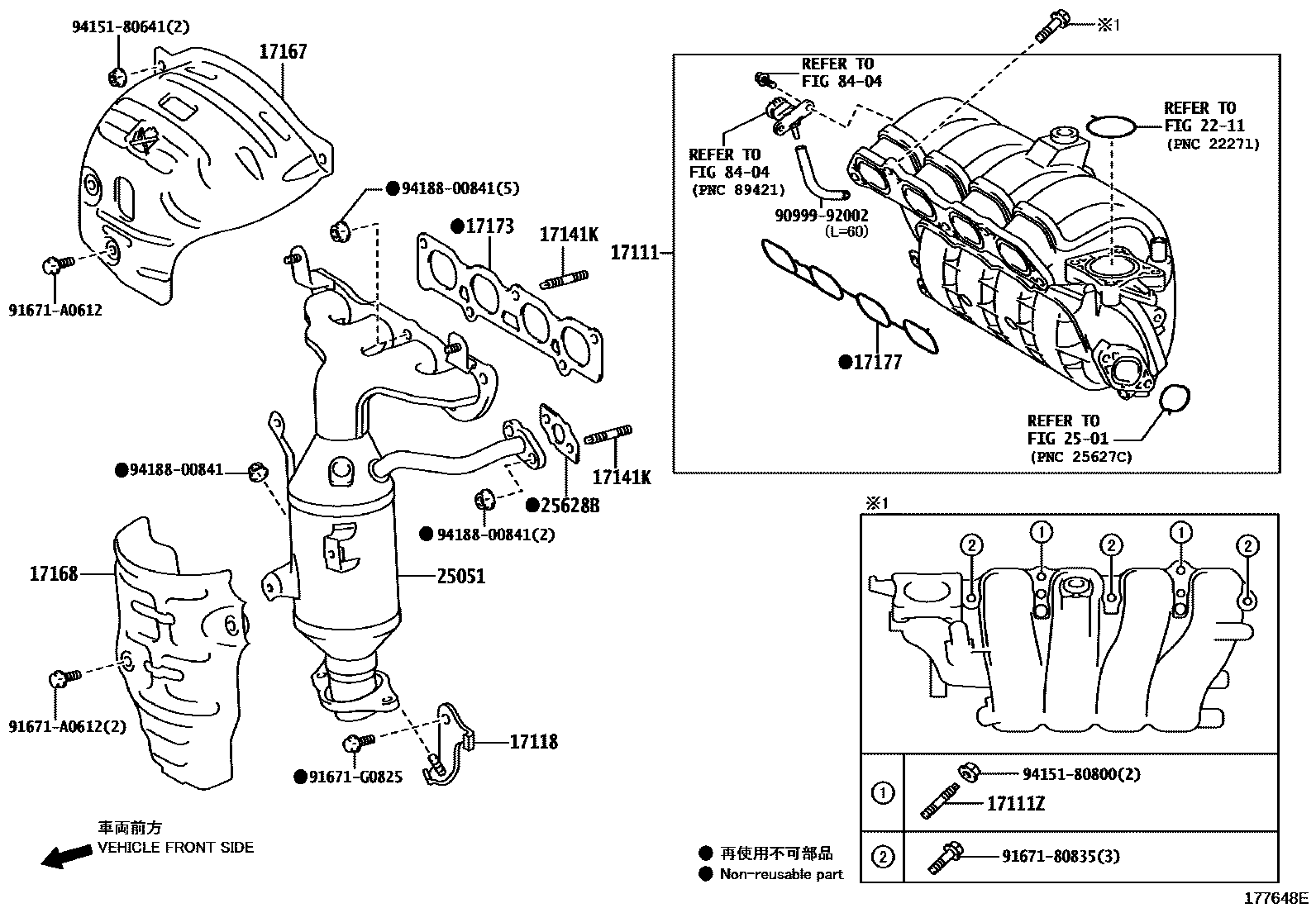

Toyota COROLLA Manifold EPC diagram — 177648E — Manifold — 177648E (201204 – 201503)

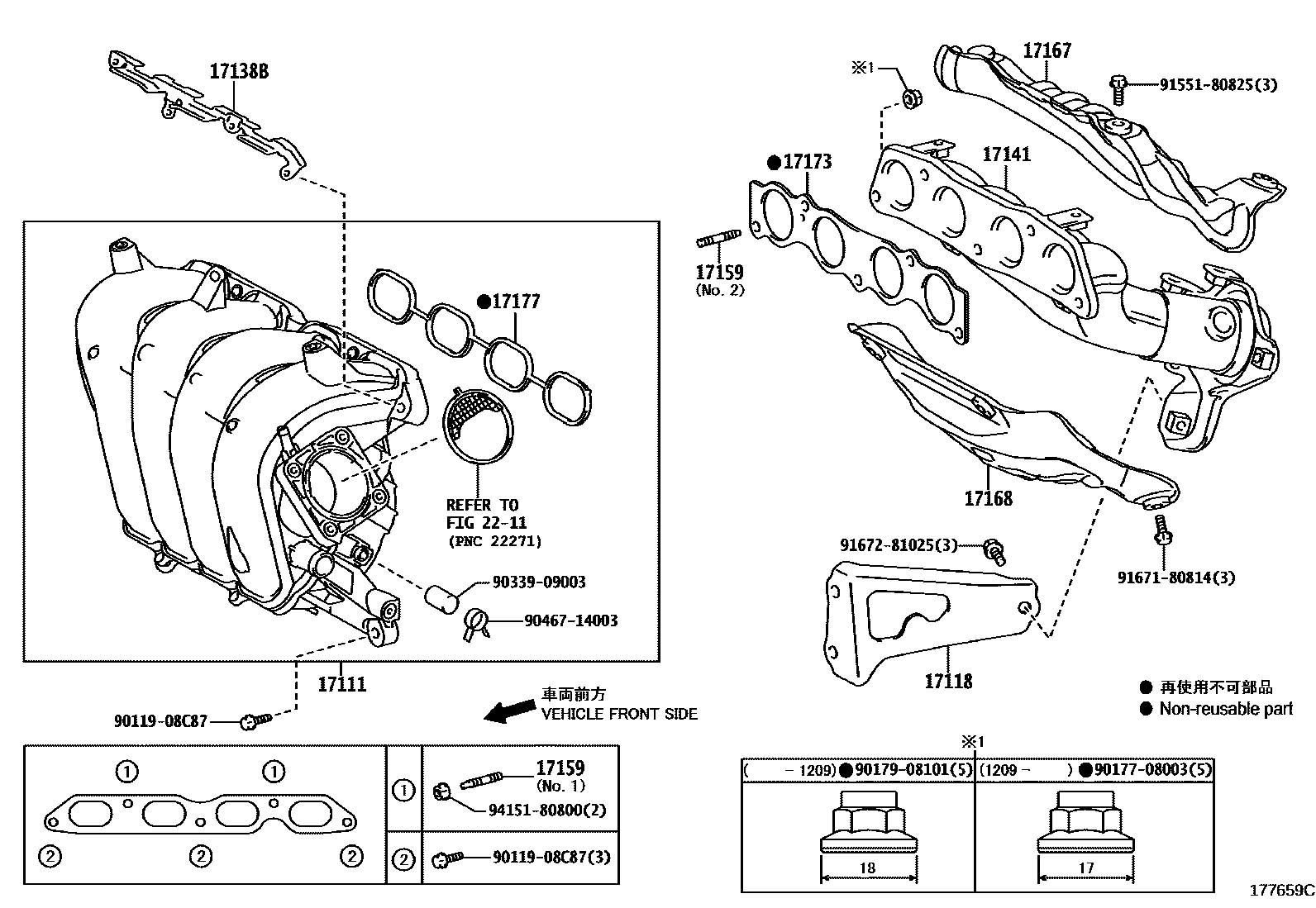

Toyota COROLLA Manifold EPC diagram — 177659C — Manifold — 177659C (201204 – 999999)

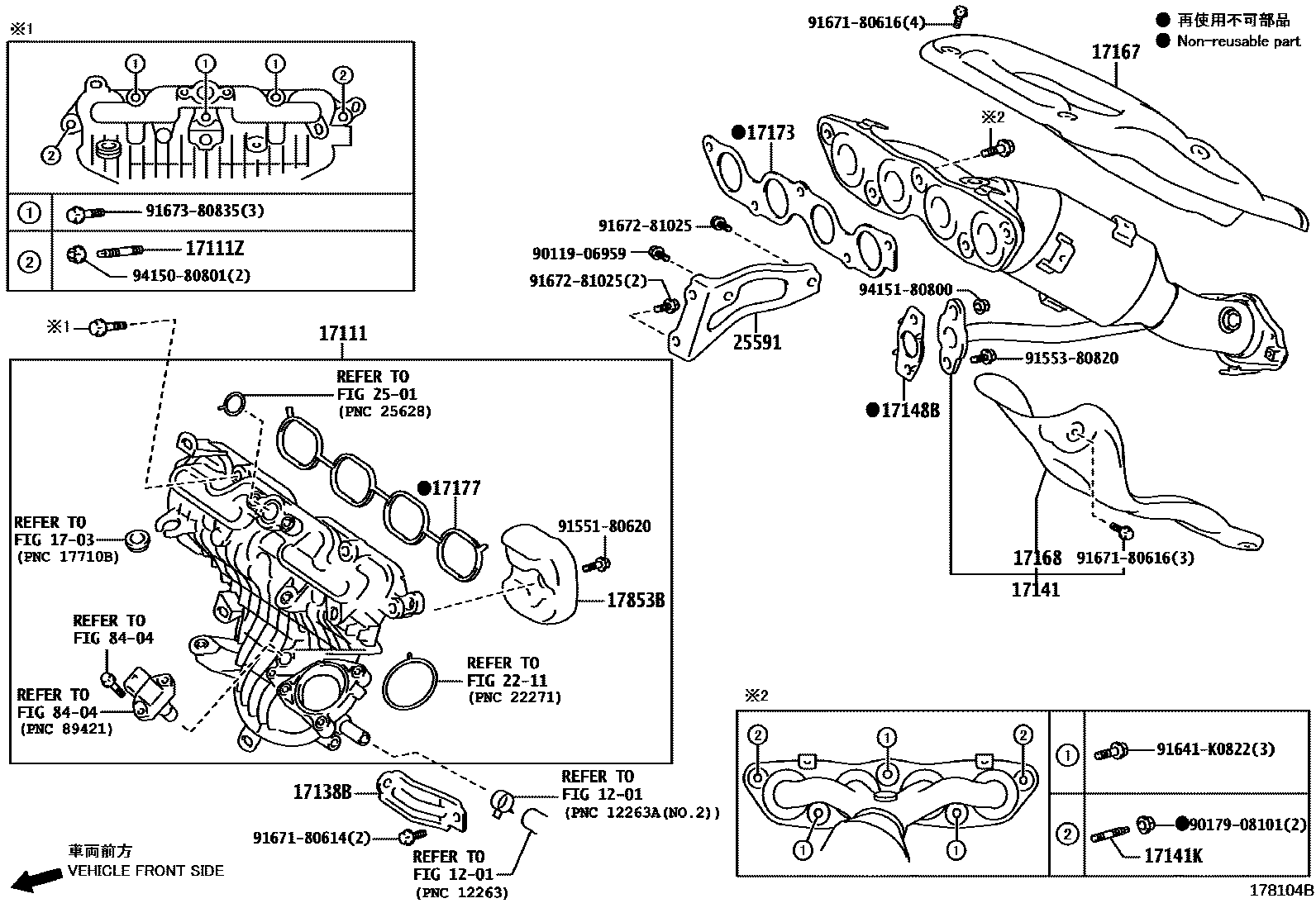

Toyota COROLLA Manifold EPC diagram — 178104B — Manifold — 178104B (201307 – 999999)

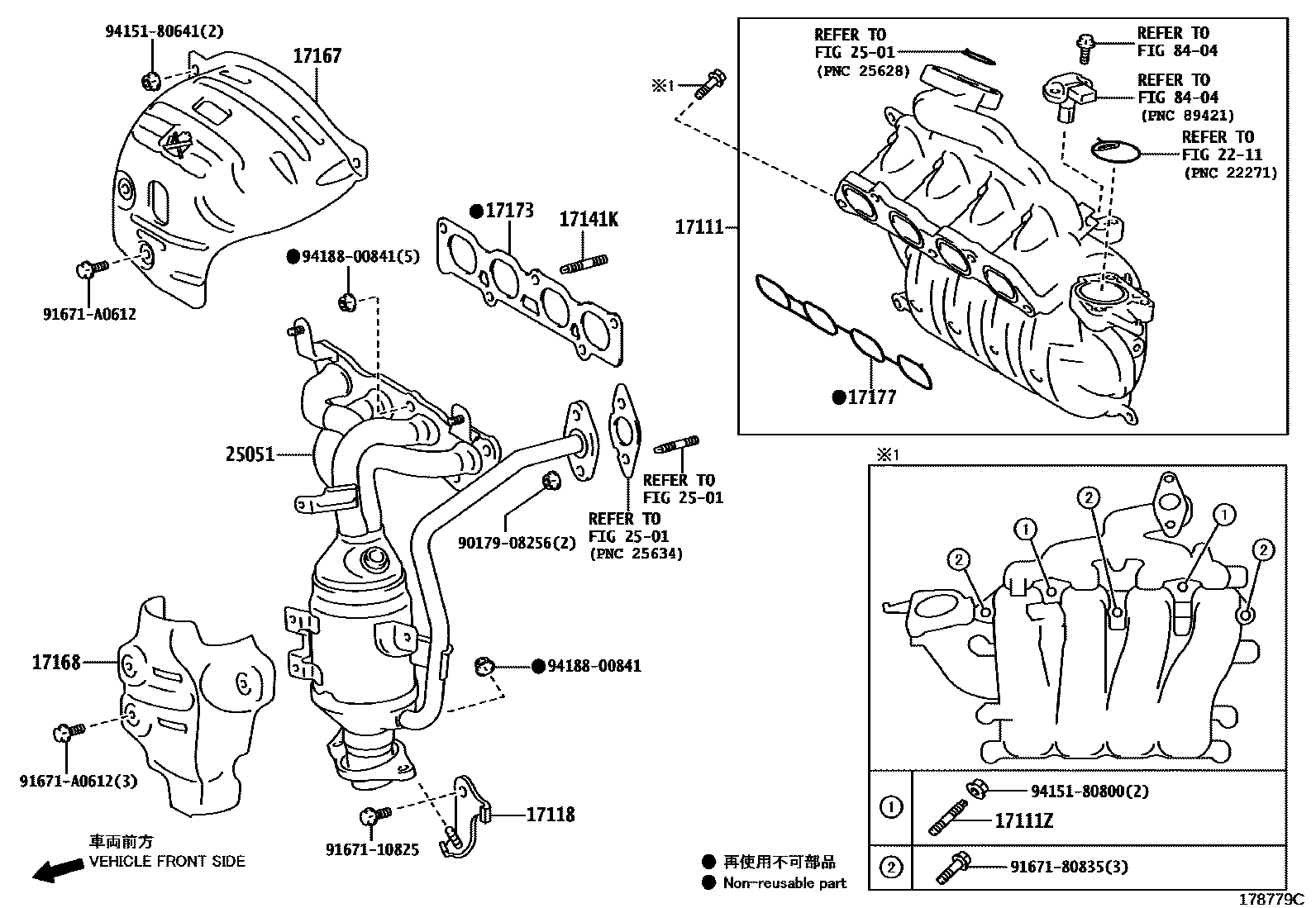

Toyota COROLLA Manifold EPC diagram — 178779C — Manifold — 178779C (201503 – 999999)

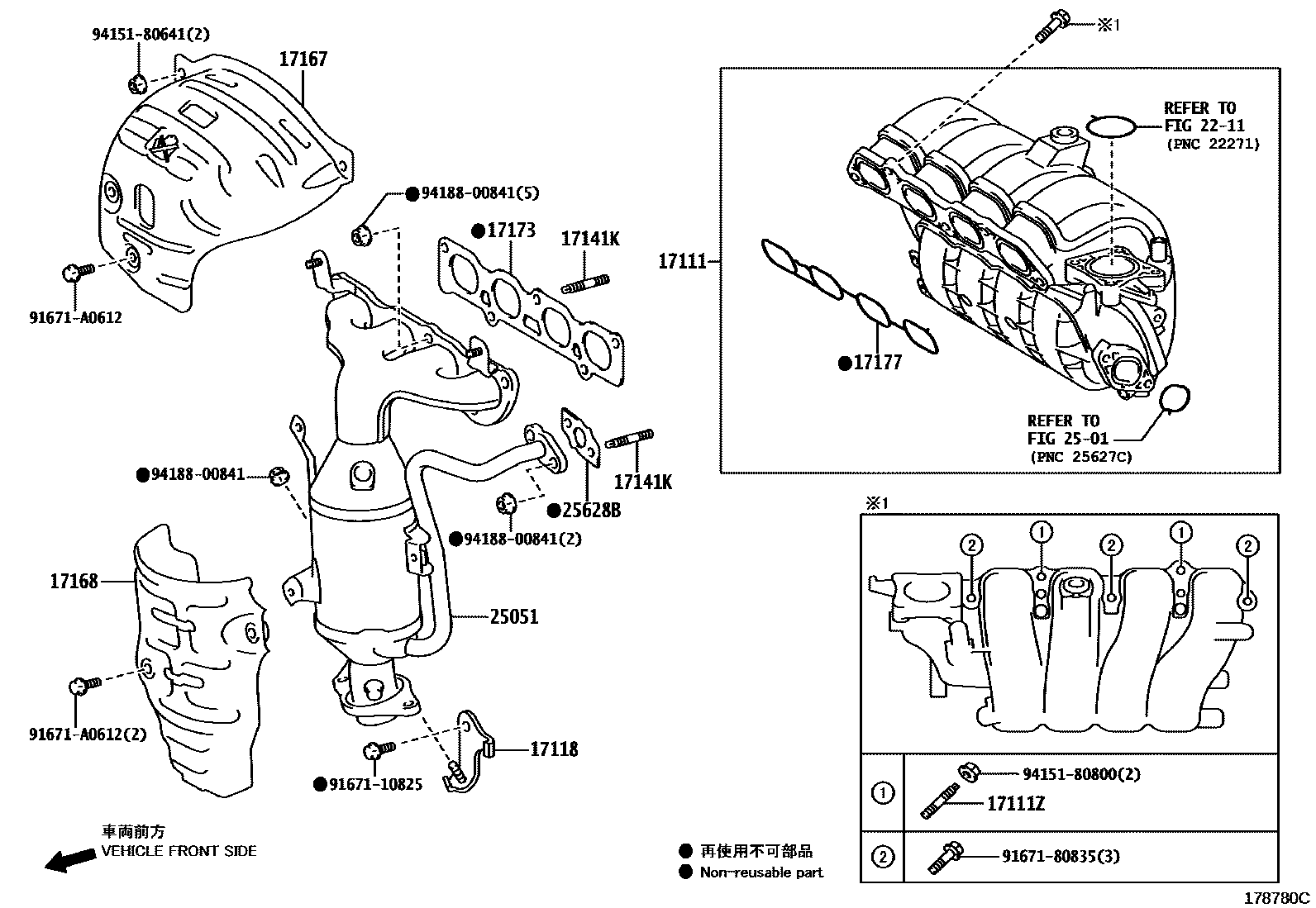

Toyota COROLLA Manifold EPC diagram — 178780C — Manifold — 178780C (201503 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17111	Intake Manifold	17101-21071 · 17120-21060 · 17120-37031 · 17120-47011 · 17120-47032 · 17120-47110
17111Z	Stud bolts (for intake manifold to cylinder head)	90126-08026 · 90126-08049 · 90126-08060
17118	Manifold stays	17118-21040 · 17118-21041 · 17118-37010 · 17118-47010 · 17118-47011
17119	No. 2 manifold stay	17119-21020
17136	Intake manifold No. 2 heat shield	17136-21010
17138B	Intake manifold stay	17138-21020 · 17138-37010 · 17138-37011
17141	exhaust manifold	17104-21041 · 17140-21080 · 17140-21120 · 17140-21150 · 17140-21160 · 17141-37130
17141K	Stud bolts (for exhaust manifold to cylinder head)	90126-08037 · 90126-08063
17148B	EGR air intake gasket	25634-21020
17159	Studs (for manifold to cylinder head)	90126-08026 · 90126-08052
17167	Exhaust manifold No. 1 heat shield	17167-21110 · 17167-21160 · 17167-21170 · 17167-21171 · 17167-21180 · 17167-21181 · 17167-37110 · 17167-47011
17168	Exhaust manifold No.2 insulation pad	17168-21040 · 17168-21060 · 17168-21061 · 17168-21070 · 17168-21071 · 17168-21072 · 17168-21090 · 17168-37100 · 17168-47030 · 17168-47041
17173	Gasket (exhaust manifold to cylinder head)	17173-21020 · 17173-21030 · 17173-37010 · 17173-47021
17177	No. 1 gasket (intake manifold to cylinder head)	17177-21030 · 17177-21040 · 17177-37030 · 17177-47011
17178	No. 2 gasket (intake manifold to cylinder head)	17178-21010
17853B	Intake manifold heat shield	17853-21010
25051	Exhaust manifold three-way catalytic converter sub-assembly	25051-21090 · 25051-21091 · 25051-21200 · 25051-47050 · 25051-47120 · 25051-47140 · 25051-47250
25591	Manifold bracket	25591-21060 · 25591-21070 · 25591-21080 · 25591-21090 · 25591-21100 · 25591-21110
25628B	EGR air intake gasket	25628-47010
