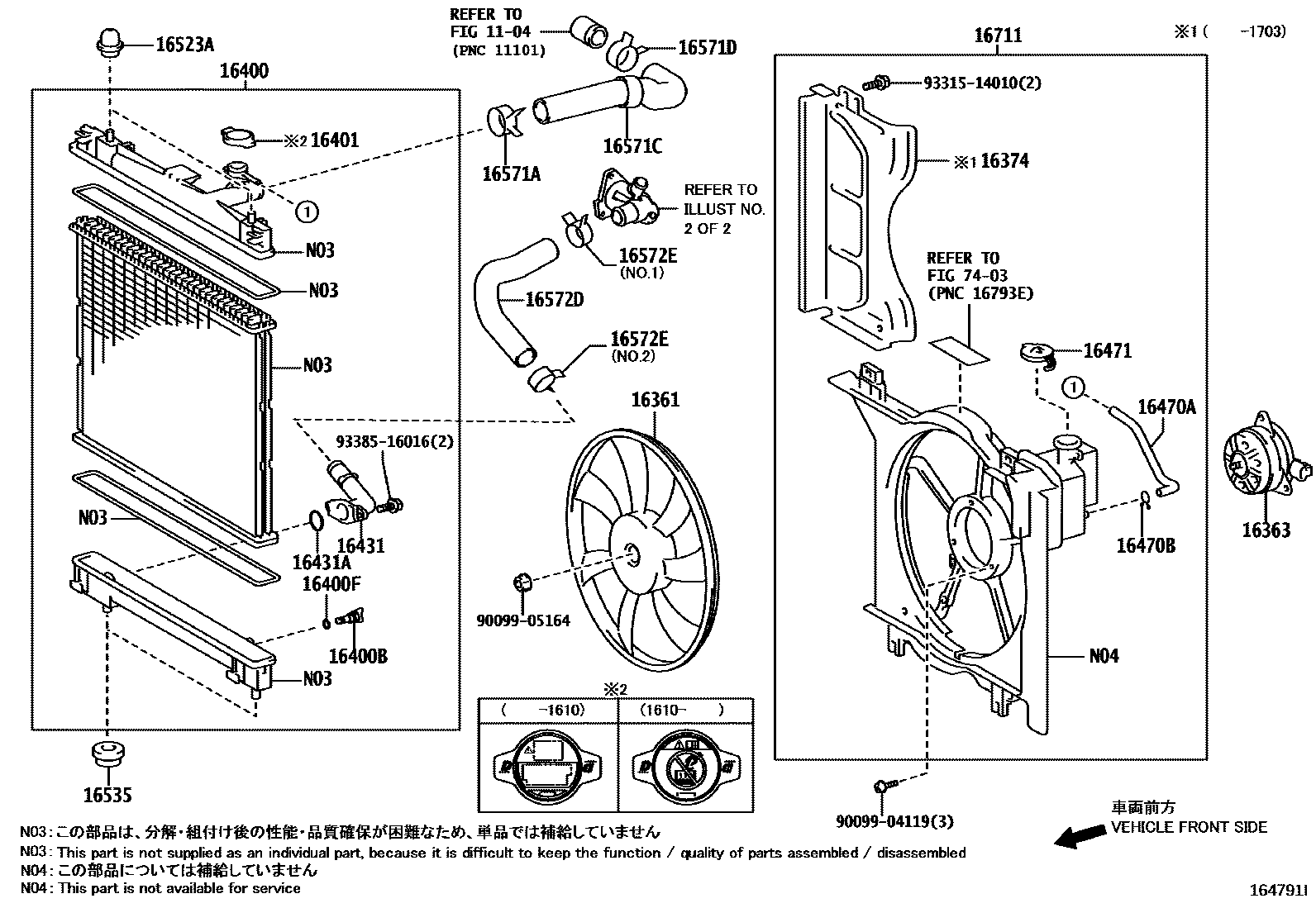

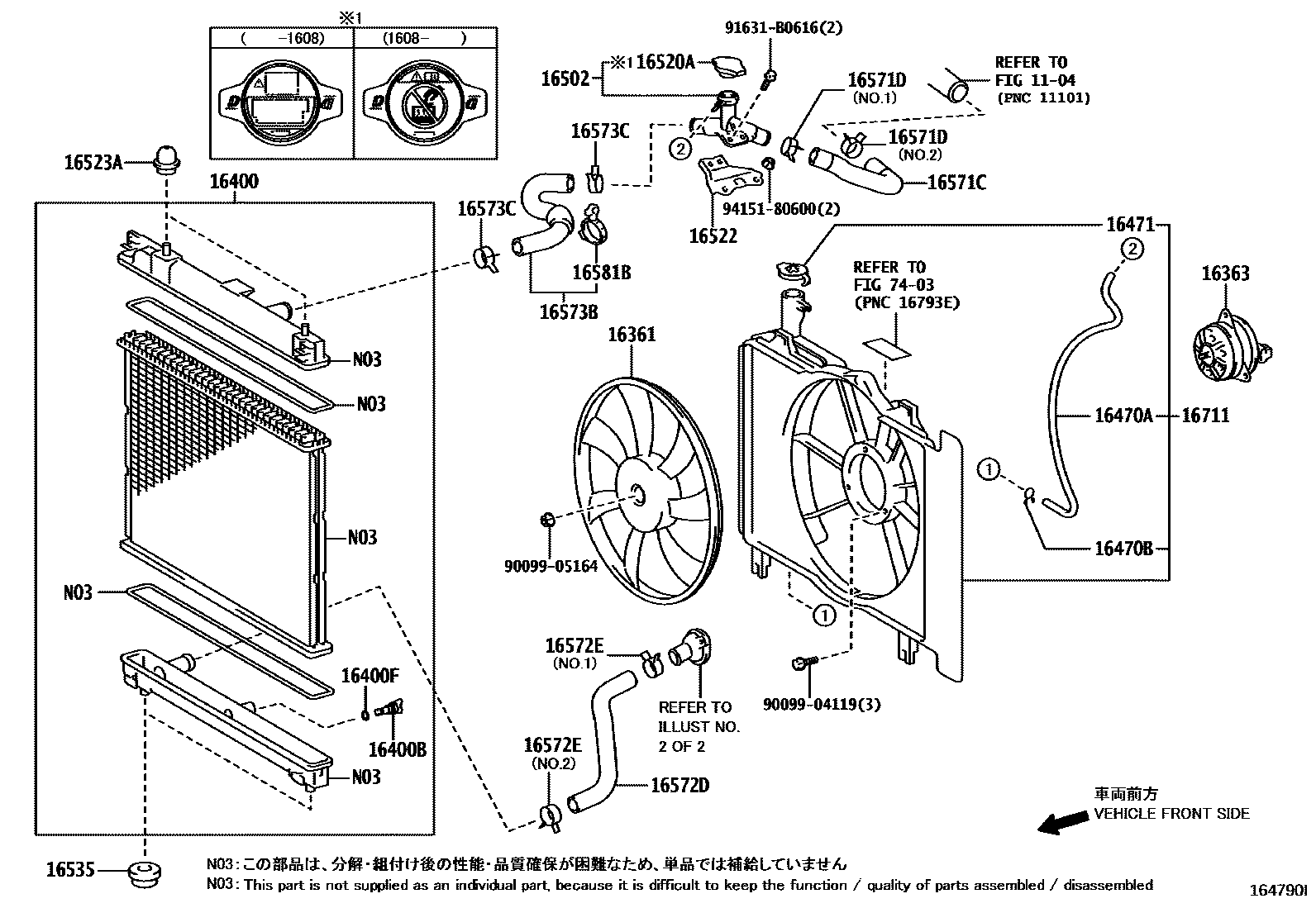

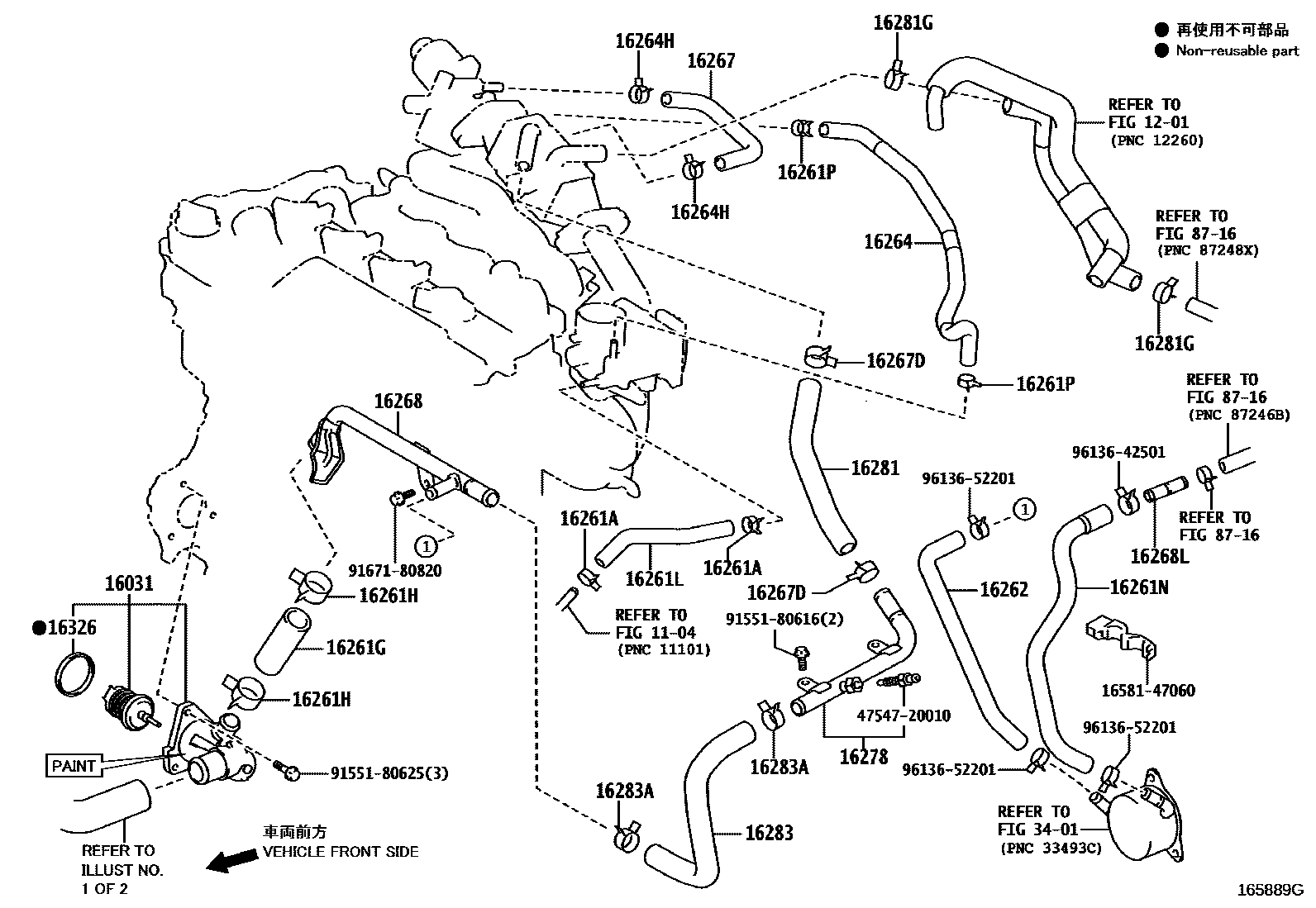

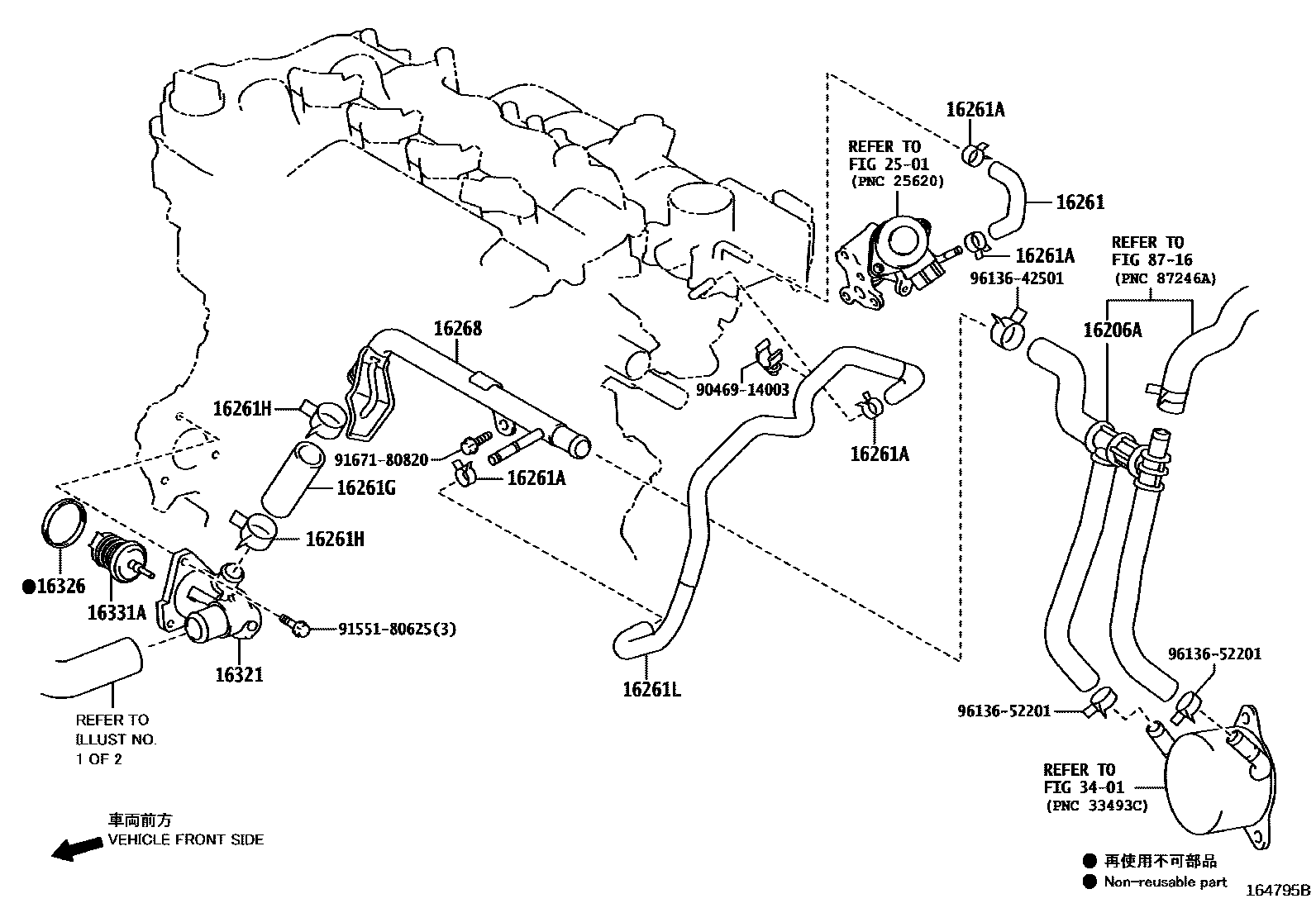

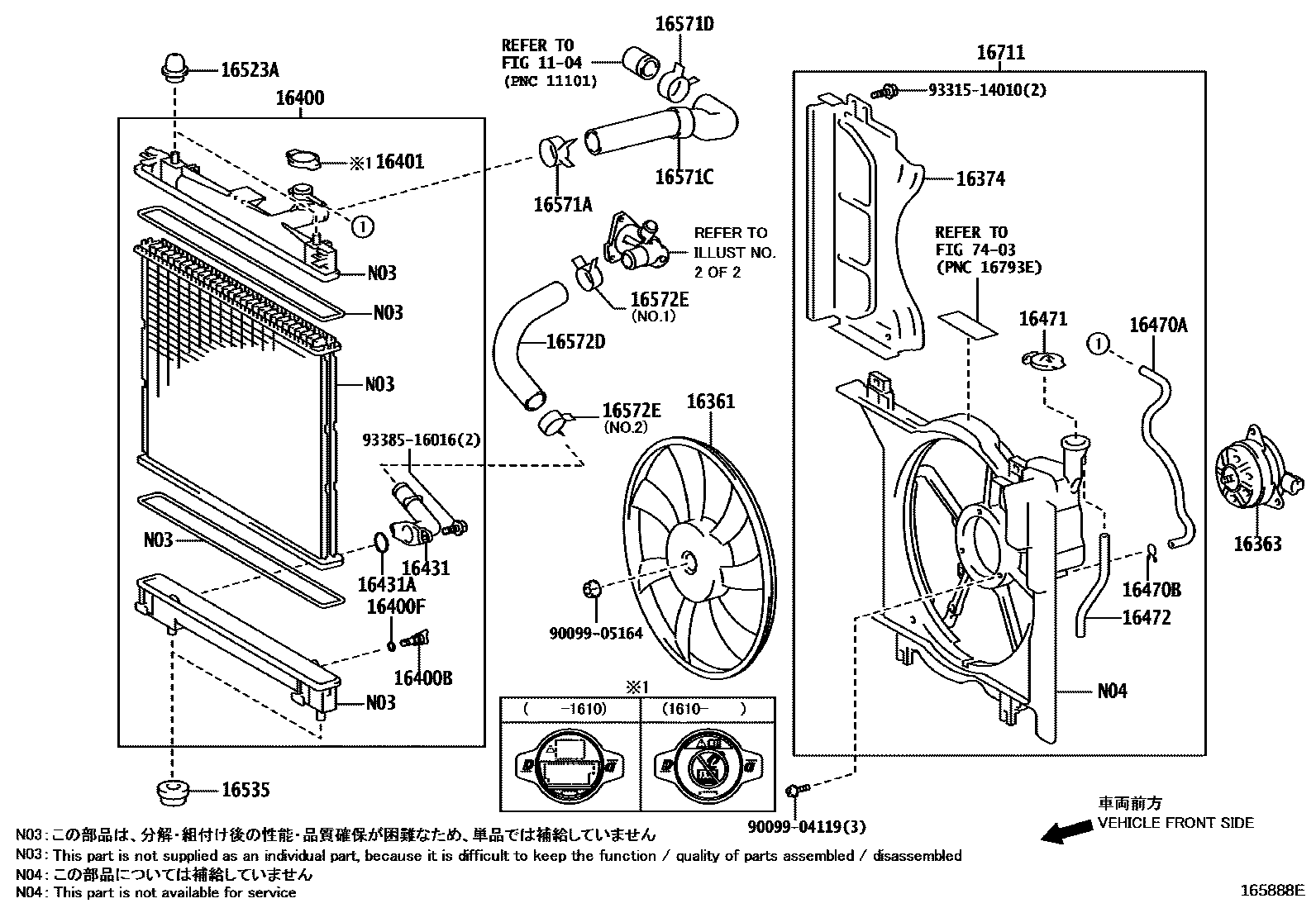

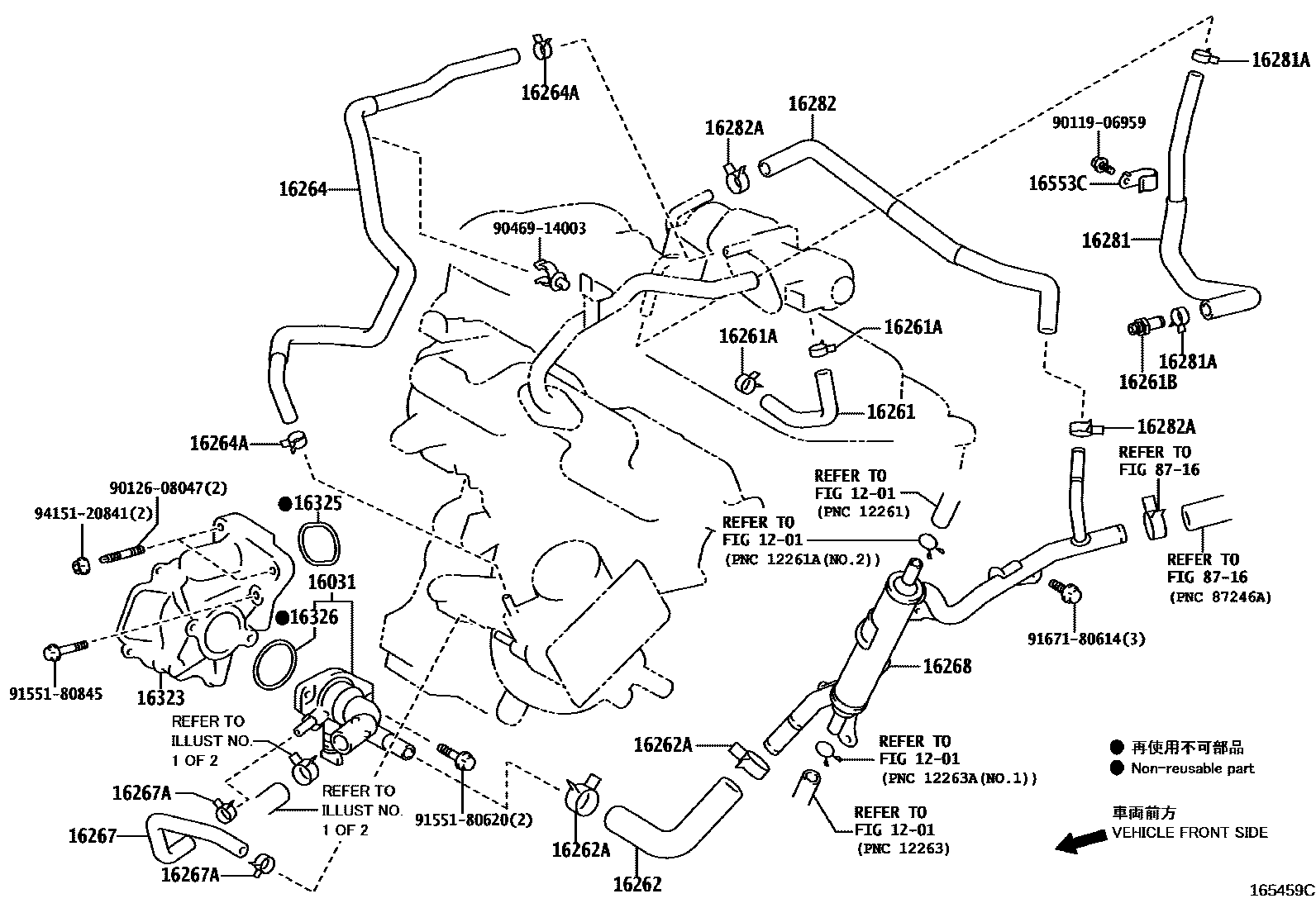

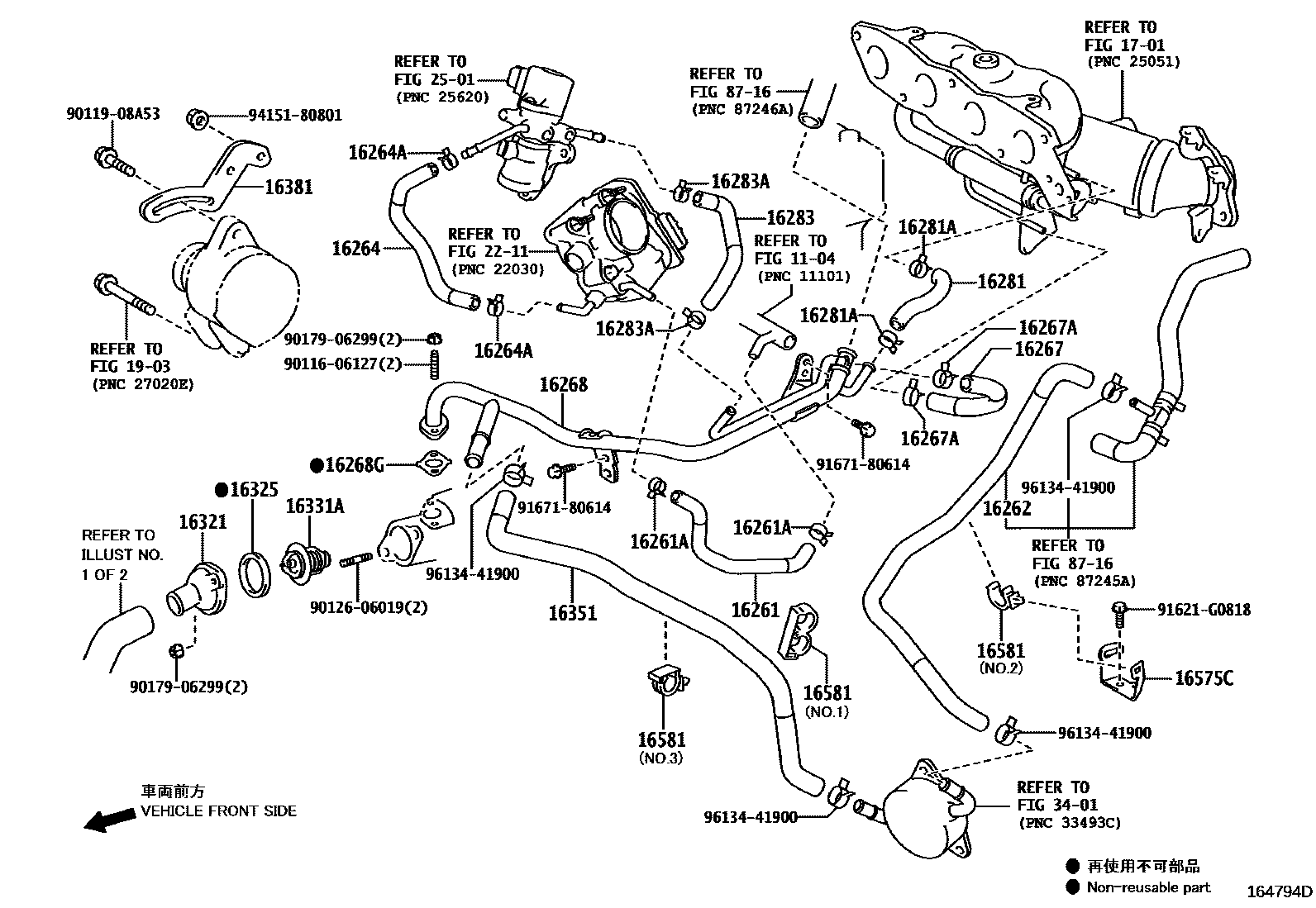

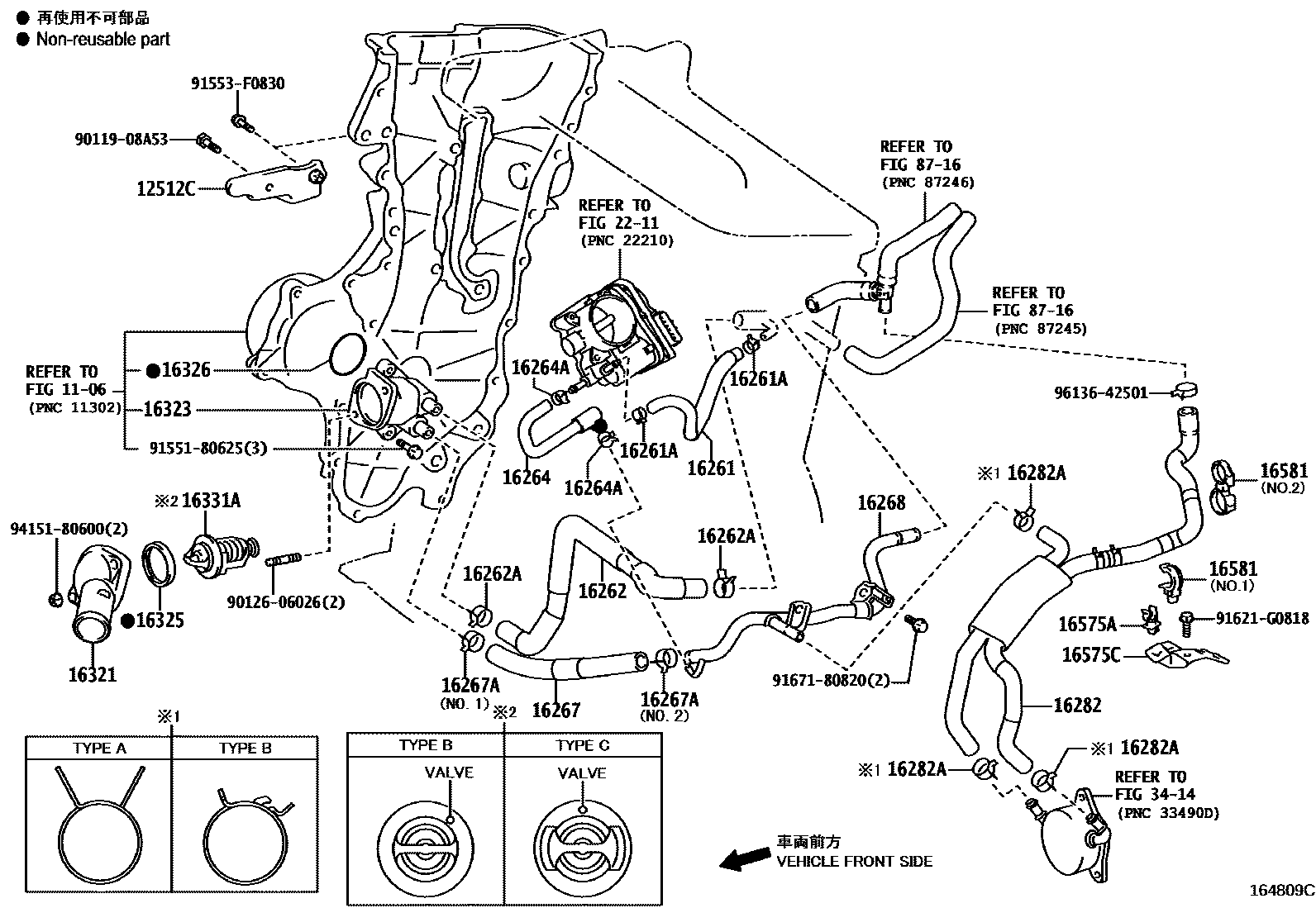

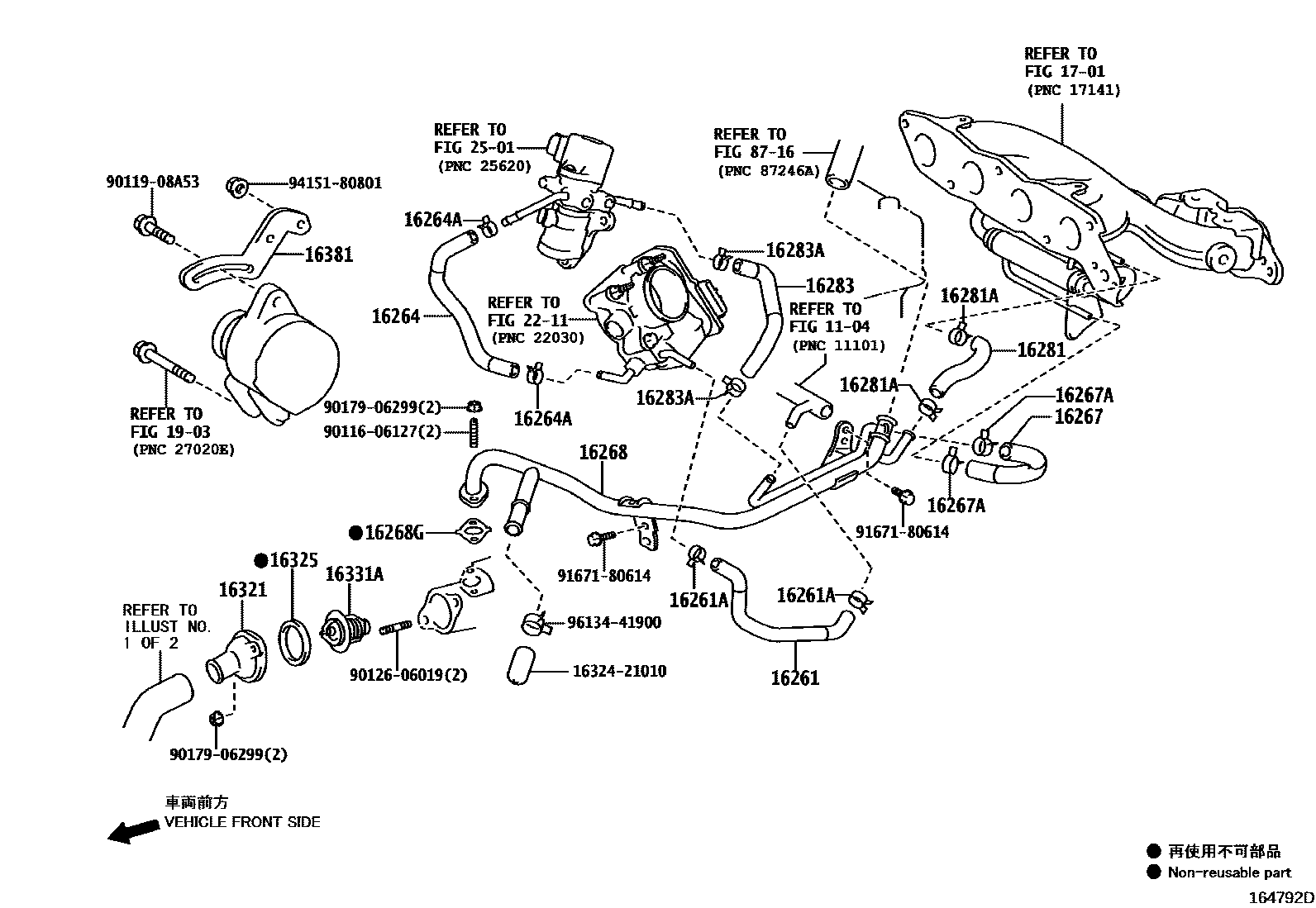

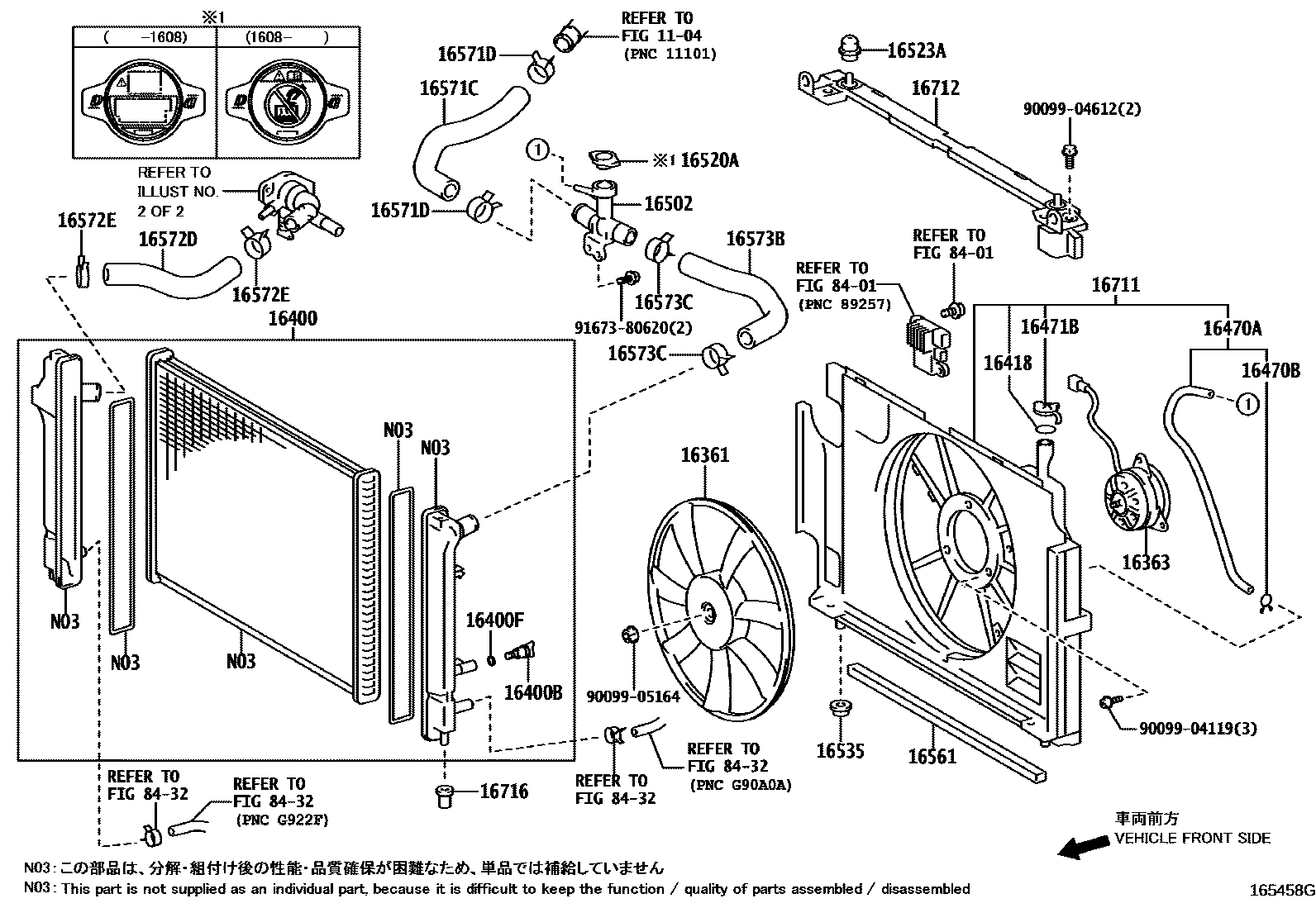

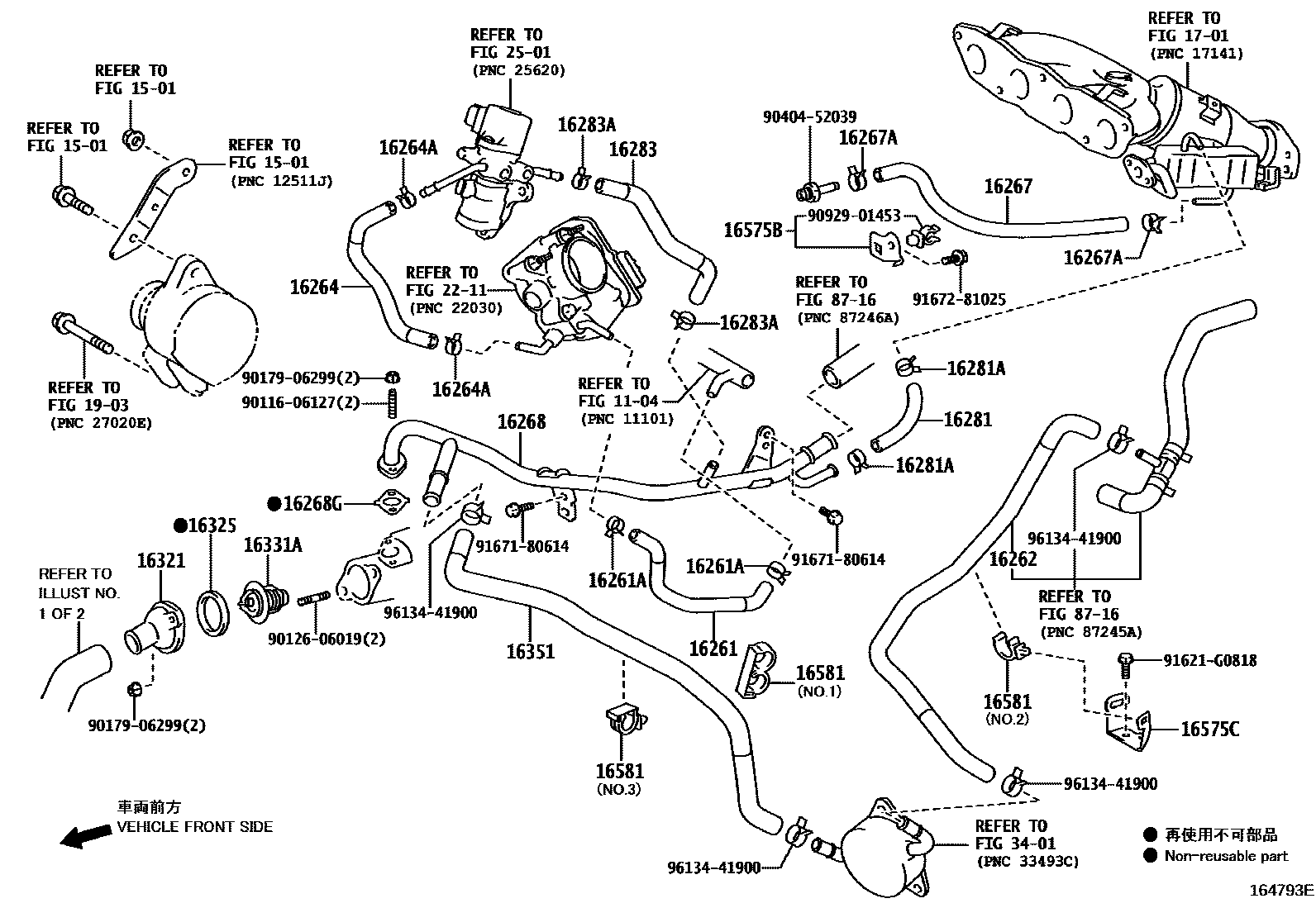

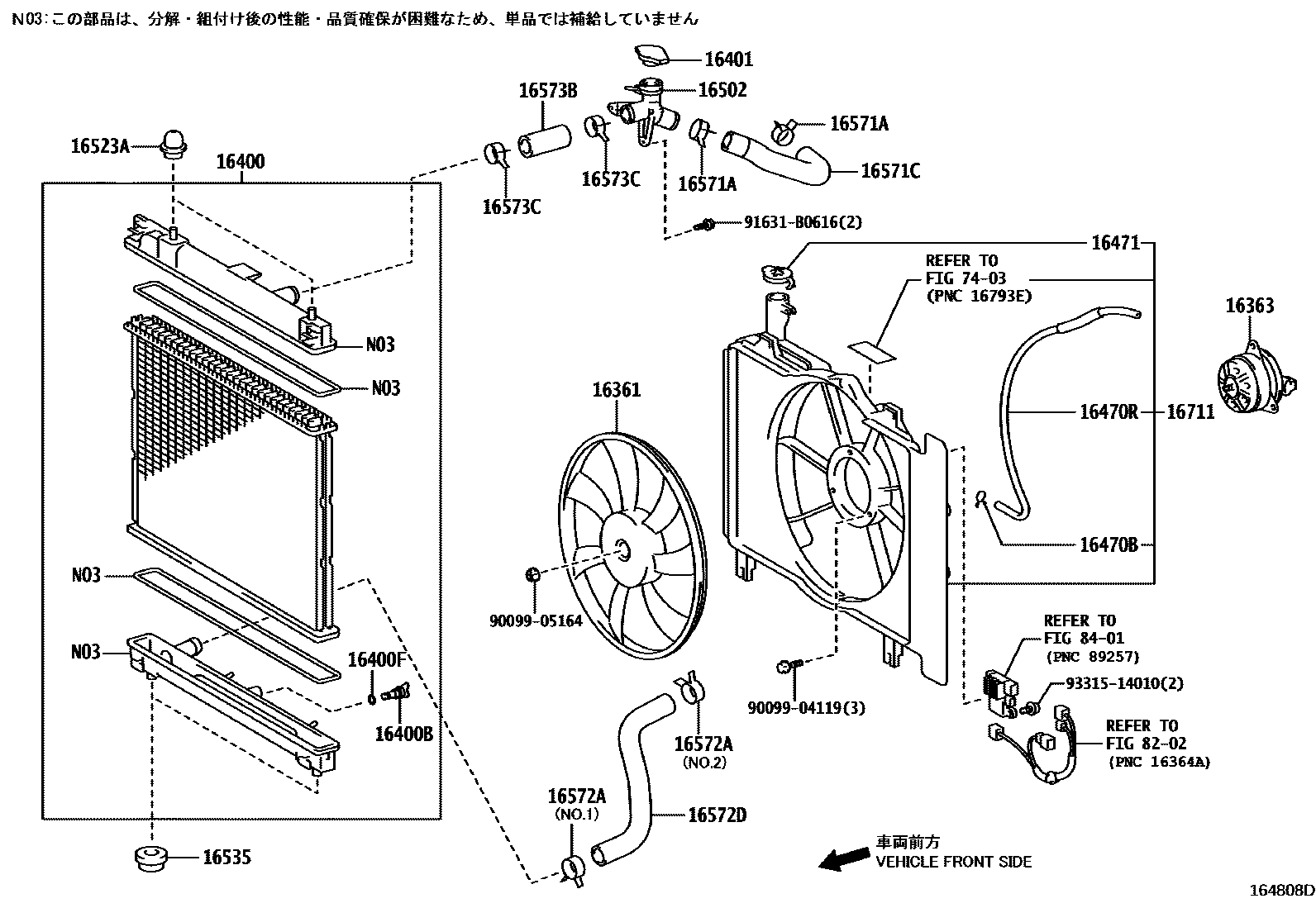

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 12 images and 75 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12512C | No. 2 generator bracket | 12512-37010 |
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-21010 · 16031-47040 · 16031-47041 |
| 16206A | No. 2 water bypass pipe sub-assembly | 16260-47091 |
| 16261 | HOSE, WATER BY-PASS | 16261-21070 · 16261-21100 · 16261-37031 · 16261-47010 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 96136-41501 · 96137-41501 |
| 16261B | Connector (for water bypass hose) | 90404-52042 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-47020 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 96136-42901 |
| 16261L | HOSE, WATER BY-PASS | 16261-47030 · 16261-47100 |
| 16261N | HOSE, WATER BY-PASS, NO.2 | 16261-47110 |
| 16261P | CLIP, WATER BY-PASS HOSE NO.2 | 96136-41501 |
| 16262 | water inlet hose | 16262-21020 · 16262-21060 · 16262-37010 · 16262-47020 |
| 16262A | Clamp (for water inlet hose) | 96136-42501 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-21060 · 16264-21100 · 16264-37031 · 16264-47050 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 96136-41501 · 96137-41501 |
| 16264H | Clamp (for No. 3 water bypass hose) | 96136-41501 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-21020 · 16267-21050 · 16267-21060 · 16267-21080 · 16267-21100 · 16267-37010 · 16267-47010 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 96136-41501 · 96136-42501 |
| 16267D | CLIP, WATER BY-PASS HOSE NO.4 | 96136-42501 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-21050 · 16268-21101 · 16268-21120 · 16268-21130 · 16268-37021 · 16268-37060 · 16268-47031 · 16268-47080 |
| 16268G | Gasket (for water bypass pipe) | 16258-21021 |
| 16268L | PIPE, WATER BY-PASS | 16268-47040 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16270-47020 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-21020 · 16281-21050 · 16281-47030 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 96136-41501 · 96137-41901 |
| 16281G | CLIP, WATER BY-PASS HOSE NO.5 | 90466-21001 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16260-37050 · 16282-21030 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 96134-41900 · 96136-52201 · 96137-41901 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-21011 · 16283-47030 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 96136-41501 · 96136-42501 |
| 16321 | water inlet | 16321-21020 · 16321-37010 · 16321-47011 |
| 16323 | HOUSING, WATER INLET | 16323-21010 · 16323-37040 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-21010 · 16325-28010 · 16325-62010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-37030 · 16326-47010 · 16326-47020 |
| 16331A | thermostat | 90916-03142 · 90916-03147 · 90916-03148 |
| 16351 | water bypass outlet | 16351-21010 |
| 16361 | Fan | 16361-21090 · 16361-21100 · 16361-21120 · 16361-47040 |
| 16363 | cooling fan motor | 16363-21060 · 16363-21100 · 16363-21110 · 16363-28150 · 16363-28160 · 16363-28200 · 16363-37140 · 16363-47020 |
| 16374 | Cooling fan motor vibration isolation pad | 16366-40010 · 16366-47070 |
| 16381 | Fan belt adjustment lever | 16381-21040 |
| 16400 | Radiator assembly | 16400-21270 · 16400-21330 · 16400-21331 · 16400-21381 · 16400-47090 · 16400-47141 |
| 16400B | Radiator drain switch screw plug | 16417-21280 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-31520 · 16401-36020 |
| 16418 | Seals | 16476-21180 |
| 16431 | Radiator water inlet | 16431-47090 |
| 16431A | O-ring (for radiator water inlet) | 16492-6A300 |
| 16470A | Hoses or tubes (for radiator reservoir) | 16377-21220 · 16377-47020 · 16377-47070 · 16378-21180 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16470R | No. 2 hose (for radiator reservoir) | 16378-37020 |
| 16471 | Liquid storage tank cover sub-assembly | 16471-23030 |
| 16471B | Reservoir tank cover | 16471-23010 |
| 16502 | Water injection port sub-assembly | 16502-21080 · 16502-21090 · 16502-37010 |
| 16520A | Water injection port cover sub-assembly | 16401-31520 · 16401-36020 |
| 16522 | Water injection port bracket | 16522-21010 |
| 16523A | Radiator bracket cushion | 16523-21030 |
| 16535 | Radiator lower support | 90480-22025 |
| 16553C | hose clamp | 16581-21130 |
| 16561 | Seal No. 1 (radiator to bracket) | 16561-21060 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-33006 |
| 16571C | Radiator hose No. 1 | 16571-21100 · 16571-21120 · 16571-37180 · 16571-47080 · 16571-47120 |
| 16571D | No. 1 radiator hose clip | 90467-33006 · 96136-43901 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-34004 · 90467-37005 |
| 16572D | Radiator hose No. 2 | 16572-21070 · 16572-21071 · 16572-21090 · 16572-37080 · 16572-47070 · 16572-47120 · 16572-47121 |
| 16572E | No. 2 radiator hose clip | 90467-33006 · 90467-34004 |
| 16573B | Radiator hose No. 3 | 16573-21100 · 16573-21110 · 16573-37030 |
| 16573C | No. 3 radiator hose clamp or clip | 90467-33006 |
| 16575A | No. 5 radiator hose clip | 90949-01C99 |
| 16575B | No. 2 water hose clamp bracket | 16575-21030 · 16575-21031 |
| 16575C | No. 1 water hose clamp bracket | 16575-21020 · 16575-37030 |
| 16581 | Hose clamp (for water hose) | 16581-21020 · 16581-21030 · 16581-21060 · 16581-21070 · 16581-37130 |
| 16581B | Hose clamp (for radiator hose) | 16581-21140 |
| 16711 | fan cover | 16711-21150 · 16711-21160 · 16711-21170 · 16711-37110 · 16711-47050 · 16711-47080 |
| 16712 | No. 2 fan cover | 16712-21020 |
| 16716 | fan cover cushion | 16716-37010 |
