Toyota COROLLA Oil Filter — Figure 1502

Toyota COROLLA EPC diagram 1502, Oil Filter, with 3 images and 12 PNC and OE references.

Toyota COROLLA Oil Filter EPC diagram — 151942C
Oil Filter — 151942C (201204 – 999999)

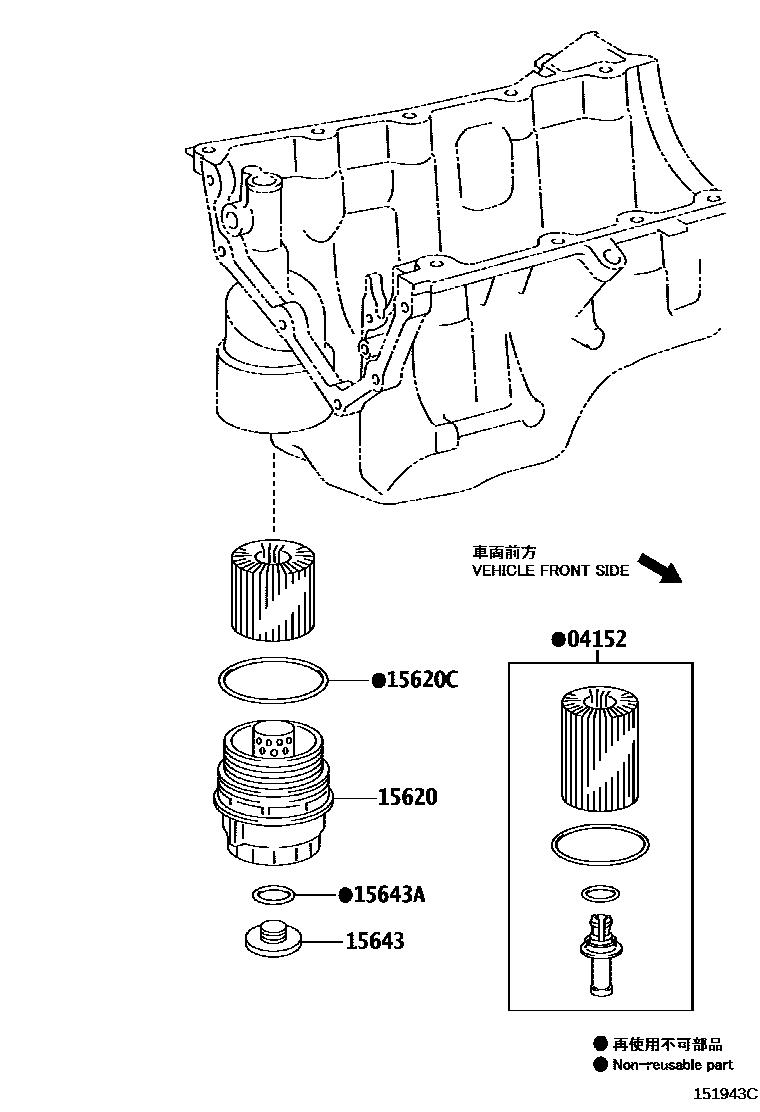

Toyota COROLLA Oil Filter EPC diagram — 151943C
Oil Filter — 151943C (201204 – 999999)

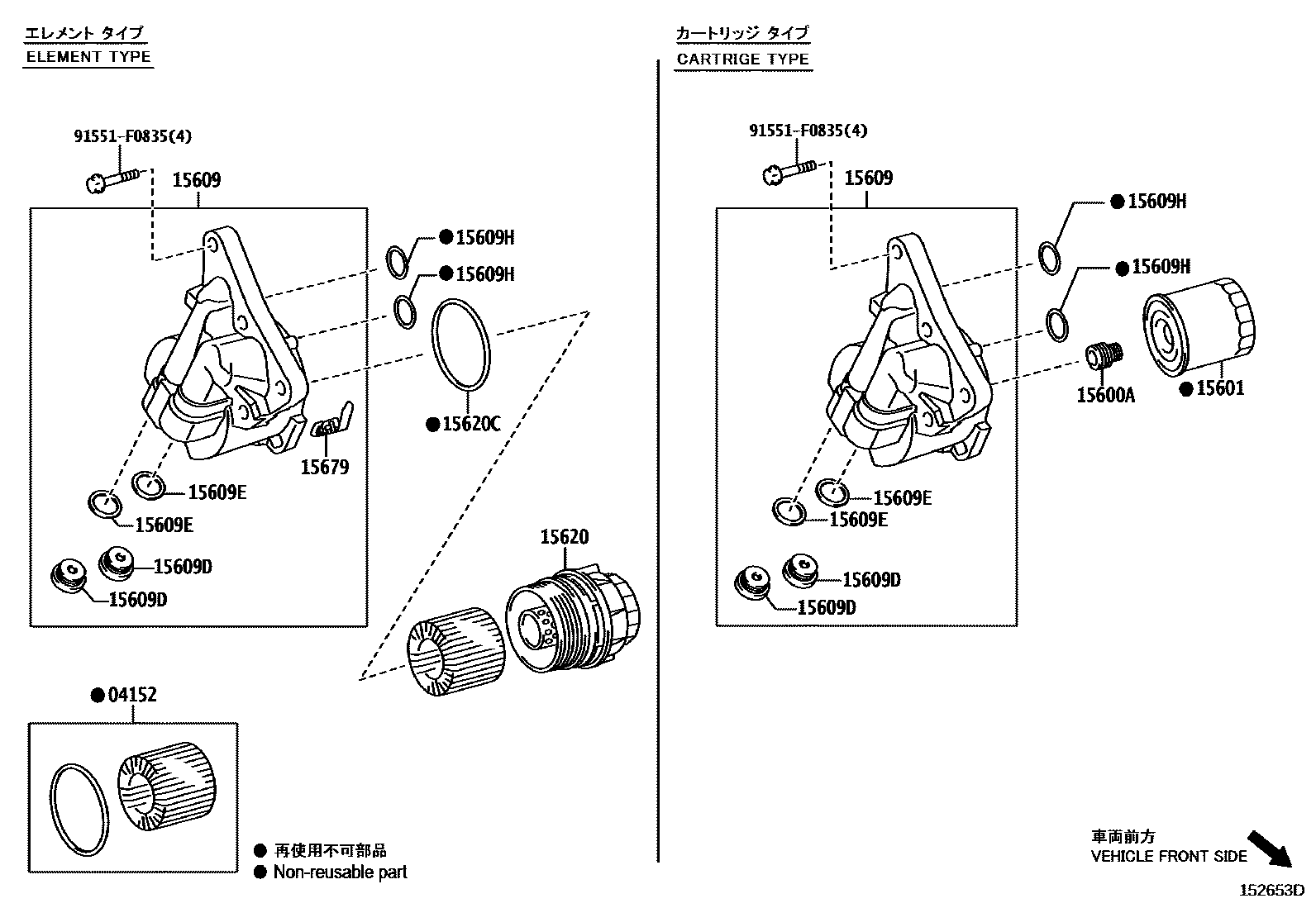

Toyota COROLLA Oil Filter EPC diagram — 152653D
Oil Filter — 152653D (201204 – 999999)

PNC and OE references

PNCPart nameOE numbers
04152Oil Filter Element Kit04152-37010 · 04152-40060
15600AConnector (for oil filter)90904-04004 · 90904-04006
15601Oil filter sub-assembly90915-10003 · 90915-10009
15609Oil filter bracket sub-assembly15609-37010 · 15609-37040 · 15609-37041 · 15609-37060
15609DStraight threaded plug with head (for oil filter bracket)90341-20002
15609EHeaded straight thread plug liner90430-20004 · 90430-20018
15609HO-ring (for oil filter bracket)96723-24020
15620Oil filter cover assembly15620-37010 · 15620-40030
15620CGasket (for oil filter cover)90301-69011
15643Oil filter drain plug15643-31050
15643AO-ring (for oil filter drain plug)96723-35028
15679Oil filter bracket clip15679-37010 · 15679-37011
