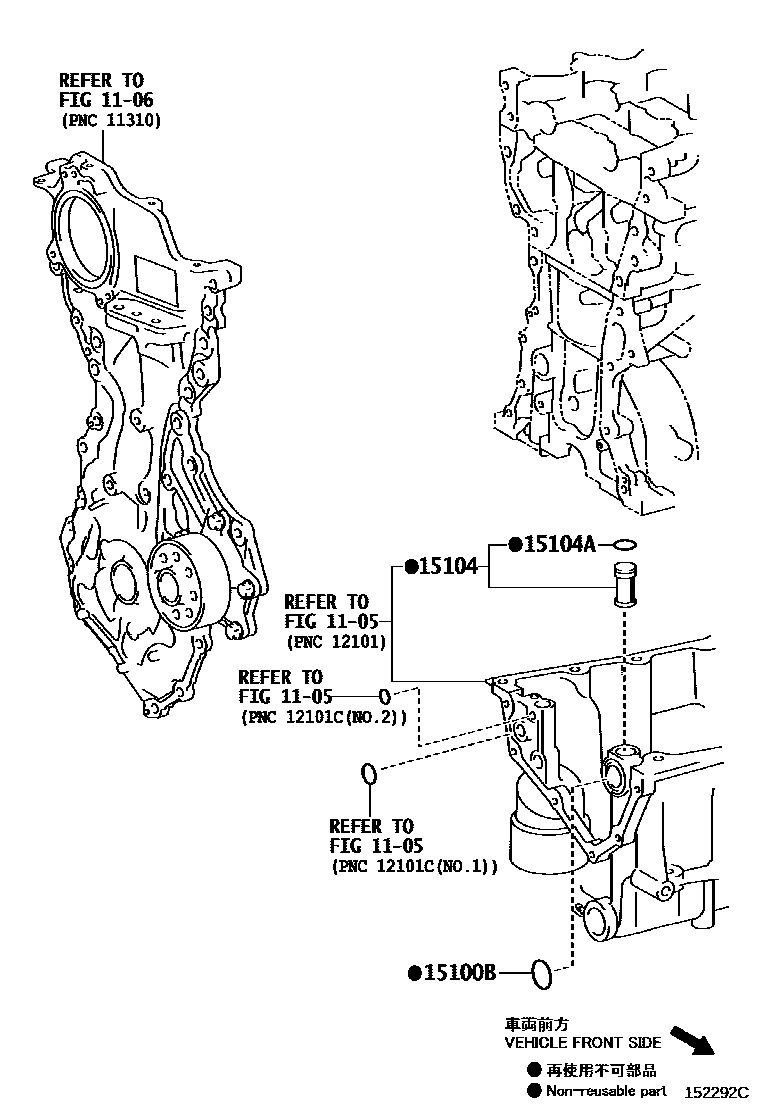

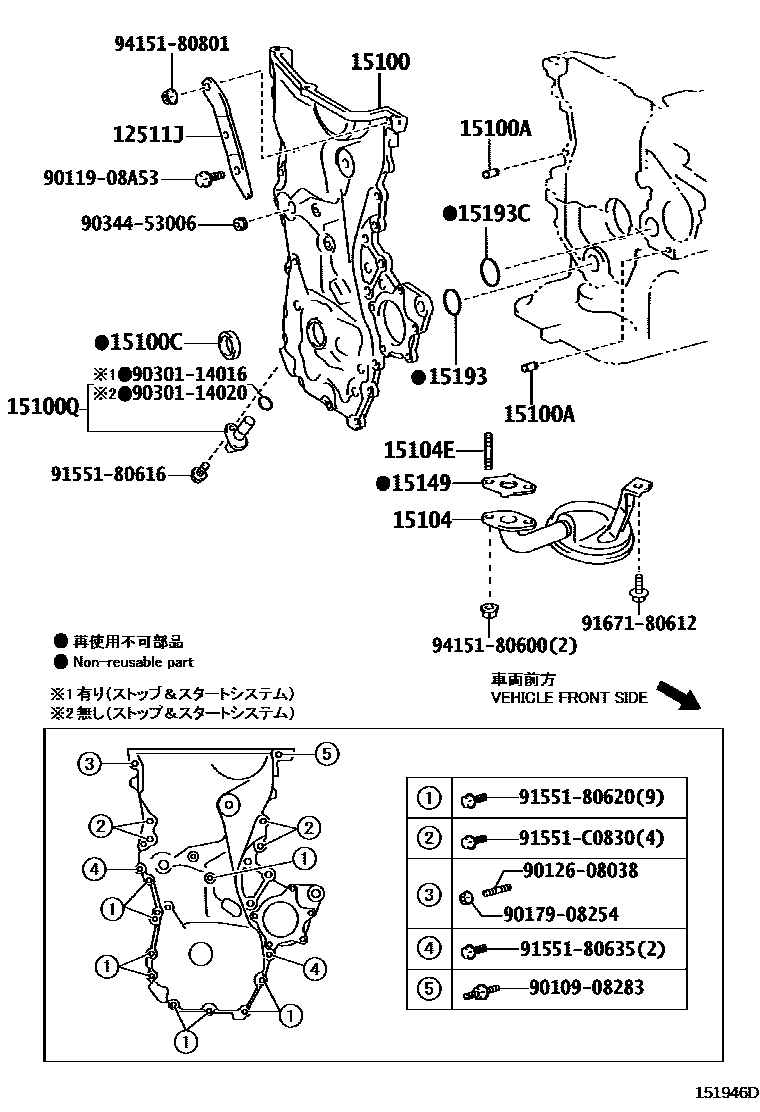

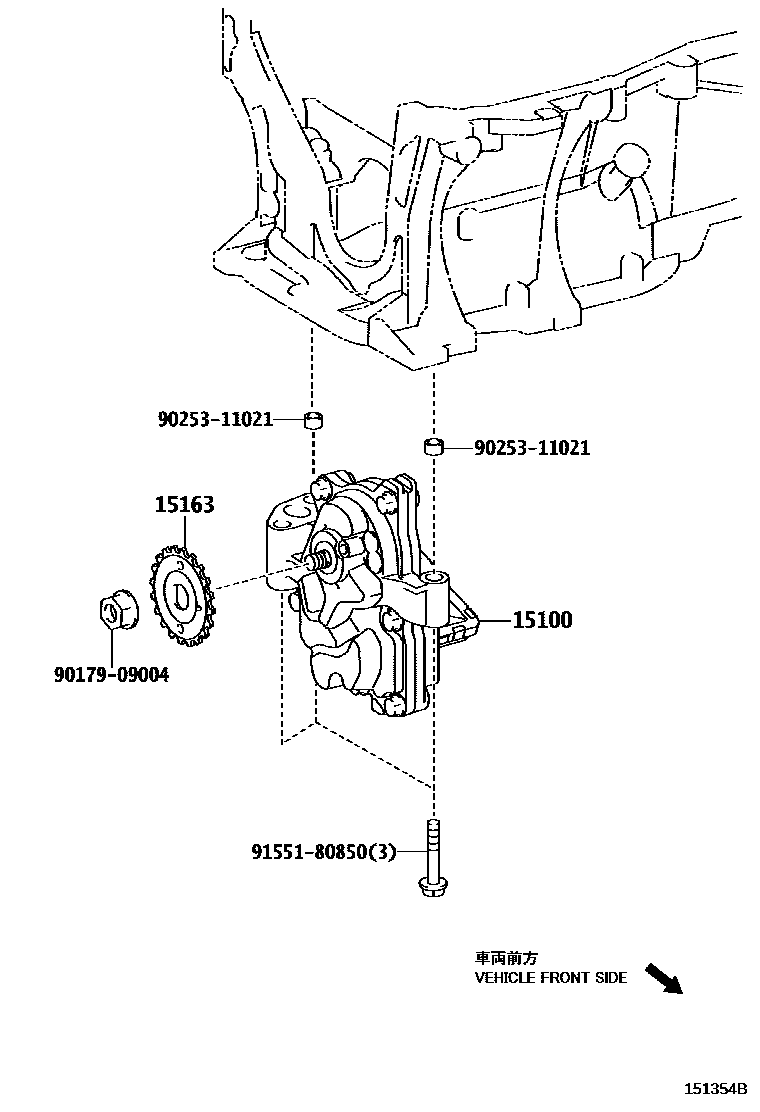

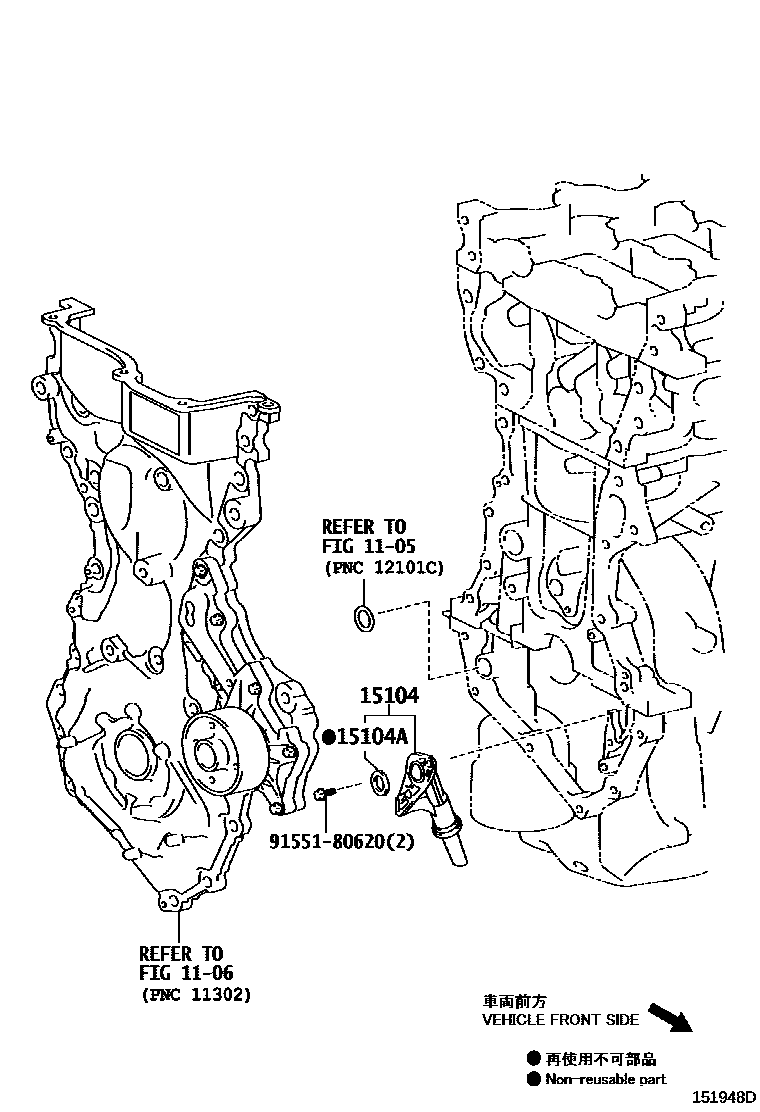

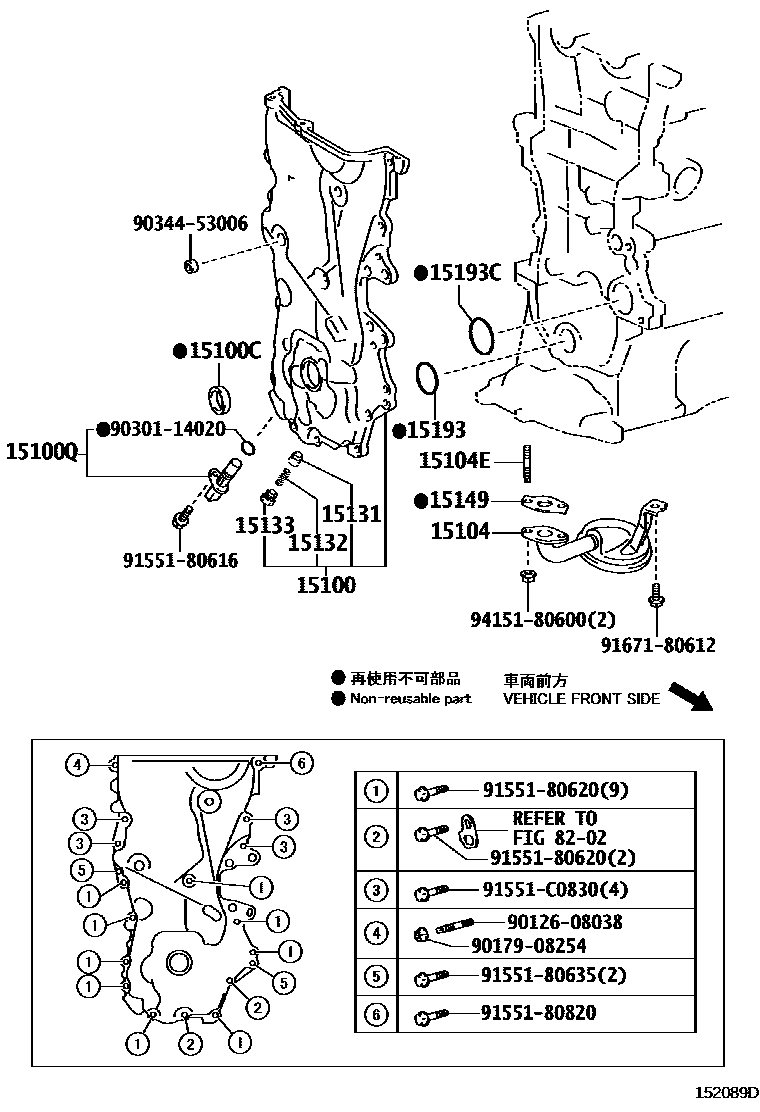

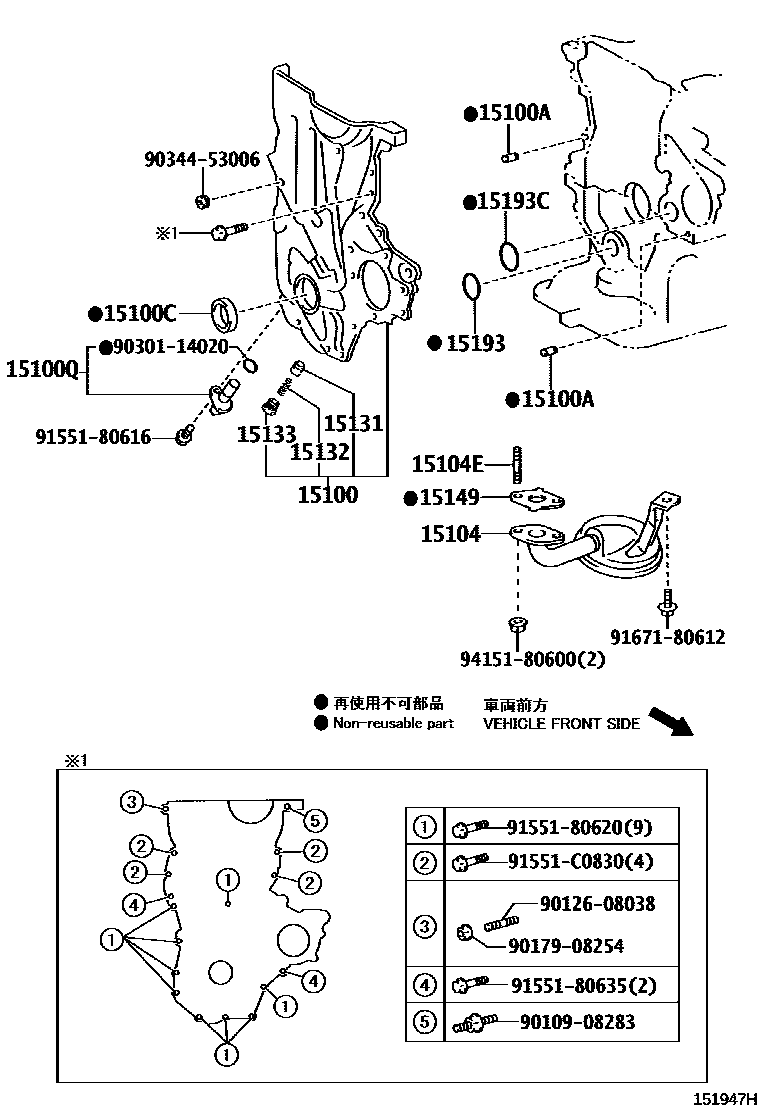

Toyota COROLLA Engine Oil Pump — Figure 1501
Toyota COROLLA EPC diagram 1501, Engine Oil Pump, with 6 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12511J | Generator bracket | 12511-21010 |
| 15100 | Oil pump assembly | 15100-21062 · 15100-21071 · 15100-21072 · 15100-21080 · 15100-37020 · 15100-37021 |
| 15100A | Ring pin (for oil pump assembly) | 90253-08003 |
| 15100B | O-ring (for oil pump) | 90301-27014 |
| 15100C | Seals (for oil pump) | 90311-25032 · 90311-25033 |
| 15100Q | crankshaft position sensor | 90919-05081 · 90919-05083 · 90919-05087 |
| 15104 | Oil filter sub-assembly | 15104-21022 · 15104-47040 · 15104-47060 |
| 15104A | O-ring (for oil filter) | 90301-22018 · 96723-19018 |
| 15104E | Stud bolts (for oil filter) | 90126-06021 |
| 15131 | Oil pump pressure reducing valve | 15131-21020 |
| 15132 | Oil pump pressure reducing valve spring | 15132-21050 · 15132-21060 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-21030 |
| 15149 | Oil filter flange gasket | 16258-21030 |
| 15163 | Oil pump drive shaft gear | 15163-28010 |
| 15193 | oil pump gasket | 12151-21010 |
| 15193C | No. 2 oil pump gasket | 11497-21010 |
