Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 5 images and 14 PNC and OE references.

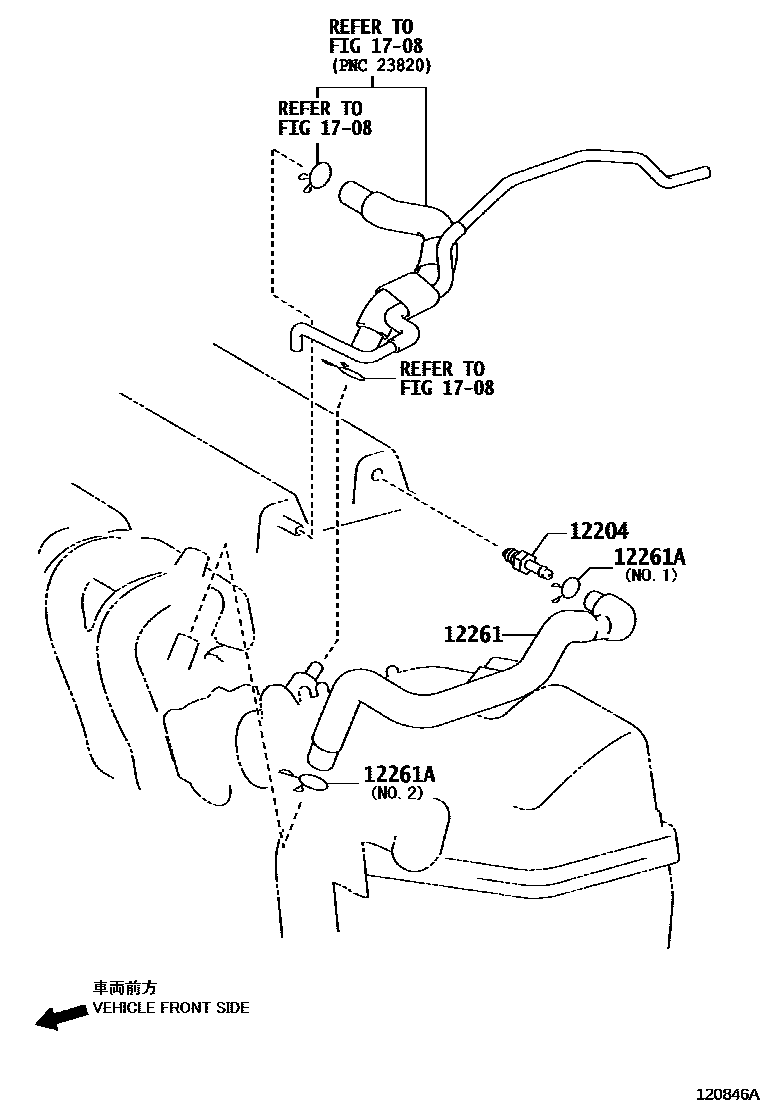

Toyota COROLLA Ventilation Hose EPC diagram — 120846A
Ventilation Hose — 120846A (201204 – 999999)

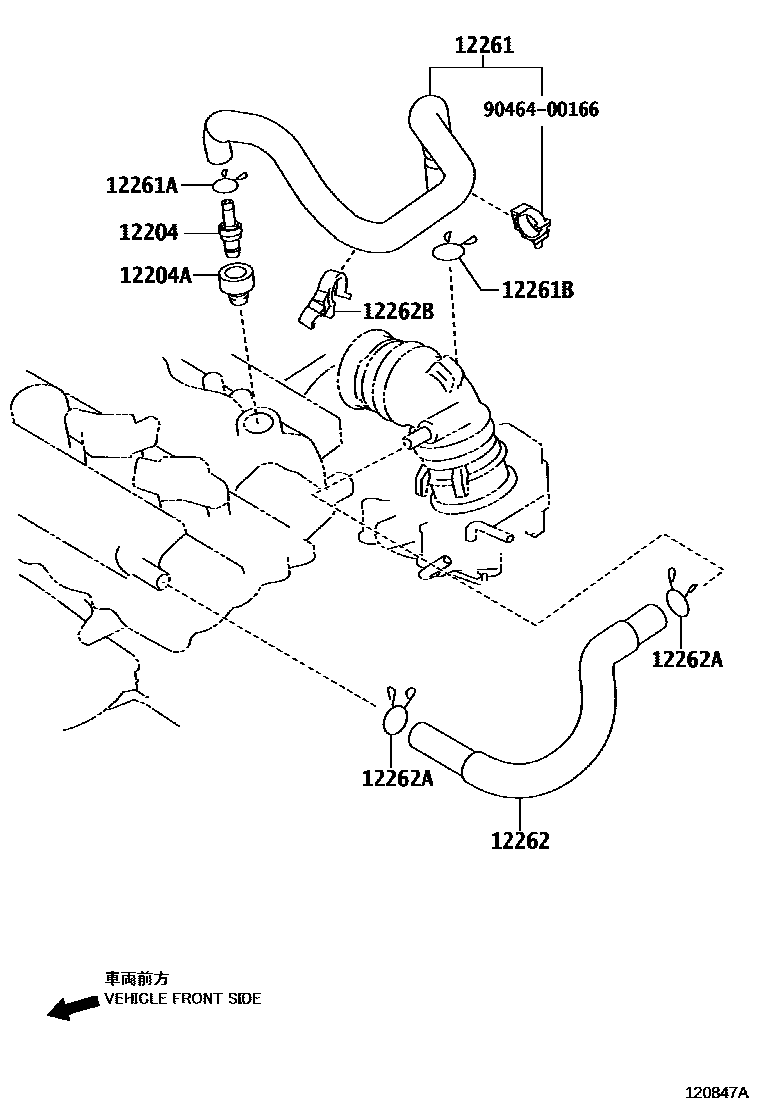

Toyota COROLLA Ventilation Hose EPC diagram — 120847A
Ventilation Hose — 120847A (201204 – 999999)

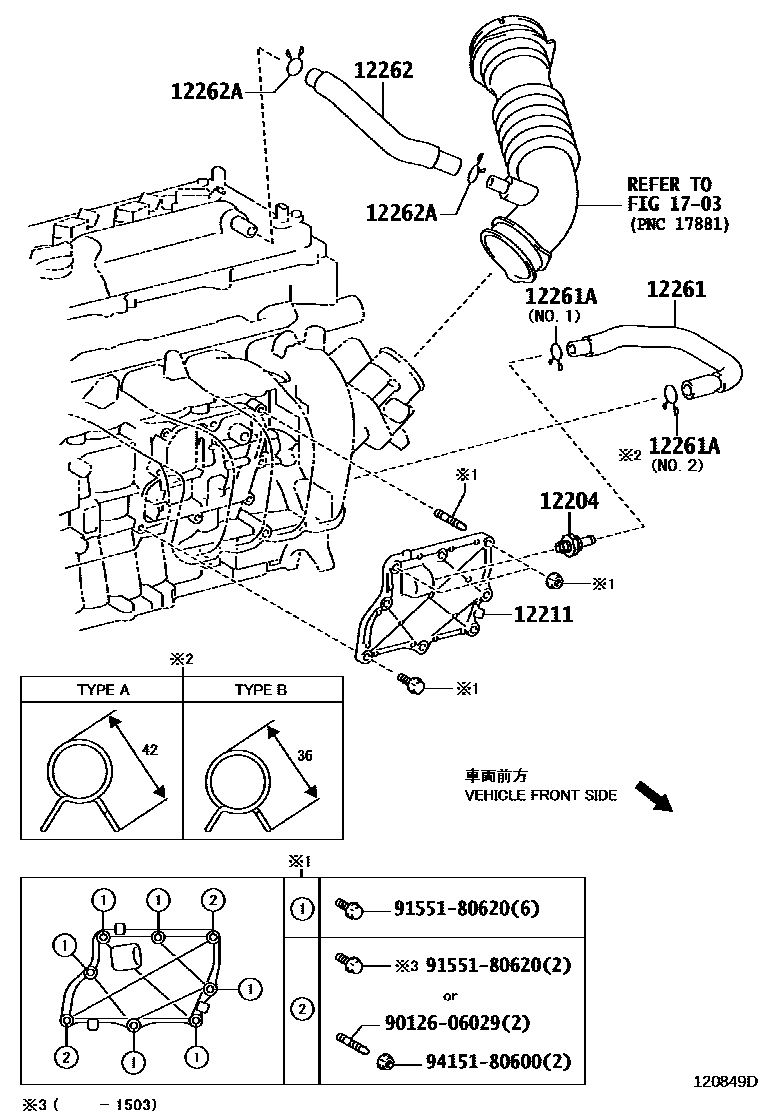

Toyota COROLLA Ventilation Hose EPC diagram — 120849D
Ventilation Hose — 120849D (201204 – 999999)

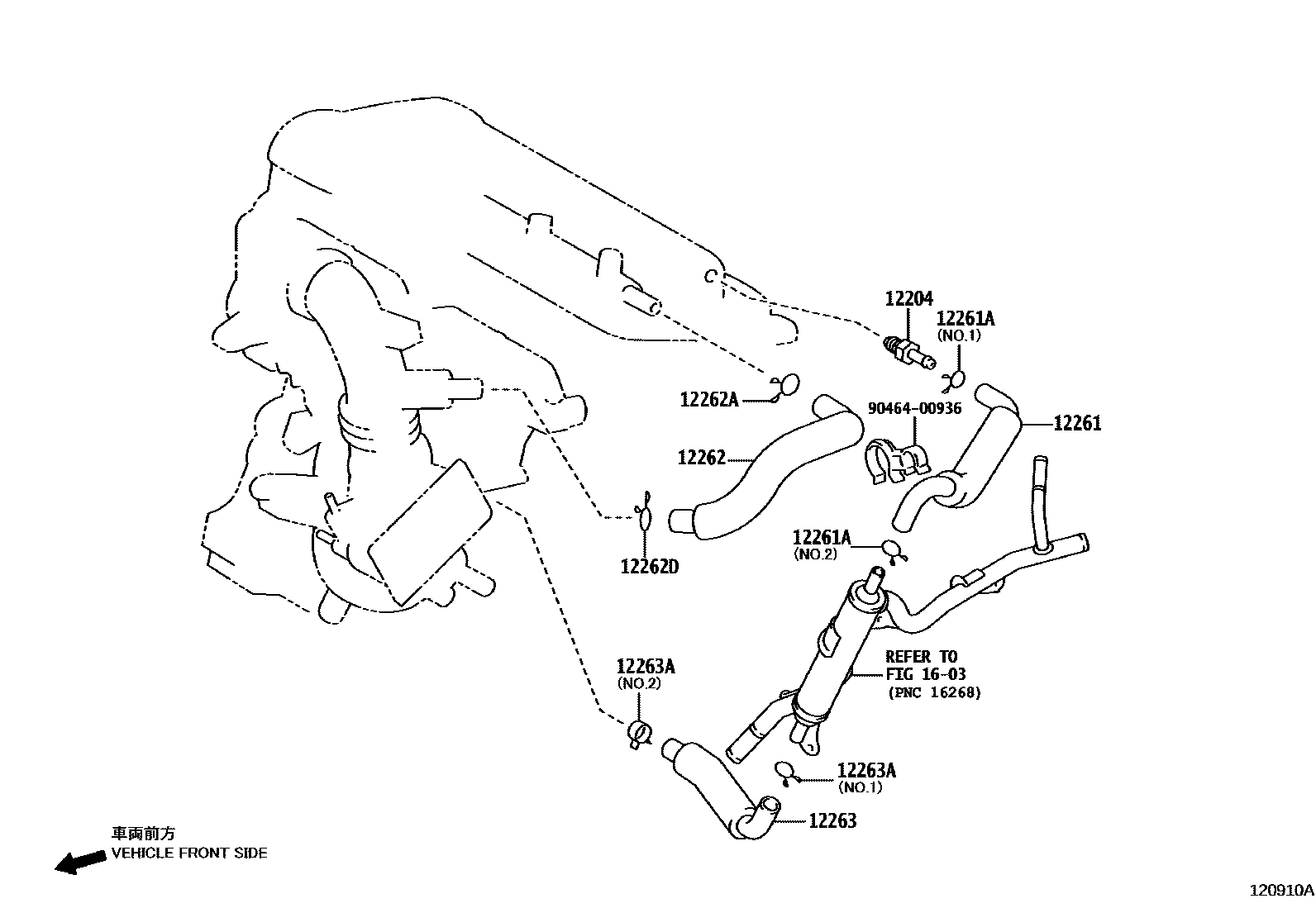

Toyota COROLLA Ventilation Hose EPC diagram — 120910A
Ventilation Hose — 120910A (201307 – 999999)

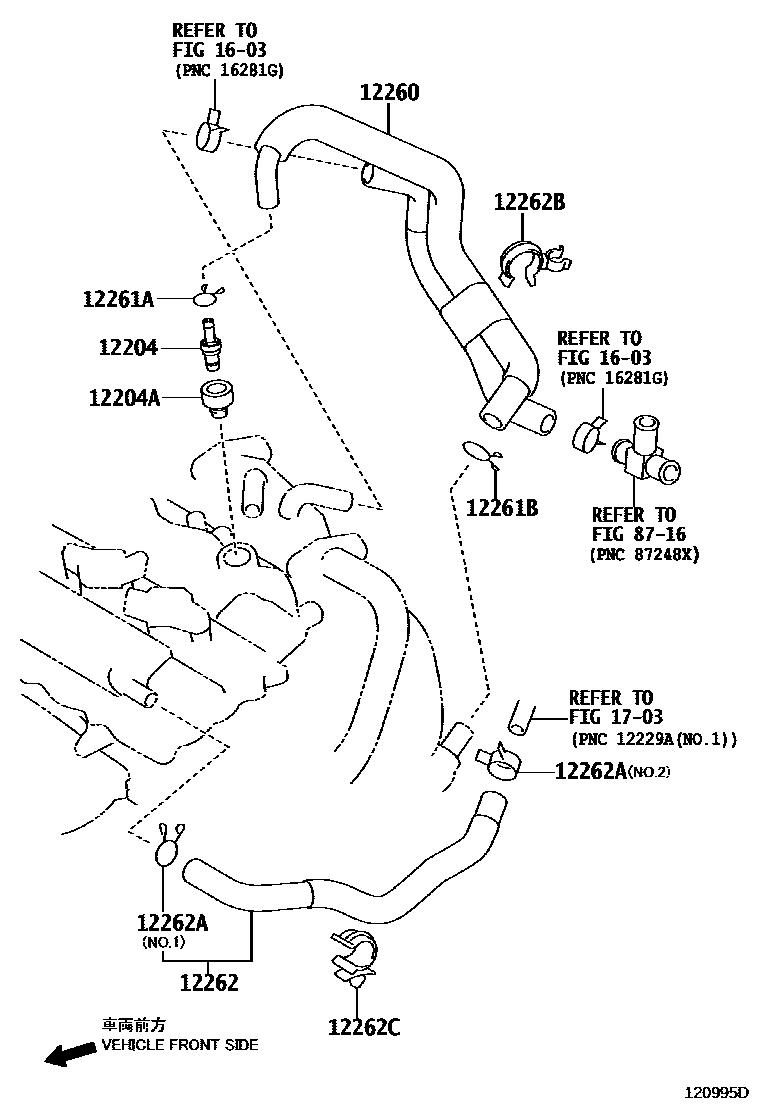

Toyota COROLLA Ventilation Hose EPC diagram — 120995D
Ventilation Hose — 120995D (201503 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-21013 · 12204-21020 · 12204-37010 · 12204-47010 · 12204-47060
12204AGasket (for ventilation system)11249-47020 · 90480-18016
12211Ventilation box No. 112211-37010
12260Ventilation hose assembly12029-47020
12261Ventilation Hose12261-21060 · 12261-21101 · 12261-37040 · 12261-37080 · 12261-47010
12261AClip or clip (for vent hose)90466-17004 · 90466-22005 · 90466-23003 · 90467-15120 · 90467-16035 · 90467-22010
12261BClip or clip (for vent hose)90467-22010 · 90467-23002
12262Ventilation hose No. 212262-21110 · 12262-37020 · 12262-47010 · 12262-47040
12262AClamp (for vent hose No. 2)16581-21050 · 90467-21004 · 96136-42201
12262BClamp (for ventilation hose)16581-47020 · 16581-47070
12262CVentilation hose clamp No. 212251-47030
12262DClamp (for vent hose No. 2)90467-21004
12263No. 3 ventilation hose12263-21020
12263AClip (for ventilation hose)90466-17004 · 96137-41901
