Toyota COROLLA Engine Mounting — Figure 1107

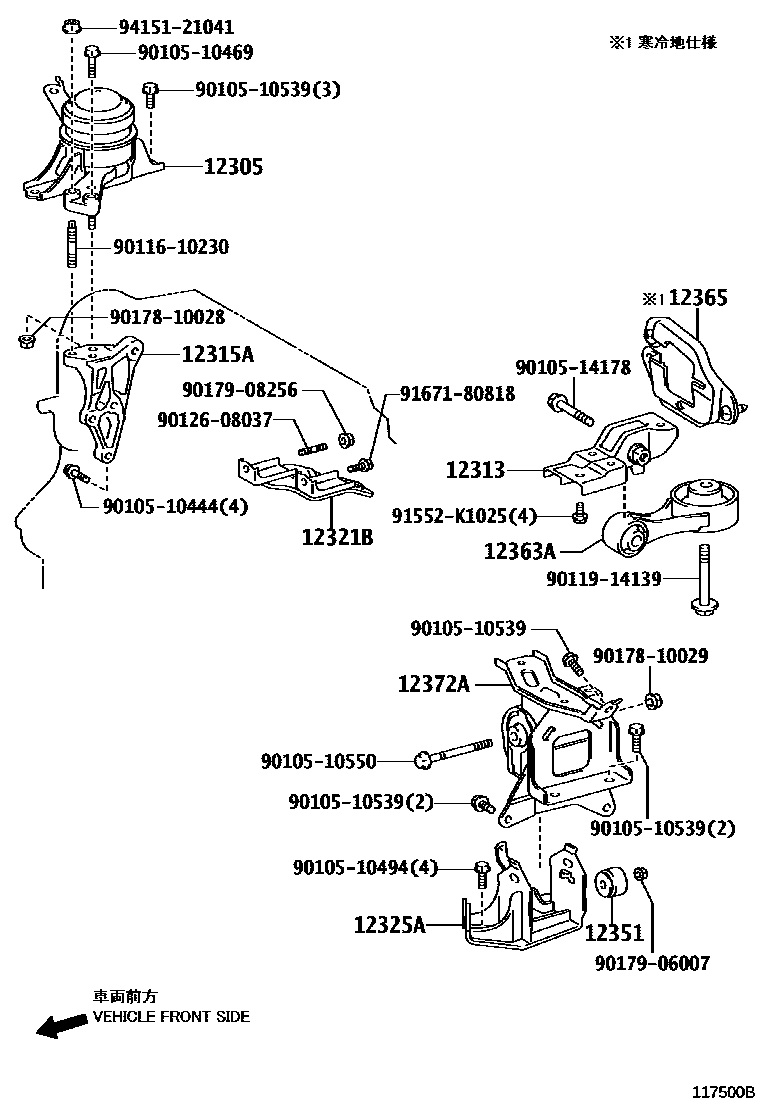

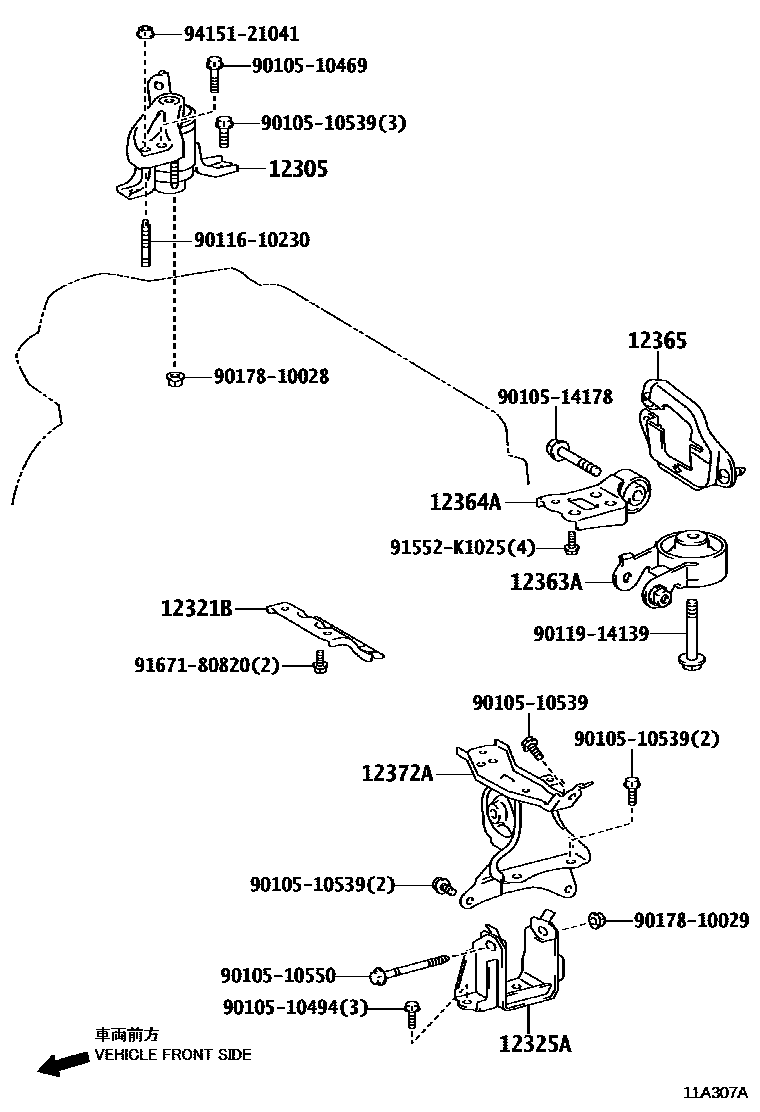

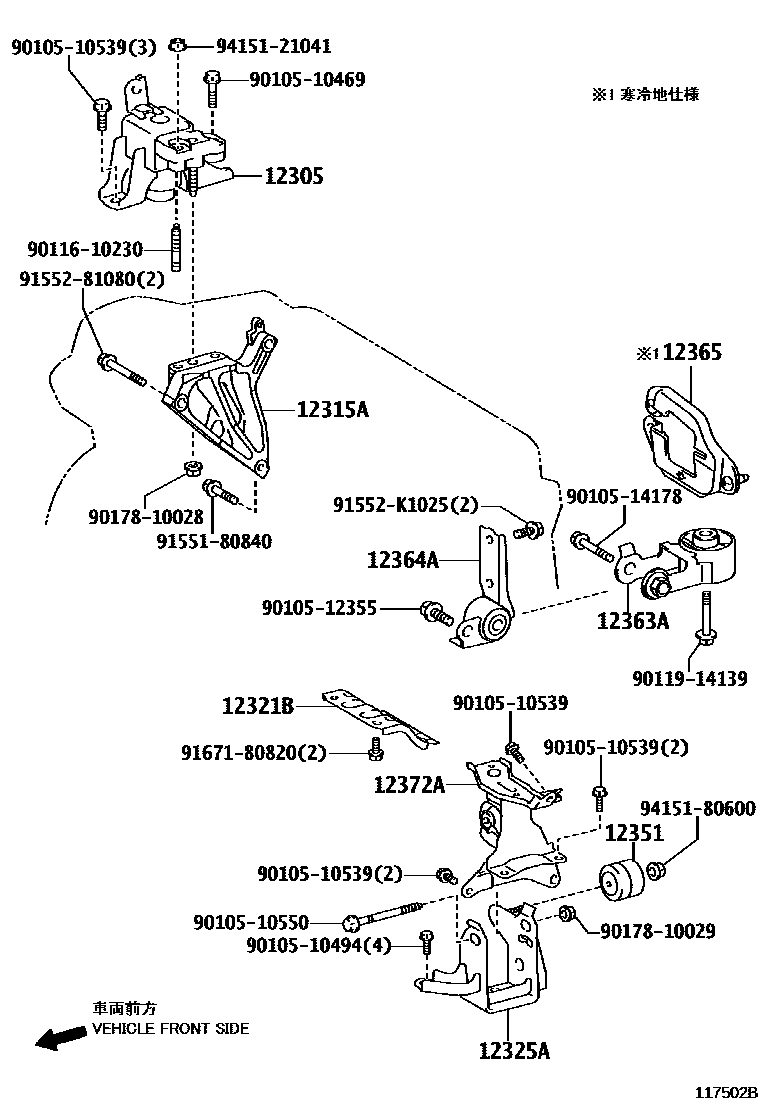

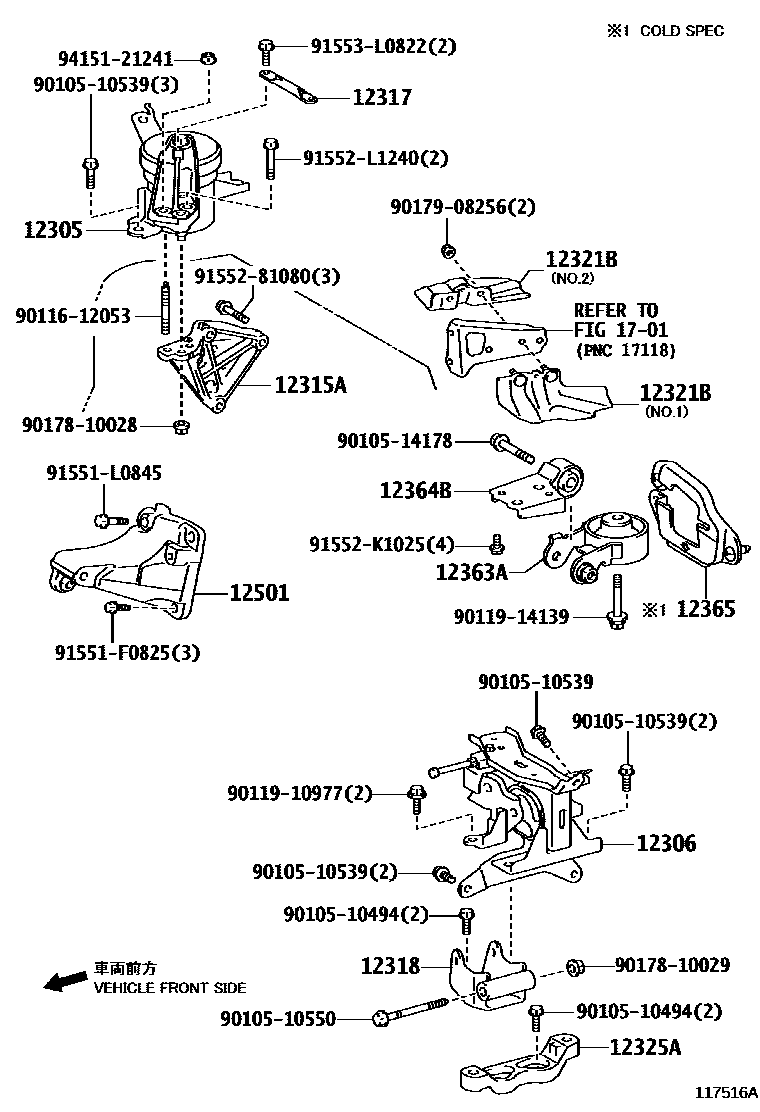

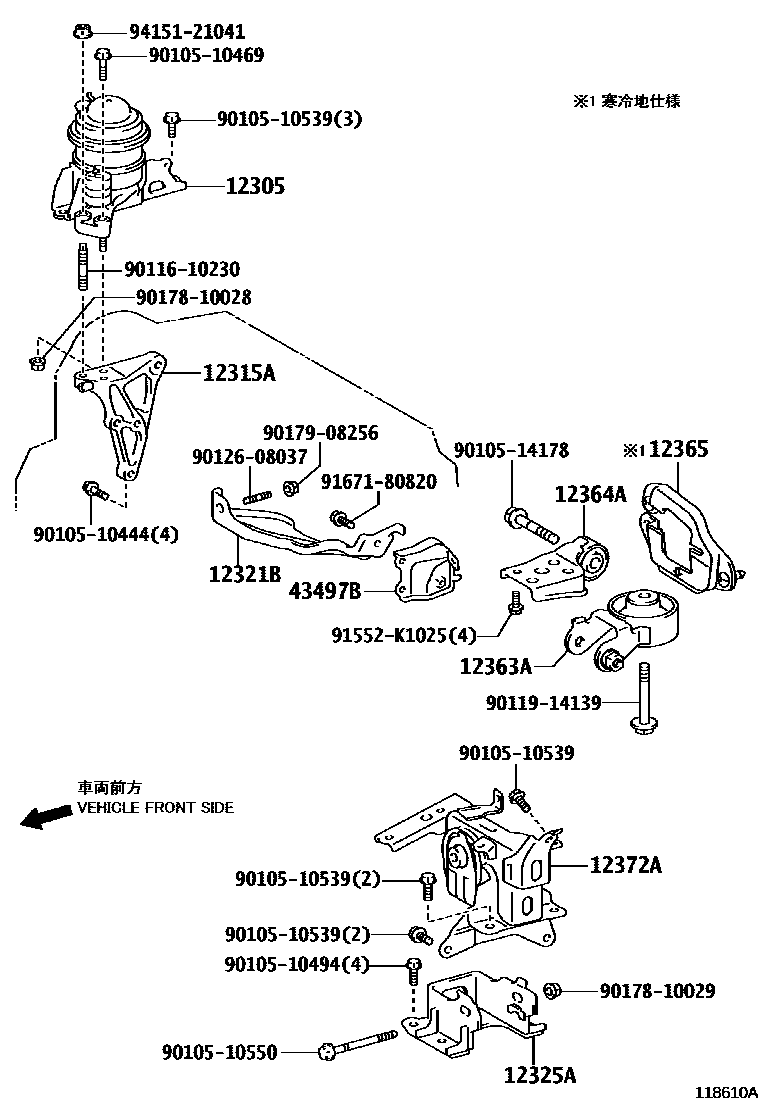

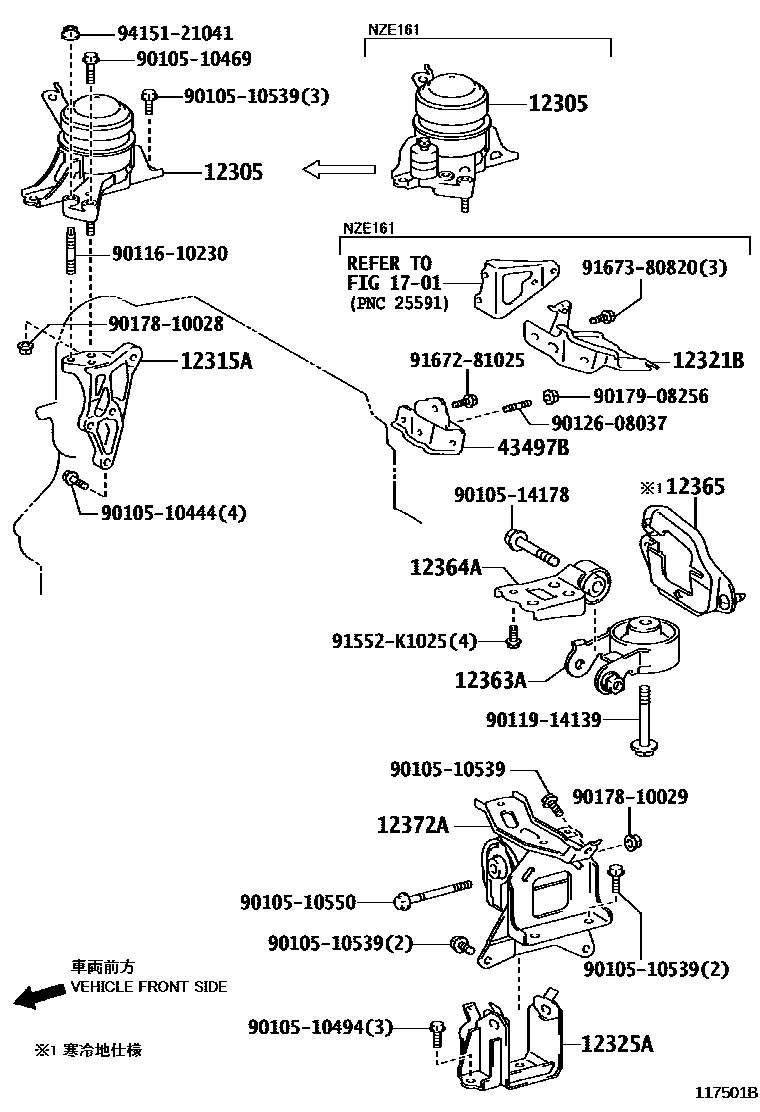

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 6 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-21200 · 12305-21380 · 12305-21450 · 12305-21451 · 12305-21520 · 12305-21570 · 12305-37270 · 12305-47041 · 12305-47070 · 12305-47071 |
| 12306 | Engine left mounting vibration isolation pad sub-assembly | 12306-37030 |
| 12313 | Engine mount control bracket (for transversely mounted engines) | 12313-21040 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-21044 · 12315-21060 · 12315-37050 · 12315-47040 |
| 12317 | Engine right mounting bracket | 12317-37010 |
| 12318 | Engine left mounting bracket | 12318-37010 |
| 12321B | Drive shaft heat insulation pad sub-assembly | 43409-12060 · 43409-12080 · 43409-52020 · 43498-12051 · 43498-12070 · 43498-52070 · 43498-52090 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-21170 · 12325-21230 · 12325-21260 · 12325-37120 · 12325-47120 · 12325-47130 |
| 12351 | engine mount shock absorber | 12351-21090 · 12351-37100 |
| 12363A | Engine movement control lever | 12363-21040 · 12363-21140 · 12363-21141 · 12363-21150 · 12363-21151 · 12363-21160 · 12363-21161 · 12363-47050 · 12363-47051 |
| 12364A | Engine lateral control lever | 12364-21090 · 12364-21110 · 12364-21130 · 12364-47010 |
| 12364B | Engine No. 2 motion control lever | 12364-37020 |
| 12365 | Engine motion control lever cover | 12365-40010 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-21300 · 12372-21310 · 12372-21320 · 12372-21360 · 12372-21390 · 12372-21420 · 12372-47090 · 12372-47160 |
| 12501 | Generator bracket sub-assembly | 12501-37010 |
| 43497B | Driveshaft insulation pad bracket | 43497-12030 · 43497-52050 |
