Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 3 images and 5 PNC and OE references.

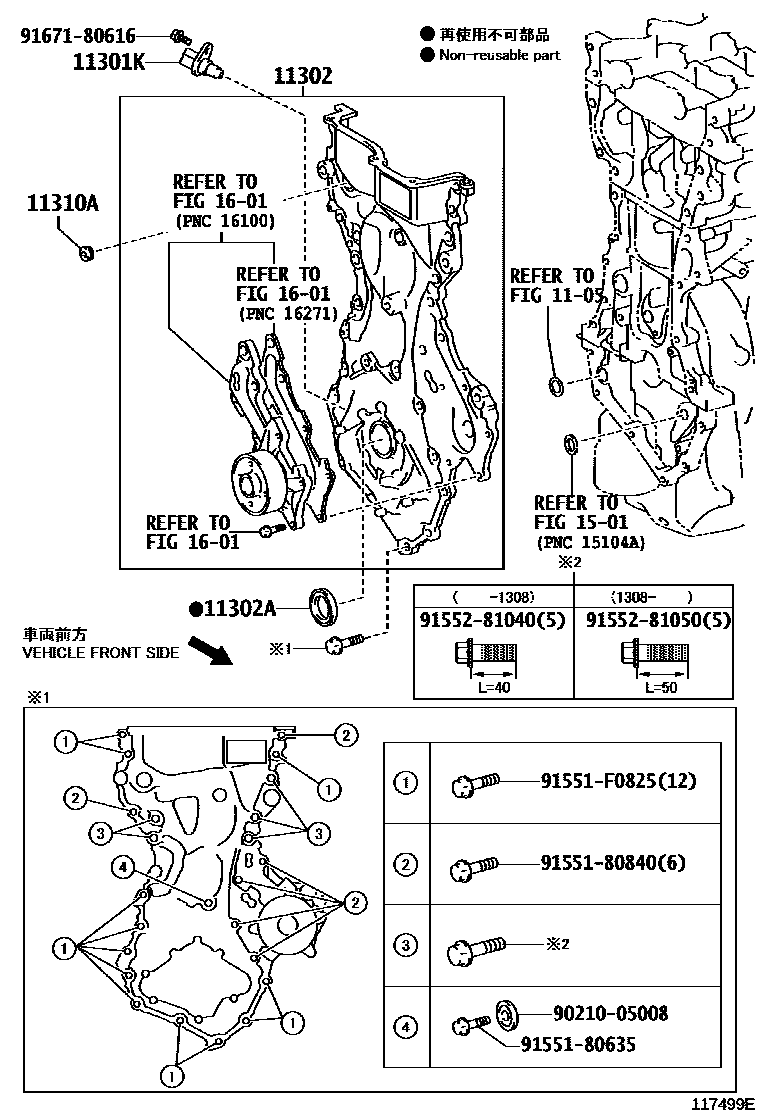

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 117499E
Timing Gear Cover & Rear End Plate — 117499E (201204 – 999999)

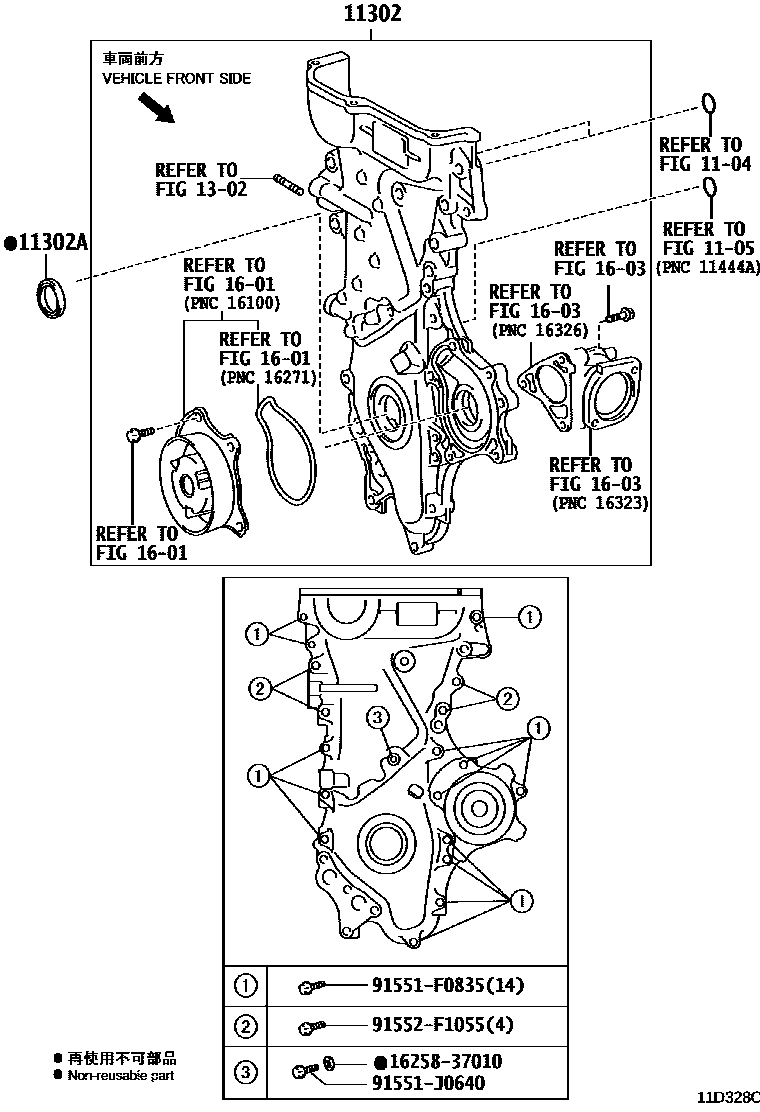

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 11D328C
Timing Gear Cover & Rear End Plate — 11D328C (201204 – 999999)

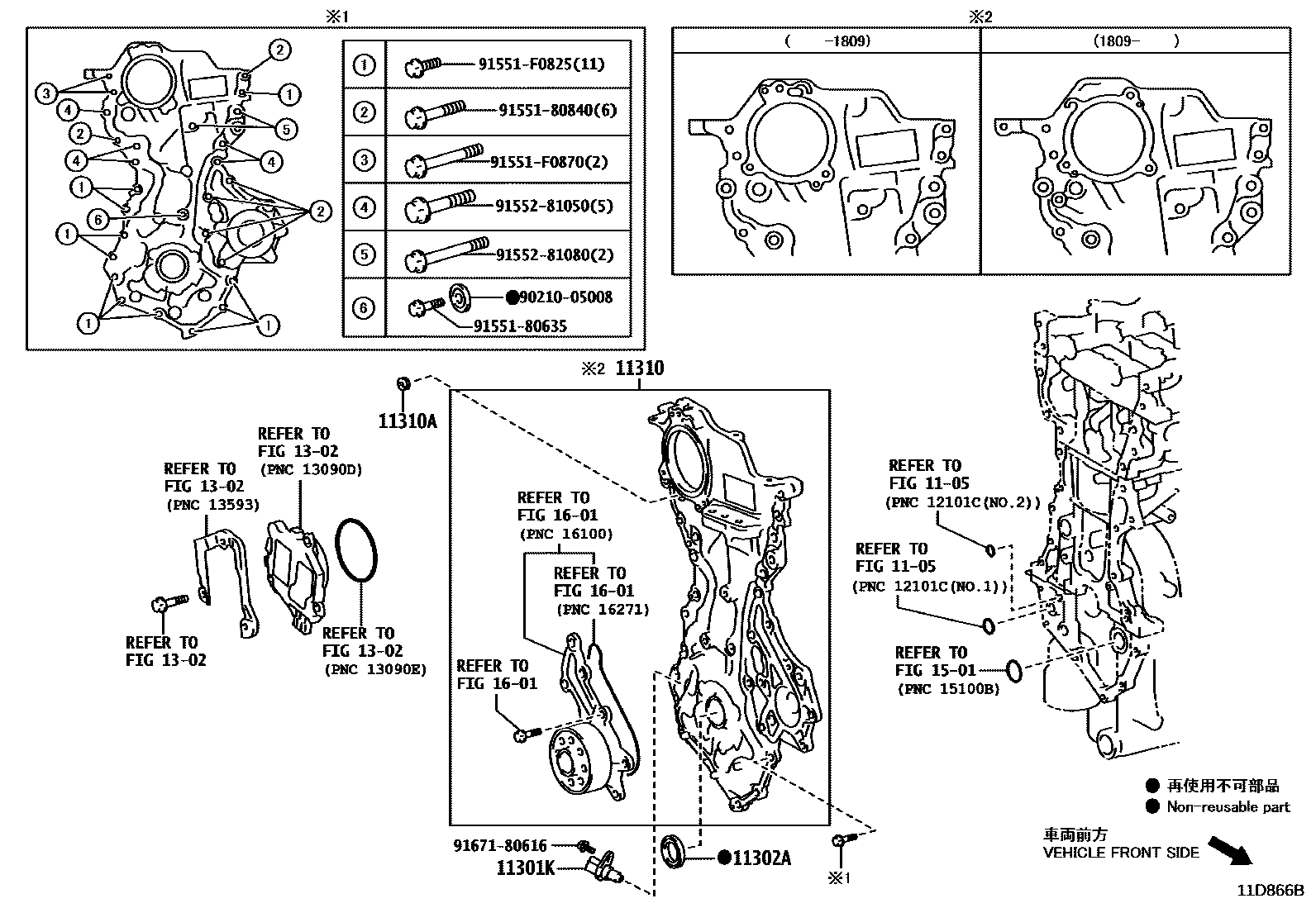

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 11D866B
Timing Gear Cover & Rear End Plate — 11D866B (201503 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301Kcrankshaft position sensor90919-05073 · 90919-05079
11302TIMING CHAIN OR BELT COVER SUB-ASSY11310-37050 · 11310-47040 · 11310-47041 · 11310-47042
11302AOil seal (for timing chain or timing belt cover)90311-25021 · 90311-25032 · 90311-36007 · 90311-38096
11310Toyota part11310-47090 · 11310-47091 · 11310-47100
11310AToyota part90344-53006 · 90344-53008
