Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 12 images and 2 PNC and OE references.

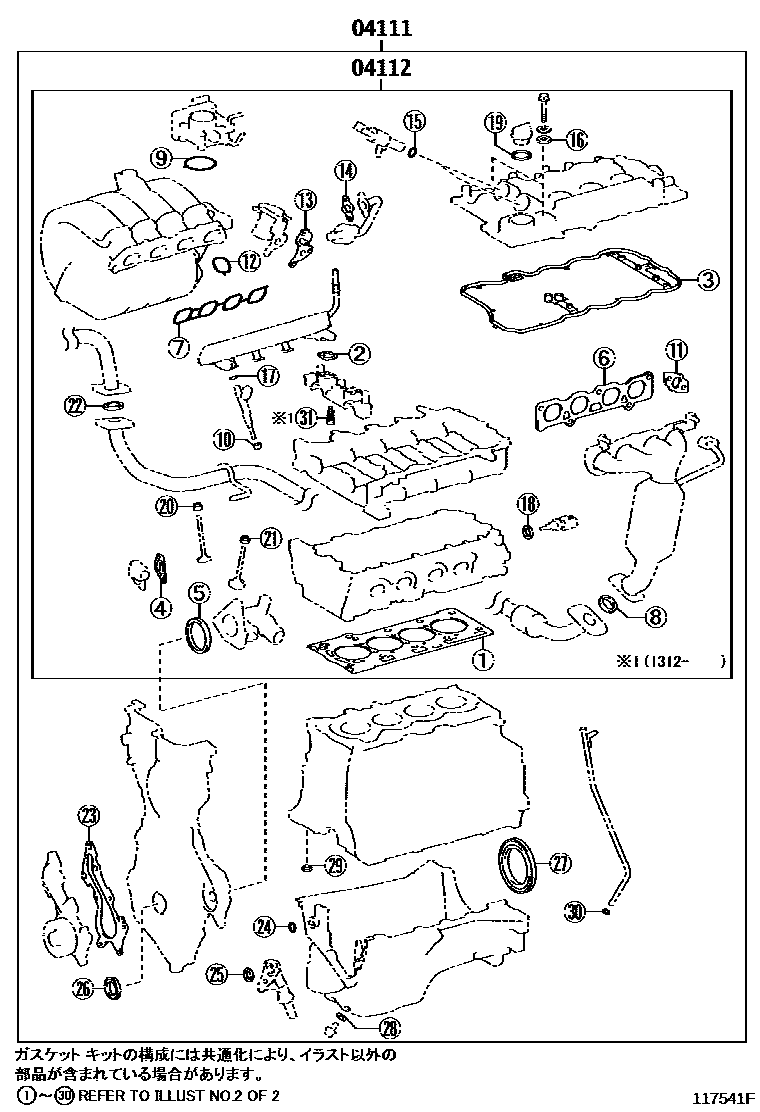

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 117541F
Engine Overhaul Gasket Kit — 117541F (201204 – 201903)

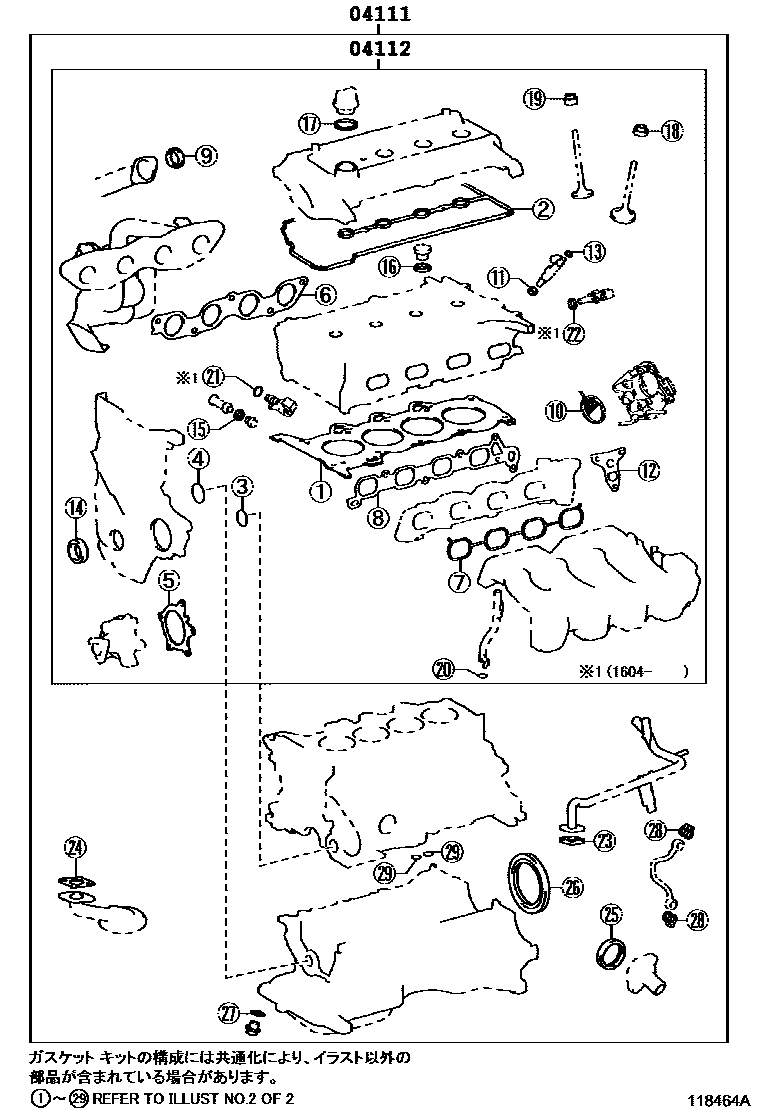

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 118464A
Engine Overhaul Gasket Kit — 118464A (201204 – 999999)

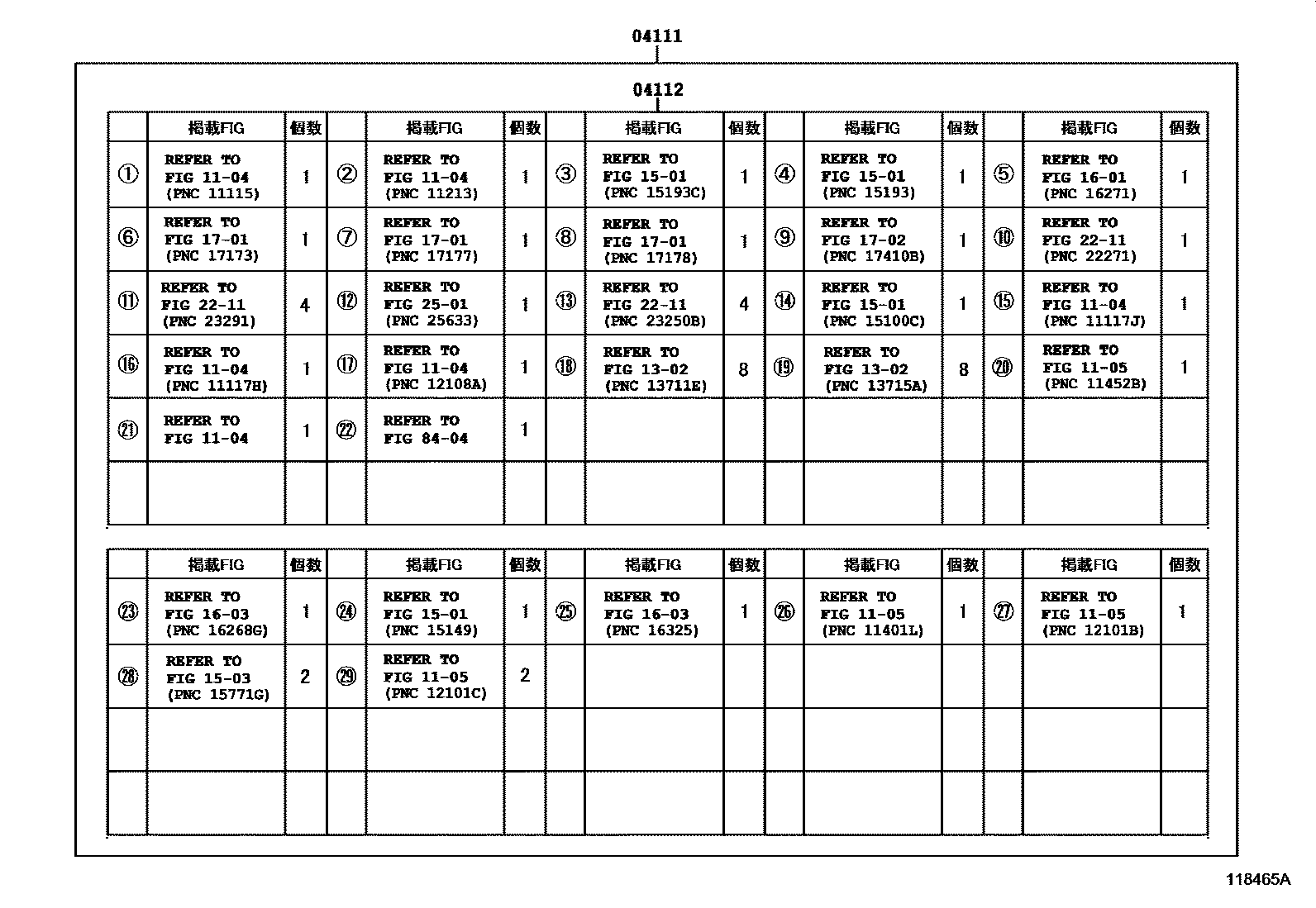

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 118465A
Engine Overhaul Gasket Kit — 118465A (201204 – 999999)

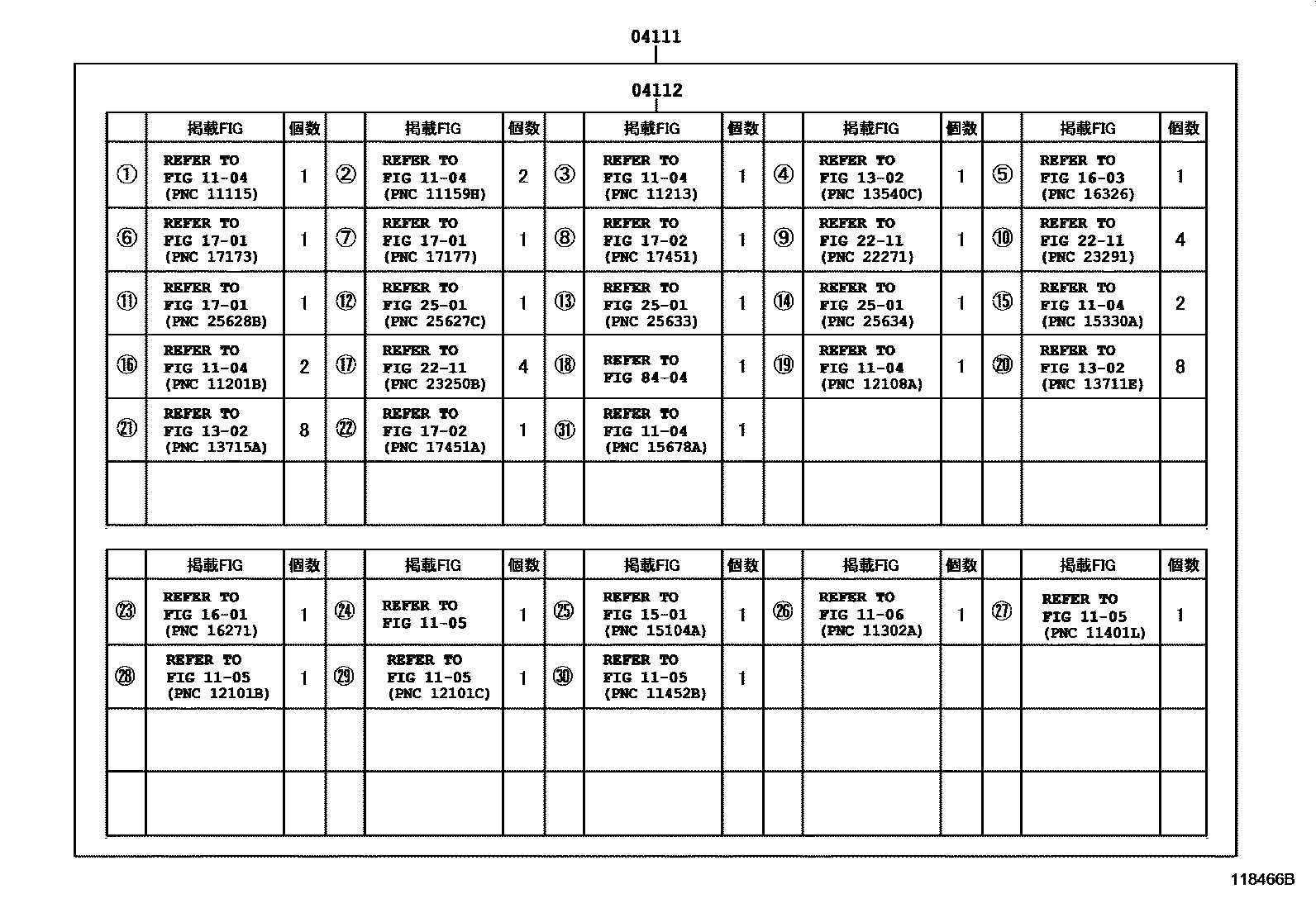

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 118466B
Engine Overhaul Gasket Kit — 118466B (201204 – 201903)

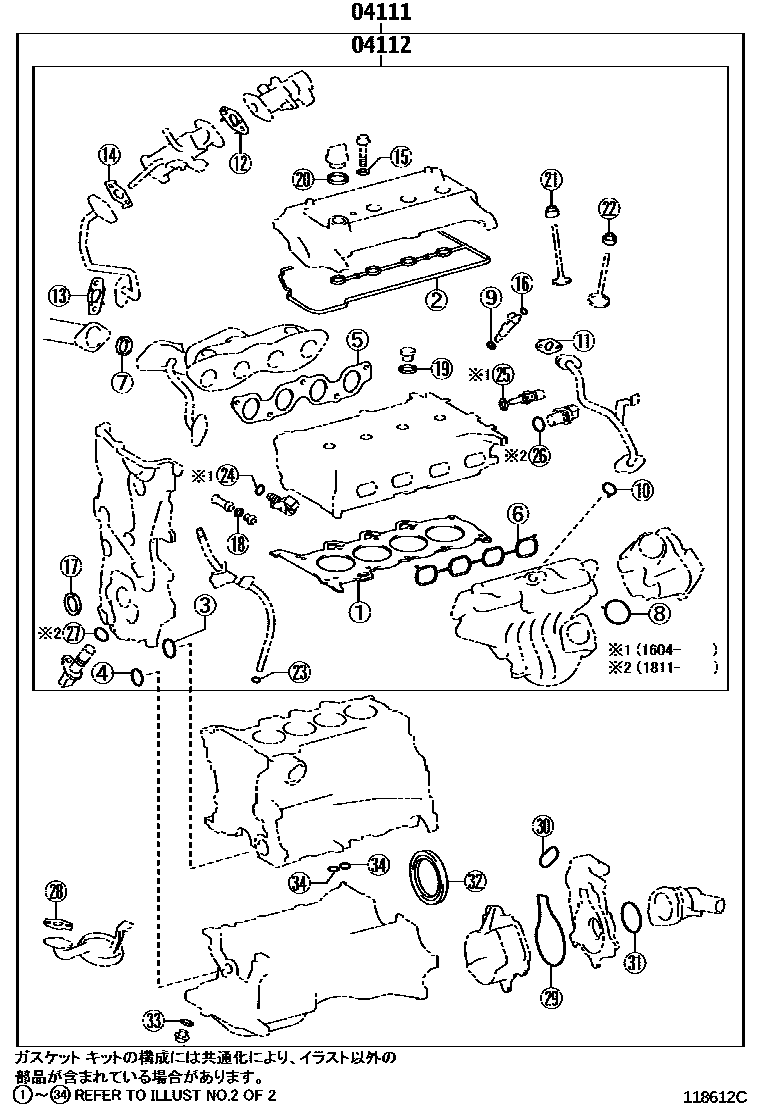

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 118612C
Engine Overhaul Gasket Kit — 118612C (201307 – 999999)

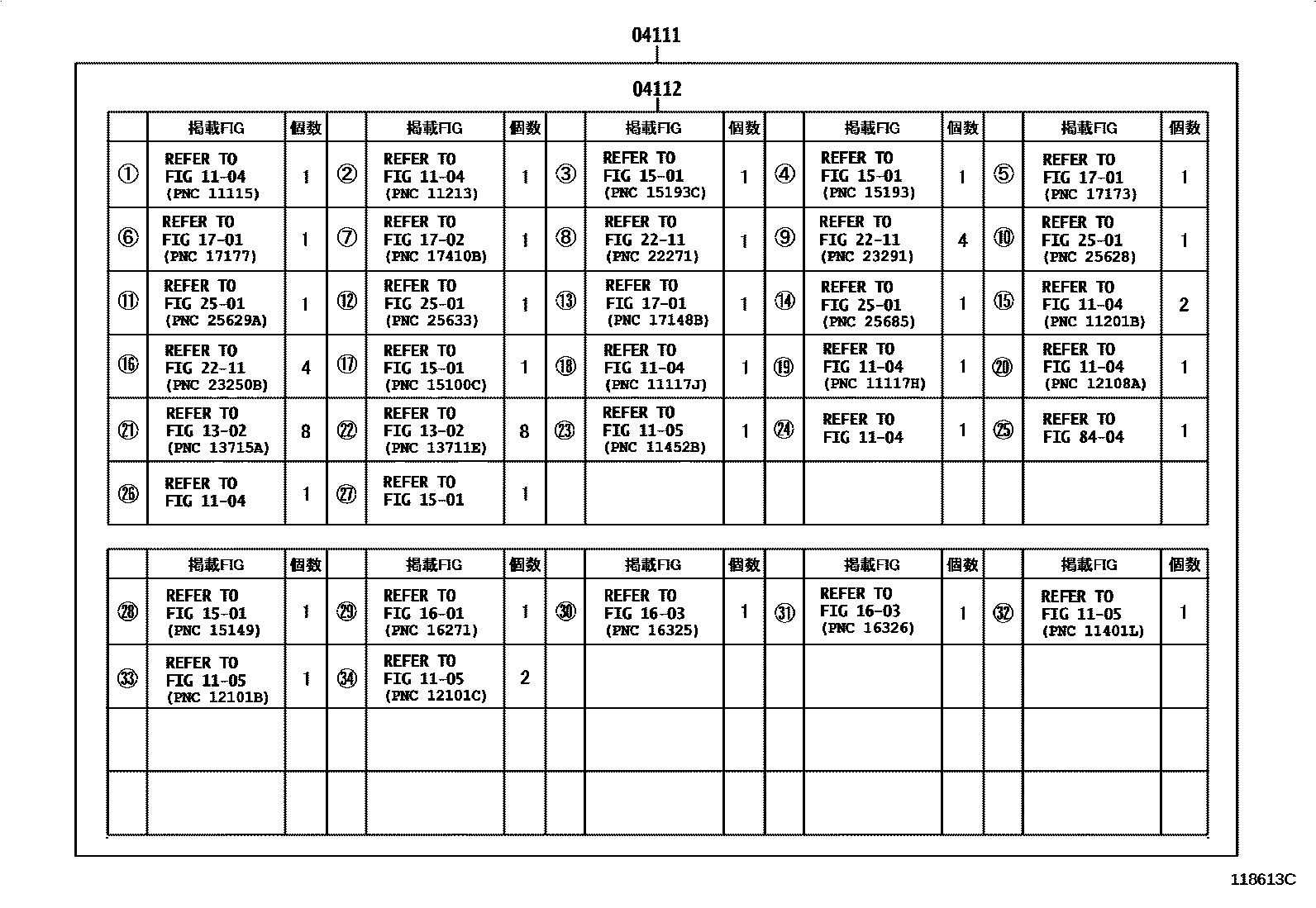

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 118613C
Engine Overhaul Gasket Kit — 118613C (201307 – 999999)

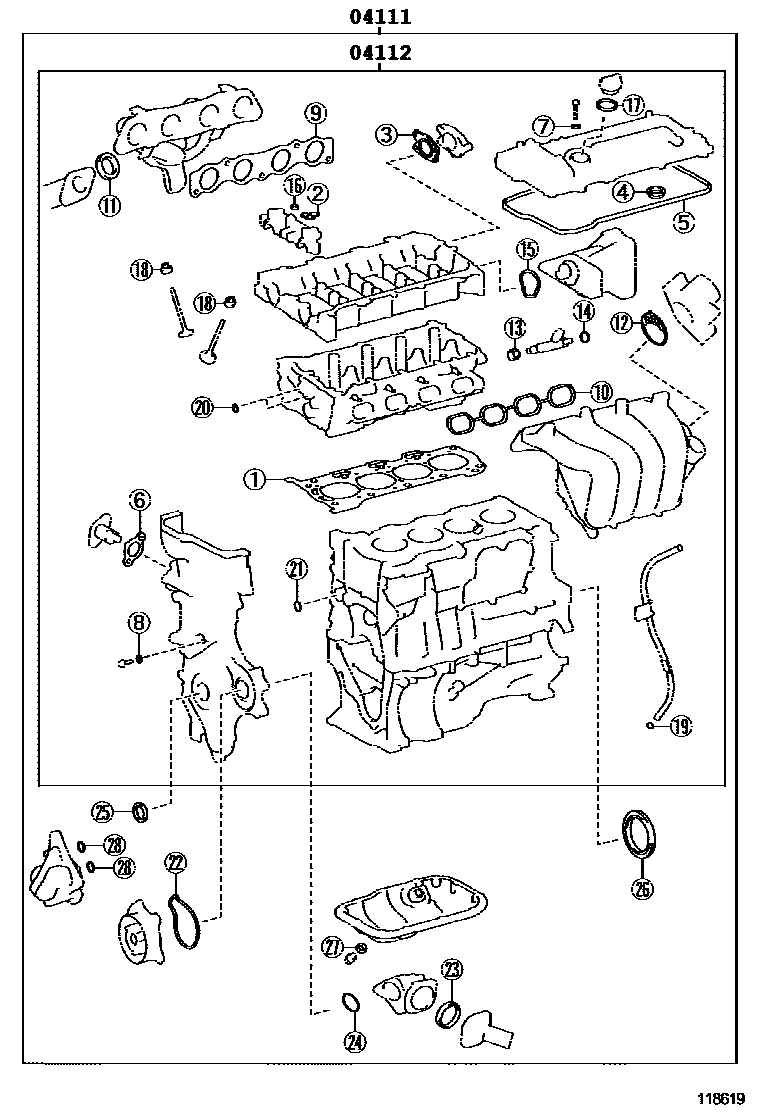

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 118619
Engine Overhaul Gasket Kit — 118619 (201204 – 999999)

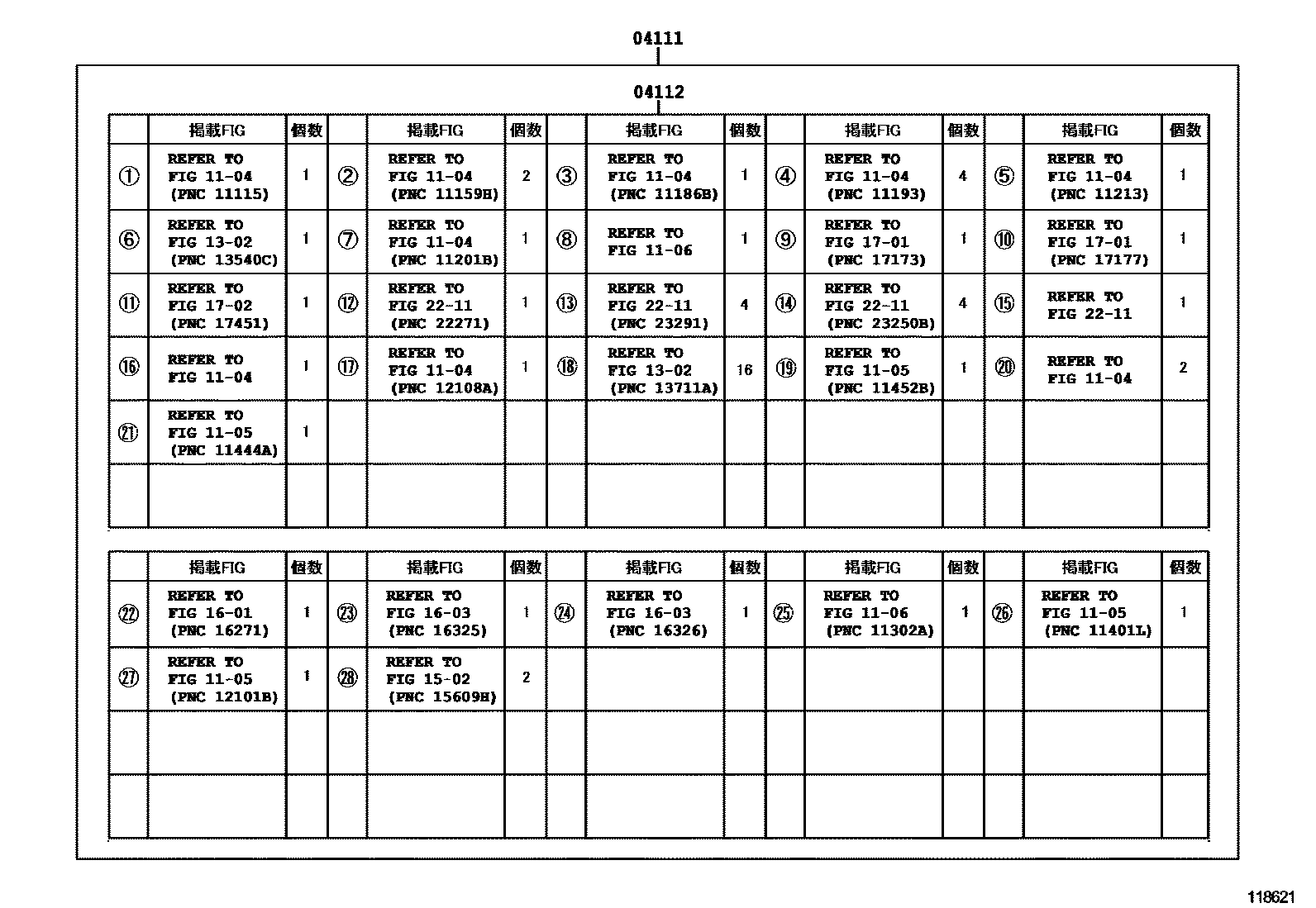

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 118621
Engine Overhaul Gasket Kit — 118621 (201204 – 999999)

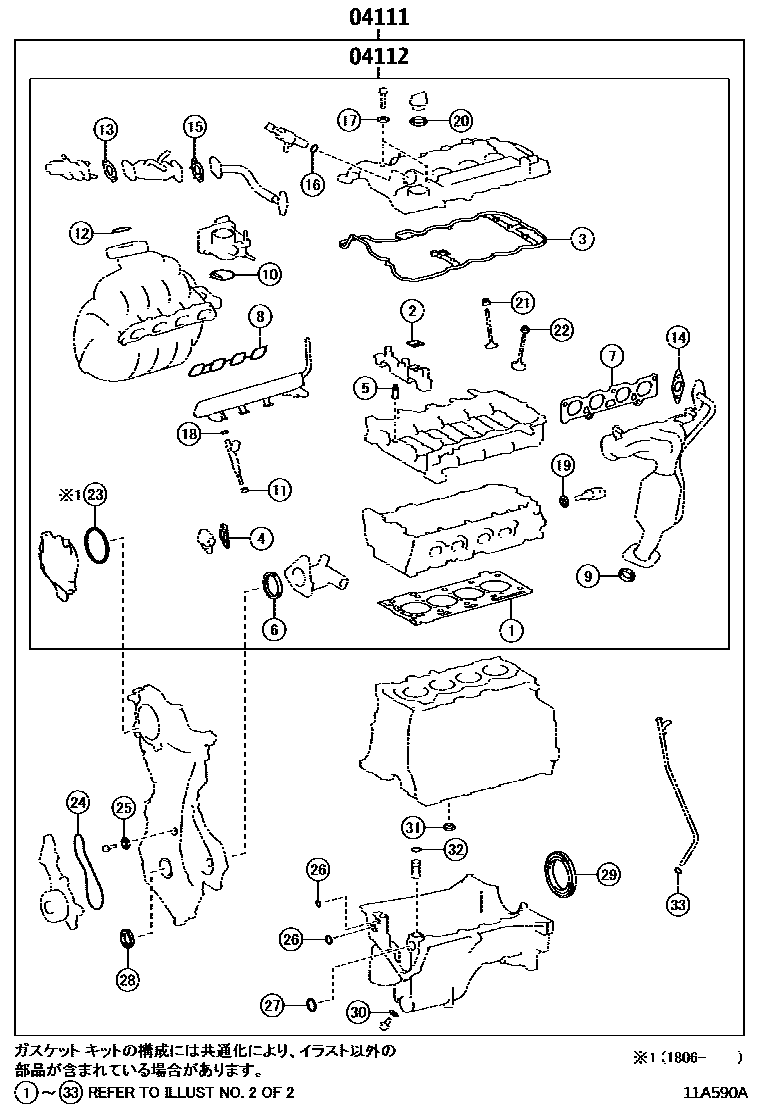

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11A590A
Engine Overhaul Gasket Kit — 11A590A (201503 – 999999)

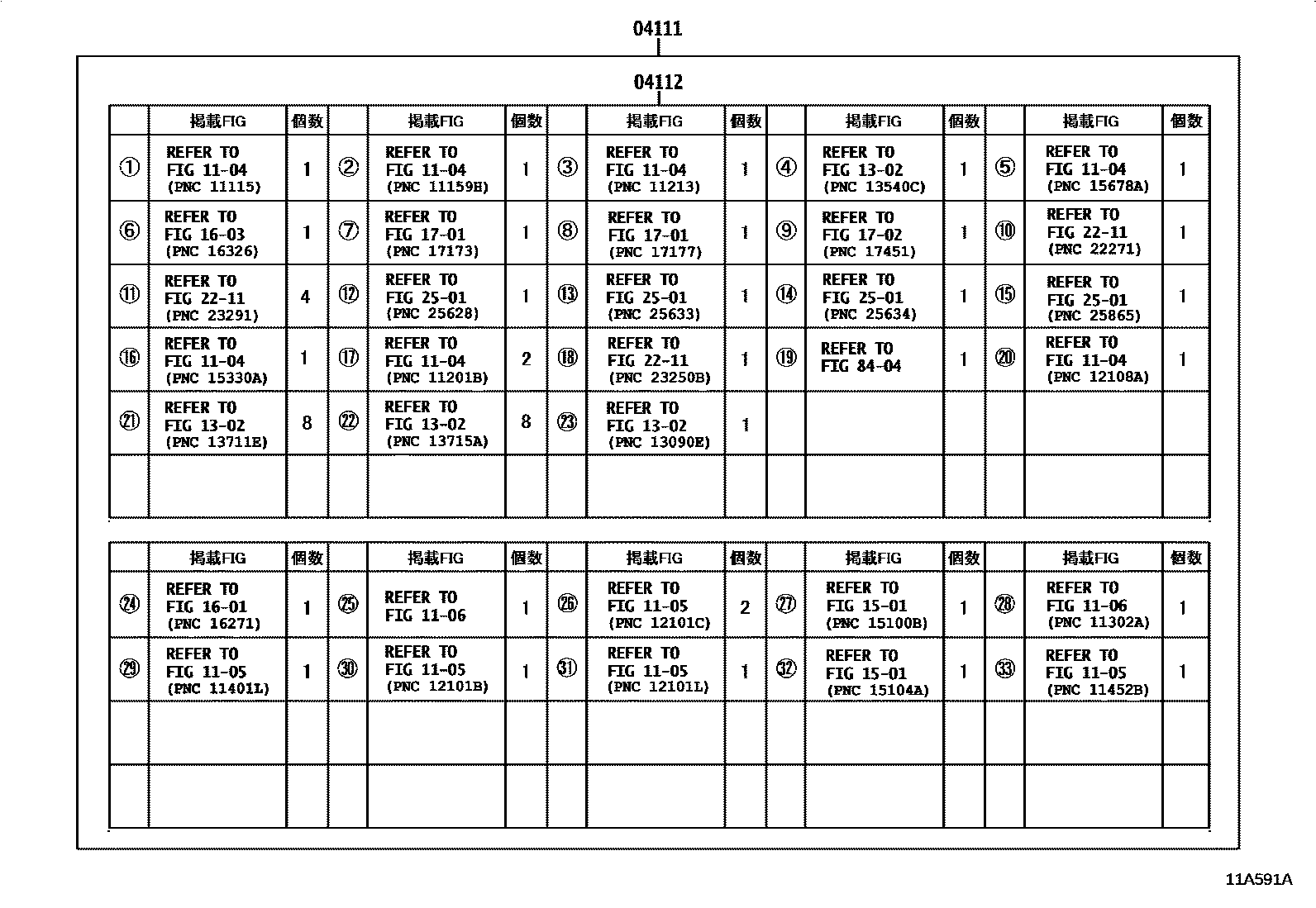

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11A591A
Engine Overhaul Gasket Kit — 11A591A (201503 – 999999)

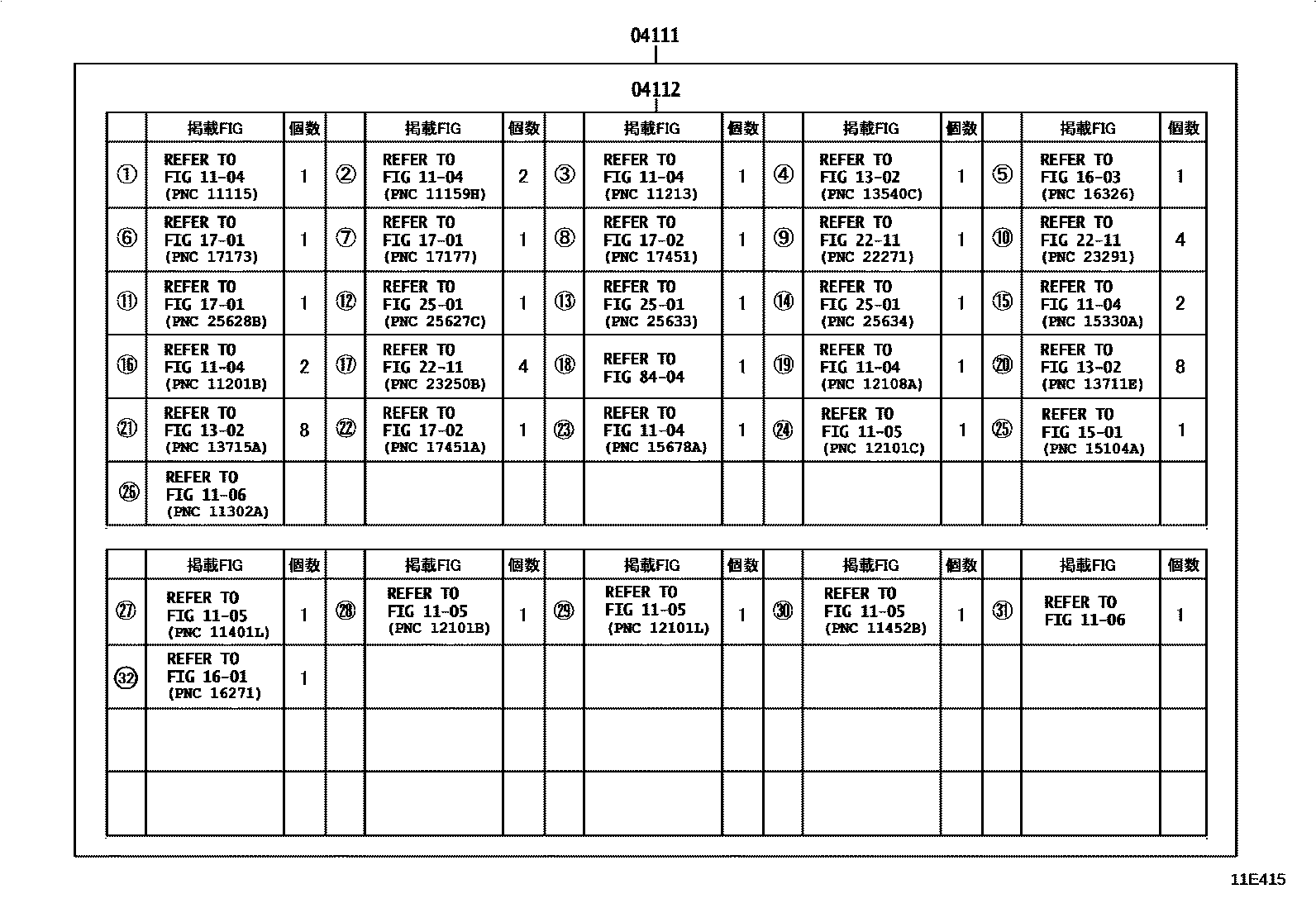

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E415
Engine Overhaul Gasket Kit — 11E415 (201903 – 999999)

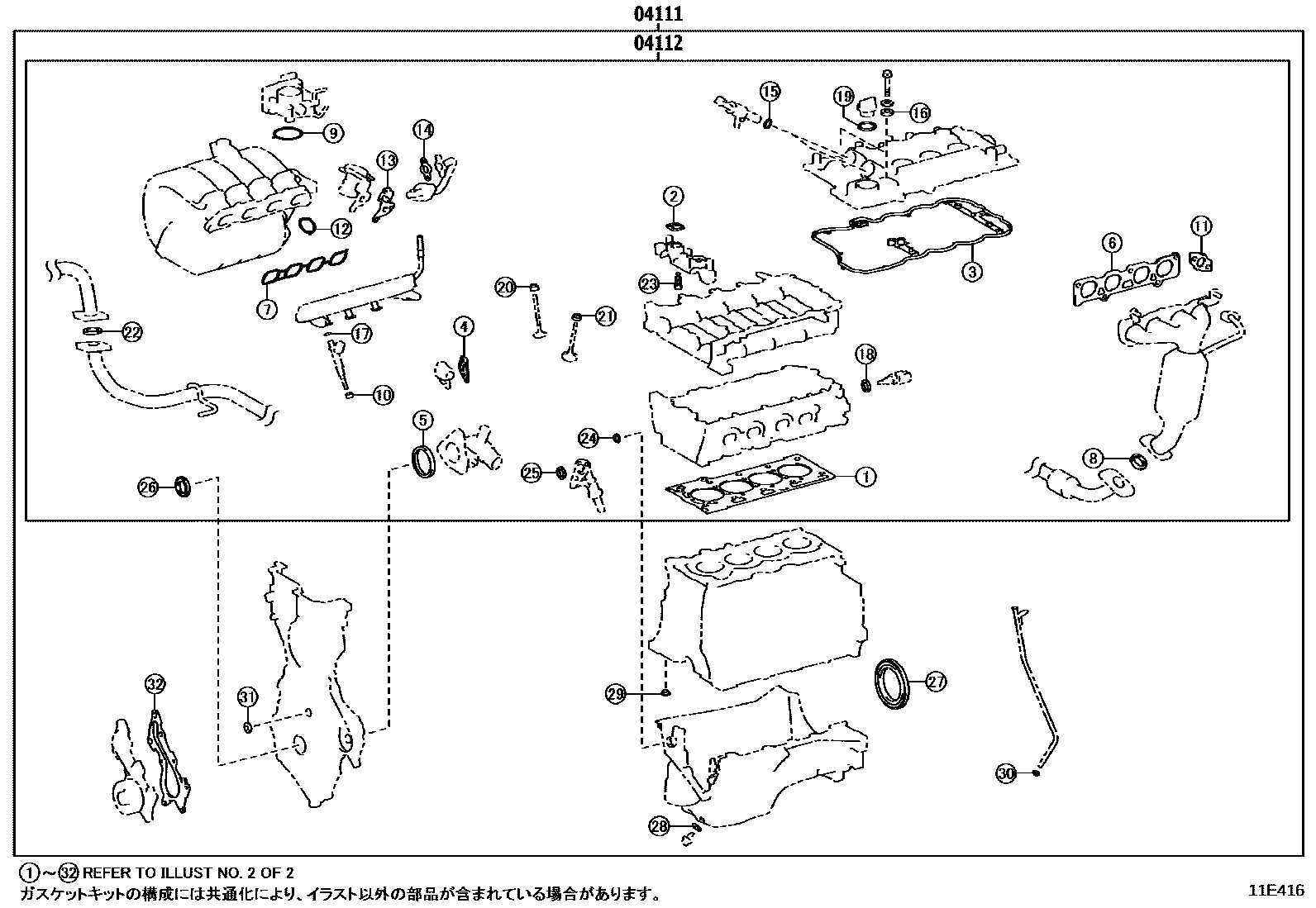

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E416
Engine Overhaul Gasket Kit — 11E416 (201903 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-21247 · 04111-21248 · 04111-21249 · 04111-21322 · 04111-21323 · 04111-21324 · 04111-21325 · 04111-21326 · 04111-37431 · 04111-37432 · 04111-47131 · 04111-47132 · 04111-47133 · 04111-47134 · 04111-47240 · 04111-47260 · 04111-47261 · 04111-47262
04112Engine valve grinding pad assembly04112-21245 · 04112-21246 · 04112-21247 · 04112-21321 · 04112-21322 · 04112-21323 · 04112-21324 · 04112-21325 · 04112-37341 · 04112-37342 · 04112-47081 · 04112-47082 · 04112-47083 · 04112-47150 · 04112-47151 · 04112-47170 · 04112-47171 · 04112-47172
