Toyota COROLLA Short Block Assembly — Figure 1102

Toyota COROLLA EPC diagram 1102, Short Block Assembly, with 2 images and 1 PNC and OE references.

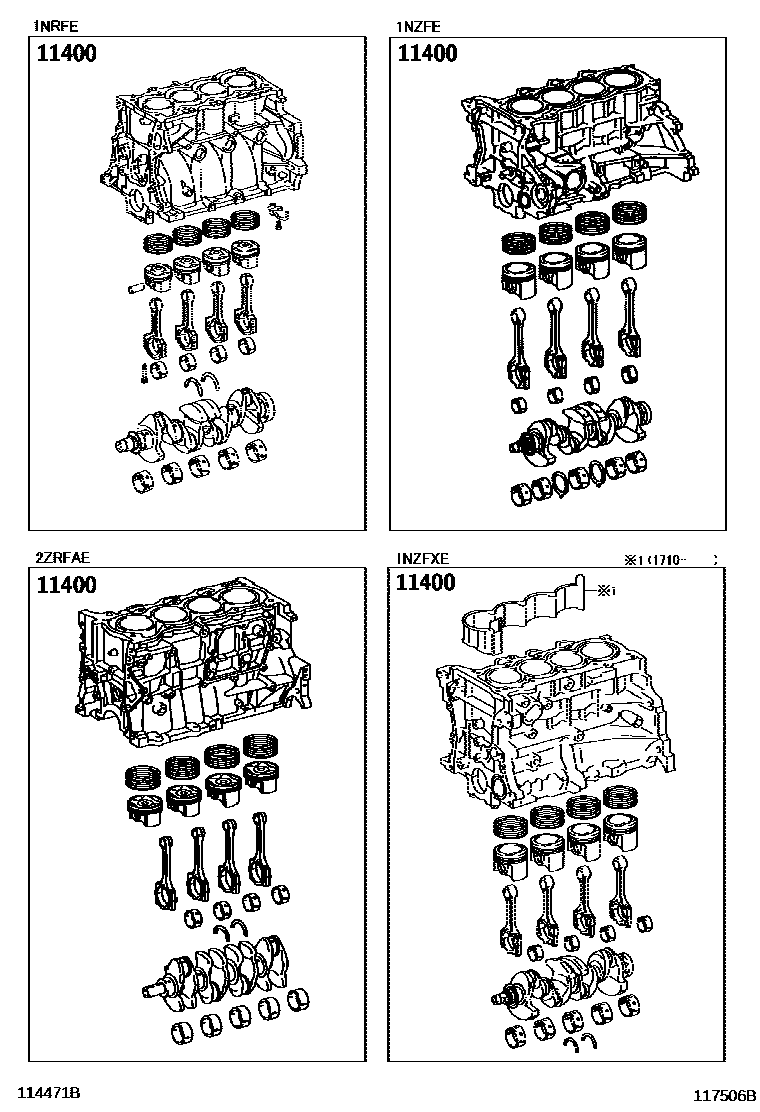

Toyota COROLLA Short Block Assembly EPC diagram — 117506B
Short Block Assembly — 117506B (201204 – 999999)

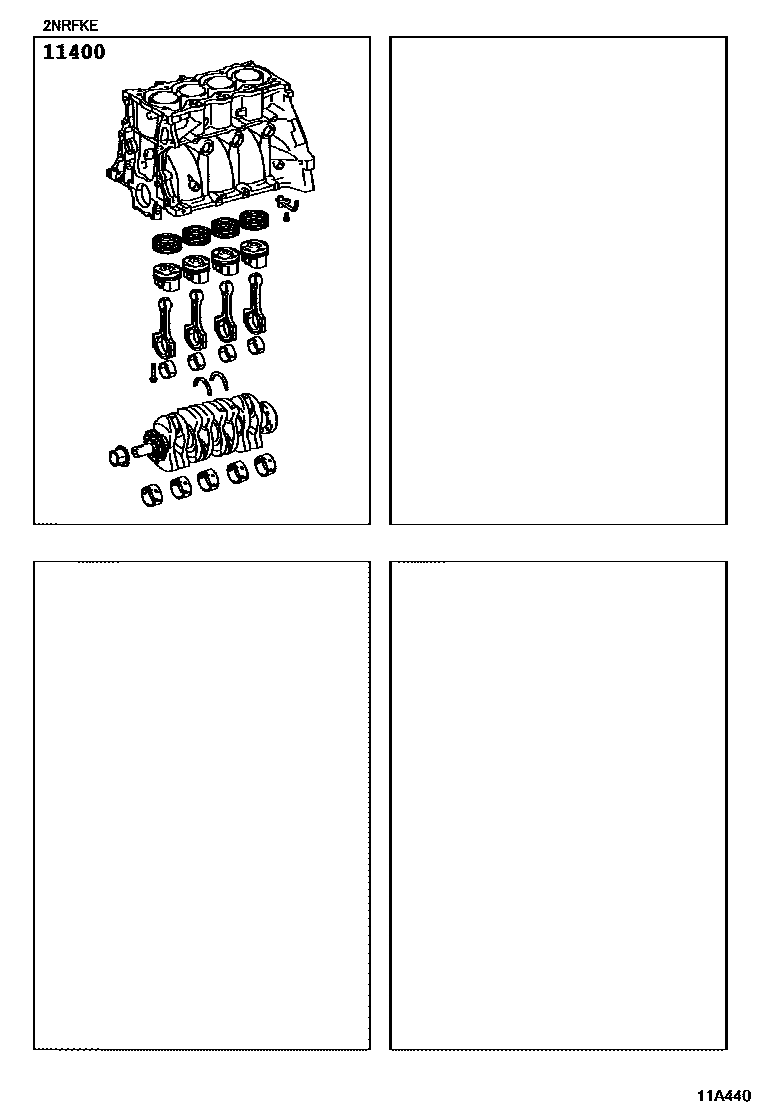

Toyota COROLLA Short Block Assembly EPC diagram — 11A440
Short Block Assembly — 11A440 (201503 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-21193 · 11400-21430 · 11400-21441 · 11400-21451 · 11400-21490 · 11400-37190 · 11400-47090 · 11400-47091 · 11400-47140 · 11400-47210
