Toyota COROLLA Partial Engine Assembly — Figure 1101

Toyota COROLLA EPC diagram 1101, Partial Engine Assembly, with 2 images and 1 PNC and OE references.

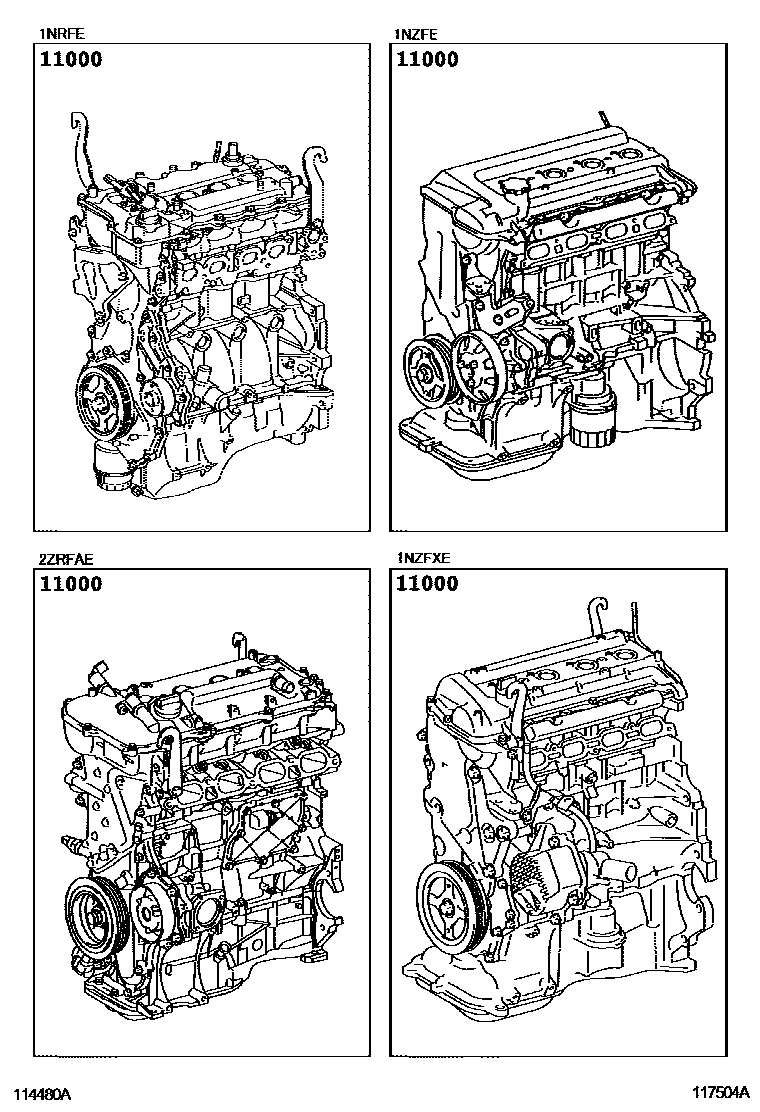

Toyota COROLLA Partial Engine Assembly EPC diagram — 117504A
Partial Engine Assembly — 117504A (201204 – 999999)

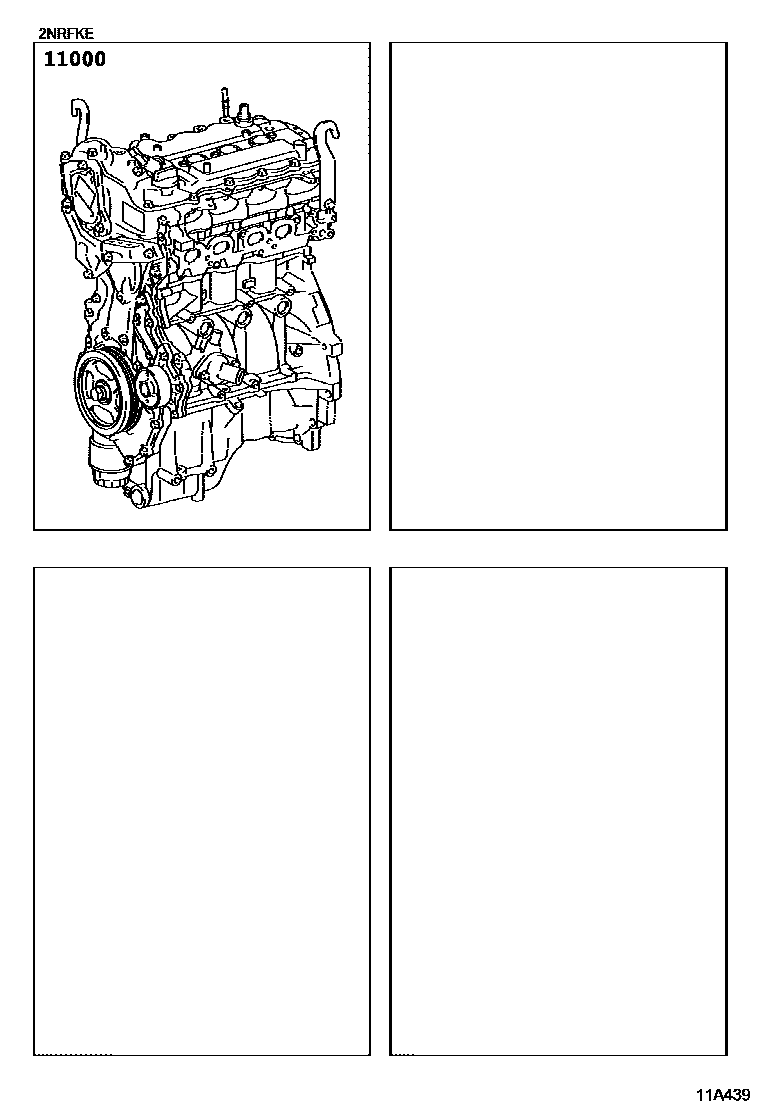

Toyota COROLLA Partial Engine Assembly EPC diagram — 11A439
Partial Engine Assembly — 11A439 (201503 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-21851 · 19000-21D30 · 19000-21D40 · 19000-21D50 · 19000-21D60 · 19000-21D81 · 19000-21D82 · 19000-21E20 · 19000-37650 · 19000-37652 · 19000-47160 · 19000-47161 · 19000-47280 · 19000-47450 · 19000-47451 · 19000-47490
