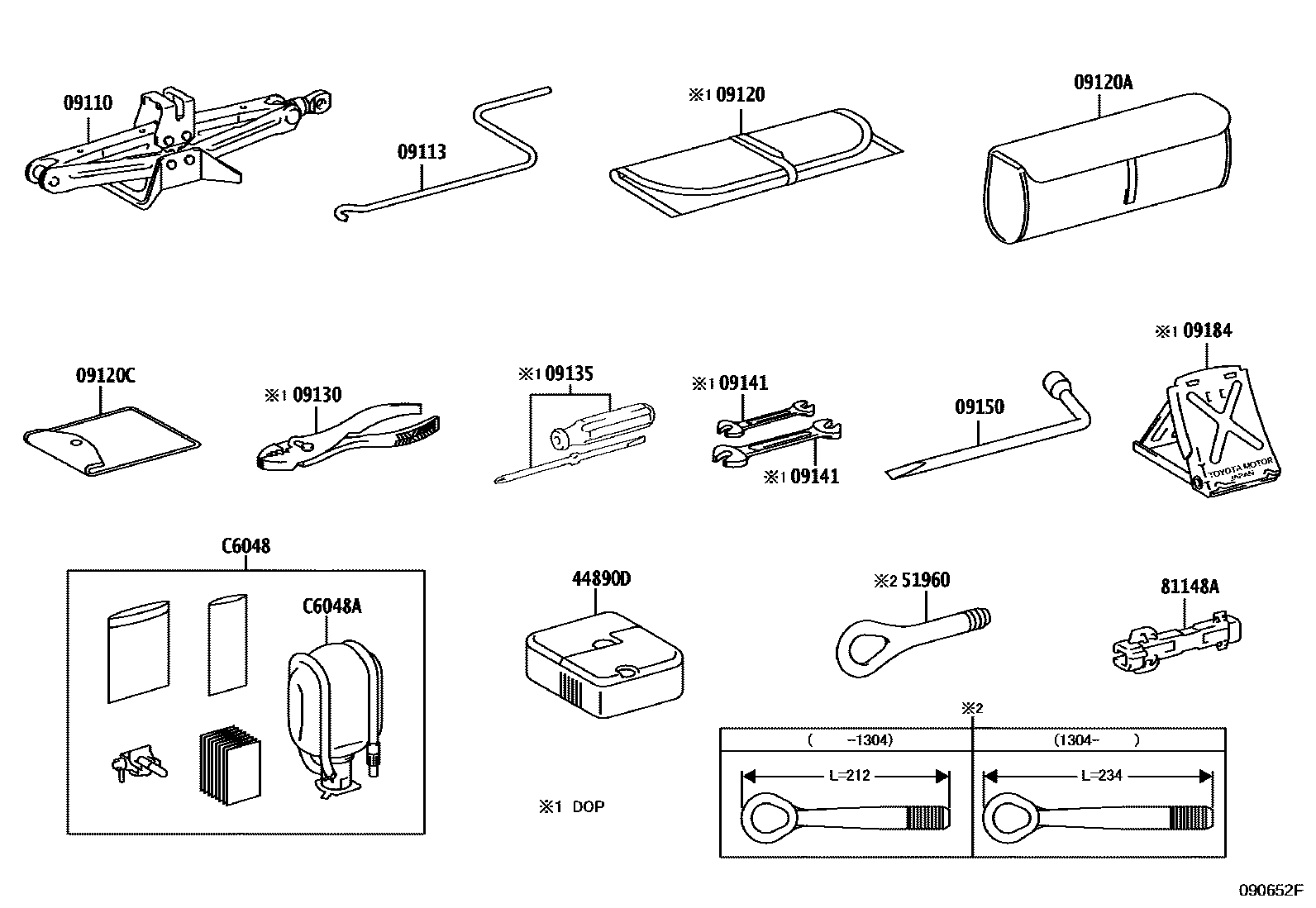

Toyota COROLLA Standard Tools — Figure 0901
Toyota COROLLA EPC diagram 0901, Standard Tools, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09111-12230 |
| 09113 | Jack Handle | 09113-20050 · 09113-52060 |
| 09120 | Tool Bag | 09120-16030 |
| 09120A | Tool Box | 09120-52040 |
| 09120C | Toyota part | 09120-13030 |
| 09130 | Pliers | 99913-11500 |
| 09135 | Screwdriver | 99915-10700 |
| 09141 | Wrench | 99914-10810 · 99914-11214 |
| 09150 | Wheel Nut Wrench | 09150-12030 · 09150-40010 |
| 09184 | Wheel Chock | 09184-00010 |
| 44890D | Air Compressor Assembly | 00000-00000 · 44890-52020 · 44890-52021 · 44890-52022 |
| 51960 | Front Towing Hook Assembly | 51961-12020 · 51961-12021 |
| 81148A | Toyota part | 81148-68010 |
| C6048 | Tire Repair Kit | 42683-52020 · 42683-52021 |
| C6048A | Tire Repair Sealant | 00000-00000 · C6048-52020 · C6048-52021 |
