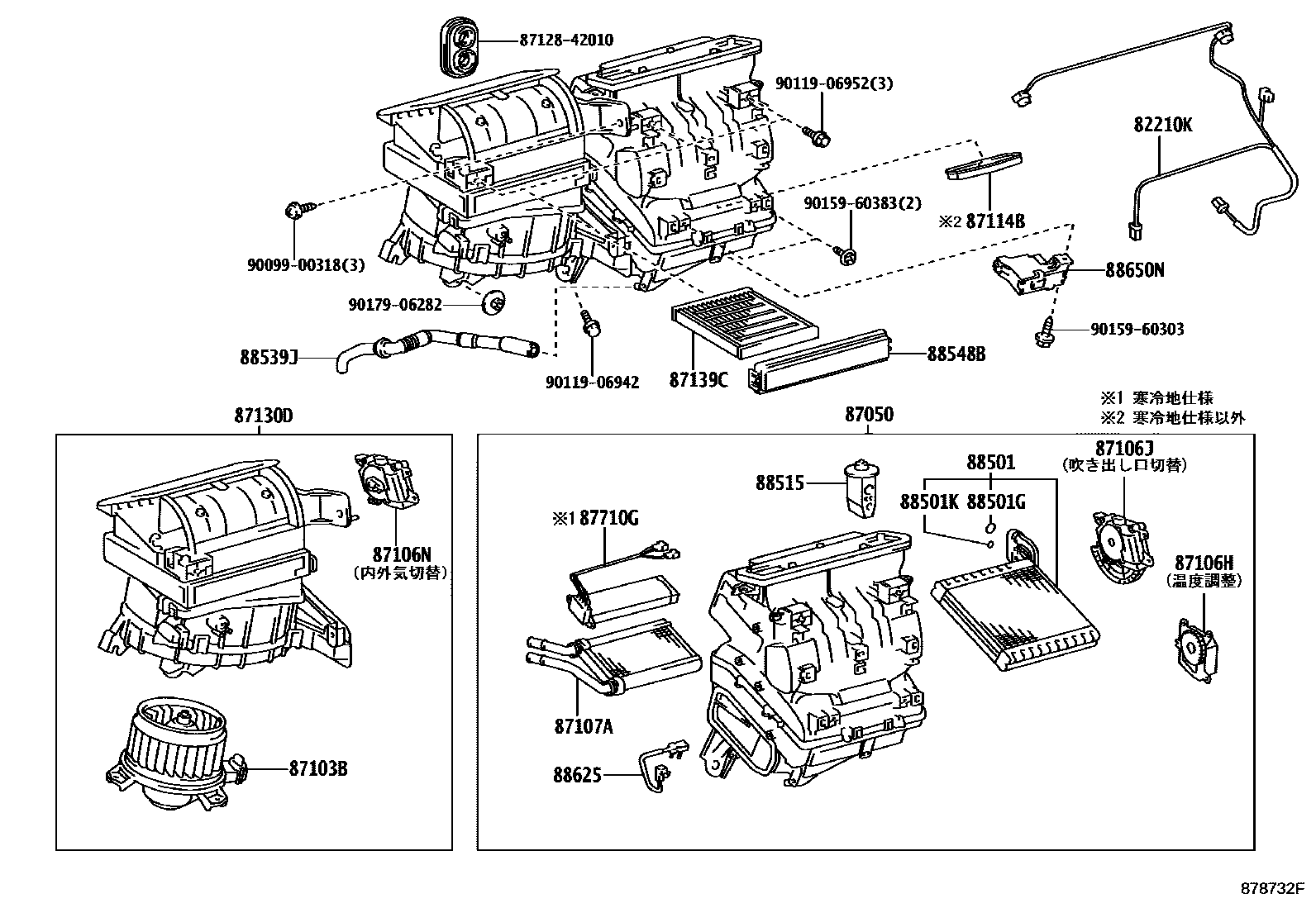

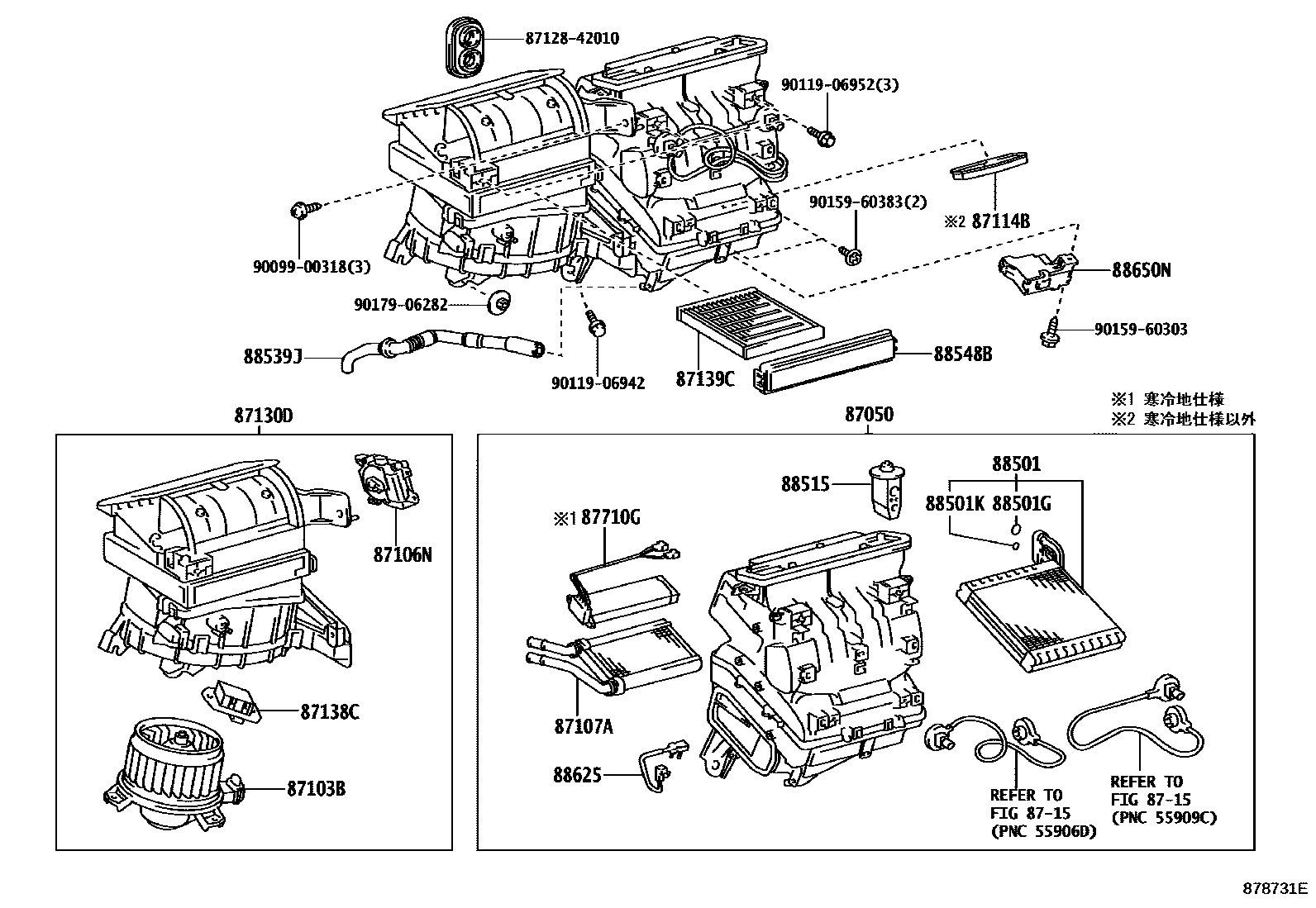

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-12020 |
| 87050 | Air conditioning radiator assembly | 87050-12310 · 87050-12311 · 87050-12320 · 87050-12350 · 87050-12351 · 87050-12360 · 87050-12361 |
| 87103B | Blower motor sub-assembly with fan | 87103-12060 · 87103-42070 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-12170 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-42100 |
| 87106N | Damper servo mechanism sub-assembly (for recirculation) | 87106-42110 · 87106-42120 |
| 87107A | Heater radiator device sub-assembly | 87107-42170 |
| 87114B | heater cover | 87114-12080 |
| 87130D | Blower assembly | 87130-12430 · 87130-12431 · 87130-12470 · 87130-12471 · 87130-12530 · 87130-12531 · 87130-12540 · 87130-12541 |
| 87138C | Blower resistor | 87138-26150 |
| 87139C | air purification filter | 87139-30040 · 87139-50060 · 87139-52020 |
| 87710G | Rapid heater assembly | 87710-12010 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-26210 · 88501-26211 · 88501-72020 |
| 88501G | Toyota part | 90099-14121 |
| 88501K | Toyota part | 90099-14120 |
| 88515 | Cooler expansion valve | 88515-12100 · 88515-26070 · 88515-42090 |
| 88539J | Cooler drain hose | 88539-12190 |
| 88548B | air filter housing | 88548-42010 |
| 88625 | Cooler No. 1 Thermistor | 88625-26090 |
| 88650N | Air conditioning amplifier assembly | 88650-12A80 · 88650-12A90 · 88650-12B40 · 88650-12B50 · 88650-12F50 · 88650-12F60 |
