Toyota COROLLA 倒车影像和摄像头 — Figure 8606

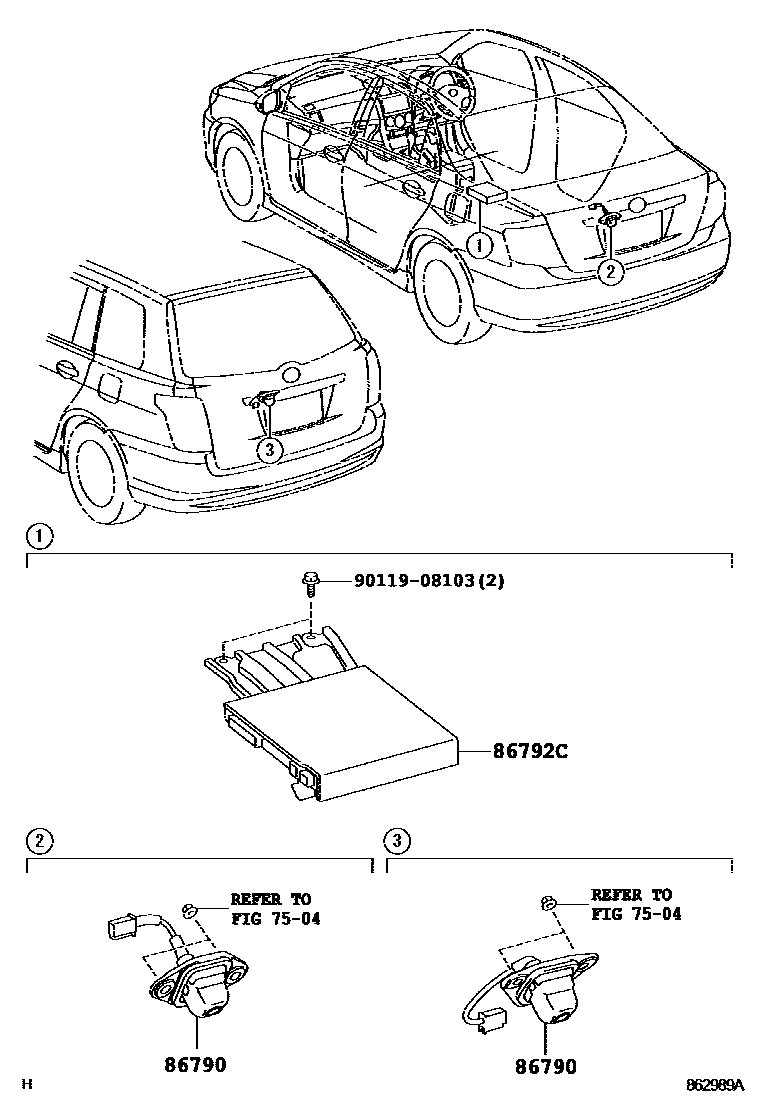

Toyota COROLLA EPC diagram 8606, 倒车影像和摄像头, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86790 | Reversing image camera assembly | 86790-12100 · 86790-12101 · 86790-13090 |
| 86792C | Parking assist ECU | 86792-12070 · 86792-12080 · 86792-12090 · 86792-12100 · 86792-12130 · 86792-13150 · 86792-13160 · 86792-13170 · 86792-13180 |
