Toyota COROLLA antenna — Figure 8604

Toyota COROLLA EPC diagram 8604, antenna, with 2 images and 6 PNC and OE references.

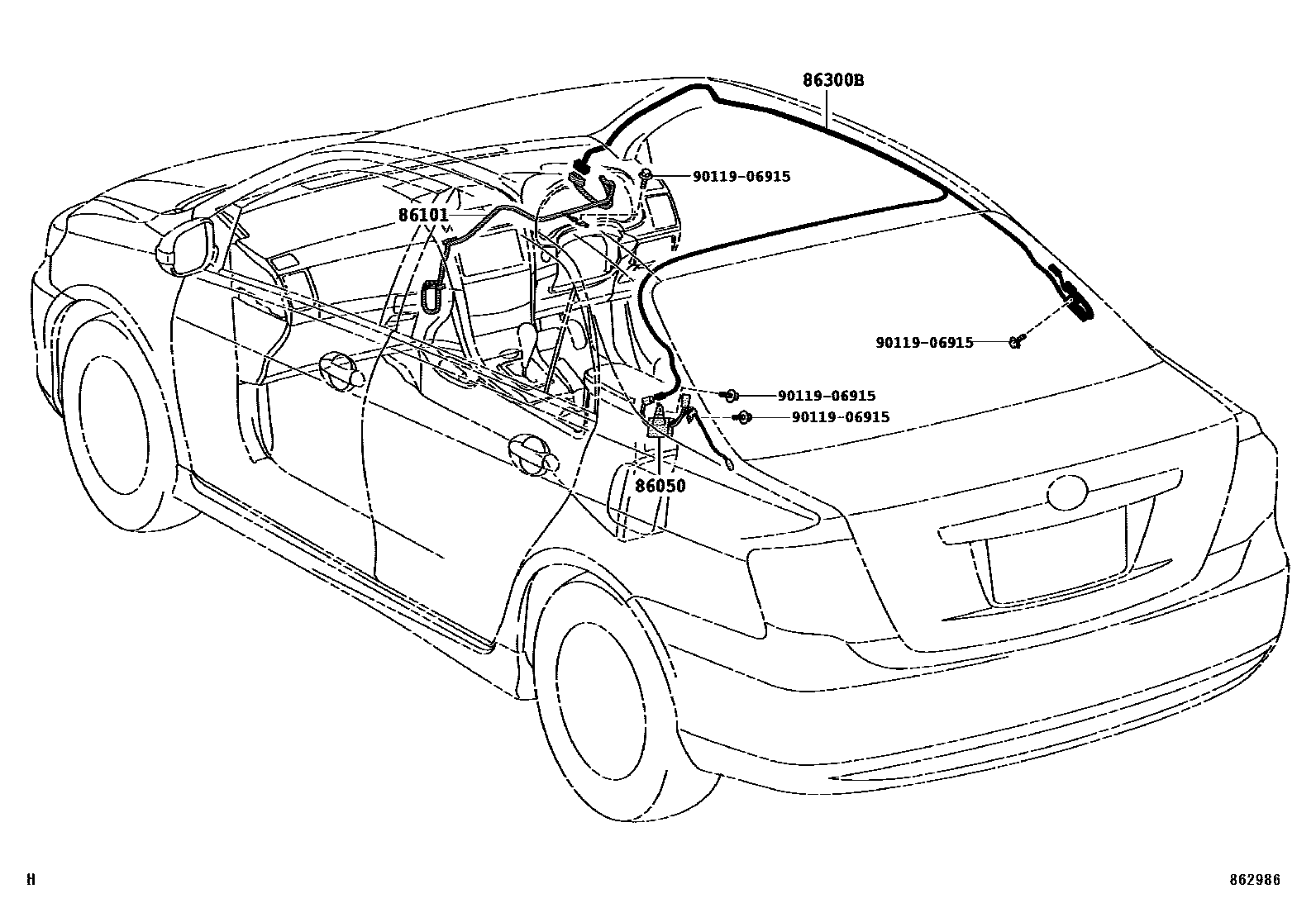

Toyota COROLLA antenna EPC diagram — 862986
antenna — 862986 (200609 – 999999)

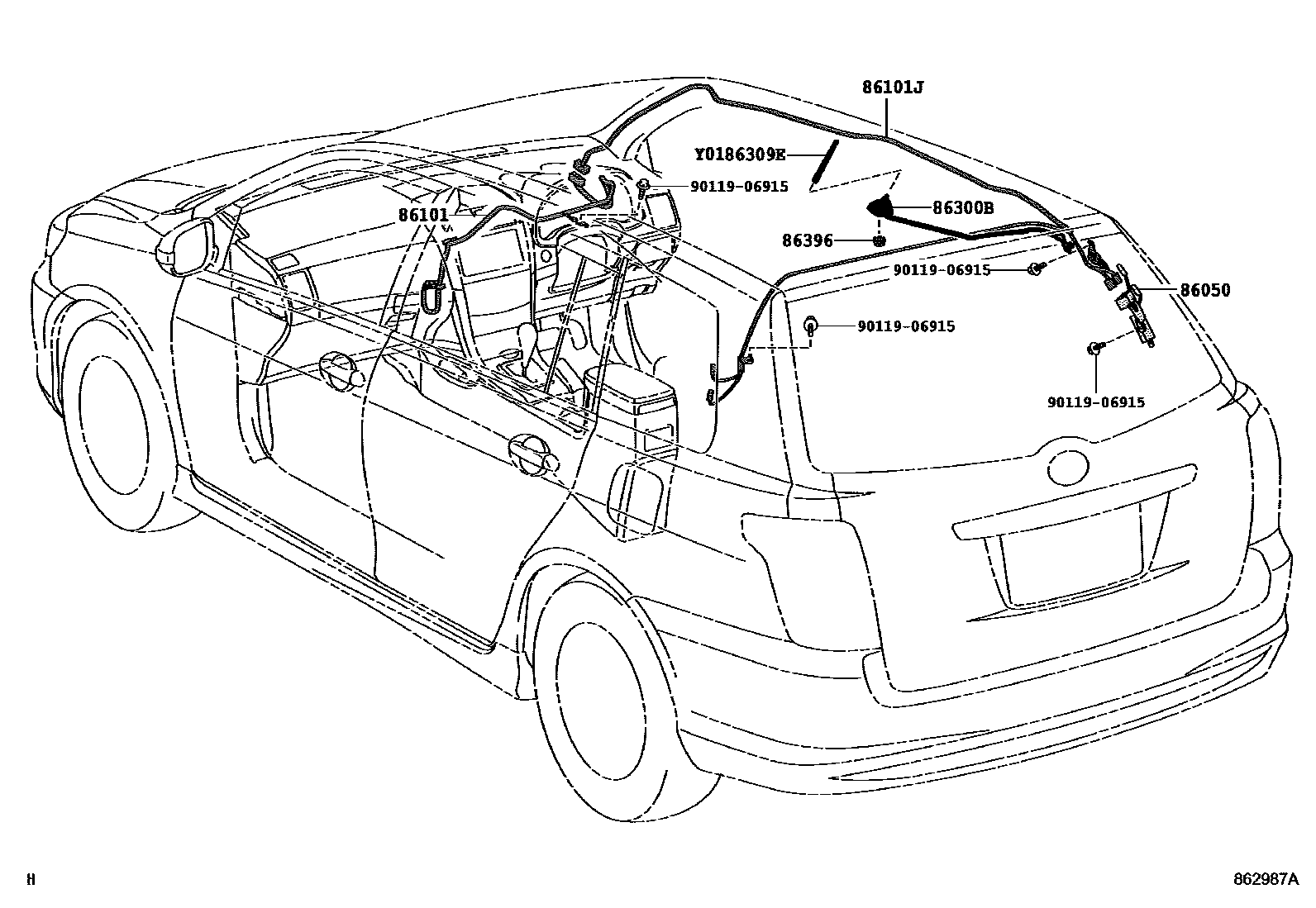

Toyota COROLLA antenna EPC diagram — 862987A
antenna — 862987A (200609 – 999999)

PNC and OE references

PNCPart nameOE numbers
86050Monitor antenna assembly86050-12050 · 86050-12060
86101Antenna wire sub-assembly86101-12550 · 86101-12600 · 86101-12601
86101JNo. 2 antenna wire sub-assembly86101-12570 · 86101-12580
86300BAmplifier antenna assembly86300-12870 · 86300-12880 · 86300-12890
86309ERoof antenna sub-assembly86309-20310
86396Antenna nut86396-20040
