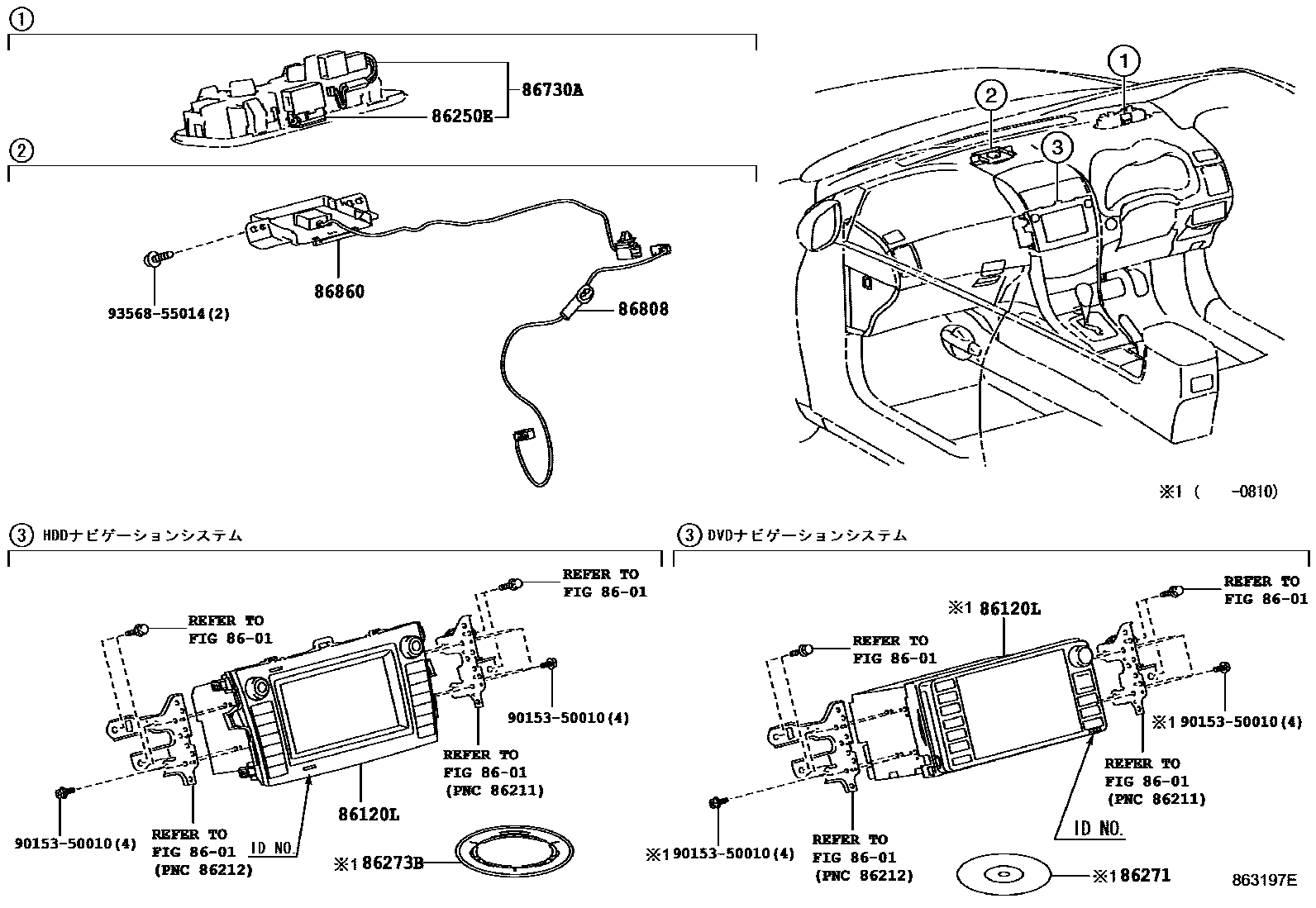

Toyota COROLLA 导航和前监视器显示屏 — Figure 8603
Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86100-12810 · 86100-12811 · 86100-12812 · 86100-12813 · 86100-12814 · 86100-12A40 · 86100-12A41 · 86100-12A42 · 86100-12A43 · 86100-12A44 · 86100-12A45 · 86100-12A46 · 86100-13010 · 86100-13011 · 86100-13012 · 86100-13013 · 86100-13014 · 86100-13015 · 86100-13016 · 86120-12A50 |
| 86250E | amplifier loudspeaker assembly | 86250-52020 · 86250-52030 |
| 86271 | CD | 86271-13067 · 86271-13068 · 86271-13069 |
| 86273B | CD player adapter | 86273-58010 |
| 86730A | Telephone amplifier assembly | 86730-12020 · 86730-52020 |
| 86808 | No. 1 navigation antenna wire sub-assembly | 86808-12060 · 86808-12090 |
| 86860 | Navigation antenna assembly | 86860-12070 |
