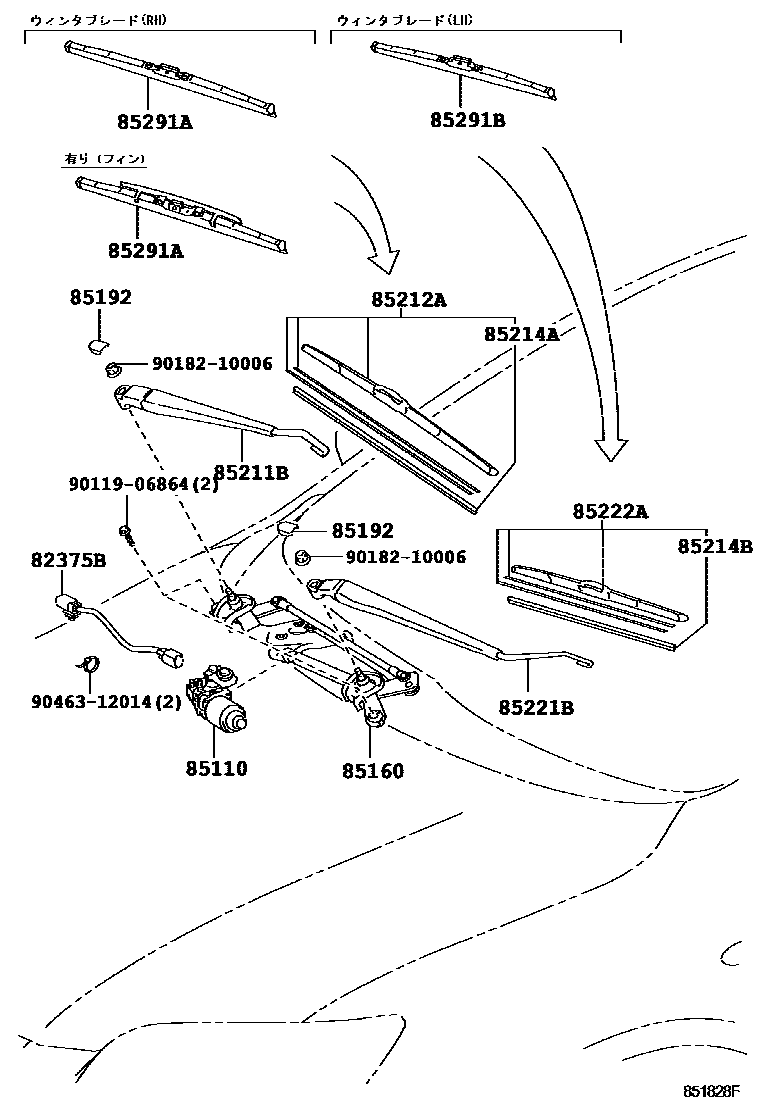

Toyota COROLLA 挡风玻璃刮水器 — Figure 8501
Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82375B | Wiper motor wiring harness | 82375-12310 · 82375-12311 |
| 85110 | Windshield wiper motor assembly | 85110-12A40 · 85110-12A50 · 85110-12A70 · 85110-12B00 |
| 85160 | Windshield wiper connecting rod assembly | 85150-12A60 |
| 85192 | windshield wiper arm cover | 85292-13010 |
| 85211B | Right front wiper arm | 85211-12550 |
| 85212A | Right front wiper blade | 85212-12490 |
| 85214A | Right wiper rubber strip | 85214-68020 |
| 85214B | Left wiper rubber strip | 85214-68030 |
| 85221B | Left front wiper arm | 85221-12490 |
| 85222A | Left front wiper blade | 85222-12860 |
| 85291A | Right front wiper blade for winter use | 85291-12090 · 85291-44070 · 85291-44090 · 85291-72010 |
| 85291B | Left front wiper blade for winter use | 85291-28120 |
