Toyota COROLLA 遥控门锁 — Figure 8420

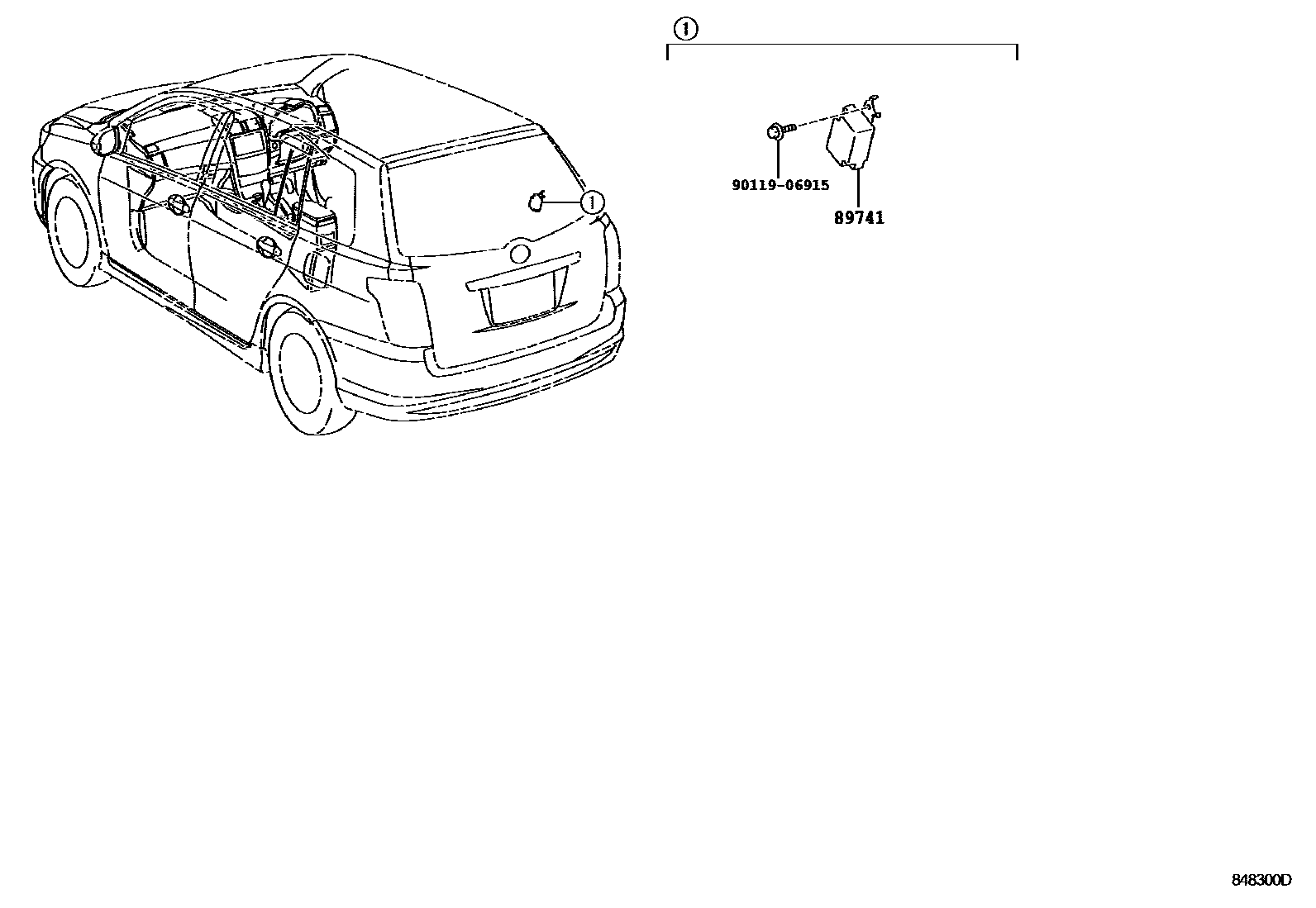

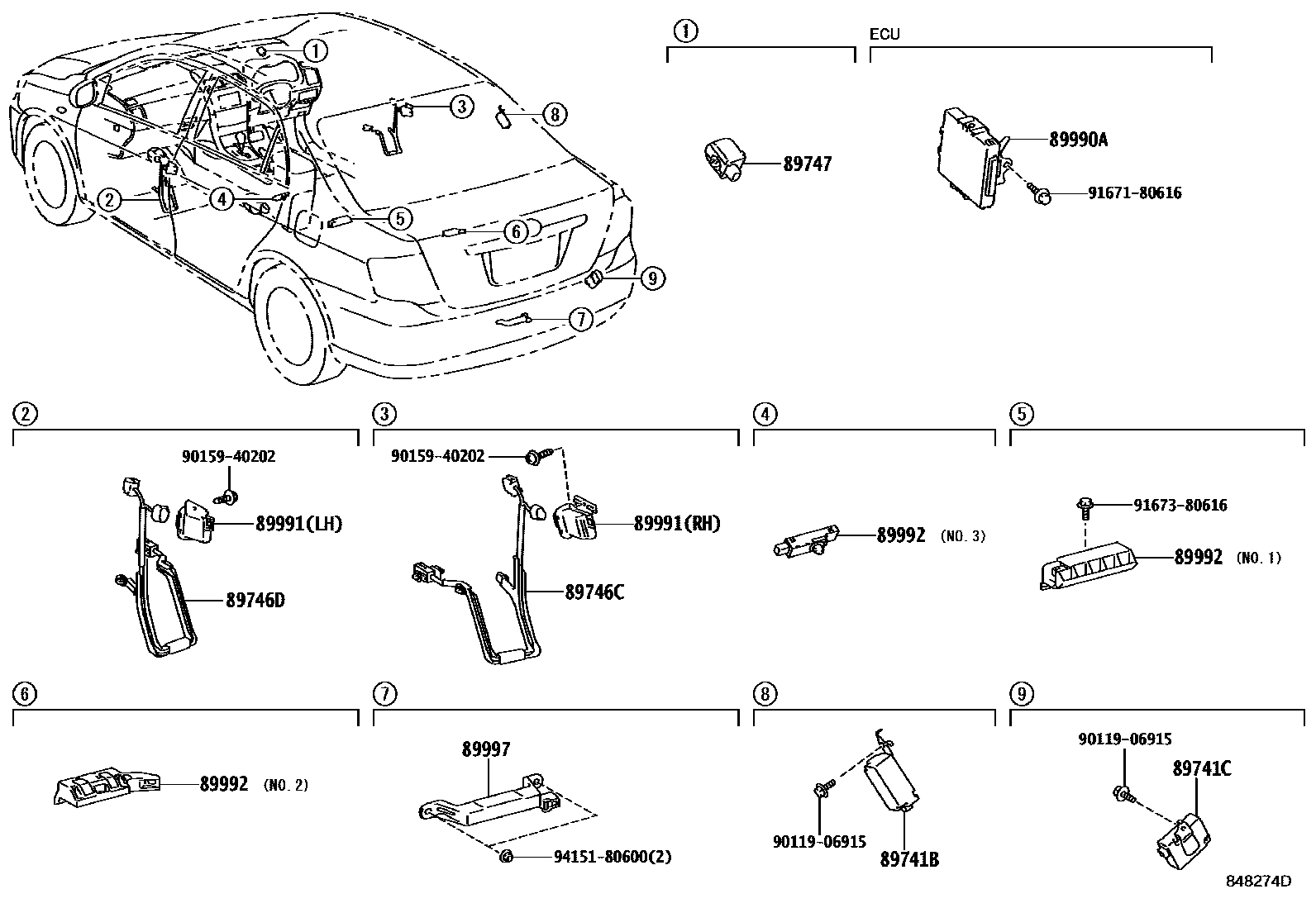

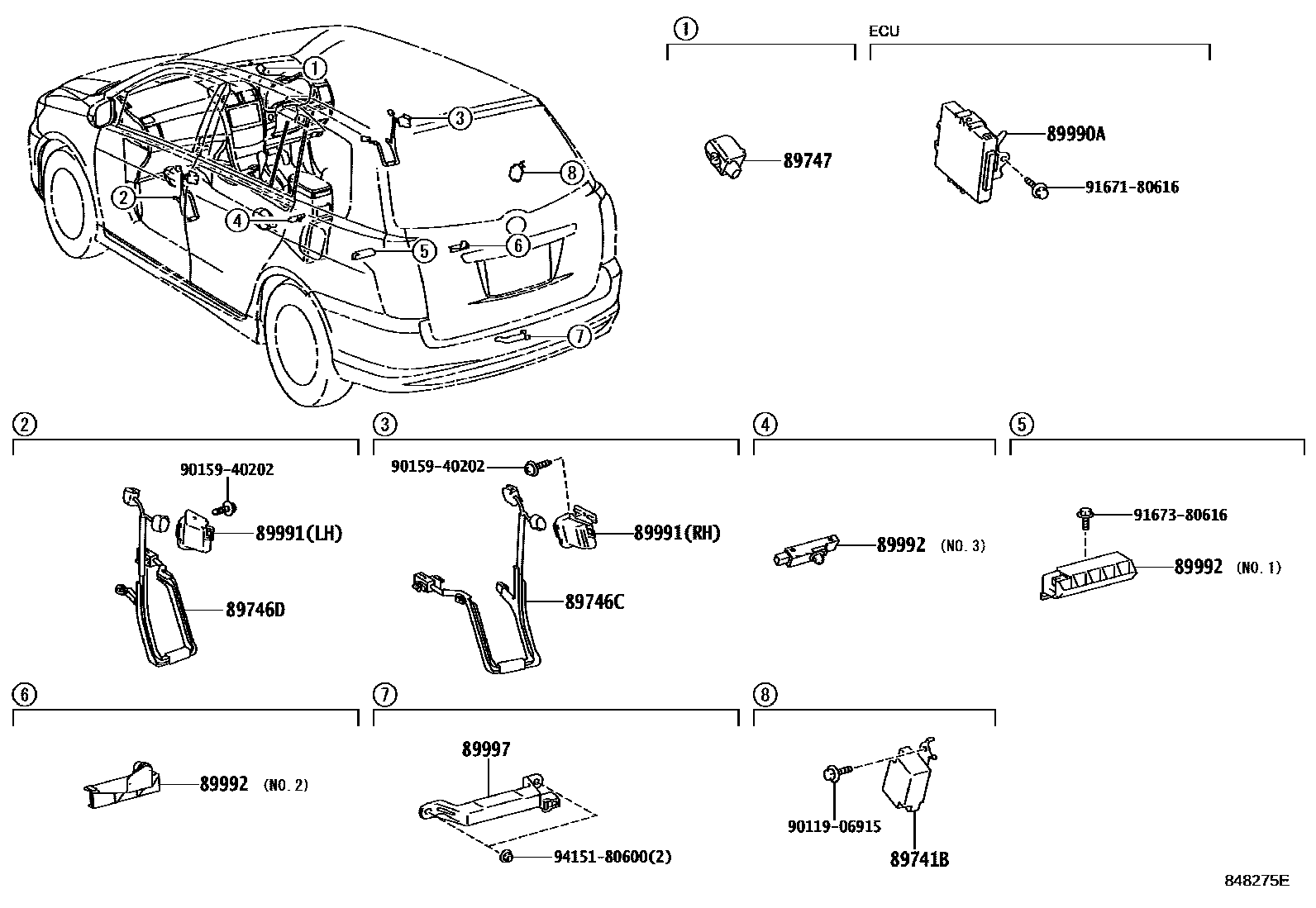

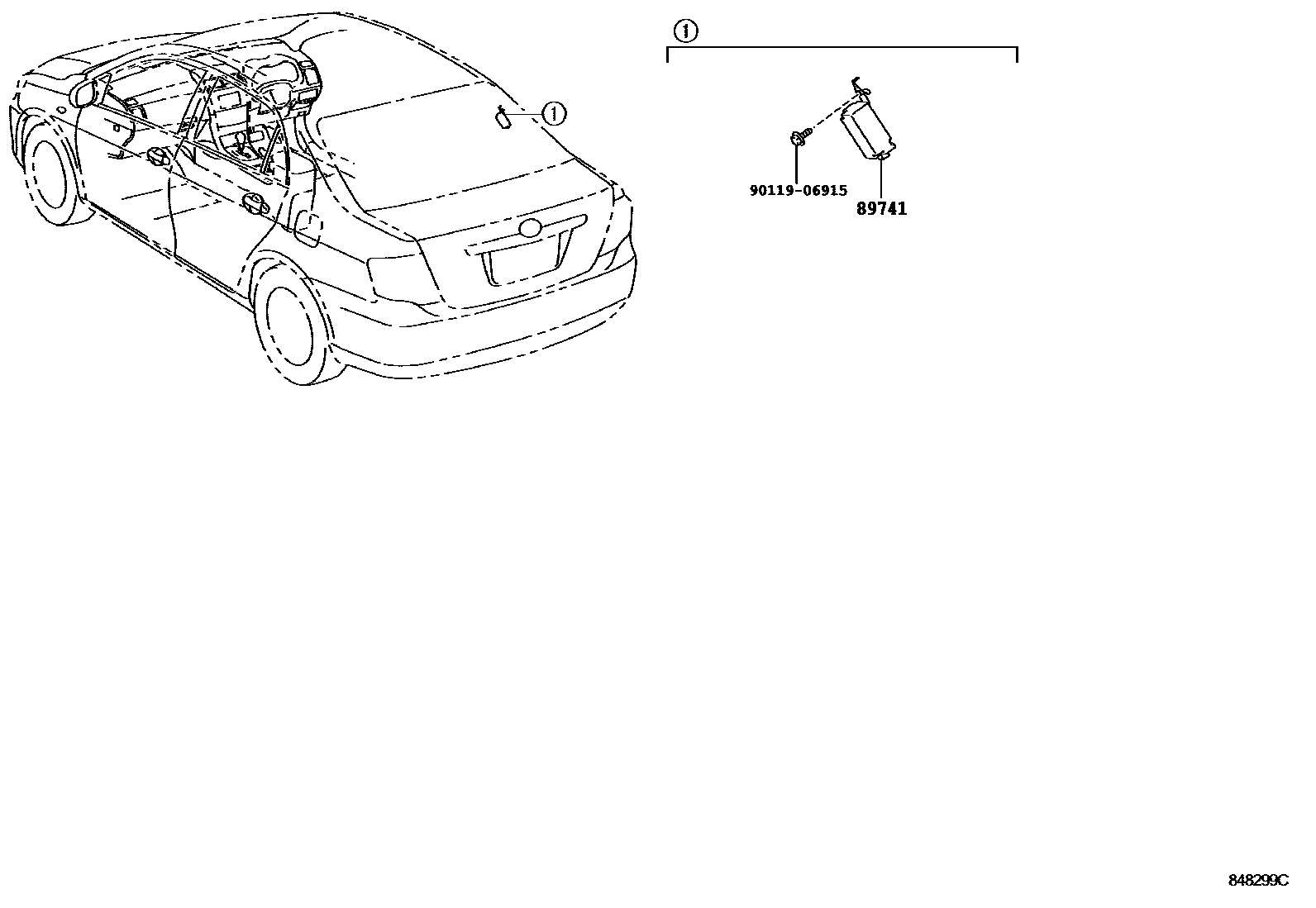

Toyota COROLLA EPC diagram 8420, 遥控门锁, with 4 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89741 | door control receiver | 89741-12280 · 89741-12320 |
| 89741B | Door control receiver No. 2 | 89740-12070 · 89740-13040 |
| 89741C | Door control receiver No. 3 | 89740-12080 |
| 89746C | No. 1 electronic key wiring harness | 89746-12060 |
| 89746D | No. 2 electronic key wiring harness | 89746-12100 |
| 89747 | Remote door lock buzzer | 89747-52010 |
| 89990A | Smart key ECU assembly | 89990-12040 · 89990-12041 · 89990-12050 · 89990-12080 · 89990-12100 · 89990-20030 |
| 89991 | Door electronic key oscillator | 89991-30040 · 89991-30050 |
| 89992 | Car electronic key oscillator | 89992-12070 · 89992-12080 · 89992-13020 · 89992-30090 |
| 89997 | electronic key antenna | 89997-30070 · 89997-41010 |
