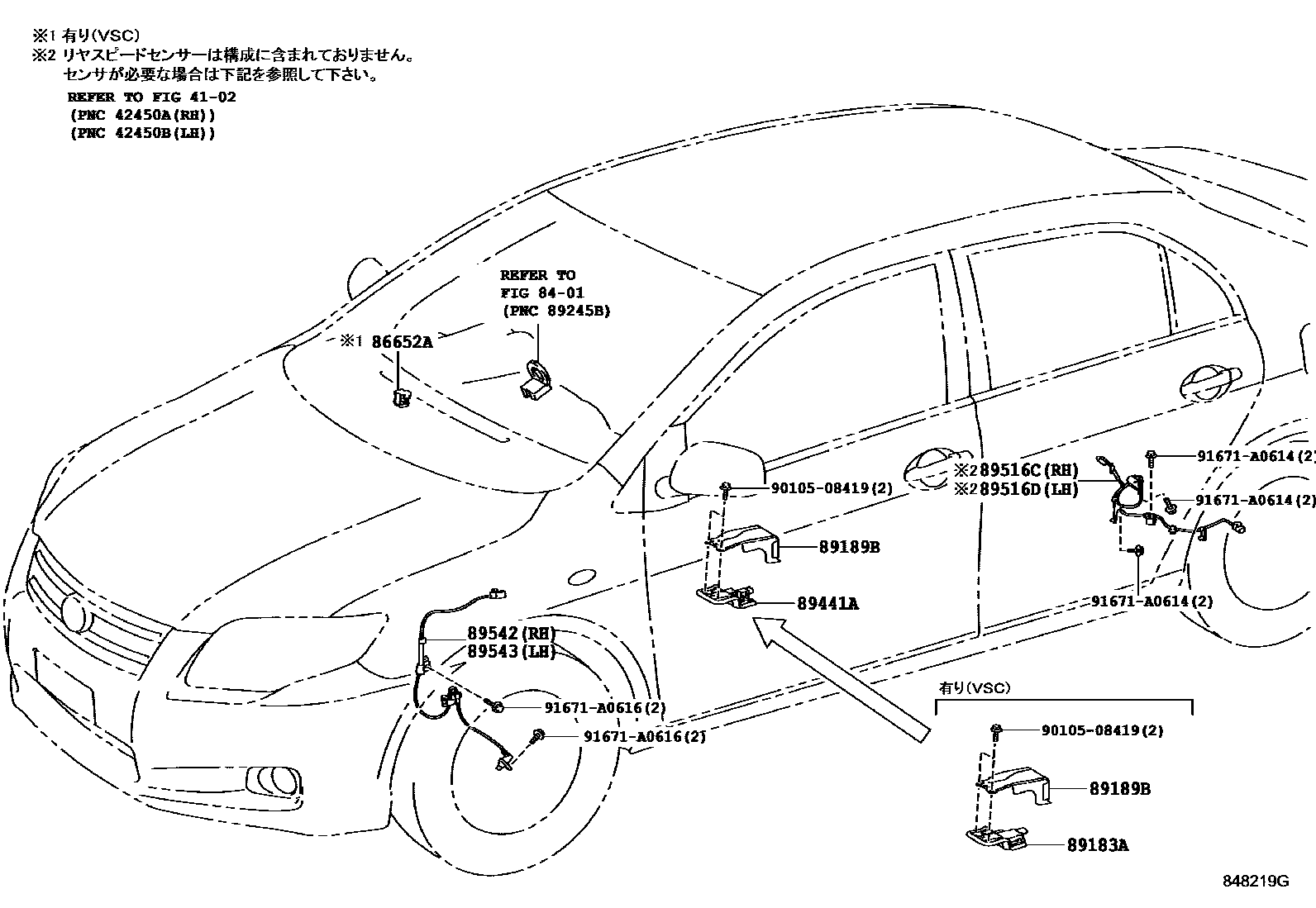

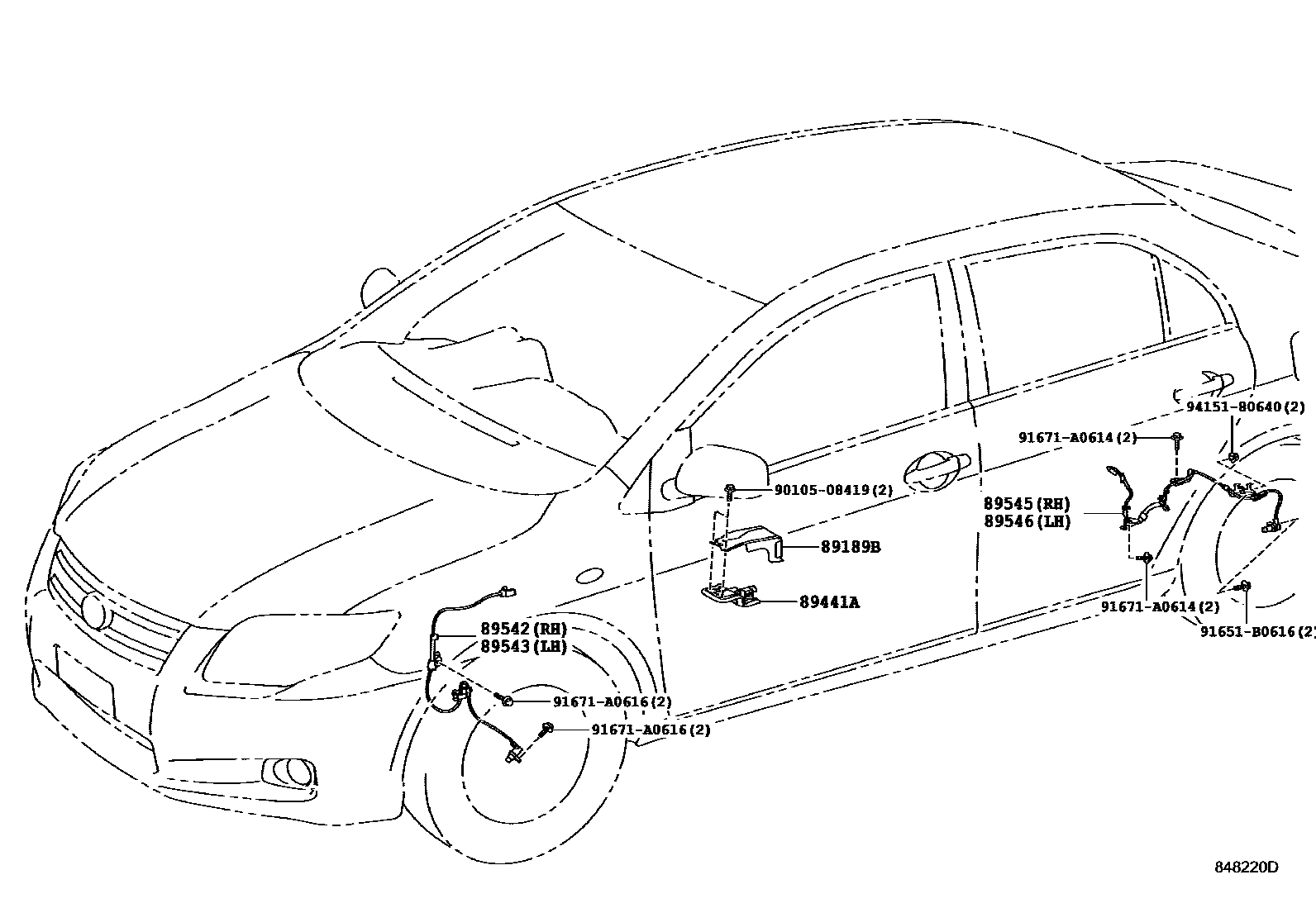

Toyota COROLLA ABS 和 VSC — Figure 8414
Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86652A | Anti-skid control buzzer assembly | 86652-50010 |
| 89183A | Yaw rate sensor | 89180-12070 · 89180-12100 · 89180-12150 |
| 89189B | Yaw rate sensor bracket | 89189-12100 |
| 89441A | deceleration sensor | 89440-12120 |
| 89516C | Right anti-skid control sensor harness | 89516-12120 · 89516-12140 |
| 89516D | Left anti-skid control sensor wiring harness | 89516-12130 · 89516-12150 |
| 89542 | Right front wheel speed sensor | 89542-12100 |
| 89543 | Left front wheel speed sensor | 89543-12100 |
| 89545 | Right rear wheel speed sensor | 89545-12100 · 89545-12110 |
| 89546 | Left rear wheel speed sensor | 89546-12100 · 89546-12110 |
