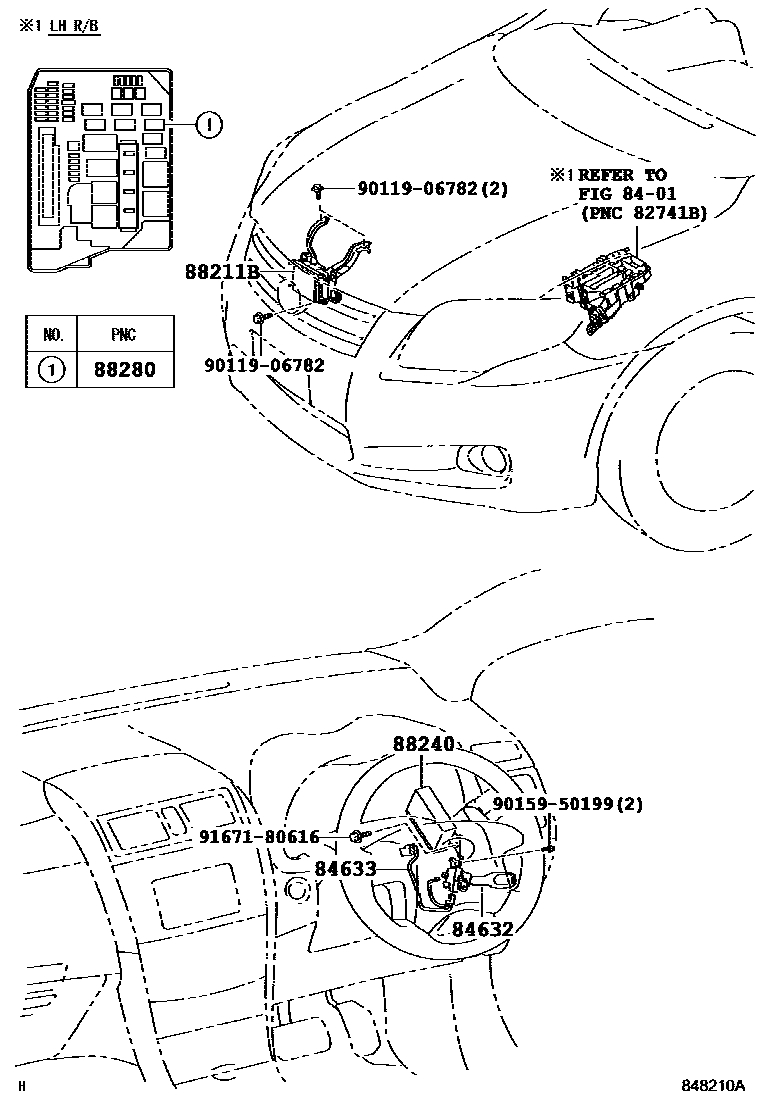

Toyota COROLLA 巡航控制(自动行驶) — Figure 8408
Toyota COROLLA EPC diagram 8408, 巡航控制(自动行驶), with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84632 | cruise control master switch | 84632-58011 |
| 84633 | cruise control switch wiring harness | 84633-48010 |
| 88211B | Millimeter wave radar sensor assembly | 88210-12020 · 88210-12040 |
| 88240 | Cruise control ECU assembly | 88240-12180 |
| 88280 | Cruise control (automatic driving) relay assembly B | 90987-04004 |
