Toyota COROLLA 后雾灯 — Figure 8116

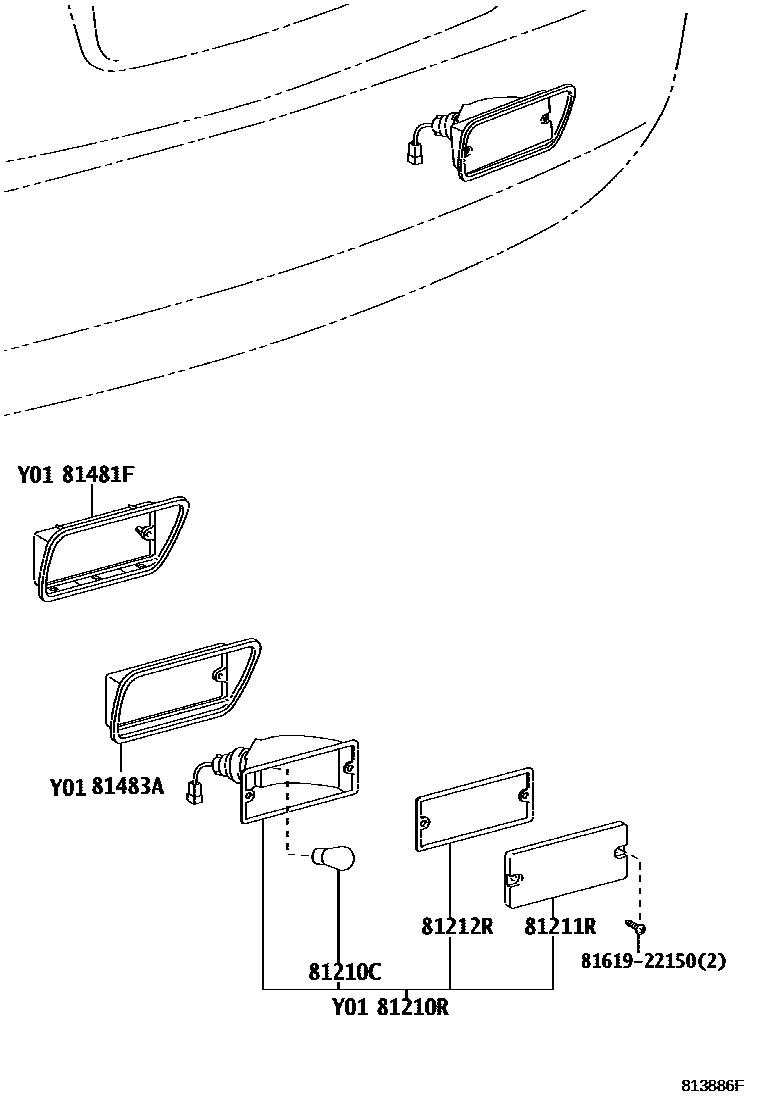

Toyota COROLLA EPC diagram 8116, 后雾灯, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210C | Rear fog light bulb | 99132-11210 |
| 81210R | Rear fog light assembly | 81480-20030 |
| 81211R | Rear fog light cover | 81211-20030 |
| 81212R | No. 1 rear fog light gasket | 81458-63010 |
| 81481F | Right fog light bracket | 81481-12120 · 81481-13030 |
| 81483A | Fog light protective cover | 81483-12030 · 81483-13020 |
