Toyota COROLLA 后组合灯 — Figure 8111

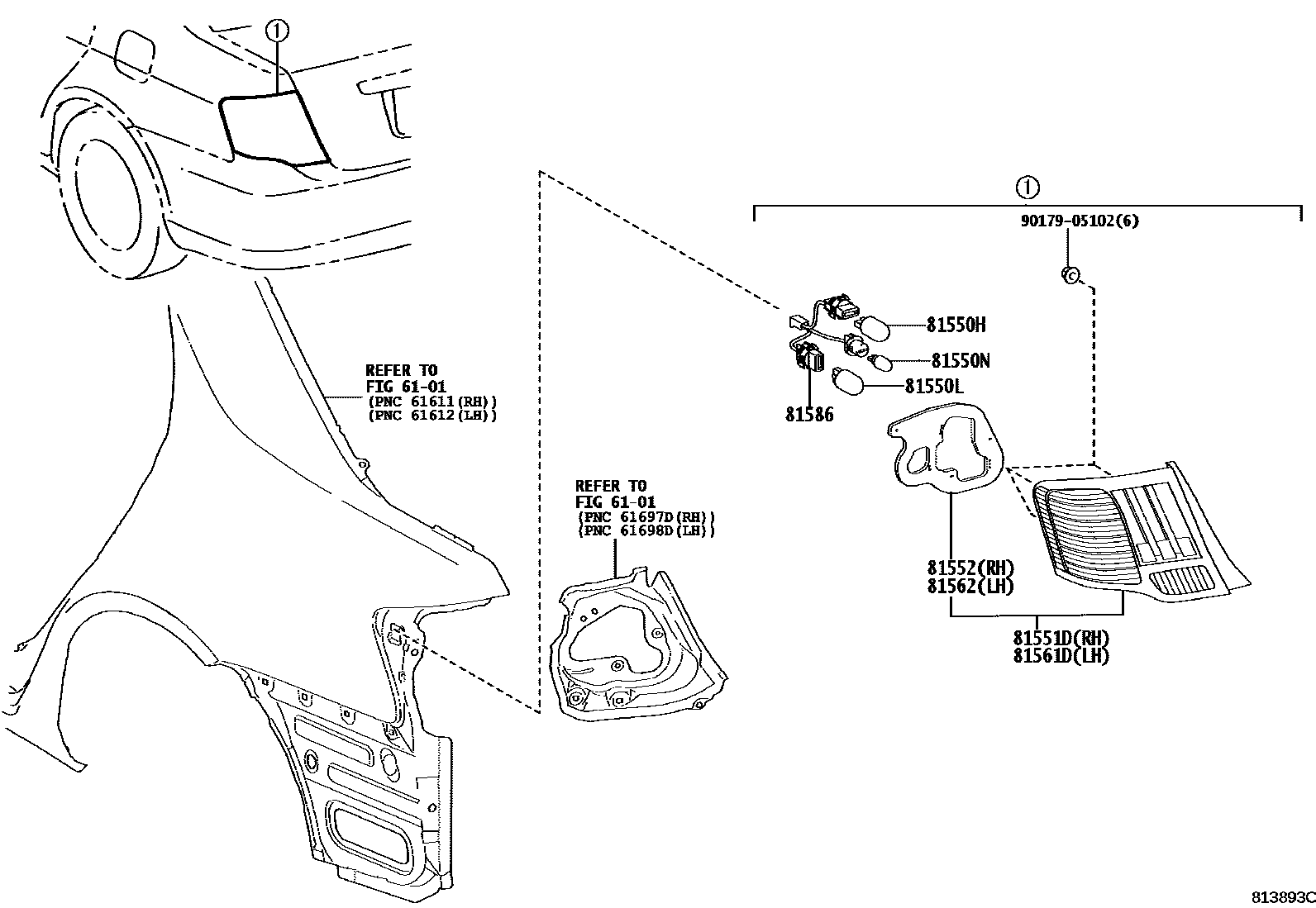

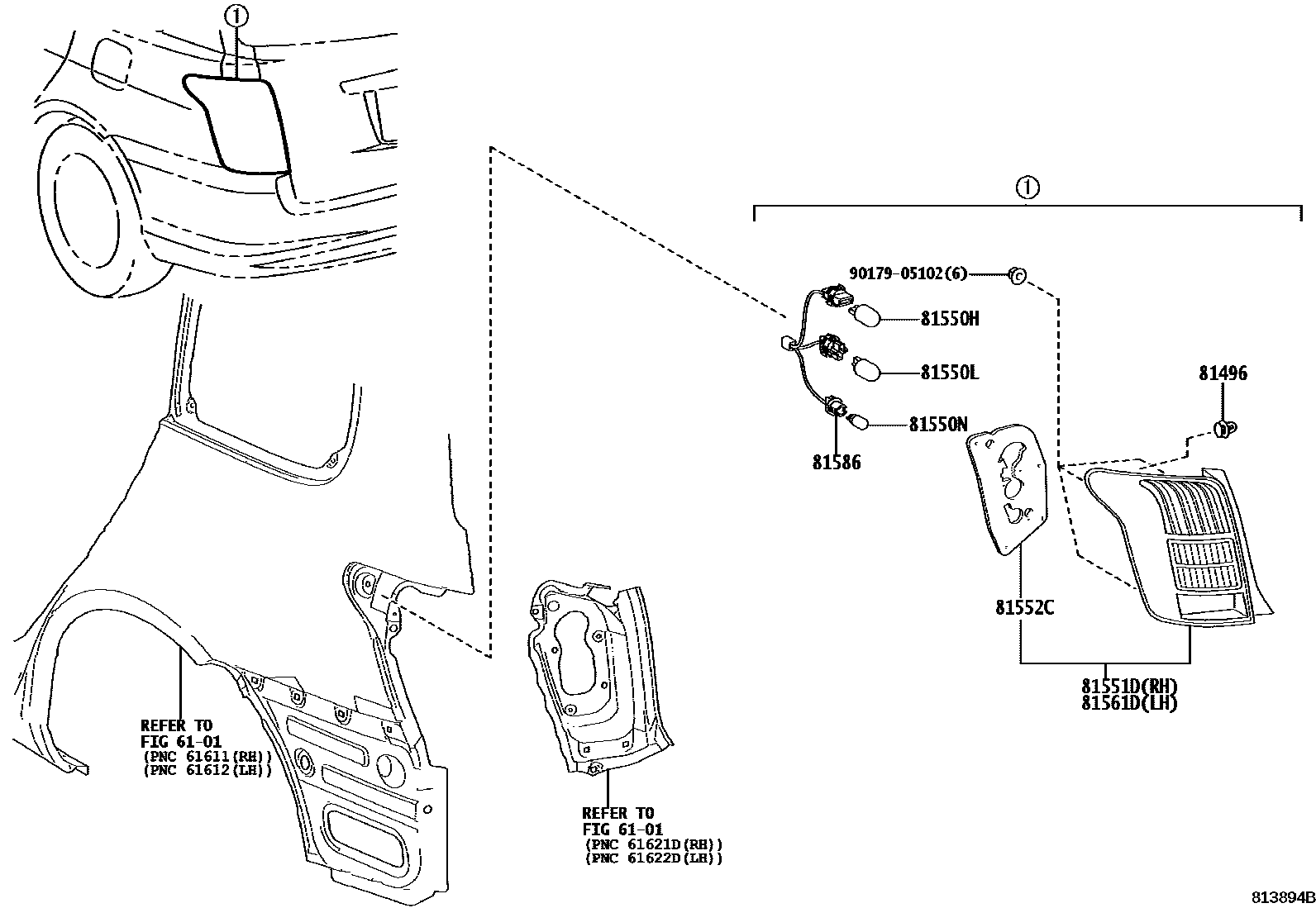

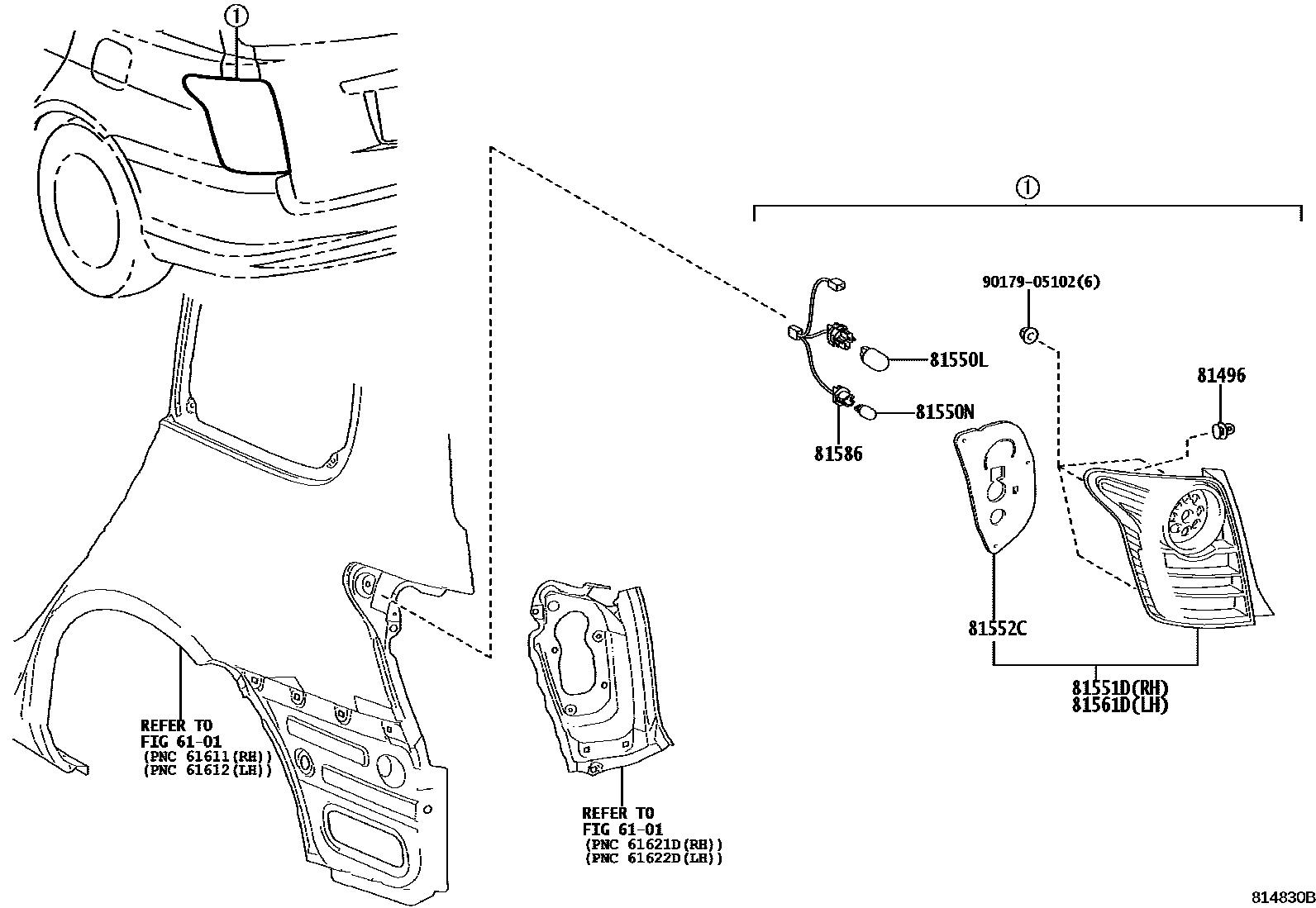

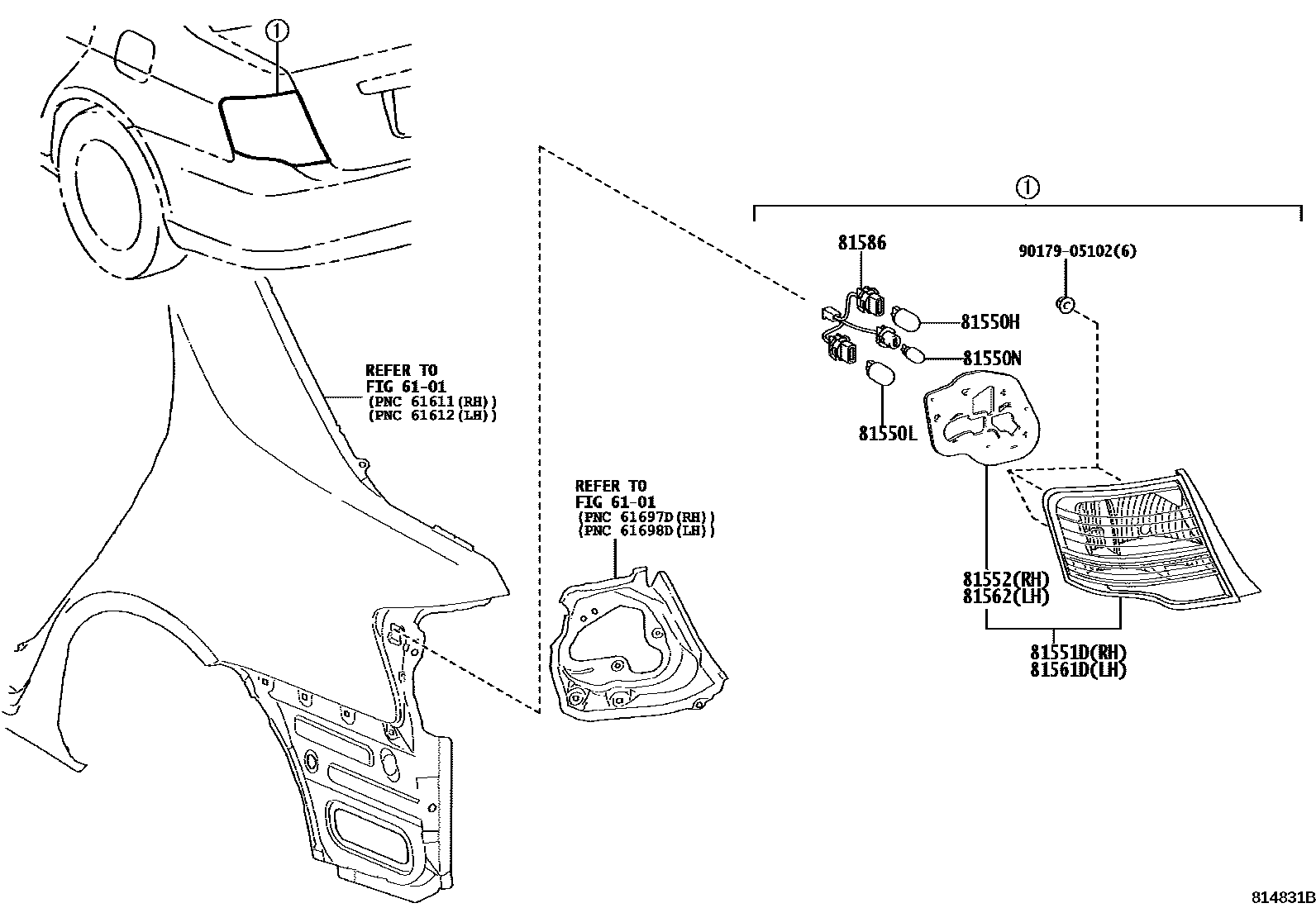

Toyota COROLLA EPC diagram 8111, 后组合灯, with 4 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-60010 |
| 81550H | Tail and brake light bulbs | 90981-13044 |
| 81550L | Rear turn signal light bulb | 90981-13043 · 90981-15021 |
| 81550N | reversing light bulb | 90981-11059 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-12A20 · 81551-12B40 · 81551-13690 · 81551-13710 · 81551-13720 |
| 81552 | Right rear combination lamp shade gasket | 81552-12A20 · 81552-12B40 |
| 81552C | Rear combination light gasket | 81552-13690 · 81552-13710 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-12A20 · 81561-12B40 · 81561-13650 · 81561-13710 · 81561-13720 |
| 81562 | Left rear combination lamp shade gasket | 81552-12A20 · 81552-12B40 |
| 81586 | Rear light wire | 81555-12A20 · 81555-12B40 · 81555-13690 · 81555-13710 |
