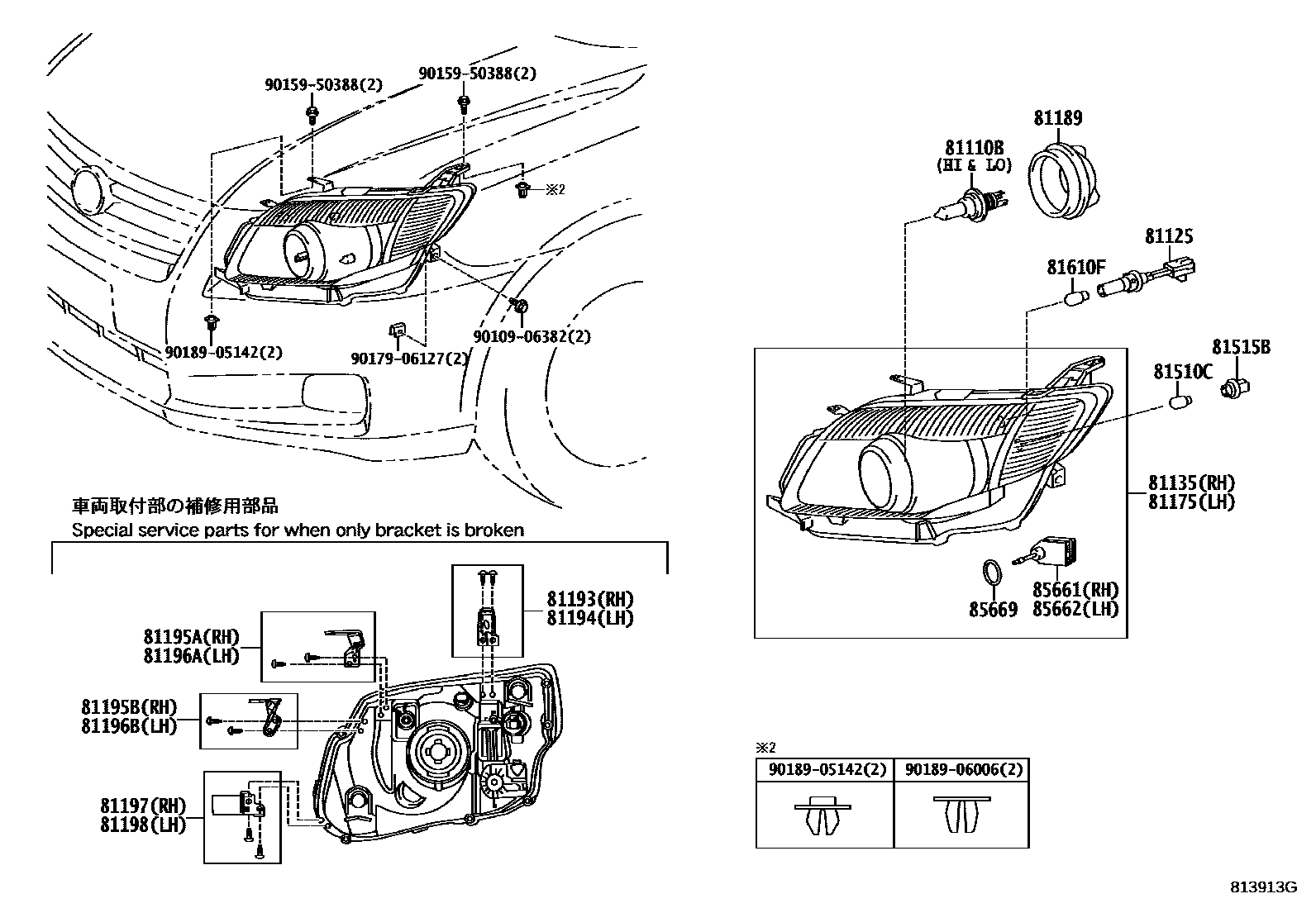

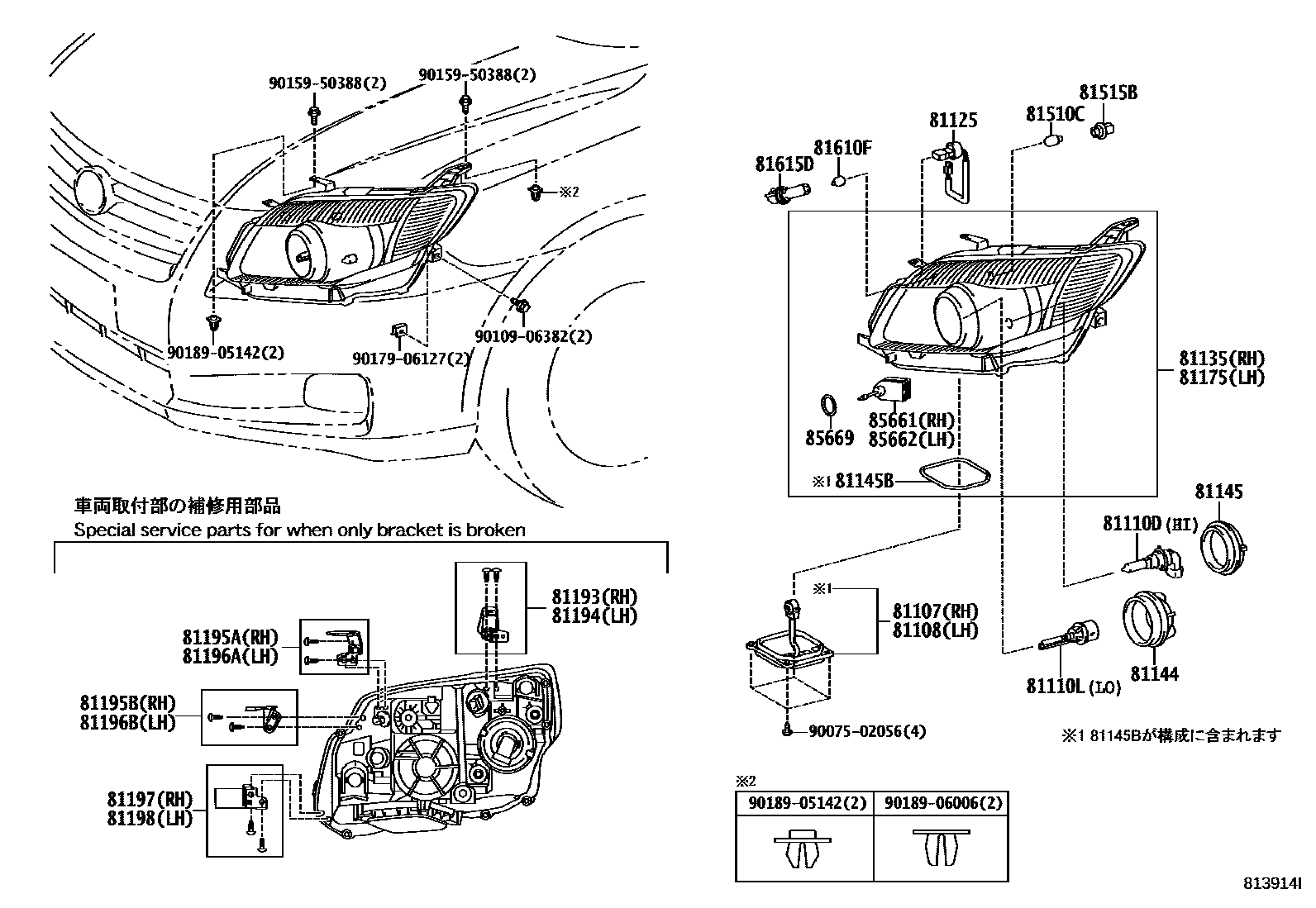

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81107 | Right headlight control ECU sub-assembly | 81107-33620 · 81107-33721 |
| 81108 | Left headlight control ECU sub-assembly | 81107-33620 · 81107-33721 |
| 81110B | Bulb (for headlight No. 1) | 90981-13058 |
| 81110D | Bulb (for headlight No. 2) | 90981-13046 |
| 81110L | Discharge headlight bulb | 90981-20013 · 90981-20021 · 90981-20024 |
| 81125 | headlight wire | 81125-12B10 · 81125-13390 |
| 81135 | Right headlight assembly | 81130-12B00 · 81130-12C80 · 81130-13390 · 81130-13400 · 81145-12B10 · 81145-12B11 · 81145-12C90 · 81145-12C91 |
| 81144 | No. 1 headlight cover | 81135-3A150 |
| 81145 | No. 2 headlight cover | 90075-99054 |
| 81145B | No. 1 headlight cover gasket | 90075-68007 |
| 81175 | Left headlight assembly | 81170-12B00 · 81170-12C80 · 81170-13390 · 81170-13400 · 81185-12B10 · 81185-12B11 · 81185-12C90 · 81185-12C91 |
| 81189 | headlight cover | 90075-65002 |
| 81193 | Right headlight upper protective ring | 81193-12080 · 81193-12090 |
| 81194 | Left headlight upper protective ring | 81194-12070 · 81194-12080 |
| 81195A | Right headlight lower protection ring | 81195-12080 · 81195-12090 |
| 81195B | Right headlight lower right protection piece | 81195-12100 · 81195-12110 |
| 81196A | Left headlight lower protection ring | 81196-12080 · 81196-12090 |
| 81196B | Left headlight lower right protection ring | 81196-12100 · 81196-12110 |
| 81197 | Right headlight lower bracket | 81197-12080 |
| 81198 | Left headlight lower bracket | 81198-12080 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15021 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 90075-60077 |
| 85661 | Right headlight beam height adjustment motor | 85661-12010 · 85661-12020 |
| 85662 | Left headlight beam height adjustment motor | 85661-12010 · 85661-12020 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-99120 |
