Toyota COROLLA 燃油箱和燃油管 — Figure 7701

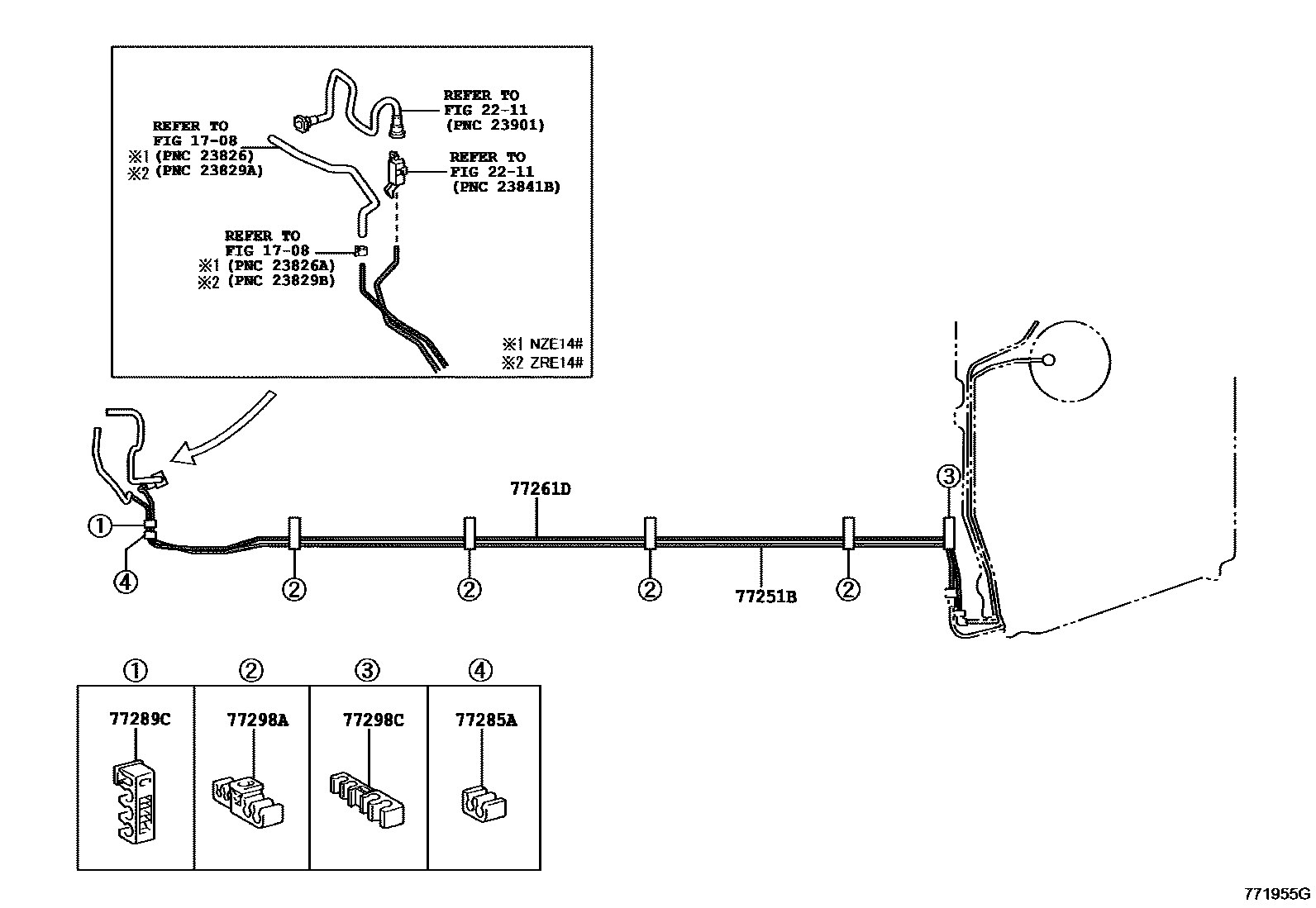

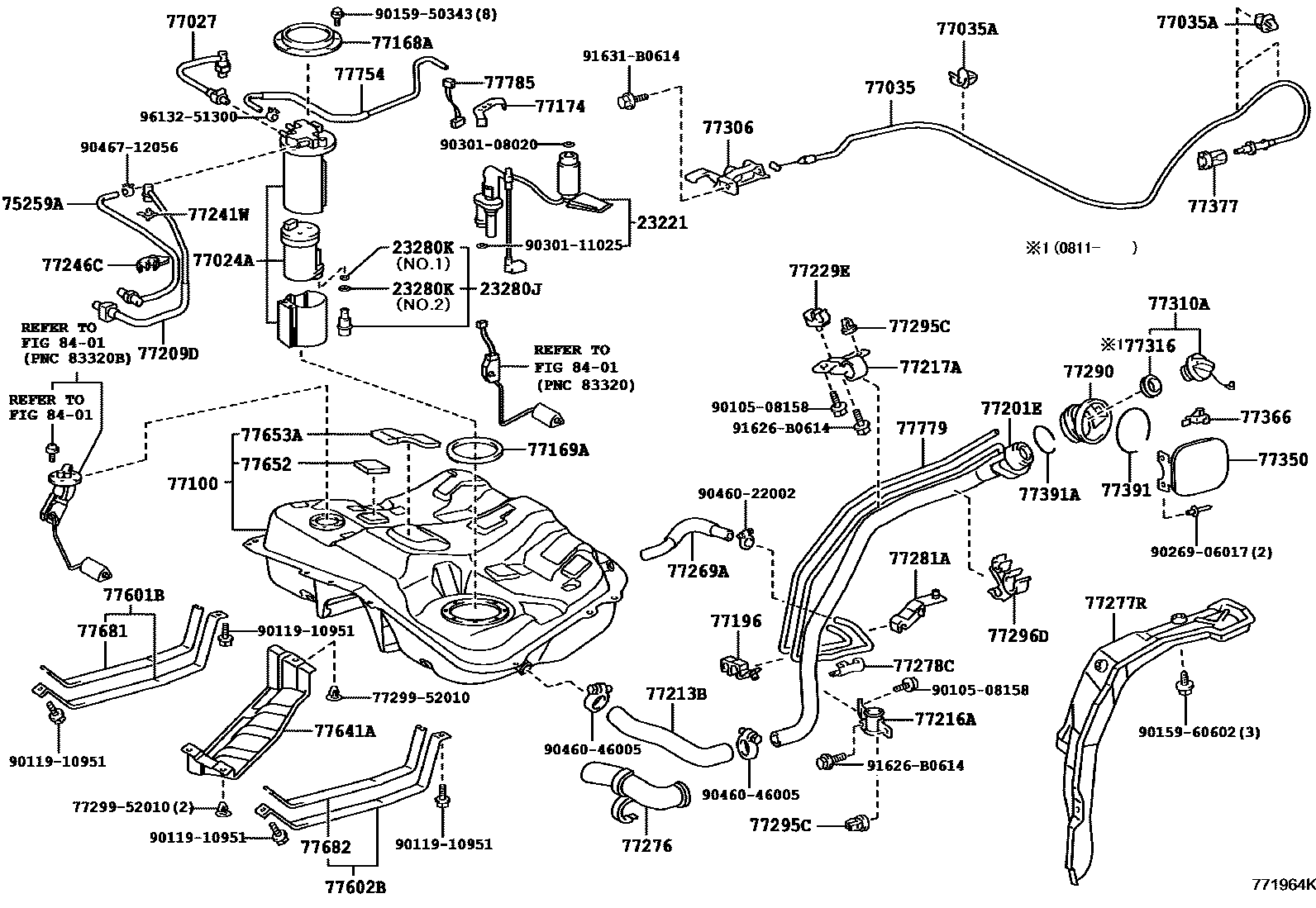

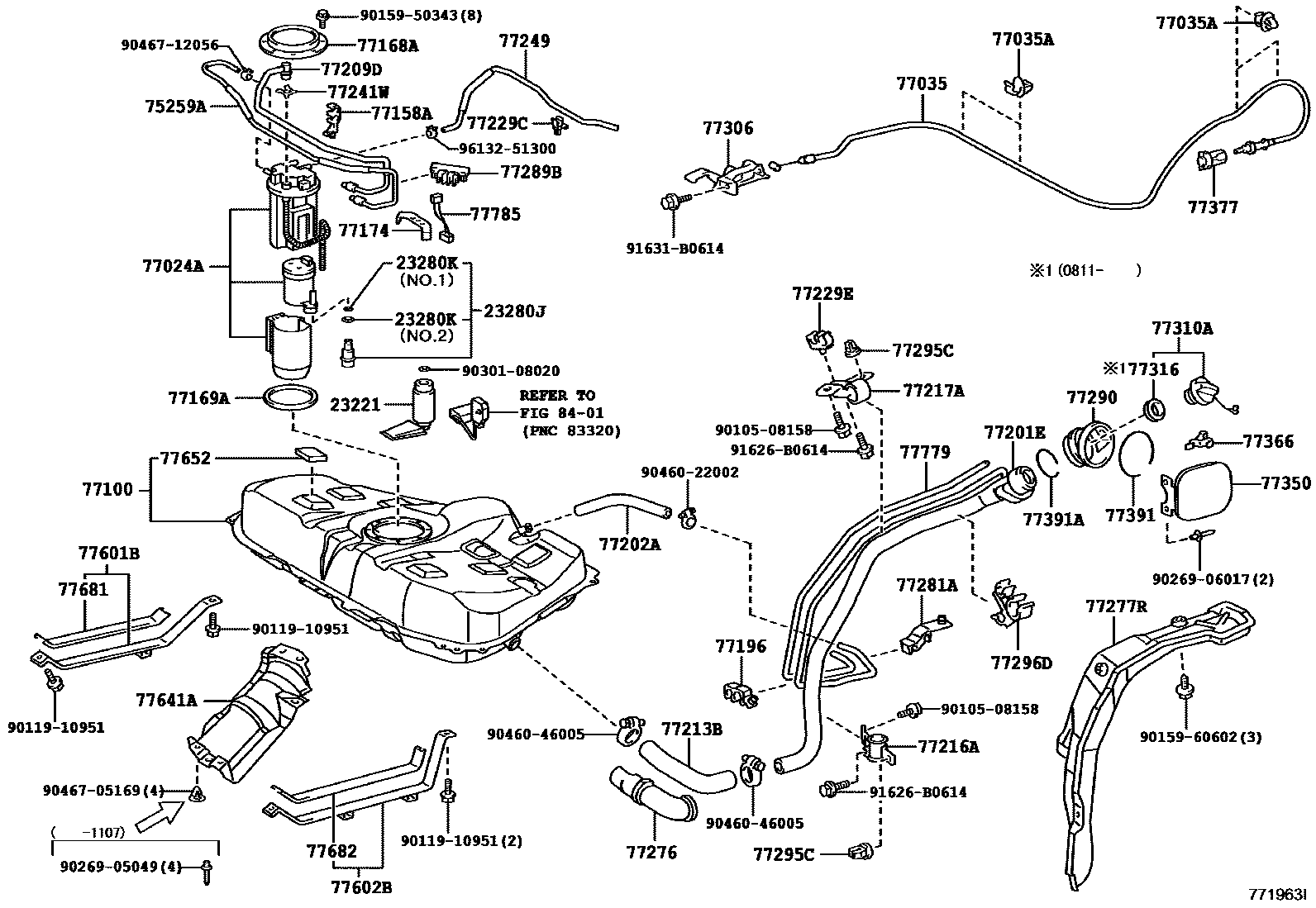

Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 3 images and 58 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23221 | fuel pump | 23220-21180 · 23220-22120 · 23220-37060 · 23220-37070 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 · 23280-21020 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-15024 |
| 75259A | fuel hose | 77259-12320 · 77259-12330 |
| 77024A | Fuel absorber sub-assembly | 77024-12060 · 77024-12061 · 77024-12080 · 77024-12081 |
| 77027 | No. 2 fuel evaporation pipe sub-assembly | 77027-12080 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-12480 · 77035-13130 |
| 77035A | Clip (for fuel filler cap lock control cable) | 90469-06005 |
| 77100 | fuel tank assembly | 77001-12A80 · 77001-12A90 |
| 77158A | Fuel tank suction pipe bracket | 77158-20040 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-52020 |
| 77169A | Fuel suction pipe fixed gasket | 77169-52010 |
| 77174 | No. 1 oil suction pipe bracket | 77174-12020 |
| 77196 | No. 1 evaporation vent pipe clamp | 77196-12060 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-12700 |
| 77202A | No. 1 fuel hose (for breather pipe) | 95313-13032 · 95313-13034 |
| 77209D | Fuel tank main pipe sub-assembly | 77209-12230 · 77209-12240 |
| 77213B | Fuel tank to filler pipe hose | 77213-12290 · 77213-32090 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-32060 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-12110 |
| 77229C | Snorkel clamp | 77229-12110 |
| 77229E | Snorkel clamp | 77229-12100 |
| 77241W | Pipe joint clip | 77241-33011 · 77241-60320 |
| 77246C | Main fuel pipe bracket | 77246-21010 |
| 77249 | fuel drain hose | 77249-12080 |
| 77251B | main fuel pipe | 77251-12740 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-12520 |
| 77269A | fuel tank breather hose | 77269-12100 |
| 77276 | Fuel hose protector | 77276-12050 · 77276-12080 · 77276-12120 |
| 77277R | Fuel tank filler pipe protection device | 77277-12210 |
| 77278C | No. 2 fuel tank filler pipe protection device | 77278-12060 |
| 77281A | Fuel filler pipe clamp | 77281-12110 · 77281-12120 |
| 77285A | Fuel return pipe and main pipe bracket | 77285-42110 |
| 77289B | No. 3 fuel pipe clamp | 77289-52100 |
| 77289C | No. 4 fuel pipe clamp | 77289-68020 |
| 77290 | Fuel tank filler pipe cover assembly | 77291-12200 |
| 77295C | Fuel pipe retaining ring | 77295-12070 |
| 77296D | fuel pipe support plate | 77296-12070 |
| 77298A | No. 4 fuel pipe clamp | 77298-52070 |
| 77298C | No. 4 fuel pipe clamp | 77298-12120 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-12060 · 77306-13020 |
| 77310A | Fuel tank cap assembly | 77300-52030 |
| 77316 | fuel tank cap gasket | 77316-52040 |
| 77350 | Fuel filler cap assembly | 77350-12500 · 77350-13100 |
| 77366 | Fuel filler cap hinge spring | 77360-30080 |
| 77377 | Fuel filler cap lock retainer | 77377-35010 |
| 77391 | fuel inlet ring | 77391-12040 |
| 77391A | fuel inlet ring | 77391-12020 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-12340 · 77601-12350 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77601-12340 · 77602-12260 |
| 77641A | No. 1 fuel tank protective shell | 77641-12160 · 77641-12220 |
| 77652 | No. 1 fuel tank liner | 77651-20090 |
| 77653A | No. 3 fuel tank liner | 77653-60060 |
| 77681 | Fuel tank right side strap seat | 77616-68010 · 77681-12070 |
| 77682 | Fuel tank left side strap seat | 77681-12070 |
| 77754 | No. 1 carbon canister outlet hose | 77754-12190 |
| 77779 | Carbon canister outlet pipe | 77779-12020 · 77779-12030 |
| 77785 | fuel pump wiring harness | 77785-12020 |
