Toyota COROLLA 挡泥板和扰流板 — Figure 7601

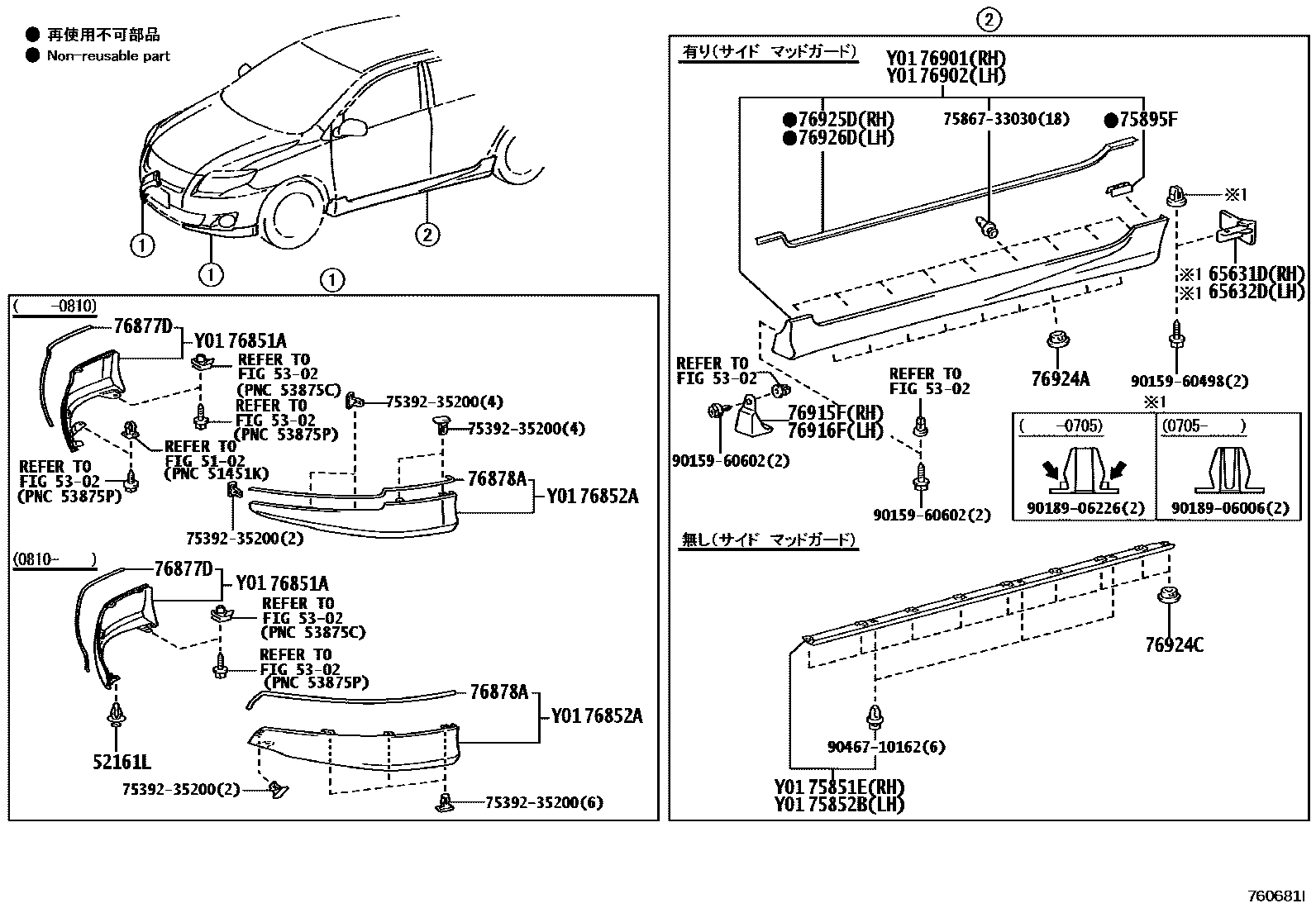

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161L | front spoiler insert | 52161-16010 |
| 65631D | Right rear wheel house front panel | 65631-12030 · 65631-12031 |
| 65632D | Left rear wheel house front panel | 65632-12030 · 65632-12031 |
| 75851E | Right body door sill panel protection strip | 75851-12100 |
| 75852B | Left body door sill panel protection strip | 75852-12070 |
| 75895F | No. 1 protective strip tape | 75895-13040 |
| 76915F | Right front fender | 76915-13040 |
| 76916F | Left front fender | 76916-13040 |
| 76924A | No. 2 side fender fixings | 76924-12040 · 76924-52021 |
| 76924C | No. 2 side fender fixings | 76924-12040 · 76924-52021 |
