Toyota COROLLA 后防护条 — Figure 7504
Toyota COROLLA EPC diagram 7504, 后防护条, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

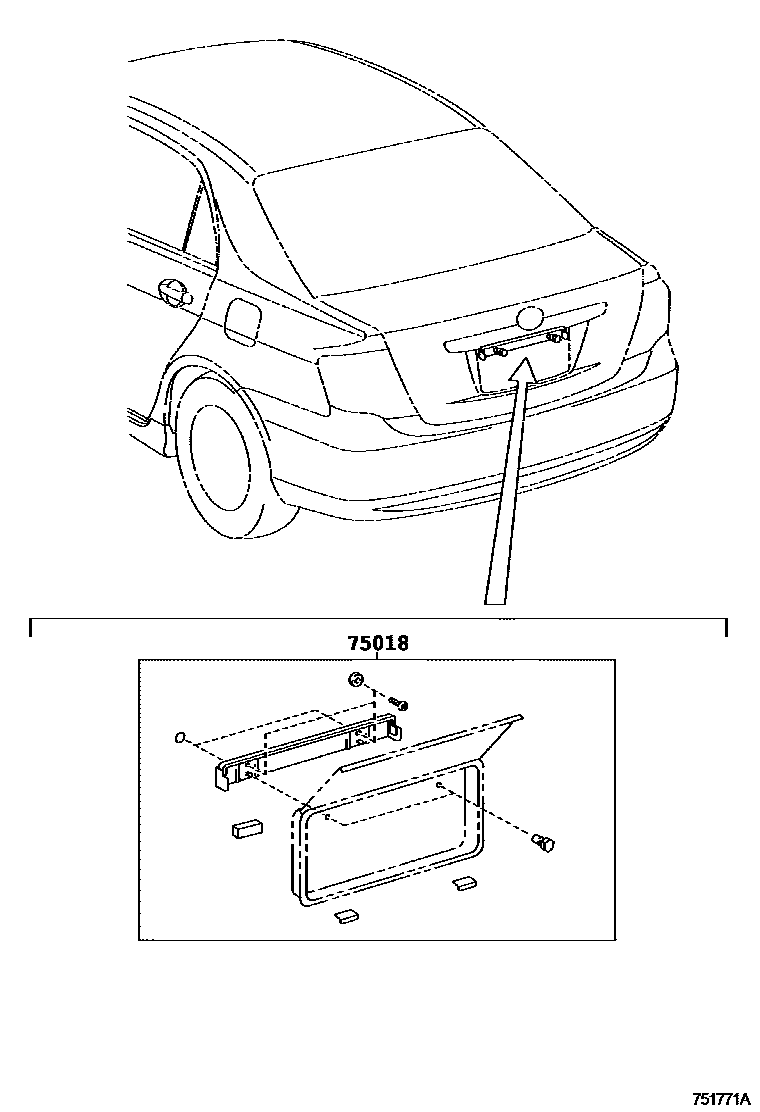

| 75018 | Rear license plate frame sub-assembly | 75010-48020 |

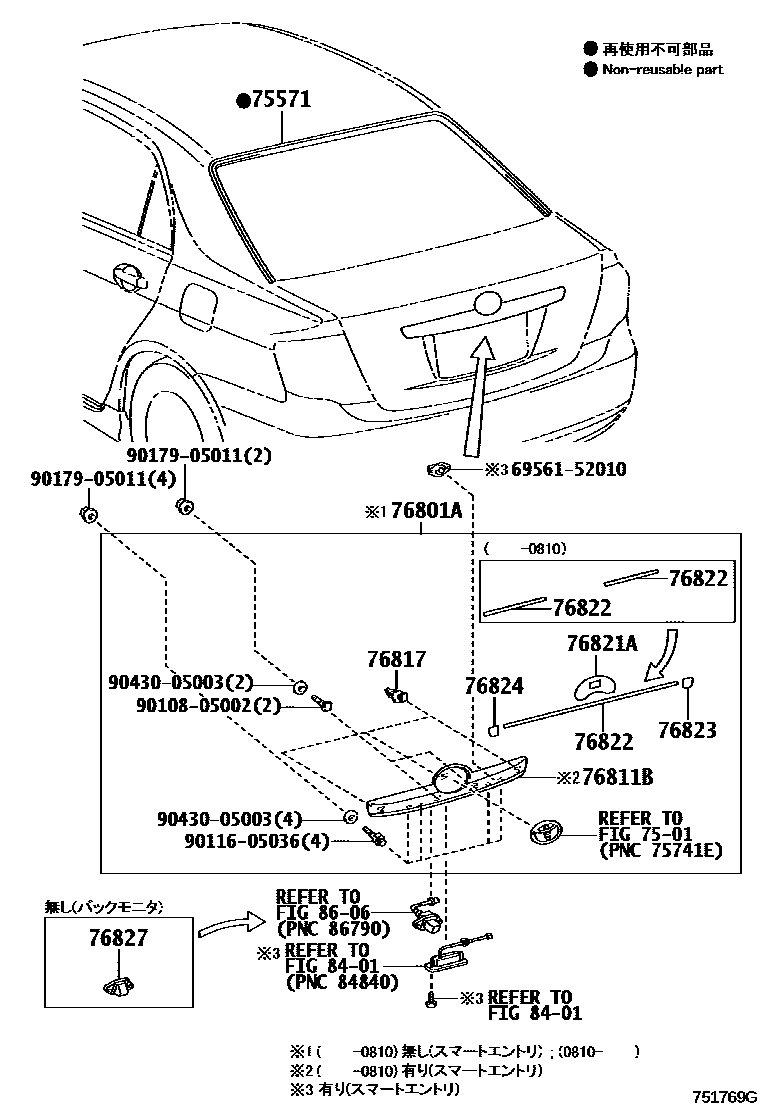

| 75571 | Protective strips on the outside of the rear window | 75571-12A30 · 75571-12A50 |

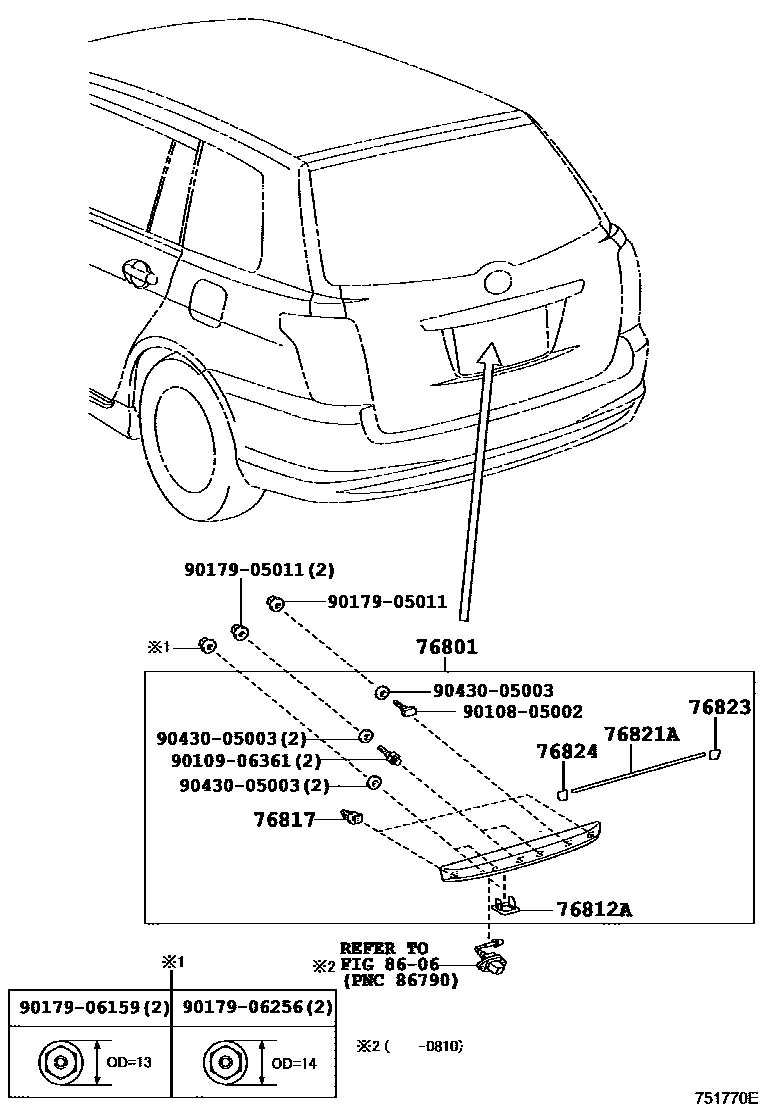

| 76812A | No. 2 rear door exterior trim strip | 76812-13060 |
| 76817 | Rear door exterior decorative strip clip | 76817-50010 |
| 76821A | Luggage door outer decorative strip protective cover | 76821-12220 · 76821-12240 · 76821-13080 |
| 76822 | Protective cover under rear door trim strip | 76822-12080 · 76822-12100 |
| 76823 | Rear door right side decorative strip protective cover | 76823-12030 · 76823-13020 |
| 76824 | Rear door left side decorative strip protective cover | 76824-12030 · 76824-13010 |
| 76827 | No. 2 rear door trim strip fixings | 76827-12050 |
