Toyota COROLLA 侧防护条 — Figure 7503

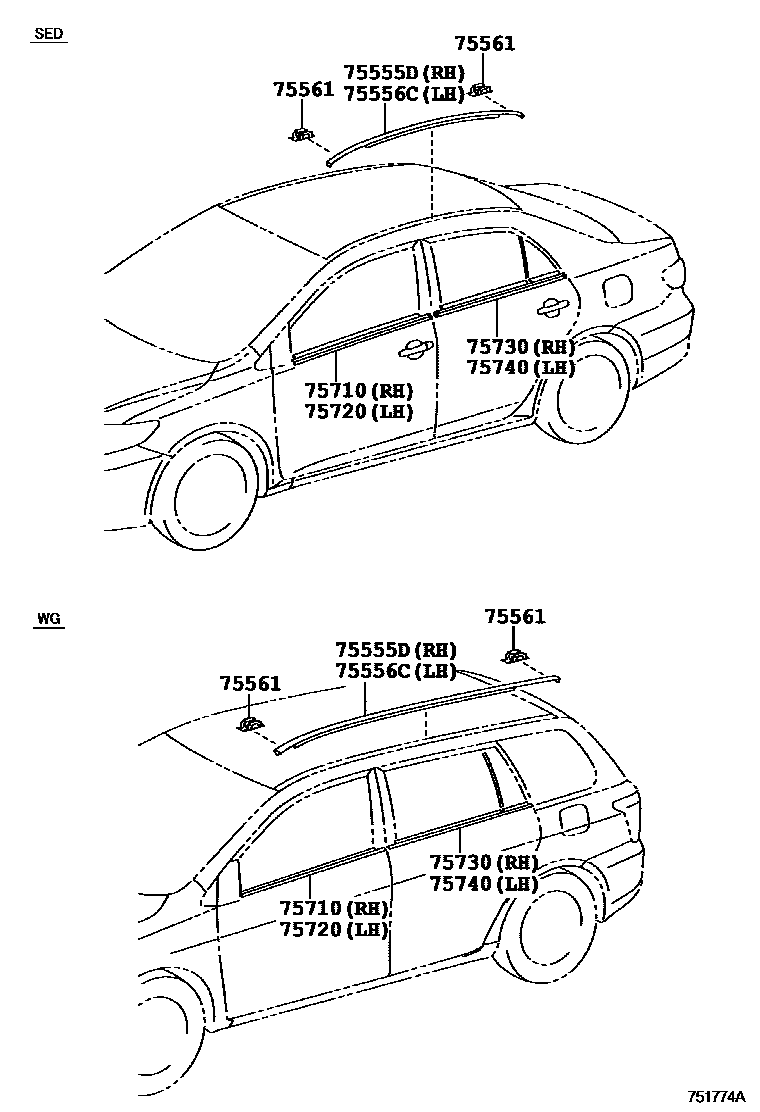

Toyota COROLLA EPC diagram 7503, 侧防护条, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75555D | Drainage channel side decorative strip in the middle section on the right side of the roof | 75555-12150 · 75555-13030 |
| 75556C | Drainage channel side decorative strip in the middle section on the left side of the roof | 75556-12160 · 75556-13030 |
| 75561 | No. 1 roof drain channel side decorative strip clip | 75561-52040 |
| 75710 | Right front door waistline protection strip assembly | 75710-12800 · 75710-12810 · 75710-12840 |
| 75720 | Left front door waistline protection strip assembly | 75720-12800 · 75720-12810 · 75720-12840 |
| 75730 | Right rear door waistline protection strip assembly | 75730-12320 · 75730-12330 · 75730-12370 |
| 75740 | Left rear door waistline protection strip assembly | 75740-12410 · 75740-12420 · 75740-12450 |
