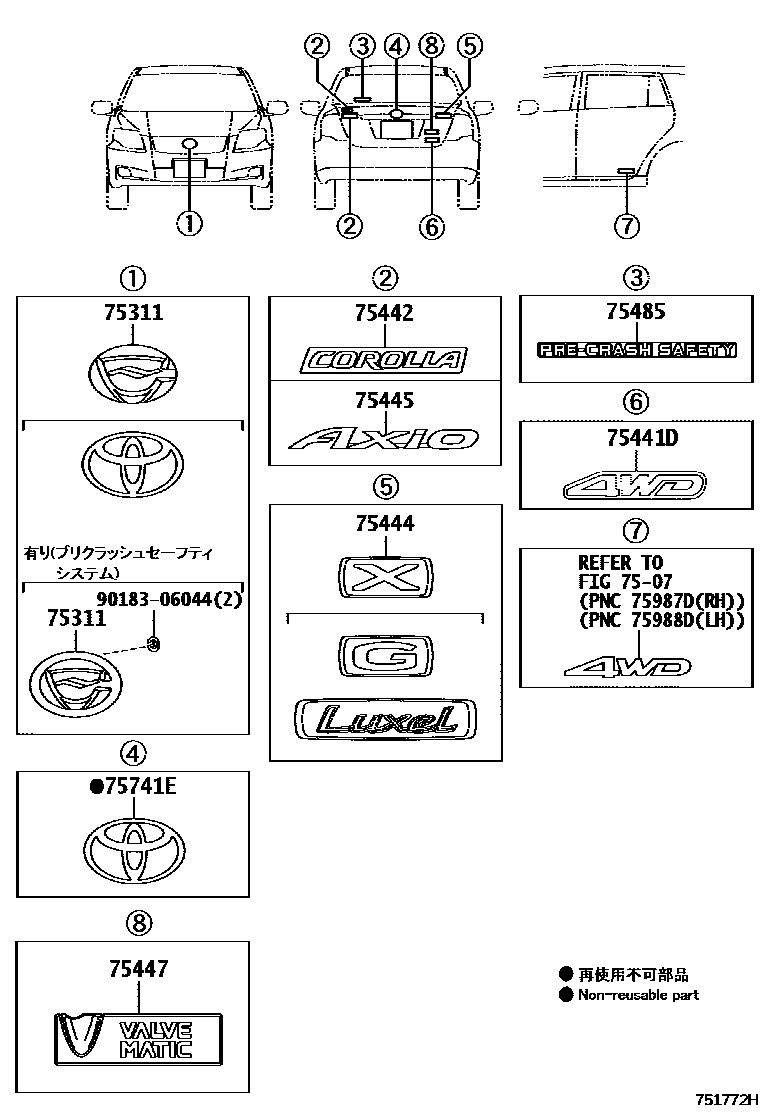

Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501
Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 53141-12150 · 75311-13200 · 75311-13210 · 75311-1E090 |
| 75441D | Trunk door No. 1 name plate | 75441-46020 |
| 75441E | Back door No. 1 nameplate | 75441-46020 |
| 75442 | Trunk door number plate No. 2 | 75442-13260 |
| 75442A | No. 2 nameplate on back door | 75442-13260 |
| 75444 | Trunk door No. 4 nameplate | 75444-12A40 · 75444-12A50 · 75444-12A60 · 75444-12B00 |
| 75444A | No. 4 nameplate on back door | 75444-12A40 · 75444-13450 |
| 75445 | Trunk door No. 5 name plate | 75445-12280 |
| 75445A | No. 5 nameplate on back door | 75445-13050 |
| 75446A | No. 6 nameplate on back door | 75444-13420 · 75444-13430 · 75444-13460 |
| 75447 | Trunk door No. 7 nameplate | 75444-20A70 |
| 75447A | No. 7 nameplate on back door | 75444-12C40 |
| 75485 | Back window nameplate | 75485-12440 |
| 75485A | Back window nameplate | 75485-12390 |
| 75741E | logo | 90975-02062 · 90975-02063 |
