Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 1 images and 5 PNC and OE references.

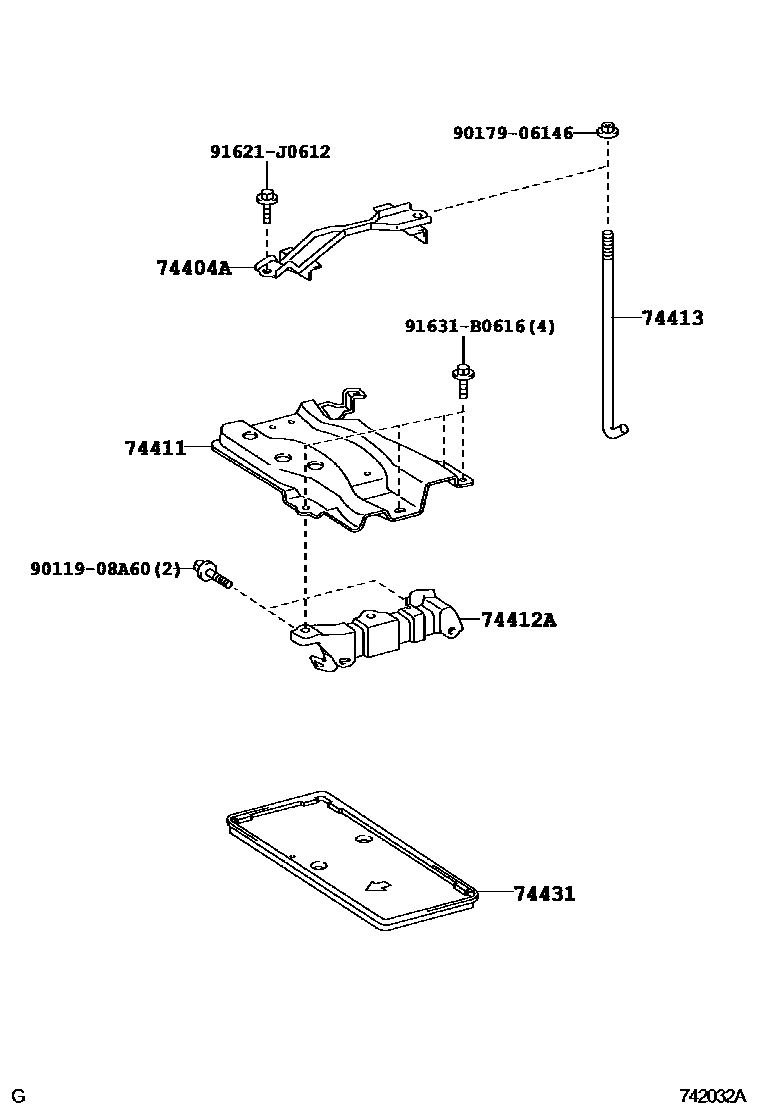

Toyota COROLLA battery holder EPC diagram — 742032A
battery holder — 742032A (200609 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-12490 · 74404-12500
74411battery holder74401-12020
74412ANo. 2 battery holder74410-12040
74413Battery clamp bolt74451-12150 · 74451-58011
74431battery tray74431-12060 · 74431-12090
