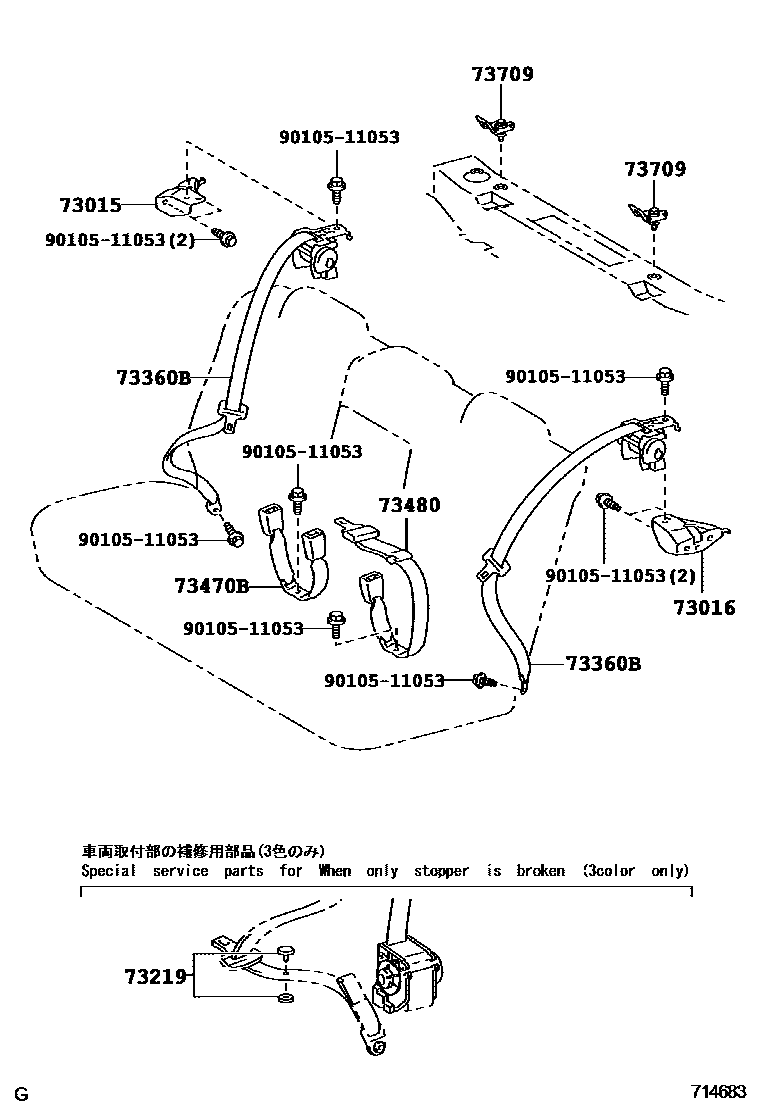

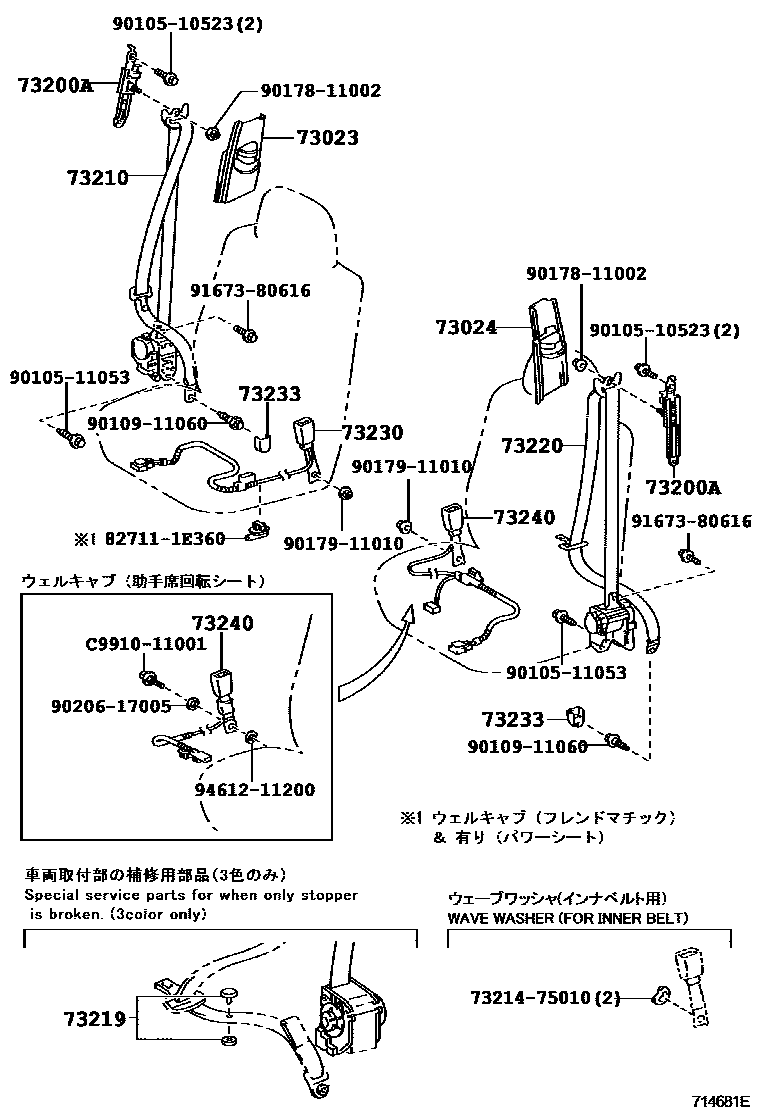

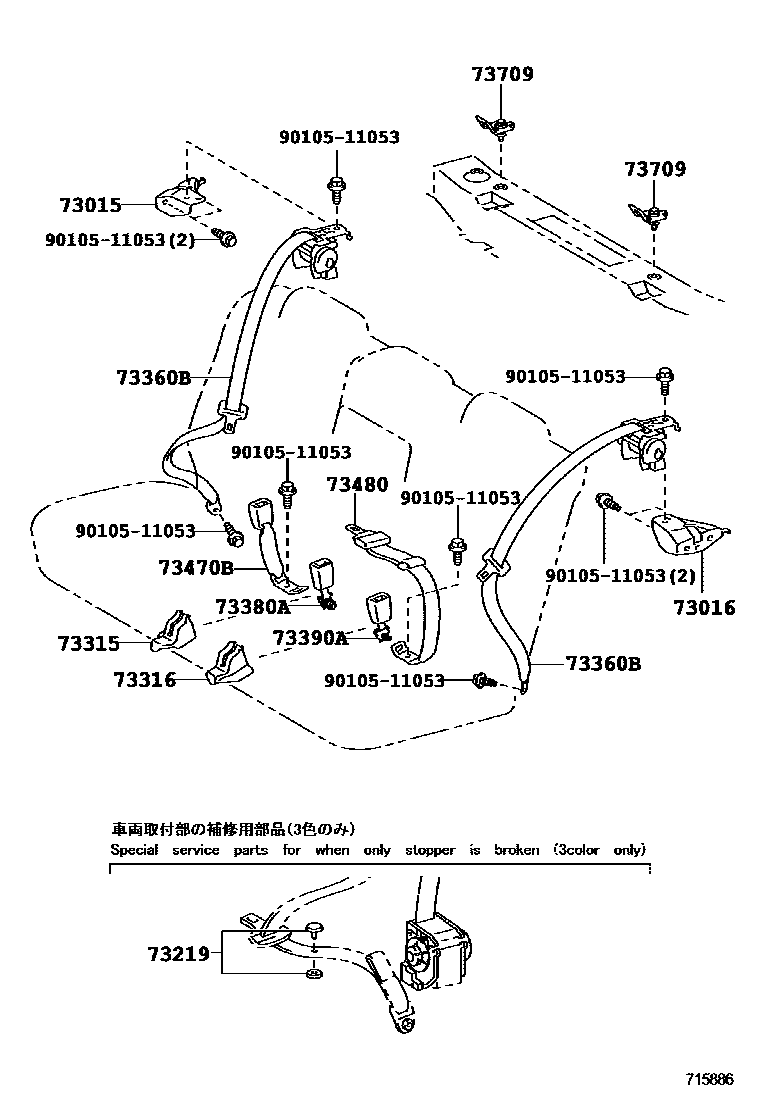

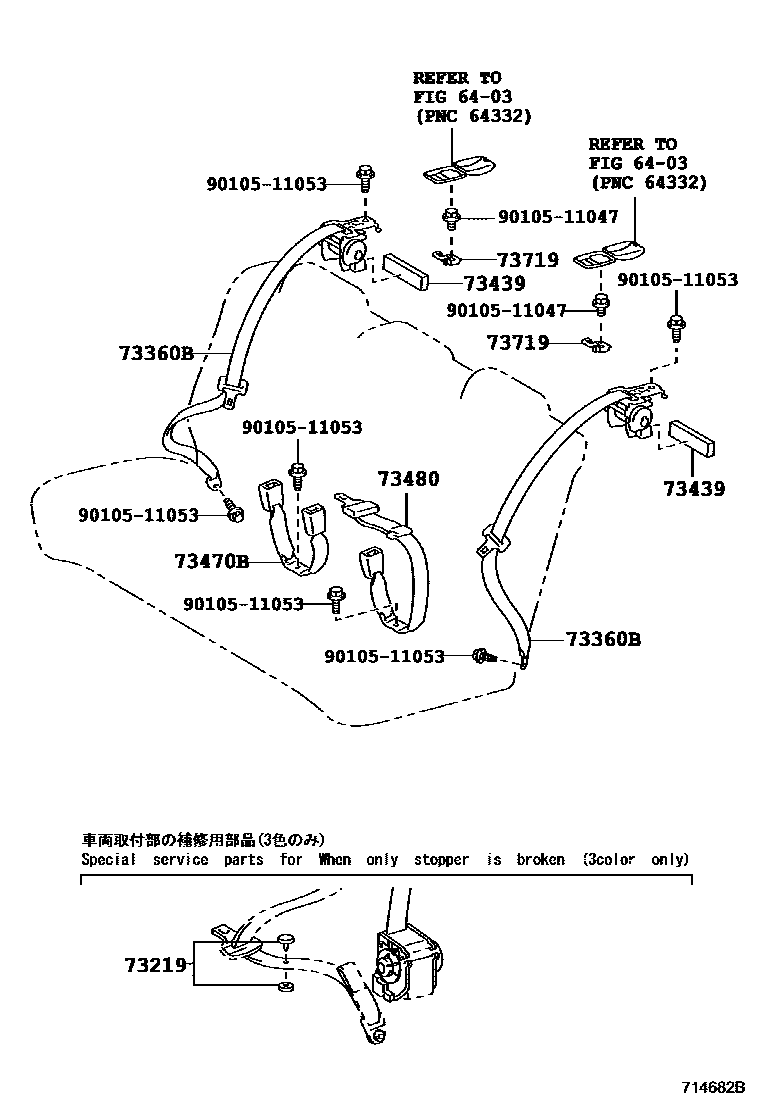

Toyota COROLLA 安全带和儿童保护座椅 — Figure 7104
Toyota COROLLA EPC diagram 7104, 安全带和儿童保护座椅, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73015 | Right seat belt outer anchor bracket sub-assembly | 73015-13010 |
| 73016 | Left side seat belt outer anchor bracket sub-assembly | 73016-13010 |
| 73200A | Front shoulder seat belt anchor adjuster assembly | 73200-53010 |
| 73219 | Tongue plate stop | 73219-33010 · 73219-33020 · 73219-33030 |
| 73439 | Rear seat belt retractor cushion | 73439-12040 |
| 73709 | Tie anchor bracket sub-assembly | 73708-13020 |
| 73719 | Child restraint seat tether anchor bracket | 73719-52030 |
