Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

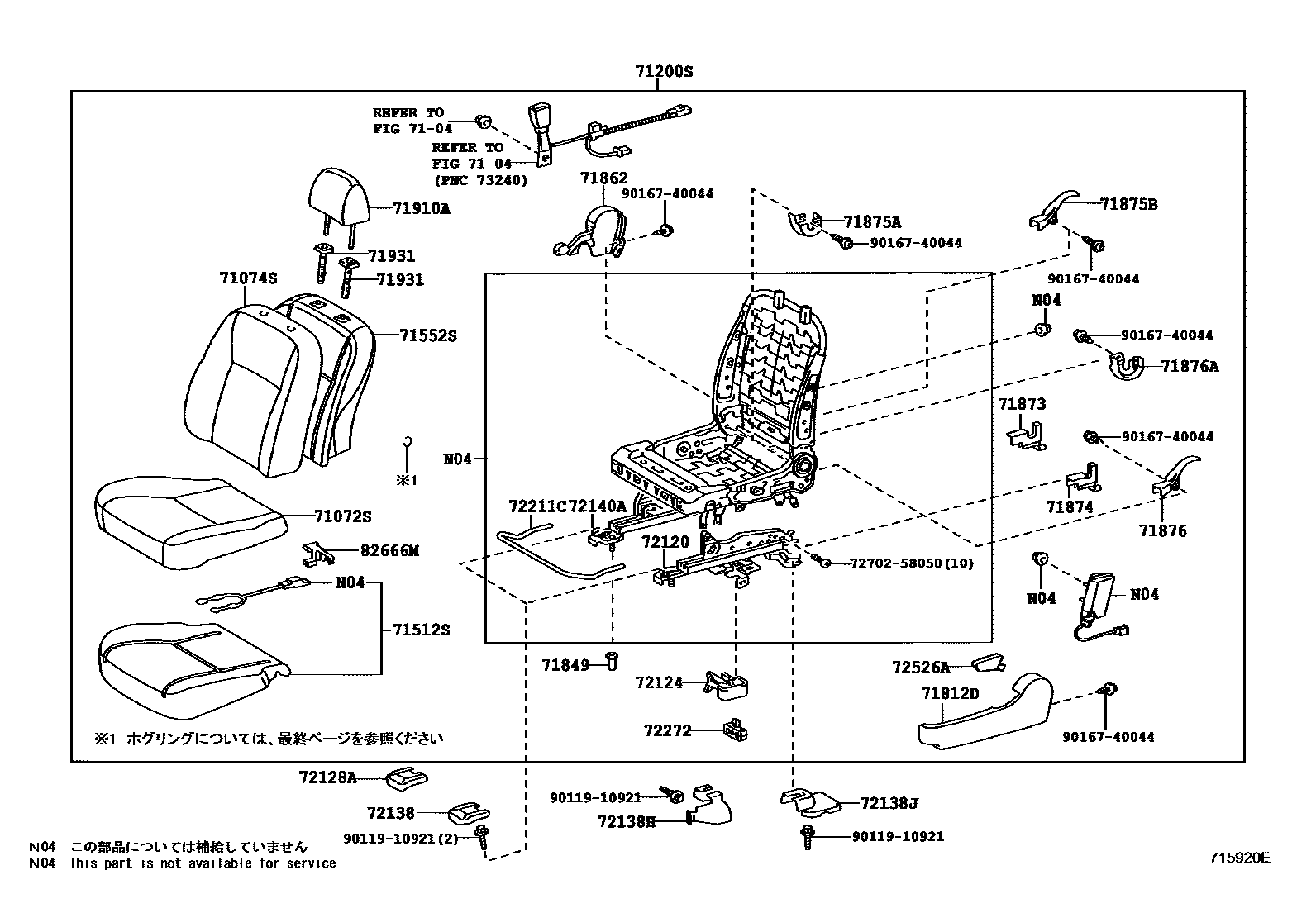

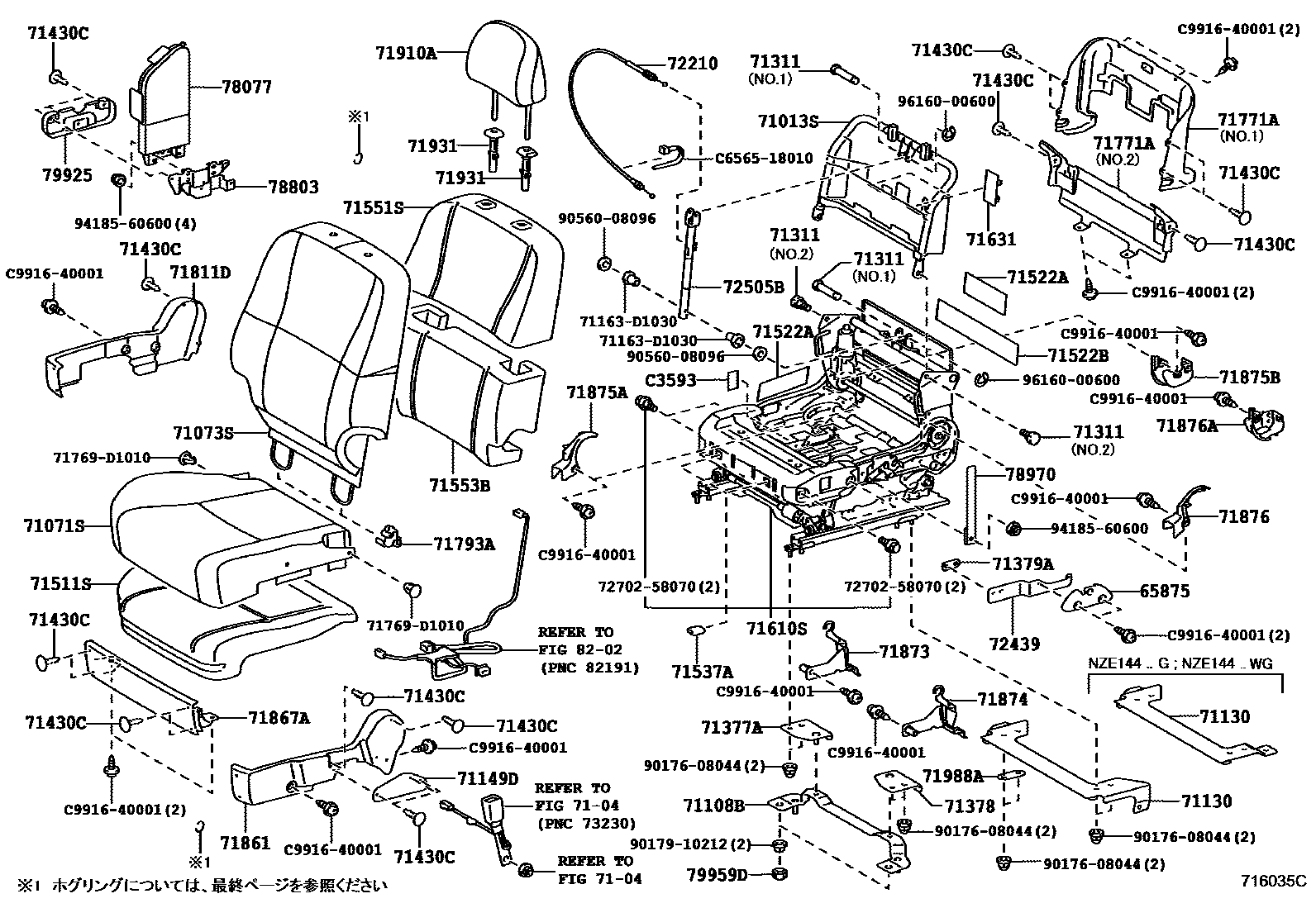

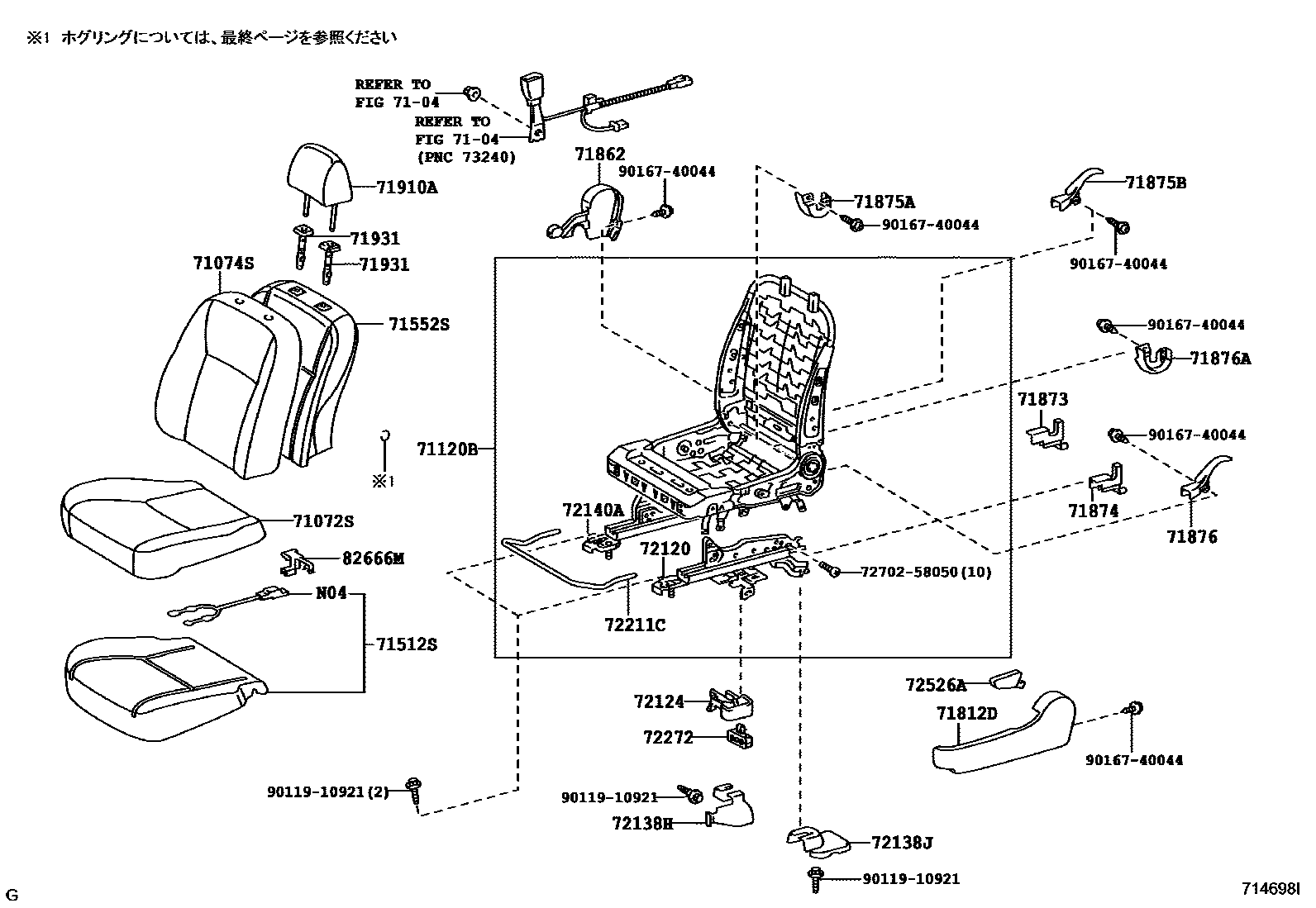

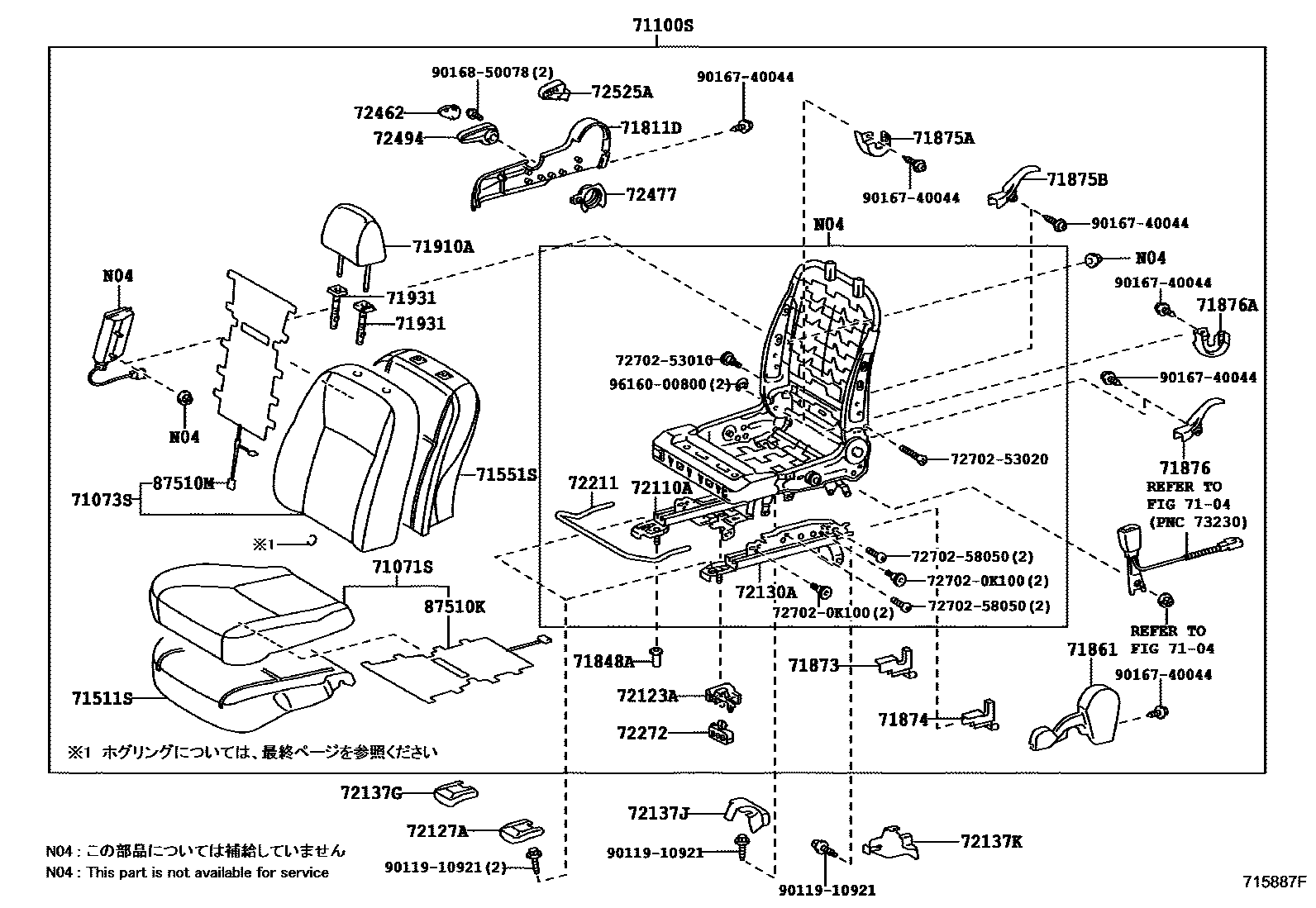

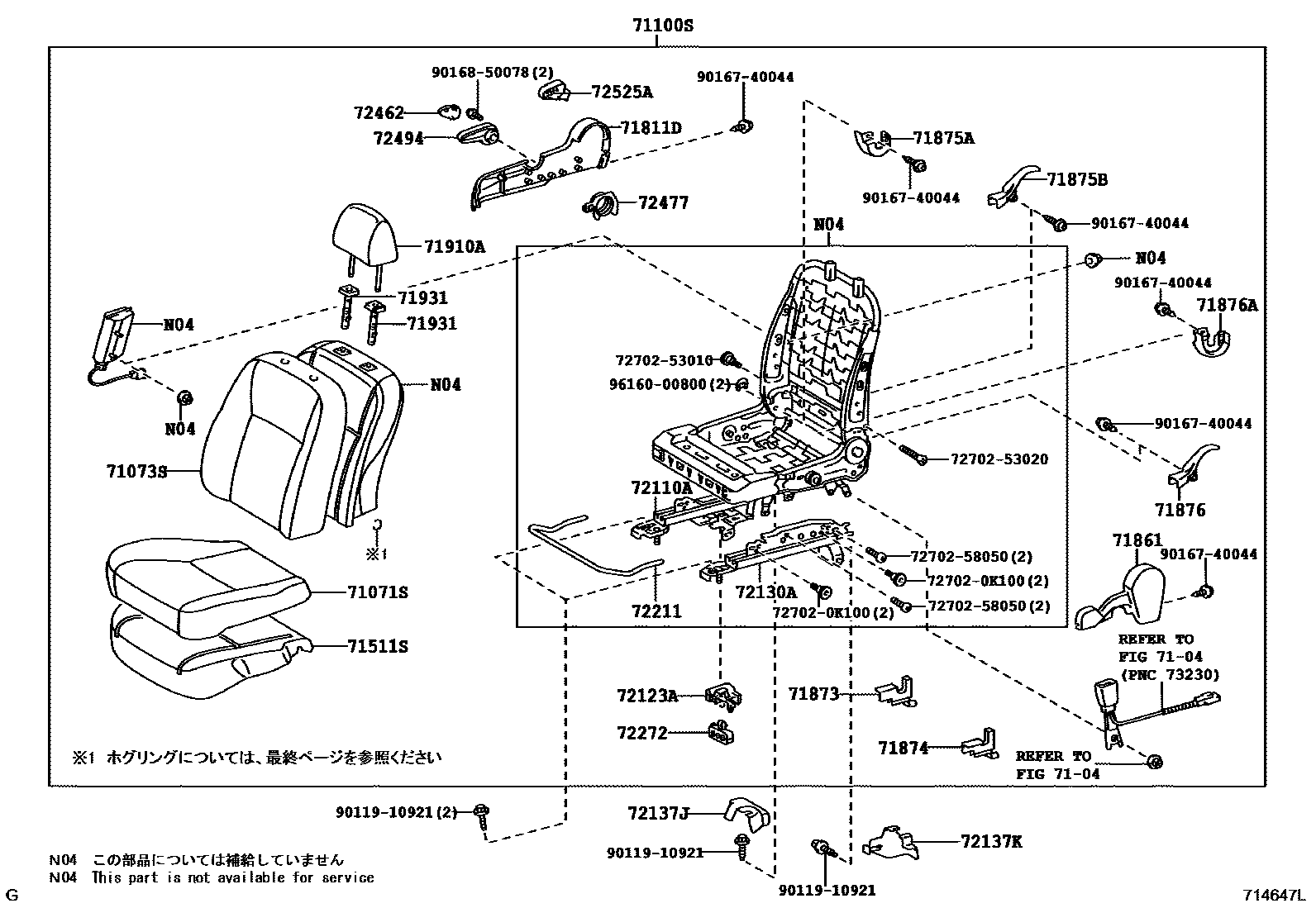

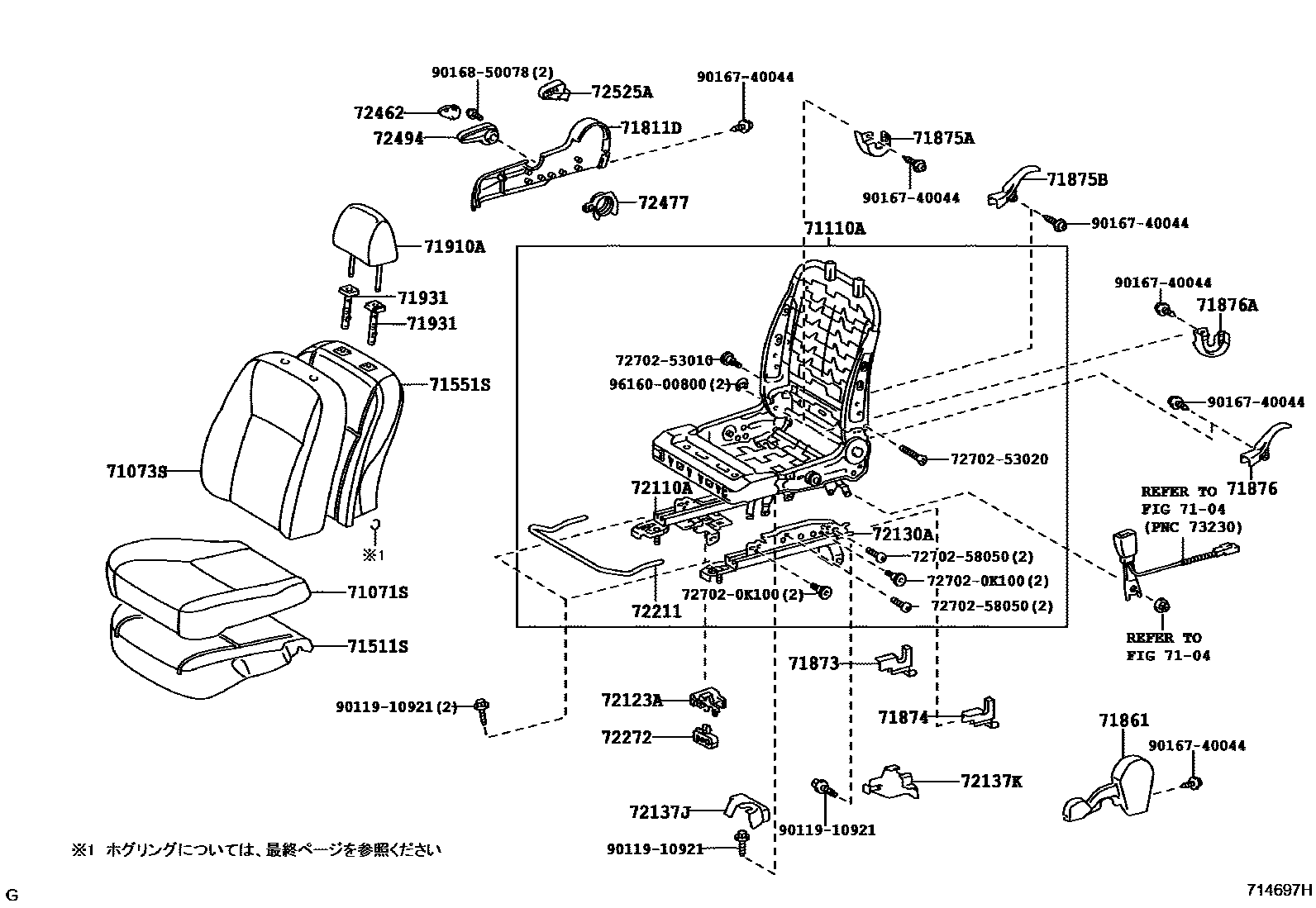

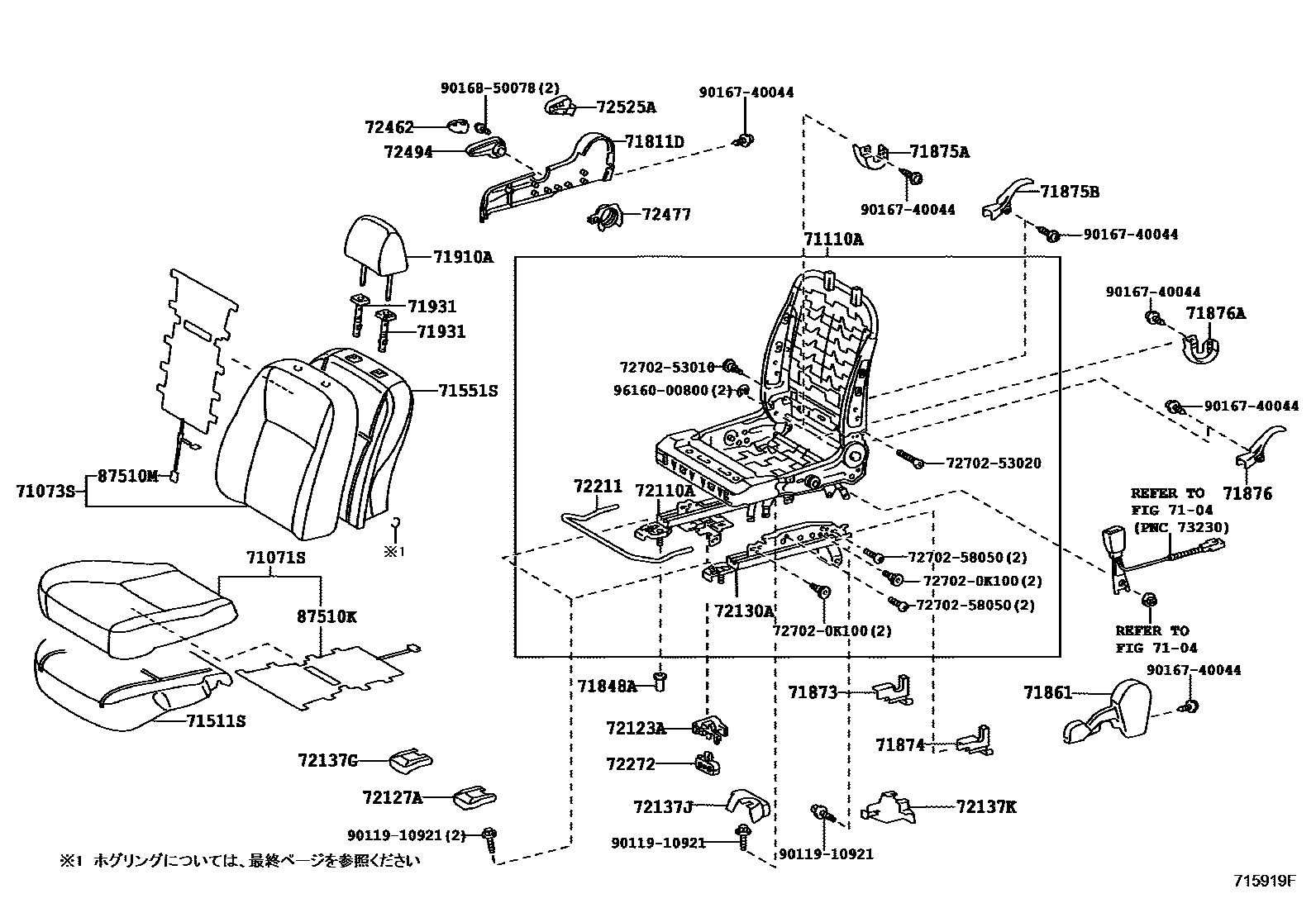

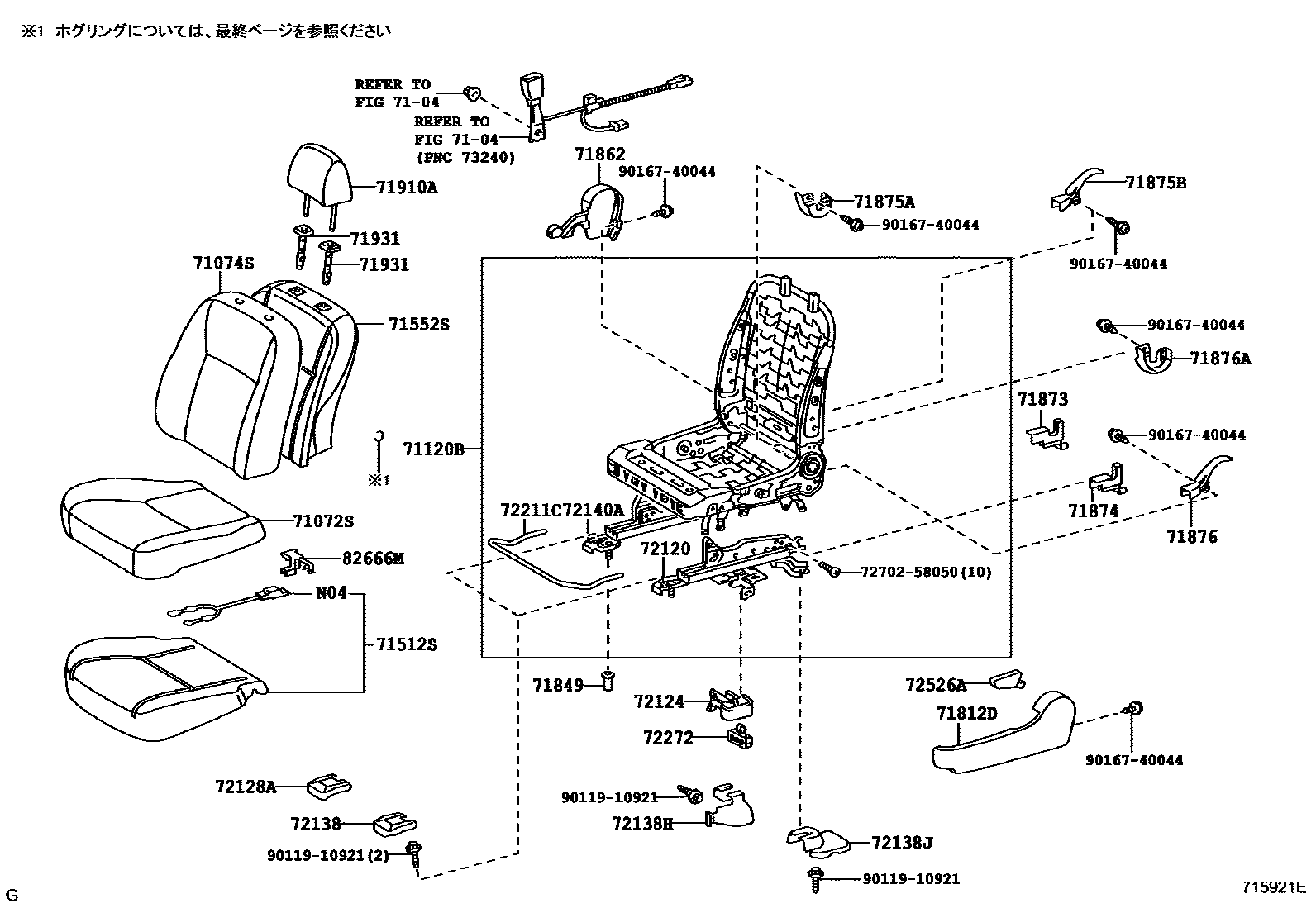

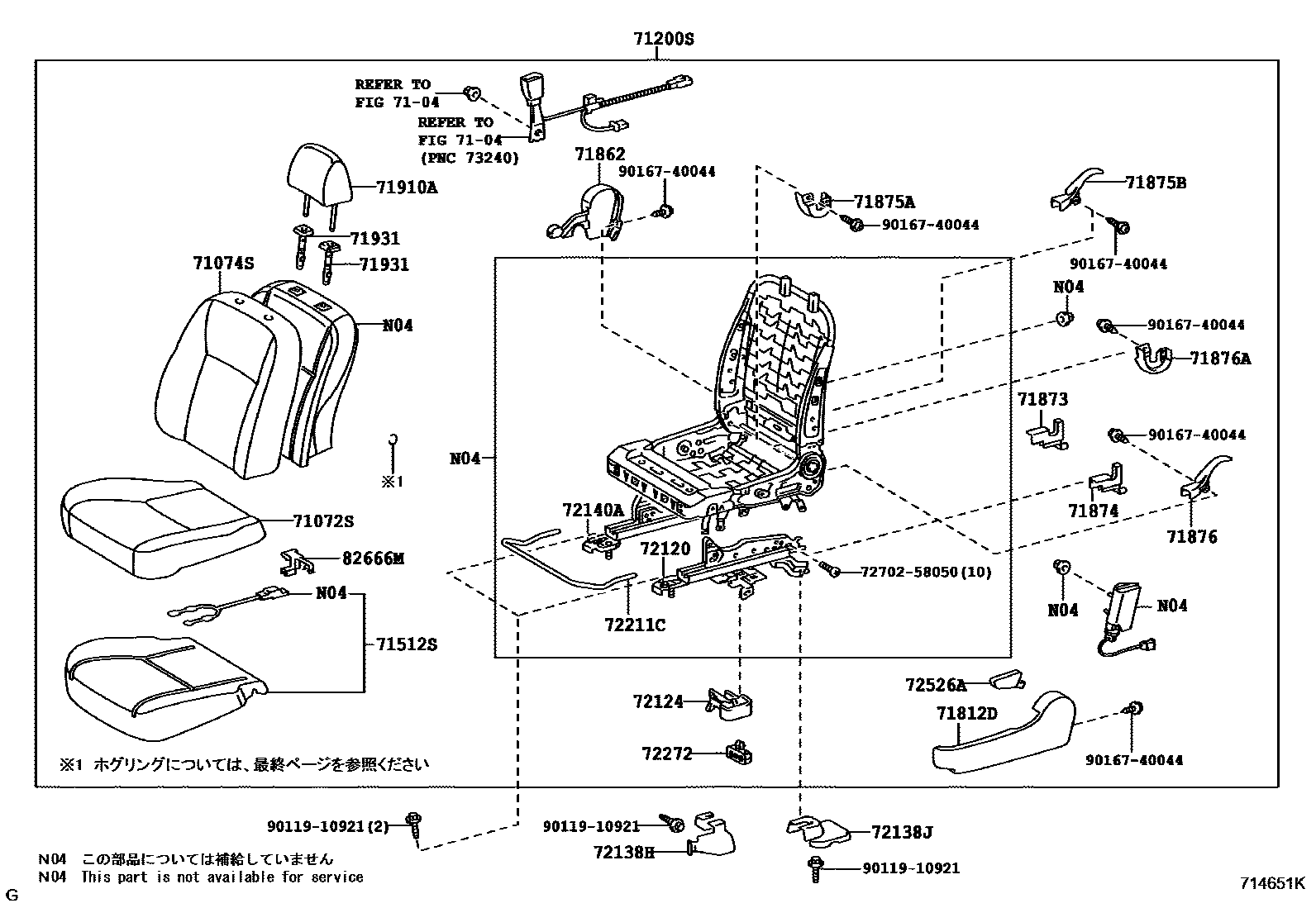

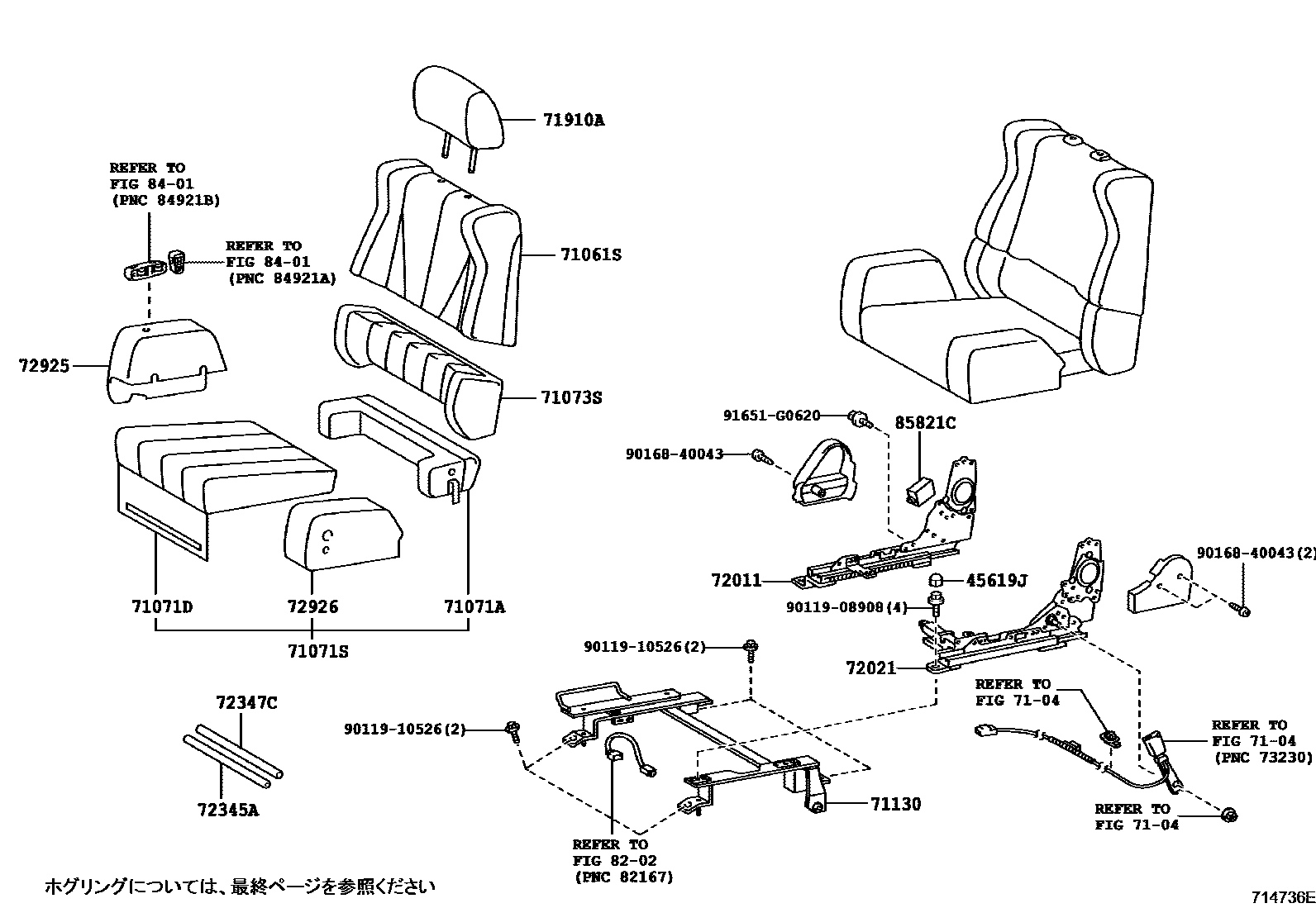

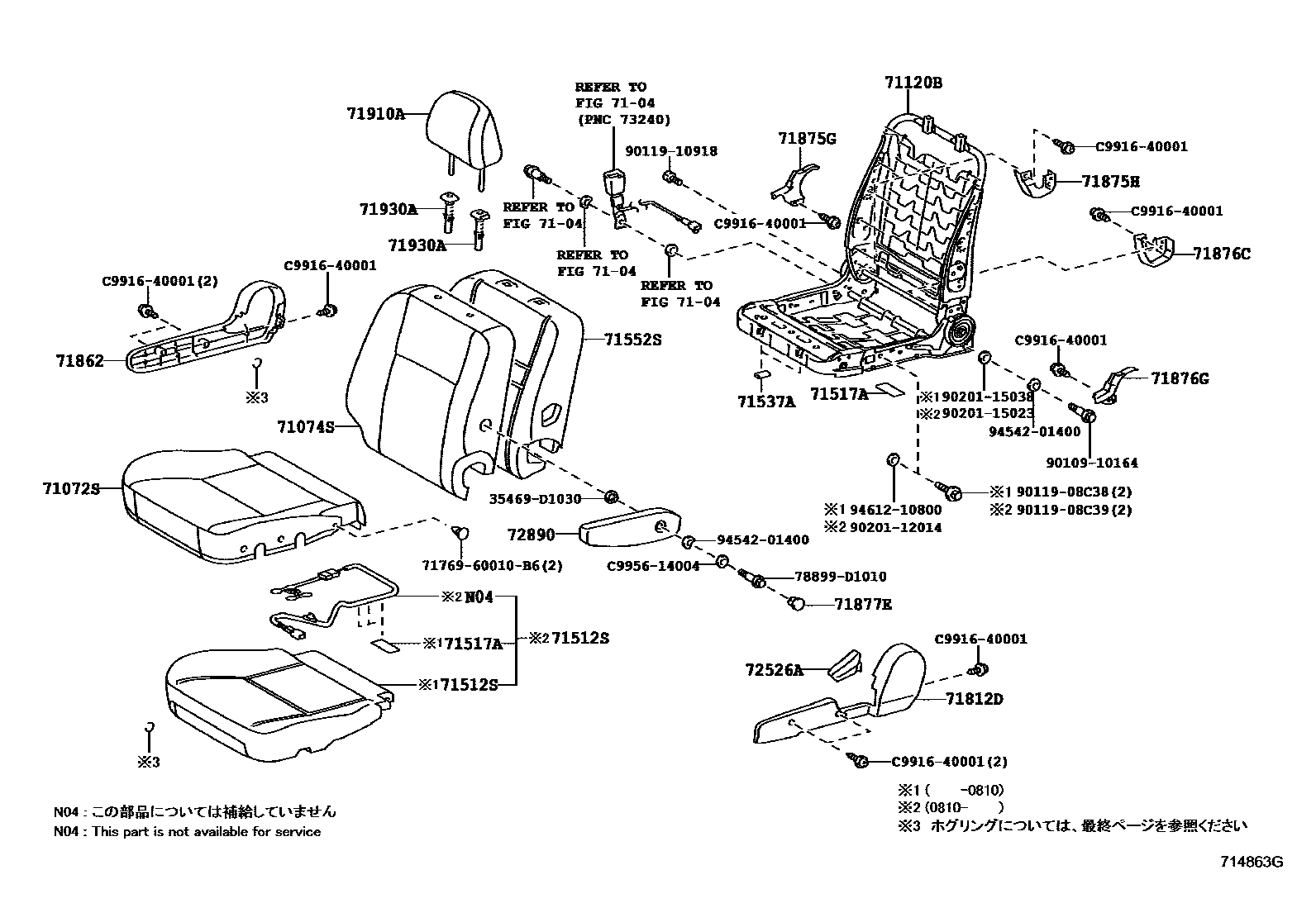

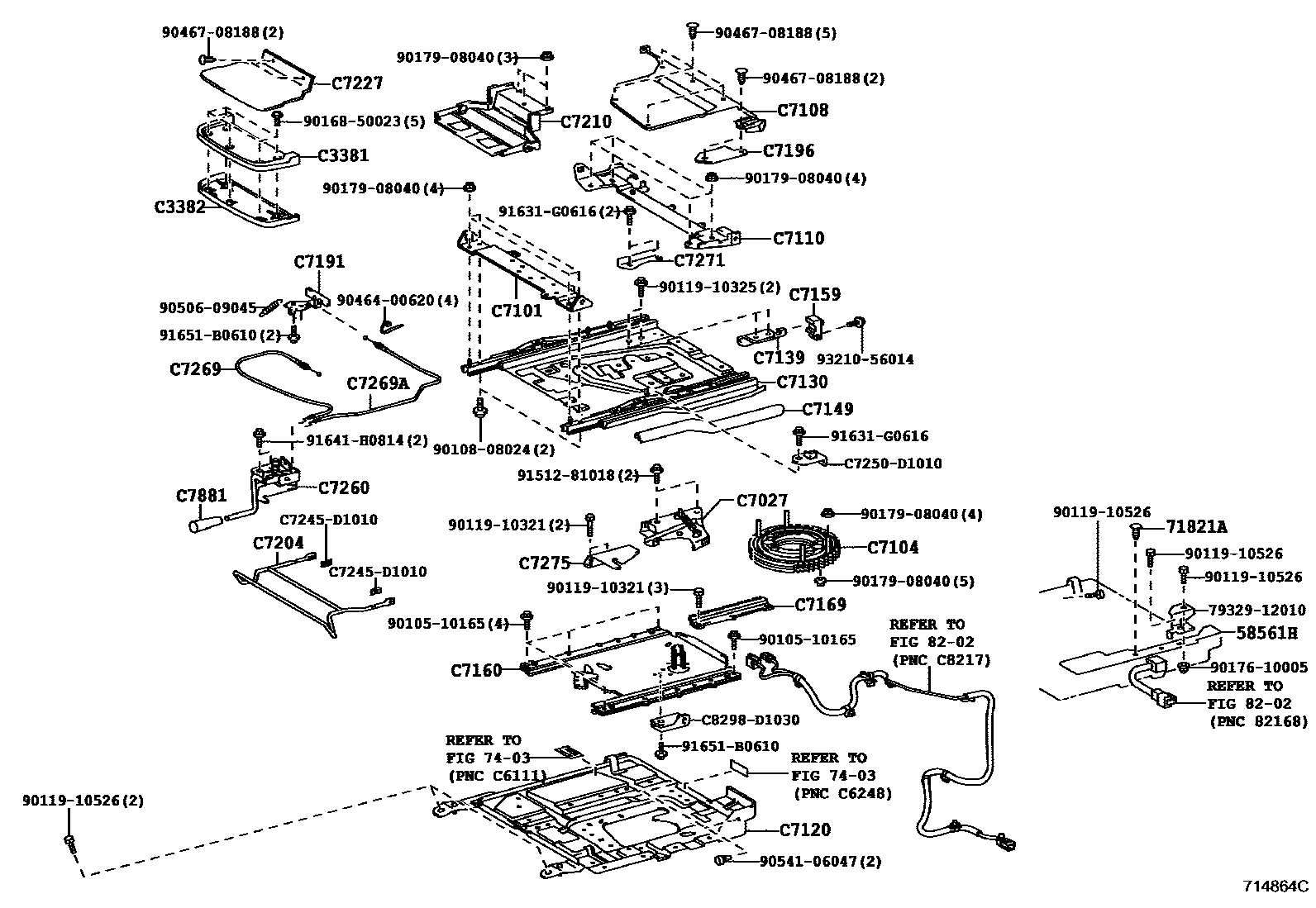

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 13 images and 86 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45619J | Steering knuckle stop cover | 45619-28020 |
| 71013S | Front right seat back frame sub-assembly | 71013-D1070 |
| 71108B | Front right seat leg sub-assembly | 71188-D1030 |
| 71110A | Front right seat (with adjuster) frame assembly | 71110-12070 · 71110-12150 · 71110-12170 · 71110-12200 · 71110-12220 · 71110-12490 · 71110-12510 · 71110-12530 |
| 71120B | Front left seat (with adjuster) frame assembly | 71120-12040 · 71120-12080 · 71120-12140 · 71120-12200 · 71120-D1170 · 71120-D1171 |
| 71130 | Front right seat leg assembly | 71130-12020 · 71130-12030 · 71189-D1040 · 71189-D1050 |
| 71149D | Front inner seat foot cover (for right seat) | 71149-D1160 |
| 71311 | Front seat hinge pin | 71311-D1040 · 71311-D1050 |
| 71377A | Front right seat bracket | 72141-D1040 |
| 71378 | Front left seat bracket | 72145-D1050 |
| 71379A | Front seat vertical handle stop | 71379-D1010 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-12A70 · 71511-12B10 · 71511-D1070 |
| 71512S | Front left seat cushion cushion (for split seats) | 71052-12080 · 71052-12090 · 71512-D1030 · 78735-D1100 |
| 71517A | Front seat cushion face protector | 71517-D1020 |
| 71522A | Front B seat cushion muffler | 71522-D1010 |
| 71522B | Front B seat cushion muffler | 71522-D1020 |
| 71537A | Front seat cushion protective cover | 71537-26010 |
| 71551S | Front right seat back cushion (for split seats) | 71551-12A60 · 71551-12A70 · 71551-13250 · 71551-13280 · 71551-D1080 |
| 71552S | Front left seat back cushion (for split seats) | 71551-D1070 · 71552-12420 · 71552-13150 · 71552-13160 · 71552-13170 |
| 71553B | Front B seat back cushion | 71553-D1020 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-D1040 |
| 71631 | Front seat back hook | 51970-D1032 |
| 71771A | Front seat back panel | 71771-D1010 · 71772-D1020 |
| 71793A | Front seat back pocket clips | 71793-58010 |
| 71848A | Right seat adjuster cover | 71848-26010 |
| 71849 | left seat adjuster cover | 71848-26010 |
| 71873 | Front right seat cushion lower guard panel | 71873-12060 · 71873-53030 · 71874-30020 |
| 71874 | Front left seat cushion lower guard | 71873-30070 · 71874-12060 · 71874-53010 |
| 71875A | Right backrest tilt adjuster inner cover | 71875-58060 |
| 71875B | Right backrest tilt adjuster inner cover | 71875-58050 |
| 71875H | Right backrest recliner inner cover (for left seat) | 71875-58060 |
| 71876A | Left backrest tilt adjuster inner cover | 71876-58050 · 71876-58060 |
| 71876C | Left backrest tilt adjuster inner cover | 71876-58060 |
| 71988A | Front seat 2 footrest | 71988-D1030 |
| 72011 | Front right seat outer adjuster sub-assembly | 72011-12320 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-D1020 |
| 72110A | Front right seat outer slide rail assembly | 72110-12150 · 72110-12220 |
| 72120 | Front left seat outer slide rail assembly | 72120-12190 · 72120-12280 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-12140 |
| 72124 | Front left seat outer slide rail bracket cover | 72124-12120 |
| 72127A | Front right seat inner slide rail bracket cover | 72127-12050 |
| 72128A | Front left seat inner slide rail bracket cover | 72128-12040 |
| 72130A | Front right seat inner slide rail assembly | 72130-12740 · 72130-12810 · 72130-12820 · 72130-12A30 |
| 72137G | Right seat outer slide rail cover | 72123-12170 |
| 72138 | Left seat outer slide rail cover | 72124-12150 |
| 72140A | Front left seat inner slide rail assembly | 72140-12690 · 72140-12780 |
| 72210 | Seat slide rail control cable assembly | 72688-D1020 |
| 72211 | Seat slide adjustment handle | 72211-21020 |
| 72211C | Seat slide adjustment handle | 72211-21020 |
| 72272 | Seat rail control cable clip | 72272-12020 |
| 72345A | Seat back recliner connecting tube | 72345-12080 |
| 72347C | Seat back angle connection hook cover | 72347-12050 |
| 72439 | Front left seat adjuster plate | 72439-D1010 |
| 72505B | Front right seat back lock sub-assembly | 72505-D1010 |
| 78077 | Auxiliary seat cushion plate sub-assembly | 78077-D1030 |
| 78803 | Auxiliary seat support sub-assembly | 78803-D1050 |
| 78970 | Seat lock strap assembly | 78970-D1010 |
| 79925 | Seat leg decorative panel | 79925-D1020 |
| 79959D | seat leg cover | 71693-60021 |
| 82666M | Connector holder | 82666-12420 |
| 85821C | Electric seat motor assembly | 85801-12010 |
| 87510K | Front right seat cushion heater assembly | 87510-12220 |
| 87510M | Front right seat back heater assembly | 87530-12010 |
| C3593 | Rear floor silencer No. 3 | C3593-22020 |
| C7027 | WELCAB seat rotation lock sub-assembly | C7027-D1100 |
| C7101 | Front seat anchor bracket sub-assembly | C7101-D1010 |
| C7104 | Seat turntable sub-assembly | C7104-D1011 |
| C7108 | Turntable cover assembly | C7108-D1010 |
| C7110 | Rear seat anchor bracket sub-assembly | C7110-D1010 |
| C7120 | No. 1 WELCAB seat support | C7120-D1640 |
| C7130 | Turntable plate assembly | C7130-D1010 |
| C7139 | hook bracket | C7139-D1010 · C7139-D1480 |
| C7149 | Left turntable plate edge protective cover | C7149-D1060 |
| C7159 | WELCAB seat leg stop block cushion pad | C7159-D1090 |
| C7160 | Sliding plate assembly | C7160-D1060 |
| C7169 | sliding plate rack gear | C7169-D1011 · C7169-D1040 |
| C7191 | Seat anchor linkage bracket | C7191-D1010 |
| C7196 | Turntable cover No. 1 | C7196-D1040 |
| C7204 | WELCAB seat slide handle sub-assembly | C7204-D1030 |
| C7210 | WELCAB seat footrest assembly | C7210-D1080 |
| C7260 | Seat rotation lock handle assembly | C7260-D1010 |
| C7269 | Seat rotation lock release cable | C7269-D1010 |
| C7269A | Seat 1 rotation lock release cable | C7269-D1020 |
| C7271 | Interlocking upper bracket | C7271-D1010 |
| C7275 | No. 1 lock plate | C7275-D1011 |
| C7881 | Control linkage handle | C7881-22040 |
